Introduction
To analyse how the properties of a moving fluid evolve as a function of time, we can proceed in two different ways. We can study the fluid as it flows in front of us (e.g., by using a moored set of instruments), which is known as an analysis in a Eulerian reference frame. Or we can imagine to be moving with a particular parcel of the fluid and study how the properties of this parcel evolve with time (e.g., by collecting measurements from a surface drifter): this is called an analysis in a Lagrangian frame of reference (or “Lagrangian analysis”). Thus, while variations observed within a Lagrangian reference frame are purely temporal (i.e. occurring within a given water parcel as it flows along its trajectory), those observed in a Eulerian reference frame are not, because they are also due to the variations between the different water parcels that flow through the fixed point of observation.
In the ocean, these two types of analyses can generate significantly different results, depending on the strength of the currents relative to the size of the geographic area under exam, the duration of the study, and the strength of the local spatial gradients of the property being investigated. When current speeds are slow with respect to the ratio of the spatial to the temporal scales of the study, and the horizontal gradients are weak (i.e. small variations between the area of observation and its surrounding), Eulerian and Lagrangian approaches are expected to deliver similar results. Conversely, when the speed of the water masses is comparable to or greater than the ratio of the spatial to temporal scales of the investigation, and the gradients are strong (i.e. large variations within the area of observation), results from Lagrangian and Eulerian analyses will, in principle, differ.
For example, given a surface water mass with a typical velocity υ = 5 cm/s (Lumpkin & Johnson, 2013), and strong variations of a water property over horizontal scales of 100 km, one could ask the question "If I want to analyse the evolution of the properties of this water mass over a temporal scale τ = 1 month, should I be considering a Lagrangian approach?". Since during such a study the water mass would move by a distance σ = υ/τ ≈ 130 km (which is larger than the spatial scale of the horizontal gradients), the above reasoning will lead us to conclude that a Lagrangian approach would be appropriate. Indeed, with a Eulerian approach, our observations would also include the variations induced by the advection of water masses with different properties from the original one. In more energetic regions, with υ = 25 cm/s, the distance traveled by the water parcel would increase to >650 km, and hence a Lagrangian approach would be required even in presence of weaker horizontal gradients. Naturally, this rule of thumb should be used as a very first-order indicator to decide the reference frame in which the analysis should be implemented.
Although Lagrangian analyses have been traditionally applied by physical oceanographers to investigate ocean circulation and tracer dispersion (e.g., Blanke et al., 2001; Döös, 1995), in recent years they have also emerged as an important tools for biological and biogeochemical studies. Lagrangian analyses can be used to determine the source and fate of a water mass sampled from a ship or by an autonomous platform, thus providing a dynamic framework for interpreting in-situ data and optimising field campaigns (e.g., d'Ovidio et al., 2015) or to follow the evolution of biogeochemical properties detected in satellite data while separating changes due to advection from those due to biological processes (Jönsson et al., 2009; Lehahn et al., 2011). Furthermore, Lagrangian analyses can be used to infer how spatially-separated components of a basin are connected by currents and how this connectivity impacts the life cycles of crucial ecosystem components (Falcini et al., 2020; Raitsos et al., 2017). These are only some examples of a vast array of applications. However, so far, Lagrangian analyses have been restricted to “expert users”, who can convert velocity fields into Lagrangian trajectories.
Here, we present a new product of pre-computed ocean Lagrangian trajectories (OLTraj) that should allow non-expert users to more easily implement Lagrangian analyses. Below we describe how OLTraj was derived and we demonstrate how to use it by providing three practical examples.
Data and methods
Input velocities
The Ocean Lagrangian Trajectory product (OLTraj) was computed using reprocessed global daily multi-mission altimeter-based surface geostrophic velocities obtained from the Copernicus Marine Services archive from January 1998 to December 2019, gridded at 0.25° × 0.25° resolution (Copernicus). This period was selected to overlap with the years of the available satellite ocean-colour observations.
Calculation of trajectories
OLTraj was generated using the LAgrangian Manifolds and Trajectories Analyser (LAMTA), originally developed by d’Ovidio et al. (2004) and subsequently described in van Sebille et al. (2018). See section Software availability. The LAMTA code has been previously applied in support of in-situ Lagrangian experiments (d'Ovidio et al., 2015; Nencioli et al., 2011) as well as satellite-based studies (e.g., to track Agulhas rings, Nencioli et al., 2018). In OLTraj, trajectories are computed using a fourth-order Runge-Kutta scheme with an integration time step of six hours. During the integration, the geostrophic velocity fields are bi-linearly interpolated in space and linearly interpolated in time. For each day, we computed trajectories at a resolution of 1/8th of a degree in both latitude and longitude. Each trajectory extended backward and forward in time for 29 days.
How Lagrangian trajectories are stored
The OLTraj product is stored in daily NetCDF-4 files. Each file contains the variables trajlat and trajlon that are the coordinates of the Lagrangian trajectories (latitude and longitude, respectively). trajlat and trajlon have three dimensions: lat, lon and time. time is of length 59, and its central time element (time(30), hereafter t0) is the time from which the Lagrangian trajectories are computed forward (from t0 to t0 + 29 days) and backward (from t0 to t0 − 29 days). t0 corresponds to the time reported in the file name. lat and lon are the starting locations of the trajectories at t0 (before backward or forward advection). Hence, at t0 trajlat=lat and trajlon=lon. Elements 1 to 29 along the time dimension of trajlat and trajlon contain the coordinates of the backward trajectory. Thus, trajlat at time(29) contains the latitude values of the trajectory at t0 − 1 day, at time(28) that at t0 − 2 days, and so on until time(1) corresponding to t0 − 29 days, i.e., the last day of the backward trajectory. In the same way, the latitude values of the forward trajectory are stored in the trajlat elements 31 to 59. Similarly, the longitude values of the trajectory are stored in trajlon.
How to access the OLTraj product
The OLTraj files were deposited as version 2.2 in open-access format at the UK Centre for Environmental Data Analysis (CEDA) archive. All files can be freely downloaded, but due to their relatively large sizes (~850 Mb each), we recommend accessing and subsetting them using the provided THREDDS data server (see README file).
Examples
To demonstrate how to use the OLTraj product, we provide three practical examples as jupyter notebooks. These require the user to clone a publicly available repository and follow the instructions provided in the README file (see Software availability).
Example 1: Plotting trajectories around a fixed-point station. The objective of this first example is to extract and plot the surface trajectories of the water masses sampled at a fixed-point station (e.g., the Bermuda Atlantic Time Series). These trajectories can be used to better understand the origin of the water masses sampled at the station and hence better interpret the variability observed in the time series. The coordinates of the station are used to extract OLTraj trajectories during each month of the year. Figure 1 presents the result of this example showing how surface water masses move differently during the year.

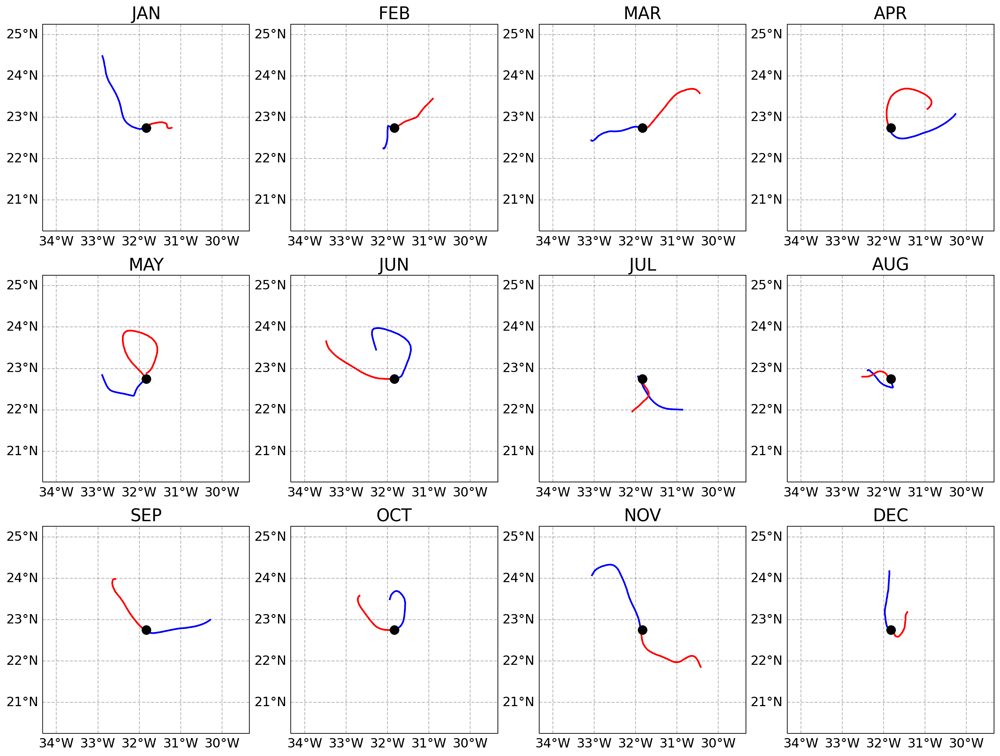

Figure 1. Backward (blue lines) and forward (red lines) trajectories of the water masses sampled at the fixed-point Bermuda Atlantic Time Series (BATS) station (black circles) during different months of year 2018 (presented in the different subplots).
Each trajectory extends for 29 days backward and 29 days forward. The trajectories were extracted from the central day of each month.
Example 2: Extracting and plotting backward and forward trajectories along a cruise track. The objective of this example is to plot the surface trajectories of the water masses sampled during a hypothetical research expedition. This information is particularly important because it can be used to better interpret the station-to-station variability measured during the expedition. The time and coordinates of the stations sampled during the expeditions are read from a text file and are then used to read and subset the corresponding OLTraj trajectories. Figure 2 presents the result of this example showing how different water masses along the expedition moved before and after they were sampled.

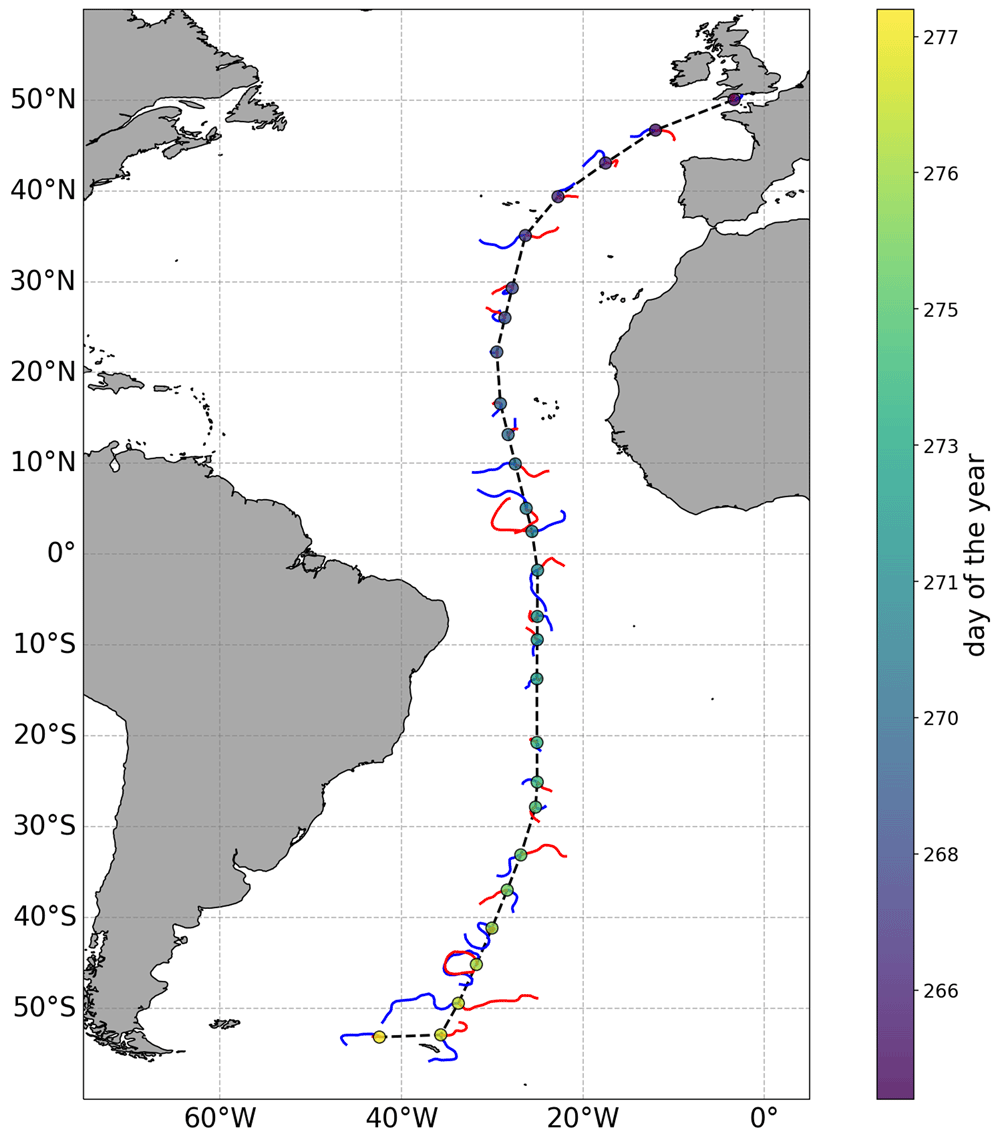

Figure 2. Backward (blue lines) and forward (red lines) trajectories of the water masses sampled at selected stations (circles, colour indicates the day of the year of each station) along the track (black dashed line) of a research expedition.
Each trajectory extends for 29 days. Longer trajectories indicate that the sampled water masses were moving faster than those with shorter trajectories.
Example 3: Following the evolution of a water mass over time. The objective of this example is to demonstrate how the temporal evolution of the properties of a given surface water mass can be tracked in a Lagrangian framework. Specifically, the example focuses on demonstrating how the chlorophyll concentration (chl) measured at a given location evolved before and after the initial observation as the water masses moved. We start by assuming we have observed a chl feature in a given image (Figure 3). We now want to understand how this feature evolved before and after our initial observation at time 2006-01-15. To do so, we first extract the OLTraj product at that date and then select the starting points (trajlat and trajlon at time(30)) for the trajectories that overlap with the feature (red squares in Figure 4). We then interpolate the chl data in time and space over the OLTraj Lagrangian trajectories in order to extract the chl values at the locations that the water mass occupied before and after the initial observation. We can finally plot the values of chl along the Lagrangian trajectories (Figure 5 top) and compare them with the values of chl we would have obtained by extracting time series of chl from the locations of the initial observation (Eulerian time series, Figure 5 bottom). The example also generates an interactive figure where the location of the Lagrangian parcels can be visualised over the corresponding chl image at any date for 29 days before and after the initial observation.

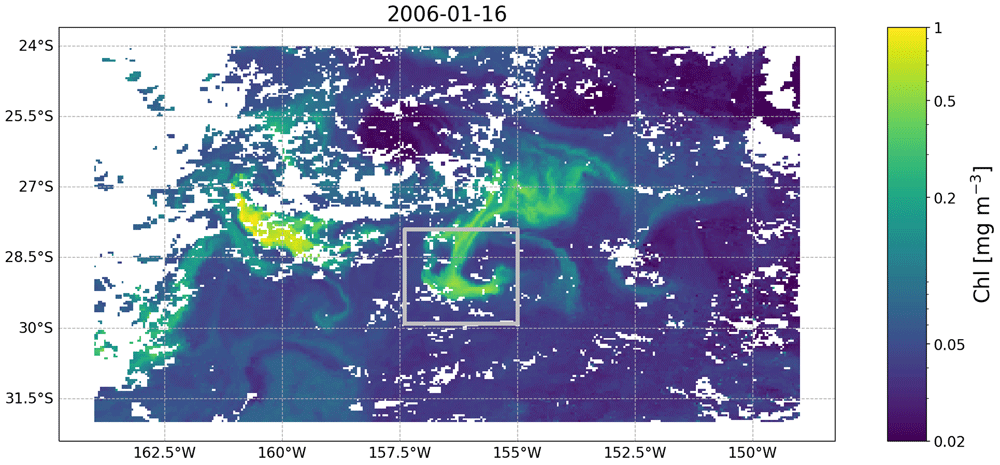

Figure 3. Satellite image of chlorophyll concentration (from the European Space Agency’s Ocean Colour Climate Change Initiative project) taken on 2006-01-16 south east of Madagascar and containing the feature we focus on in Example 3.
The feature is the relatively high chlorophyll (i.e., 0.2 mg m−3) patch within the silver rectangle. White patches are clouds obscuring the image.

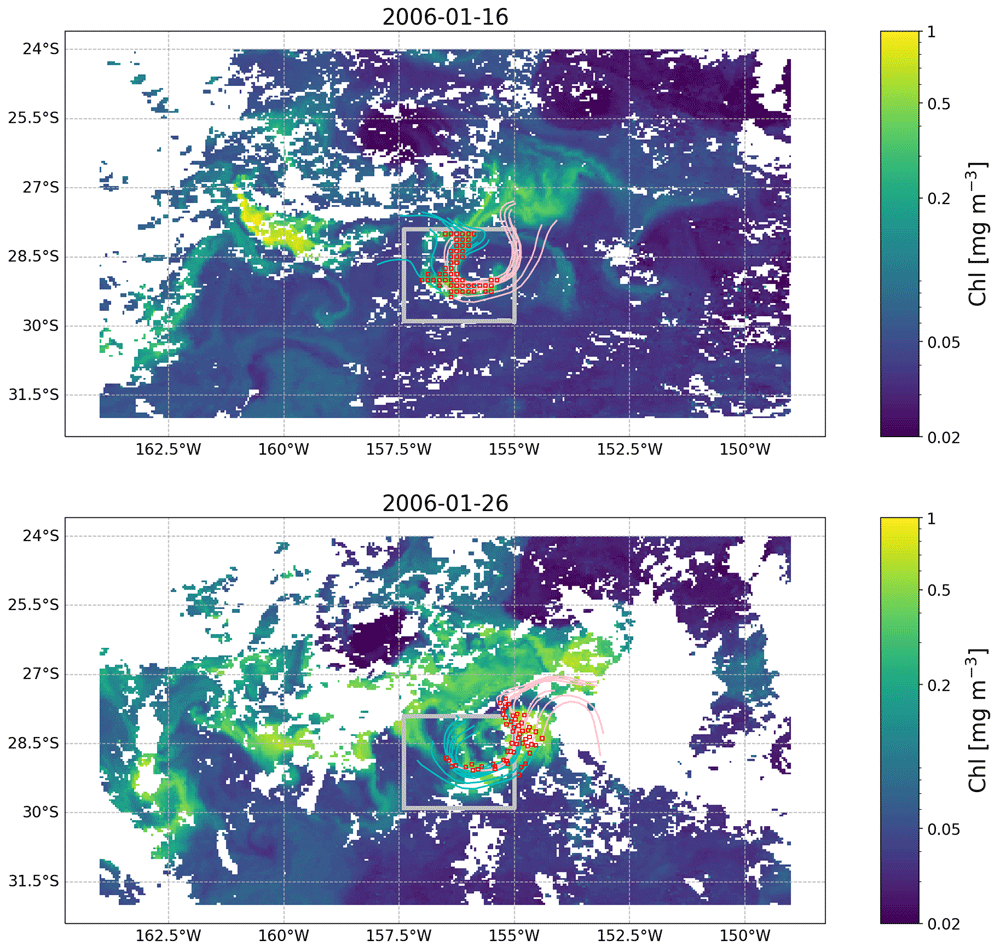

Figure 4. OLTraj product (red squares) matching in time and space the feature observed in the image of Figure 3 on 2006-01-16 (top) and 2006-01-26 (bottom).
Some of the backward (cyan lines) and forward (pink lines) Lagrangian trajectories are plotted for each snapshot. Each trajectory extends for 15 days. White patches are clouds obscuring the image.

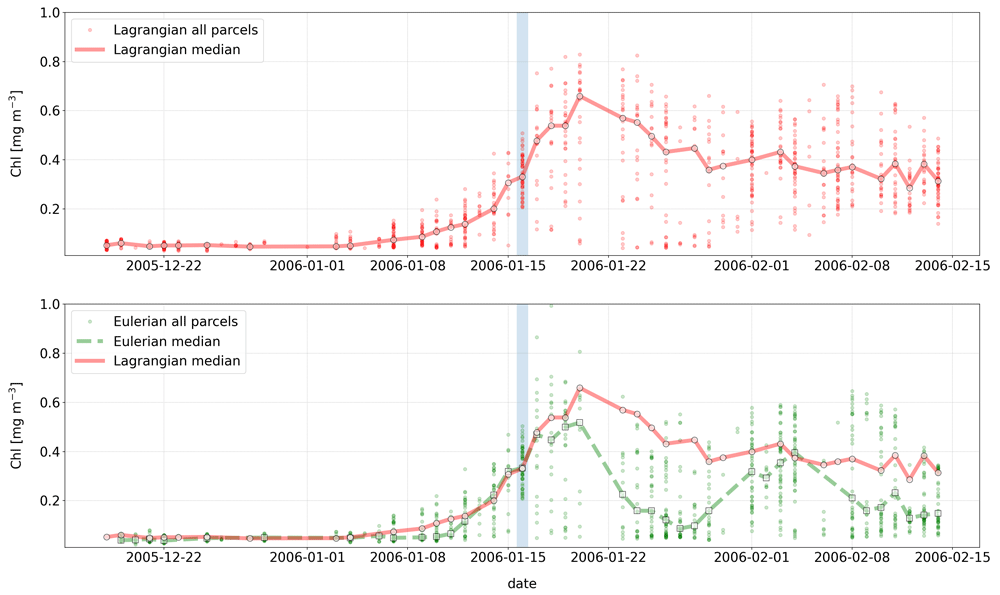

Figure 5. Comparison of chlorophyll concentrations extracted from the Lagrangian (top plot) vs. Eulerian (bottom plot) time series.
Small red circles and continuous line represent the chl values extracted along the Lagrangian trajectory of each water parcel and their median (also marked with larger red circles), respectively. Green small circles and dashed line represent the Eulerian time series, i.e., chl values extracted at the location of the initial observation (light blue vertical bar) and their median (also marked with larger green squares), respectively. For both time-series, medians were computed for a given date only if at least 10 of the 54 points were associated with valid chlorophyll observations (i.e. not with cloud pixels). The bottom plot demonstrates the differences in the median Eulerian (green dashed line) and Lagrangian (red continuous line) time series.
Dataset validation
Advantages
OLTraj was created to encourage, when needed, non-expert users to interpret in-situ and satellite observations by taking into account that surface water masses move. OLTraj provides pre-computed Lagrangian trajectories, which allow non-experts to skip this computing step and focus on analysing their data in a Lagrangian framework. Furthermore, we provide Python examples to demonstrate how to use OLTraj in practical and common applications. A final but important advantage of OLTraj is that it is based on satellite-derived geostrophic velocities. Thus, OLTraj has better spatio-temporal coherence with other satellite products, such as ocean colour, than modelled velocities.
Limitations
We do not intend to promote OLTraj as the ultimate tool for Lagrangian analysis. Many other state-of-the-art methods are available (van Sebille et al., 2018). Instead, the focus of OLTraj is to broaden the application of Lagrangian analysis to non-physical oceanographers. As such, OLTraj has several limitations.
One of the main limitations is inherent in its nature. Being a set of pre-computed trajectories, OLTraj has pre-defined spatial resolution (1/8°) and temporal extent (±29 days). These spatial and temporal characteristics were defined based on a trade off between the number and length of the trajectories computed and the size of the dataset produced that consists of daily files spanning over 22 years (the current overall size is approximately 6.3 Tb). To reduce the burden of storing the entire dataset in a local machine, we have exploited the UK CEDA THREDDS server, which allows one to subset the data before downloading them. Access via the THREDDS server is however necessarily slower than reading files stored on a local machine. We therefore encourage the users to assess if local or THREDDS access is needed for any specific analysis. The overall length of the dataset (1998–2019) was decided based on the extents of i) the satellite ocean-colour record and ii) of the reprocessed gridded geostrophic velocity product when the OLTraj product was computed.
The pre-defined length of the OLTraj product (±29 days) could potentially be seen as another limitation. Yet, methods could be devised to combine multiple OLTraj files and estimate longer Lagrangian trajectories.
OLTraj trajectories are as good as the velocities from which they are derived. Although accurate in the open ocean, the gridded geostrophic velocities used to compute OLTraj have limitations near the coast (i.e., within ~50 km from the shore; e.g., Bouffard et al., 2010; Nencioli et al., 2011; Volkov et al., 2007). These are in part due to technical limitations of satellite altimeters near the coast (Vignudelli et al., 2019), and in part due to the methodologies used to grid the multi-satellite along-track observations which, although recently improved in the coastal region, are optimized for the open ocean (Taburet et al., 2019). For these reasons, OLTraj should be used with caution in coastal regions.
Finally, the current version (v2.2) of the OLTraj product is derived from satellite-based geostrophic velocities and therefore only accounts for the mesoscale (i.e. O(100 km)) currents resulting from the balance between the pressure gradient and the Coriolis force. Additional non-geostrophic currents are not included in the CMEMS surface velocities and hence nor in OLTraj. These currents are i) currents due to wind stress on the surface ocean (such as Ekman currents and near-inertial oscillations), ii) tidal currents, iii) currents induced by waves (stokes drift) and iv) the currents associated with ageostrophic processes typically occurring at scales of O(≤10 km).
Software availability
Source code to compute OLTraj available from: https://github.com/grgdll/OLTraj
Archived source code at time of publication: https://doi.org/10.5281/zenodo.5082983
The repository for the examples is: https://github.com/grgdll/OLTraj_examples
Archived source code at time of publication: https://doi.org/10.5281/zenodo.5518531
License: CC BY 4.
