1. Introduction
The Square Kilometre Array Observatory1 (SKAO) and its distributed network of SKA Regional Centres1 (SRCNet) face unprecedented challenges in managing data scale and movement, with SKA data volumes expected to reach exabyte levels2. The SKAO Data Lake is orchestrated with Rucio3, a policy-driven data management system that automates replication, placement, and lifecycle control across heterogeneous storage infrastructures. In Rucio, data are persisted in Rucio Storage Elements (RSEs), logical storage endpoints that abstract diverse backends (e.g., Ceph4, dCache5, EOS6, and cloud object stores) under a unified namespace. Crucially, replicating every dataset to all RSEs is infeasible at SKA scale due to storage, bandwidth, and operational costs7. Instead, datasets must be placed selectively on a minimal subset of SRCs (via their local RSEs) to balance scientific demand against resource constraints.
Access to these data and the associated compute capacity is provided, among others, through the SRCNet Science Gateway, which integrates data discovery, resources selection, and orchestration of data processing across SRC nodes8. Within representative SRCNet use cases9, scientists can launch science services — such as Jupyter Notebooks or visualisation tools — on the infrastructure where the data physically reside—typically the local RSE at a chosen SRC. However, because RSEs expose a storage abstraction optimised for global data management rather than user-facing run-times, datasets residing in an RSE are not directly visible or consumable by end-user applications. Local SRC nodes therefore require a mechanism to deliver data from the RSE into user workspaces (e.g., home directories or service-attached paths) in a way that is both functional and efficient for analysis, visualisation, and processing tools.
A straightforward mechanism is to copy the requested data from the local RSE into the user area prior to execution. While operationally simple, this approach incurs duplication overheads, can introduce non-negligible preparation latency for large files, and exerts sustained pressure on user quotas and shared storage—particularly under concurrent demand. Although adequate for testing or low-volume scenarios, it is unlikely to remain viable at the operational scale foreseen for SRCNet.
SRCNet prototyping teams developed PrepareData, a service designed to deliver data from the RSE to the user workspaces, initially based on the copy strategy but open to include other additional strategies. In this context, we have designed and developed a local data-delivery strategy that avoids wholesale copying by exposing RSE-resident datasets within user workspaces. First, operating-system–native mechanisms (symbolic links and mount --bind) enable efficient linking from the RSE into user workspaces-visible paths. Second, Kubernetes-native mechanisms (based on Persistent Volumes and Persistent Volume Claims, PVs/PVCs) allow per-user dataset attachment within orchestrated services. Together, these approaches support both standalone services (e.g., SLURM-based workflows and other non-orchestrated applications) and Kubernetes-hosted environments (e.g., CANFAR10, visualisation tools, Jupyter Notebooks or virtually any Kubernetes service) without duplicating data. This design is shaped by the need to accommodate heterogeneous computing and ser-vices, and data storage environments, aiming to minimize redundant transfers within the local SRCNet nodes and fostering the adoption of mechanisms aligned with green computing.
These resulting mechanisms enable an end-to-end workflow in which scientists can select an SRC through the Science Gateway, run analyses close to the data at the local RSE, and seamlessly access those datasets from their runtime environments. By combining these selective data placements across RSEs with local delivery mechanisms that eliminate redundancy, PrepareData bridges the gap between global data management and user-centric execution, providing a scalable and operationally efficient solution to consider given the performance requirements of SKA-scale science.
This paper is organised as follows. Section 2 provides an overview of existing approaches for user data provisioning within large-scale scientific infrastructures, high-lighting current limitations and motivating factors. Section 3 presents the architectural landscape of the SRCNet, outlining the operational and technical requirements that drive the need for the PrepareData service. The development, functional components and integration of the proposed solution are described in Section 4, including the data delivery strategies and modular architecture. Test experiments and performance results are presented in Section 5. Finally, Section 6 discusses future directions, including support for hybrid deployment models and interoperability across distributed RSEs.
2. Related work
The delivery of large-scale scientific datasets to users is a recurring challenge in Big Science platforms such as SKAO11, LOFAR12, and other observatories. A foundational contribution in this domain in 13, presents a scalable data delivery framework for astronomical observatories. Their system implements automated staging, user-aware transfer policies, and metadata tracking while reducing redundant copying—principles that align closely with the goals of PrepareData.
Several large-scale scientific collaborations have developed specialized data management systems to address the challenges of data duplication and efficient user access. ATLAS3 experiment at CERN, developed Rucio to manage over a billion files across more than 120 data centres, facilitating policy-driven data placement and minimizing unnecessary data replication5. In ATLAS, data were organised into a very large number of relatively small files, a granularity well suited to replication across distributed storage. By contrast, SKAO products will consist of much larger files (≈ TB), making replication to every RSE prohibitively costly in both storage and bandwidth. Another approach working at CERN based on EOS14 storage system, combined with CERNBox, offers users synchronized access to their data across various platforms, reducing the need for redundant data transfers. Another example is the dCache service, used by DESY2 and Fermilab3, where it provides a unified virtual filesystem that allows seamless access to distributed datasets without the need for multiple copies15 but within the context of High Energy Physics. For instance, in another science context16 proposes a memory-based caching mechanism that mitigates file system contention and accelerates data availability using in-memory staging on compute nodes. Similarly17 introduces a scalable service for petascale systems, enabling intermediate staging from compute nodes to dedicated staging nodes before final persistence.
Additional other contributions address complementary needs in data workflows. For instance18, explores the seamless integration of interactive Jupyter workflows with distributed datasets via shared file systems, while in 19 evaluates the performance characteristics of different storage backends in large-scale image analysis pipelines, highlighting trade-offs between latency, throughput, and data isolation.
Beyond domain-specific platforms, the broader literature emphasizes key requirements for efficient data access in scientific infrastructures. Deduplication has been proposed as a critical energy-saving and scalability mechanism in cloud and distributed storage environments. The DD-ECOT framework20 demonstrated up to 92.8% storage reduction via chunk-level deduplication in parallel processing contexts, significantly lowering bandwidth and storage costs. Khan et al.21 describe a fault-tolerant, cluster-wide deduplication implementation in Ceph environments, showing high robustness and near-optimal space savings with minimal performance impact. Such approaches directly support the green-computing vision by reducing redundancies and operational energy usage. Furthermore, the energy-efficient storage architecture proposed in 22 uses online deduplication for VM image stores, reporting a reduction of up to 66% in energy consumption while preserving performance, an indication of how data preparation strategies that avoid duplication can contribute to sustainability.
At the orchestration level23, propose a time-driven data placement strategy that combines edge and cloud computing to minimize data transfer latency, adapting the placement dynamically based on bandwidth and storage constraints. While their context differs, the principle of bringing computation close to data resonates with the “move computation to data” model adopted in SRCNet.
Within green computing research, general principles like reuse, reduction, and support —Green Data Mining— have emerged as design tenets for sustainable data workflows24. These works illustrate the importance of reducing data duplication, supporting heterogeneous back-end infrastructures, enabling lifecycle-aware access control, and integrating robust user authentication and authorisation. They provide strong motivations and justification for the architecture behind PrepareData, which couples RESTful API interaction, asynchronous state management, and modular backing implementations to deliver efficient, scalable, and environmentally-conscious data delivery in distributed scientific environments like the SRCNet.
3. Problem statement
While the SRCNet has 16 member countries, its initial phase is focused on the more advanced initiatives from nine countries, notably including the Spanish SRC25. Each imitative is setting up an SRC that will collectively deliver access to around 700 PB of data per year to the global SKAO user scientist community. As the volume and complexity of scientific data continue to grow across distributed research infrastructures, ensuring efficient, scalable, and user-transparent data delivery mechanisms has become a critical challenge.
An initial phase of the work focused on enabling user access to data through the deployment of a Rucio-based datalake and the development of connectors for both interactive tools and batch processing environments. This provided a preliminary solution for transferring data from the RSE to the user workspace, but also exposed several limitations related to data distribution and repeated data movement to the local sessions. To address these issues, subsequent efforts concentrated on integrating the RSE, the user area and a linking mechanism capable of exposing datasets without redundant transfers. This line of work ultimately led to the design and implementation of the PrepareData system. In this context, the ability to prepare and expose data to end users—while minimizing duplication, latency, and resource contention—is essential for interactive and high-performance scientific workflows in next generation observatories in line with SKAO and the SRCNet.

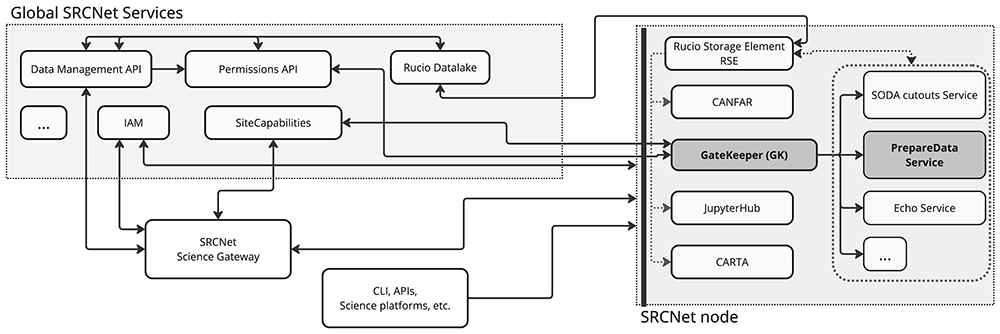

Figure 1 illustrates the architectural foundation of the SRCNet ecosystem, which comprises multiple SRC nodes coordinated by the Global SRCNet services. Each SRC node hosts a range of scientific services and resources that are accessible both through a Science Gateway and independently. In this figure are highlighted several key components involved in managing data and orchestrating user workflows, including the DM-API (SRCNet Data Management API), SC-API (SRCNet Site Capabilities API), SRCNet Permissions API, and then local services exposed by the SRC nodes through the SRCNet GateKeeper4 (GK)—such as the PrepareData service or the SODA26 cutout service—, and other top level SRCNet local services like CANFAR5, JupyterHub or CARTA27, an image visualisation and analysis tool, among others. PrepareData and other dependent services need GK to: (1) validate that the user has the necessary permissions to access a given dataset and its corresponding Rucio namespace within the SRCNet node; and (2) verify that the requested service is available and operational within the selected SRC node.
Figure 1. Architecture of the SRCNet services ecosystem, distinguishing between global services (SRCNet Global Services) and local services (SRCNet nodes), together with their dependencies.
The diagram highlights the mandatory services required at SRC nodes and the specific integration of the PrepareData service. Access to PrepareData and other data-related services is protected and authorised through the GK component.
One of the central challenges within the current SRCNet architecture lies in efficiently delivering scientific data from the local Rucio Storage Element (RSE) of each SRC node to the user’s working environment. In this federated infrastructure, user workspaces are provisioned locally within each SRC, yet the RSEs are not directly accessible or visible to users due to their design as controlled backend storage end-points. Consequently, an intermediary mechanism is required to make these datasets available within each user’s environment, enabling seamless use by scientific tools such as JupyterHub, CANFAR, or CARTA. The most direct way to achieve this delivery is to copy the required datasets from the RSE into the user’s workspace before the analysis begins. This approach ensures native accessibility from user applications but introduces significant limitations, including data duplication, latency from repeated transfers, and inefficient utilisation of local storage capacity. In large-scale scientific environments such as the SRCNet, where multiple users may request overlapping datasets, this model rapidly becomes unsustainable in terms of performance, cost, and scalability.
Given this context, PrepareData is conceived as the service responsible for bridging the gap between data stored in the local RSE and the user-accessible workspace (see Figure 2). The service must not only ensure data availability and accessibility for the user but also do so in a way that respects the architectural heterogeneity of the SRCNet. This heterogeneity includes both standalone services (e.g., batch systems such as SLURM or interactive environments) and Kubernetes-based orchestrated deployments, as well as heterogeneous backend storage systems ranging from POSIX filesystems to Ceph- or xrootd, dCache-based RSEs.

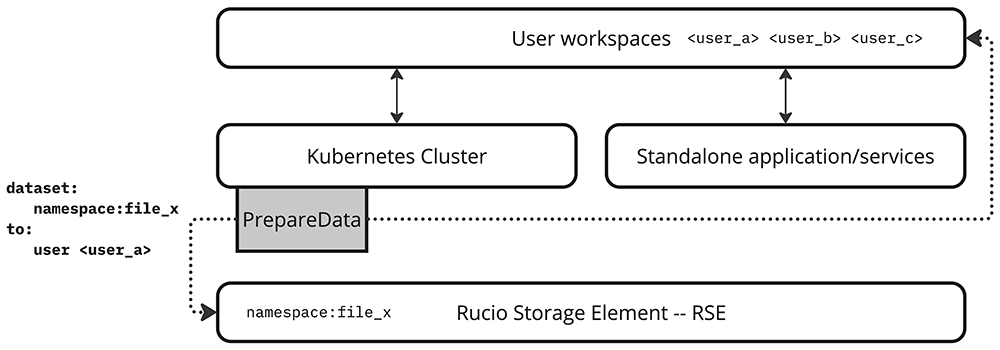

Figure 2. PrepareData acts as a bridge between the local RSE of the SRC and user storage areas, enabling access to data in user areasthat are accessible from services running both standalone and on Kubernetes.
Here, PrepareData runs on Kubernetes.
Under these conditions, simply extending the default copy-based behaviour of PrepareData is not sufficient. New delivery strategies are needed that avoid unnecessary local data movement, instead leveraging operating-system and orchestration-level capabilities to expose RSE data efficiently within user environments. These strategies must preserve user transparency—data appearing natively within the user’s workspace—, and ensure authorised access to the data, while optimising system efficiency by reducing bandwidth consumption, data duplication, and I/O overhead across SRC nodes.
This work addresses these challenges by presenting both currently deployed operational solutions and new approaches under development within the SRCNet prototyping framework. The proposed mechanisms target two main scenarios: (i) services operating in standalone mode and (ii) services deployed within Kubernetes clusters. For the latter, we focus on two complementary data delivery strategies—mount propagation and the use of Persistent Volumes and Persistent Volume Claims (PVs/PVCs)—which are designed to minimise duplication, reduce data-access latency, and establish a sustainable, resource-efficient model for user data provisioning in distributed scientific environment.
4. Development of PrepareData
In the current distributed infrastructure of the SRCNet, user home directories are currently isolated per SRC site, requiring a mechanism to expose requested data locally (see Figure 3). This functionality must abstract the underlying heterogeneity of storage back-ends and it provides a uniform mechanism for dataset exposure. It must support two primary usage scenarios: services executed within orchestrated environments (e.g., Kubernetes) and standalone applications running directly on the hosts system. The solution must also ensure that data access complies with user permissions and that the exposed datasets are correctly mapped to the corresponding user workspace without duplicating data unnecessarily. Among the constraints, the system must operate under limited storage quotas, maintain low latency in access times, and guarantee isolation between user sessions. At the same time, the service needs to interoperate with other SRCNet services through agreed interfaces in order to maintain independence among the SRCNet services.

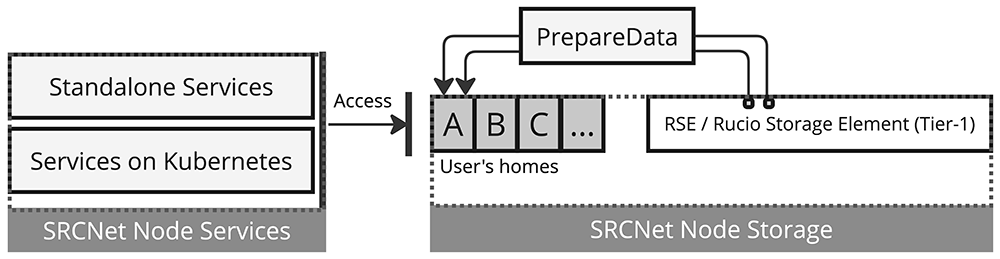

Figure 3. This diagram illustrates how services in local SRCNet nodes support both standalone and Kubernetes based deployments, and how PrepareData acts as an intermediary between the Rucio RSE (local Rucio storage) and the user workspace (user homes) within the SRCNet node storage.

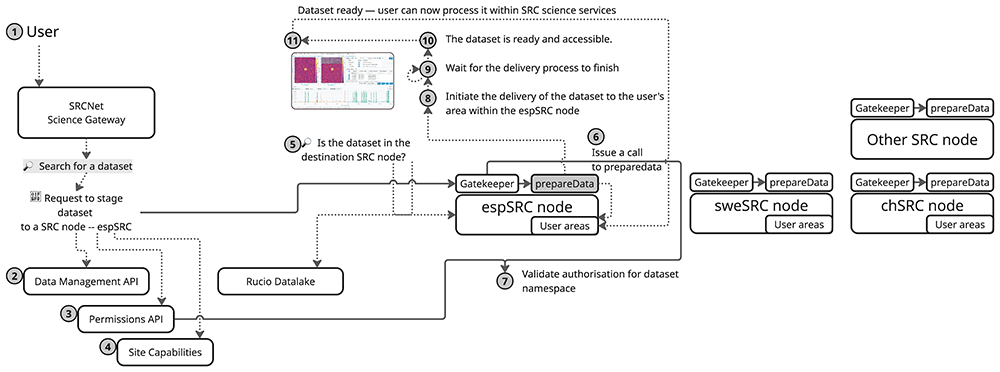

Figure 4 illustrates a sequence of operations of a use case triggered when a dataset is staged to a SRC. In the current implementation, users must explicitly initiate the staging process and specify where data should be transferred. However, the final design aims to make this entirely transparent to the user: the system should automatically determine the appropriate destination without requiring manual intervention. The workflow for the current implementation is composed of the following steps:
1. An user initiates a request to prepare a dataset at a specific SRC site.
2. A preliminary check is performed to determine whether the dataset is already available at site. If not, a staging request is issued to transfer the dataset asynchronously to the corresponding RSE to access the selected dataset.
3. Metadata and site-specific information are retrieved from the SRCNet registry and information services (SRCNet Site Capabilities).
4. If the dataset is not present in the RSE, a request is made to trigger the asynchronous data transfer.
5. If the dataset is already available, a request is issued to the PrepareData service deployed at the SRCNet node.
6. Authorisation mechanisms validate that the user has the required privileges to execute data preparation actions at the site.
7. The PrepareData service is invoked, launching a local job that places the dataset into the user’s area — typically via copy, symbolic links, mount propagation, or PVs/PVCs).
8. The system monitors the execution status of the preparation job and waits for it to reach a terminal state, typically READY.
9. Once the job is completed successfully, the dataset becomes accessible within the user’s area in the selected SRCNet node.
10. Finally, the user opens a science-enabling application (CARTA, JupyterHub, etc.) to explore/use the requested data.
Figure 4. This diagram shows the workflow of operations and services involved in this specific use case, from the moment a scientist accesses the SRCNet Science Gateway until the requested data are made available in their user workspace.
In order to ensure consistent interfaces across all SRC nodes and enable seam-less integration with other components of the SRCNet ecosystem, the PrepareData functionality must expose a Web service with a standardized API. This is achieved through a RESTful API, which provides a homogeneous interaction layer regardless of the underlying infrastructure. The API is designed to receive as input an OIDC token –used for user authentication and authorisation– as part of the HTTP Authorization Bearer header, along with a payload containing a list of datasets to prepare for the local user. Each dataset entry specifies the logical dataset name, the corresponding path in the local RSE, and the user-relative mount point (typically under the user’s home directory). The API specification has been formally defined using the OpenAPI standard28. An example API call by using curl command is illustrated below in the next listing:
curl -X 'POST' \
'http://localhost:8000' \
-H 'accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer $SKA_TOKEN$' \
-d '[
[
"testing:galactic_centre.fits",
"testing/84/1c/galactic_centre.fits",
"./testing"
]
]'
In this request, the service will prepare the dataset galactic centre.fits, identified logically under the testing namespace, whose actual location in the RSE is:
testing/84/1c/galactic_centre.fits. The file will be made accessible within the user’s area, allocated in the subdirectory ./testing relative to the user home. The invocation of the PrepareData functionality is designed to be intermediate by GK, as illustrated in Figure 4. This architectural decision ensures consistency in access control and direct invocation of the PrepareData API is only permitted in local testing environments; in production scenarios, all external requests are routed through the GK.
4.1 Service implementation
The PrepareData service has been implemented in Python, leveraging the FastAPI29 framework for building a high-performance RESTful web interface, and served using the uvicorn6 ASGI server. The exposed API is defined using the OpenAPI specification. To support multiple data preparation implementations in a modular and extensible way (see details in 4.2), PrepareData adopted the object factory design pattern, which allows us to integrate our custom implementations seamlessly. Since the delivery of data from the RSE to the user’s area is not instantaneous and may vary significantly depending on the specific implementation used (e.g., linking vs. copying), the PrepareData service implements an asynchronous processing –without blocking subsequent operations– model as depicted in the Figure 5.

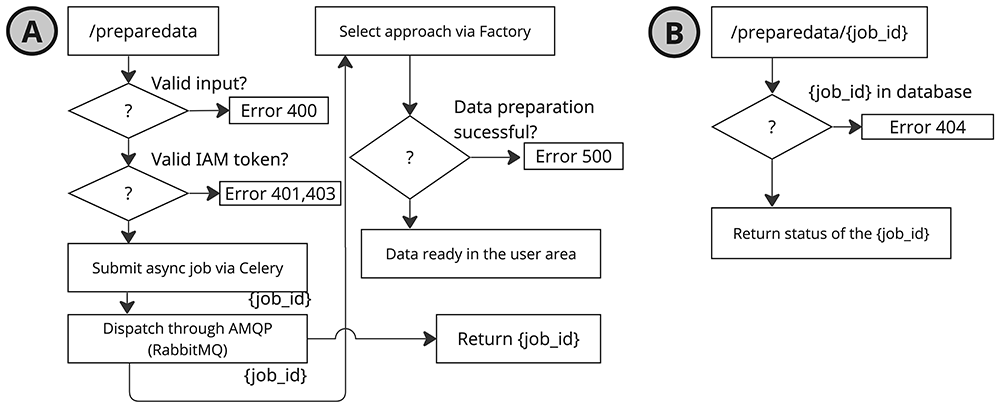

Figure 5.
Diagram of the two PrepareData calls: (A) the initial request with parameters, and (B) the status query to check the state of the data preparation job.
To handle asynchronous tasks, the service relies on Celery7, a distributed task queue, which enables the delegation of long-running or delayed tasks (see Figure 5). Upon initiation of a data preparation request, a unique preparation identifier (job id) is generated and returned to the client. This identifier can be used in subsequent API calls to query the status of the operation.
The life-cycle of a data preparation request is captured through a finite set of states, where in the Pending state, the preparation task has been accepted and is currently being processed. Once the requested data have been successfully made available in the user’s home directory, the process enters the Completed state, indicating that the data are ready to be used by a scientific service. Finally, in the Error state, the data preparation has failed due to several conditions: a) the service may be unable to stage or link the dataset from the local RSE to the user’s area; b) the requested dataset may no longer exist in the RSE due to expiration or policy-driven deletion; c) the user’s home directory may be unavailable because no session has been initiated; d) or there may be insufficient storage space to accommodate the requested data.
4.2 Data preparation implementations
The PrepareData service offers a flexible mechanism for integrating multiple implementations within its codebase based on objects factory. This design principle allows for the modular inclusion of different implementations without modifying the core service logic. As a result, each SRC could deploy one or several implementations tailored to its available infrastructure and the needs of the services it exposes.
4.2.1 Copy-based delivery
The copy-based approach represents the most time-consuming scenario among the supported data preparation strategies. It is primarily designed as a baseline implementation to validate the operational correctness of the PrepareData service. In this mode, data are physically copied from the local RSE to the user’s area.
Its current implementation leverages standard operating system call and wrappers (e.g., cp) to perform file transfers. This approach does not maintain any internal registry or tracking metadata about which files were delivered to which user, nor the context of the data preparation job. As a result, this prevents PrepareData from executing automated garbage collection or lifecycle control (e.g., revocation, expiration) over the prepared datasets.
Additionally, this method is not using any caching or deduplication logic. If a dataset is already available either at the RSE or even within a user’s home directory, the copy is performed again without verification. Consequently, repeated requests for the same dataset by the same or different users will result in multiple independent copies in their respective user areas. This behavior may lead to unnecessary storage consumption and redundant data replication, which is unsustainable at scale. A more optimal implementation of copy-based delivery could have been achieved by introducing, for example, mechanisms to detect and avoid redundant copies when the dataset is already present at the target RSE; however, such enhancements were considered out of scope for this work.
The total preparation time includes two distinct phases: (i) a potential staging period, if the dataset is not already present in the local RSE, and (ii) the copy time from the RSE mount point to the user’s home directory.
4.2.2 Mount bind and mount propagation
This approach leverages a Linux kernel feature known as mount --bind, which allows a file or directory that is already part of the filesystem to be remounted at another location. Unlike symbolic links, mount --bind operate at the kernel level and effectively mirror a directory tree from one path to another within the same namespace, preserving permissions and access controls.
In the context of PrepareData, this mechanism enables dynamic linking of files located within the RSE directly into a user’s area, which may reside on a separate volume or filesystem. With all, this method ensures data encapsulation, as users are only granted access to the files within their designated home directories, even though the underlying storage is shared. It also prevents privilege escalation or unauthorized browsing of unrelated directories.
However, this approach requires root-level privileges (or equivalent capabilities) to execute mount –bind operations on the hosts. Furthermore, since Kubernetes workloads are typically distributed across multiple nodes, the bind operation must be consistently applied on all nodes where the target pod might be scheduled. To address this, PrepareData uses mountPropagation: HostToContainer8 to propagate the mounted path from the host into the containerized workload in Kubernetes. Figure 6 presents the high-level architecture of the proposed solution. The diagram illustrates how the PrepareData service is integrated with a backend database responsible for managing metadata associated with each data preparation request.

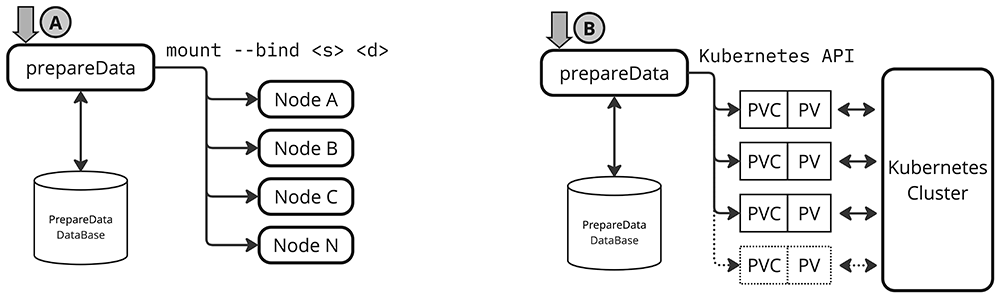

Figure 6. Scheme of operation of mount and PV/PVCs approaches.
For each request, the implementation registers a unique transaction identifier (job id), the target user, the original dataset path within the RSE, and the destination path within the user’s area. In addition to this core metadata, the database stores timestamps such as creation and expiration among other. This enables future lifecycle management features, such as automated permissions revocation or unlinking of datasets once their access window expires.
4.2.3 Persistent volume-based linking
Given that a significant portion of the scientific services deployed in the SRCNet architecture are or will be deployed on Kubernetes, PrepareData have also support native data provisioning mechanisms compatible with the orchestrator storage model. Kubernetes provides a storage abstraction through PVs and PVCs. A PV represents a piece of storage in the cluster, provisioned either statically or dynamically, while a PVC is a request for storage by a user or service. The linkage between the two enables dynamic mounting of specific directories or datasets directly into containerized services, following a declarative provisioning model. Furthermore, using the SubPath capability, it is possible to mount a specific file or subdirectory from a volume into a container, rather than the volume’s root directory. Additionally, the use of StorageClass definitions allows administrators to define different backend types (e.g., CephFS, Cloud Storage, NFS, local-path, among other).
In this approach the PrepareData service acts by creating a PV/PVC pair that maps the requested RSE dataset to a dedicated mount path within the user’s home directory on the pod itself. At runtime, the corresponding Kubernetes deployment must be customized to recognize which PVCs are associated with the user. These PVCs must be mounted as volumes during pod instantiation, ensuring that the dataset is accessible within the user’s containerized session. This design pattern is effective for data delivery in orchestrated environments, but it introduces a coupling between PrepareData and the instantiation logic of the consuming service.
Similar to the mount bind approach, the use of PVs for data linking requires deployment-time awareness and injection of volume declarations, which must be dynamically associated with each user session by using a mapping database. This necessitates a certain degree of flexibility and automation in service deployment templates, especially for multi-user environments such as JupyterHub or CARTA, among others. An example of this integration is presented in the following section, where we describe a JupyterHub instance deployed within a Kubernetes cluster using PrepareData-generated PVCs by customising the instantiation procedure.
Figure 6 illustrates how the PrepareData service handles requests using a PV and PVC strategy. Similar to the mount --bind approach, a backend database is used to track metadata for each dataset preparation. In this case, the database also stores metadata for managing the life-cycle of dynamically created PV/PVC resources.
For each RSE dataset-user pair requested, a dedicated PV/PVC is generated via the Kubernetes API, and scoped to the appropriate namespace corresponding to the consuming service.
The PV/PVCs volumes remain available for reuse, allowing applications such as JupyterHub to dynamically discover and inject the correct PVs into user sessions. This is achieved by querying the backend database for active dataset preparations and attaching the volumes at runtime, or after a new session requested.
4.3 Integration scenarios for the SRCNet
The PrepareData service supports multiple integration strategies to tackle the diverse architectural and execution contexts within the SRCNet. Both implementations — mount --bind and Kubernetes-native PV and PVC— aim to minimise data duplication and facilitate transparent access to datasets, they differ in their system-level requirements and the degree of deployment customisation needed. Specifically, the mount --bind strategy is applicable to both standalone and Kubernetes-based services, whereas the PV/PVC-based model is exclusive to Kubernetes environments. The following sections detail the integration characteristics and requirements of each approach.
4.3.2 Standalone environments
Standalone environments refer to services and applications that operate outside Kubernetes orchestration, such as traditional batch systems or containerised tools running directly on host systems. For these environments, PrepareData leverages the native Linux mount --bind functionality to expose datasets stored at the RSE directly into a user’s home directory or working area allowing services to access data as if it were locally present. This method is transparent to the consuming application. Consequently, no internal modification of the service logic is required, making it highly suitable for integration with resource managers such as SLURM or HTCondor. For example, a user job executed via SLURM can access a dataset located at /mnt/rucio/.../testing/84/1c/galactic_center.fits through a mount --bind to the user’s area (e.g., /home/user/testing/), enabling immediate usage within the job script without requiring explicit data copying or staging mechanisms. PrepareData performs the bind operation across all relevant compute nodes to ensure availability, and relies on system privileges (via daemon or privileged containers) to execute the mount consistently. This approach remains effective provided that the file system is shared or mirrored across nodes but do not require container-level isolation.
4.3.3 Kubernetes-based services
Kubernetes has become the standard orchestration layer for many SRCNet services. Consequently, PrepareData has implementations based on mount --bind with HostPropagation, and PV/PVC-based delivery. Both require service-level customisation at deployment time to ensure seamless integration of user datasets.
Mount propagation
To enable full isolation and user-level data exposure, for example, the JupyterHub deployment can be configured so that each user is assigned a dedicated directory under a shared mount point, typically with this template /mnt/users/<username>/. This allows for direct integration with externally managed data, and provides consistency across sessions and services such as PrepareData.
To achieve this, the JupyterHub Helm chart values.yaml must be configured to,
a) mount the parent directory /mnt/users into the user container, b) dynamically assign /mnt/users/<username> as the container’s working home directory, and c) ensure mount propagation is enabled so that bind-mounted data becomes visible.
An example configuration for the singleuser section in values.yaml is shown below:
singleuser:
...
extraVolumes:
- name: home-mount
hostPath:
path: /mnt/users
type: Directory
extraVolumeMounts:
- name: home-mount
mountPath: /mnt/users
mountPropagation: HostToContainer
extraEnv:
NB_USER: "{username}"
HOME: "/mnt/users/{username}"
lifecycleHooks:
postStart:
exec:
command:
- sh
- -c
- >
export HOME=/mnt/users/$(whoami) && cd $HOMEThis configuration ensures that the environment variable $HOME is redirected to the correct location, matching the IAM-provided username. The user is automatically placed inside their designated folder upon session start.
In combination with PrepareData, any dataset bind-mounted into /mnt/users/<username>/<namespace>/ becomes directly accessible within JupyterHub without requiring any additional volume provisioning, copying, or duplication.
Dynamic injection of PVs/PVCs via spawner hooks in JupyterHub
For services running under Kubernetes, the most native integration of user-specific datasets delivered by PrepareData is through dynamically created PVs/PVCs. In this workflow, each dataset requested by a user is exposed as a PV/PVC and recorded in a lightweight metadata store linked to the user’s IAM identity. When a new JupyterHub session is initiated, the KubeSpawner pre-spawn hook, a customizable function that runs just before the user’s container is launched and that enables the modification of the environment variables or the injection of PV/PVC. Therefore, this hook queries the metadata store, retrieves the relevant PVs/PVCs, and injects them into the pod specification. As a result, when the session is opened by the user datasets are seamlessly available within the container.
An example of the pre-spawn hook logic in Python is shown below:
...
def pre_spawn_hook(spawner):
username = spawner.user.name
pvc_list = query_user_pvcs_from_db(username)
for pvc in pvc_list:
spawner.volumes.append({
'name': pvc['name'],
'persistentVolumeClaim': {'claimName': pvc['name']}
})
spawner.volume_mounts.append({
'mountPath': pvc['mountPath'],
'name': pvc['name']
})A corresponding JupyterHub configuration snippet to enable this hook is as follows:
c.KubeSpawner.pre_spawn_hook = pre_spawn_hook
For example, if a dataset is prepared as pvc-user-namespace-m31-fits, and designated to be mounted at /home/jovyan/<namespace>/, the user will see it immediately upon logging in.
5. Results and discussion
All tests were executed on a single Kubernetes compute node equipped with 8 CPU cores and 16 GB of RAM, running Kubernetes version 1.28. Both the RSE and the user areas were provided through CephFS volumes exposed via a CSI provisioner. As a consequence, all data copy operations, mount operations, and PV/PVC provisioning actions ultimately interact with the CephFS backend.
The tests were designed to evaluate three alternative mechanisms for materialising user datasets in the context of the PrepareData workflow: (i) copying the data directly from the RSE to the User Area, (ii) using Linux bind mounts to expose RSE subdirectories inside a user area, and (iii) dynamically constructing PVs/PVCs to attach datasets to user environments through Kubernetes’ storage abstraction.
For the copy test, file sizes ranged from 100 MB up to 10240 MB. For the bind-mount and PV/PVC tests, we generated storms of 10 to 1000 mount or provisioning operations to evaluate the behaviour under increasing concurrency. All tests were repeated 10 times per configuration. It is important to note that the three test categories are not directly comparable. Data copies scale primarily with the size of the transferred payload and are limited by CephFS throughput. Bind-mount operations are lightweight kernel metadata operations, dominated by VFS and namespace handling. PV/PVC provisioning exercises the Kubernetes control plane and the CSI driver, and is therefore orders of magnitude slower, involving distributed coordination rather than local I/O.
Table 1 summarises the average wall-clock time required to copy datasets of increasing size from the CephFS-backed RSE to the user area.
Table 1. Average time to copy data from the RSE to the user area.
Values represent means over ten runs.
| Size (MB) | Avg. Time (s) |
|---|
| 100 | 0.131 |
| 200 | 0.206 |
| 500 | 0.429 |
| 1024 | 0.830 |
| 2048 | 1.510 |
| 3072 | 2.170 |
| 4096 | 2.830 |
| 5120 | 3.607 |
| 10240 | 7.213 |
The results exhibit an approximately linear relationship between dataset size and copy time, with an effective throughput of 1.3–1.4 GB/s for larger files. This demonstrates that CephFS provides efficient sequential throughput; however, data copying remains costly for workflows that repeatedly transfer large datasets.
Table 2 presents the results for the bind-mount test, where batches of 10–2000 mount operations were created sequentially. Besides the wall-clock time, we also report the average system CPU fraction, defined as the ratio between the system CPU time and the total elapsed time.
Table 2. Bind-mount benchmark results.
Columns report the number of mount operations, the average wall-clock time, and the fraction of CPU time spent in system mode (kernel).
Number of
Mounts | Avg.
Time (s) | Sys CPU
Fraction |
|---|
| 10 | 0.109 | 0.082 |
| 50 | 0.391 | 0.109 |
| 100 | 0.773 | 0.115 |
| 200 | 1.571 | 0.112 |
| 400 | 3.563 | 0.108 |
| 800 | 9.227 | 0.114 |
| 1000 | 13.242 | 0.123 |
| 2000 | 43.834 | 0.129 |
Bind-mount operations scale nearly linearly with the batch size. For 100 mounts the latency remains below 1 s, while 1000 mounts require approximately 13 s. The system CPU fraction is remarkably stable (0.10–0.13), indicating a consistent amount of kernel work per mount. Although large storms of mount operations accumulate into noticeable latency for thousands of datasets, the overall behaviour remains predictable and efficient. This makes bind-mounting a viable strategy for linking large numbers of shared-read datasets in PrepareData.
Table 3 reports the results for the static PV/PVC provisioning test. For each dataset, one PV and its corresponding PVC were created and waited upon until the claim reached the Bound state. PV/PVC creation is significantly more expensive than bind mounting. Even small batches of 10 PVCs require over 5 s, and provisioning 1000 volumes takes more than 8.5 minutes. The system CPU fraction (0.31–0.32) is higher than in the mount test, reflecting the larger number of syscalls and kernel interactions during repeated kubectl operations. Nonetheless, most of the elapsed time corresponds to waiting for the Kubernetes control plane (API server, controllers, CSI provisioner) rather than local CPU work.
Table 3. PV/PVC test results for static provisioning.
Columns report the number of PV/PVC pairs, the average wall-clock time, and the system CPU fraction.
Number
of PV/PVC | Avg.
Time
(s) | Sys CPU
Fraction |
|---|
| 10 | 5.106 | 0.315 |
| 50 | 25.403 | 0.318 |
| 100 | 50.757 | 0.312 |
| 200 | 104.217 | 0.312 |
| 400 | 206.714 | 0.310 |
| 800 | 413.254 | 0.312 |
| 1000 | 517.851 | 0.315 |
The three experiments reveal distinct behaviours in terms of scalability and operational characteristics for dataset materialisation in the PrepareData workflow. Although the copy-based strategy exhibits good throughput and predictable performance as dataset size increases, it has a fundamental drawback: every request results in a full physical replication of the data into the user workspace. This implies a proportional consumption of storage resources and introduces cumulative overhead when the same dataset must be prepared repeatedly for different users or different sessions. Despite scaling well from a throughput perspective, the cost of repeatedly duplicating large volumes of data can therefore become prohibitive at scale.
In contrast, the approaches based on bind mounts and on PV/PVC attachments do not replicate the underlying files, but instead link a shared dataset into multiple user workspaces. This results in substantial savings in storage utilisation, as the same physical file is referenced by many users simultaneously without duplication. Both techniques are therefore conceptually aligned with scenarios where datasets are shared, reused, or accessed in a read-mostly pattern. The bind-mount approach, in particular, demonstrates excellent scalability with respect to the number of datasets: preparation times remain below one second for approximately one hundred mounts and grow linearly for larger batches. The consistently low system CPU fraction indicates that the kernel work associated with each mount operation is modest. This makes the method attractive for services that can natively operate on filesystem-level links, whether inside or outside the Kubernetes environment.
The PV/PVC strategy instead reflects the native Kubernetes model for storage attachment. Its semantics are appropriate for services designed to operate exclusively within Kubernetes, especially when persistent or isolated storage allocations are required. However, the test results show that PV/PVC-based materialisation introduces substantially higher latency per dataset, often one or two orders of magnitude above the bind-mount case. The provisioning of large numbers of PVs and PVCs imposes significant coordination work on the control-plane components and the CSI backend, leading to long preparation times when hundreds of datasets must be attached simultaneously. While these tests intentionally use exaggerated scales—far beyond typical operational scenarios—they provide a clear indication of how the system behaves under extreme load and whether each approach remains sustainable for the projected volume of users and datasets.
Taken together, the results indicate that data copying, bind mounting, and PV/PVC attachment each serve different operational scopes within PrepareData. Bind mounts provide an efficient mechanism for linking shared datasets via POSIX paths, while PV/PVCs offer a Kubernetes-native method for attaching storage with well-defined isolation semantics. Data copying, although predictable and throughput-driven, incurs additional storage consumption and repeated transfer costs. The test trends show that each approach scales differently depending on whether the dominant factor is data volume, filesystem operations, or control-plane activity. Ultimately, the choice among these mechanisms should be guided by the requirements of the target service—whether it prioritises data locality, Kubernetes integration, or shared access patterns—rather than by raw performance alone.
Mechanisms such as symbolic linking, shared filesystems or on-demand mounting offer not only performance advantages but also enable tracking and accountability for each data preparation request. Such implementations typically require the use of a persistent database to store metadata about each preparation, including the user identity, dataset references, and status information. This enables key operations such as expiration handling, revocation of access permissions, and querying of preparation history. The system can then maintain a comprehensive registry of active and historical data preparations, supporting more robust and policy-compliant data management across SRCs.
However, these alternative implementations may require the consuming service to be customized or reconfigured to correctly resolve and access data paths. This confirms that the data preparation implementation is tightly coupled with the service integration model, and that successful deployment depends not only on backend capabilities but also on adapting the services that consume the data to ensure seamless accessibility regardless of the underlying mechanism.
Table 4 summarises the main PrepareData delivery mechanisms currently evaluated within SRCNet. Each approach exhibits different trade-offs between compatibility, performance, and scalability. The copy-based method is simple and broadly applicable but limited in throughput and scalability. Mount-based and PV/PVC-based strategies, by contrast, deliver higher performance and enable shared access, albeit with varying levels of service customisation. The columns in the table indicate: (i) whether the approach supports Kubernetes-based orchestration or standalone execution, (ii) whether customisation of user-facing services (e.g., JupyterHub or CARTA) is required, (iii) relative performance, and (iv) scalability limits under concurrent operations.
Table 4. Comparison of PrepareData delivery mechanisms across different execution environments within SRCNet.
Each approach exhibits distinct trade-offs in compatibility, performance, and scalability.
| Approach | k8s/Standalone | Customisation | Estimated
performance | Scalability |
|---|
| Copy | Both | No | Low | Low |
| Mount | Both | Yes/No | High | Very High |
| PV/PVC | k8s | Yes | High | High |
6. Conclusion and future work
This work has addressed the problem of delivering scientific datasets from RSEs to the user working area within an infrastructure like SRCNet. The need to make data available efficiently, reliably, and in a reusable manner is central to enabling science across multiple SKA Regional Centres. Among the delivery models, the copy-based approach remains a valid and straightforward baseline. It is compatible with the widest range of services in the SRCNet ecosystem, especially legacy or standalone applications. However, this method has major disadvantages in environments with large data volumes, such as high latency, increased storage consumption, and limited support for data reuse.
To tackle these limitations, this work has introduced and implemented two alternative mechanisms for data exposure: mount --bind and Kubernetes-native PV/PVC injection. Both approaches have been developed to offer lightweight, efficient, and flexible data delivery with minimal overhead in terms of time, storage, and data duplication. Additionally, they support multi-user access to shared datasets without unnecessary replication.
The mount --bind strategy leverages native Linux kernel functionality and is ideal for all the standalone applications and cluster schedulers such as SLURM, HTCondor among other. The PV/PVC-based solution, in turn, fits naturally into container orchestration platforms like Kubernetes and integrates cleanly with user-managed services such as JupyterHub, as demonstrated via dynamic PV/PVC injection through spawner hooks. This functionality can equally be extended to other services in Kubernetes with comparable data access requirements.
Importantly, the discussion of these approaches reveals that there is no one-size-fits-all solution. The optimal strategy depends on the specific characteristics of each SRC node, including its storage backend, orchestration platform, user workload patterns, and service integration requirements. For instance, standalone HPC environments may benefit more from mount bind strategies, while cloud-native services deployed on Kubernetes clusters are better served by PV/PVC-based mechanisms. Furthermore, the PrepareData service itself has been designed with extensibility and modularity in mind. Its architecture supports the dynamic selection of data preparation strategies based on local configuration, enabling each SRC to adopt the most suitable approach without modifying the core logic of the service. This design choice enhances the portability and adaptability of the solution across heterogeneous environments.
From a broader perspective, the work contributes to the ongoing efforts in green computing and sustainable data management. By reducing redundant data transfers and promoting reuse of existing datasets, the proposed strategies align with energy-efficient computing principles and help mitigate the environmental impact of large-scale scientific infrastructures.
Nevertheless, several areas remain open for future exploration. These include the implementation of intelligent caching mechanisms, integration with object storage systems (e.g., S3, Ceph RGW), and the development of a unified metadata and access tracking layer to support fine-grained policy enforcement across SRCs. Additionally, a comprehensive performance evaluation of the PV/PVC approach under realistic SKA-scale workloads would provide further insights into its operational viability.
Ethics and consent
Ethical approval and consent were not required.
Data availability
SRCNet preparedata tests: software and data [v1.0.2]. https://doi.org/10.5281/zenodo.17772362
This project contains the following underlying data:
- data/copy_time.csv. Raw per-run timing measurements used to compute average copy performance. Table 1
- data/mount_benchmark.csv. Raw wall-clock time and CPU‐usage values for mount–bind scalability experiments. Table 2.
- data/pvc_benchmark.csv. Raw timing and CPU metrics for PV/PVC provisioning tests. Table 3.
Data are available under the terms of the Creative Commons Zero “No rights reserved” data waiver (CC0 1.0 Public domain dedication)29.
No datasets used in this study are subject to restrictions, and no embargo applies. All materials are fully accessible for reuse and replication.
Acknowledgements
MP, SSE, JG, JS, MM, LD, EJ and LVM acknowledge financial support from the grant CEX2021-001131-S funded by MICIU/AEI/ 10.13039/501100011033 and from the grant TED2021-130231B-I00 funded by MICIU/AEI/ 10.13039/501100011033 and by the European Union NextGenerationEU/PRTR, acknowledges financial support from the grant PID2021-123930OB-C21, PID2024-155817OB-I00 funded by MICIU/AEI/ 10.13039/501100011033 and by ERDF/EU, and by the grant INFRA24023 (CSIC4SKA) funded by CSIC. MP, JG, SSE, LVM acknowledge support from the European Science Cluster of Astronomy and Particle Physics ESFRI Research Infrastructures project that has received funding from the European Union’s Horizon 2020 research and innovation program under Grant Agreement No. 824064. Prototype of an SRC (SPSRC) service and sup-port funded by the Ministerio de Ciencia, Innovación y Universidades (MICIU), by the Junta de Andalucía, by the European Regional Development Fund (ERDF) and by the European Union NextGenerationEU/PRTR. The SPSRC acknowledges financial support from the Agencia Estatal de Investigación (AEI) through the ”Center of Excellence Severo-Ochoa” award to the Instituto de Astrofísica de Andalucía (IAA-CSIC) (SEV-2017-0709) and from the grant CEX2021-001131-S funded by MICIU/AEI/ 10.13039/501100011033.
Faculty Opinions recommendedReferences
- 1.
SKA Observatory: SKAO foundational document. 2013; Accessed: 2025-08-19. Reference Source
- 2.
Scaife AMM:
Big telescope, big data: towards exascale with the Square Kilometre Array.
Philos Trans A Math Phys Eng Sci.
2020; 378(2166): 20190060. PubMed Abstract
| Publisher Full Text
| Free Full Text
- 3.
Barisits M, Beermann T, Berghaus F, et al.:
Rucio: Scientific data management.
Comput Softw Big Sci.
2019; 3(1): 11. Publisher Full Text
- 4.
Weil SA:
Ceph: reliable, scalable, and high-performance distributed storage. (2007). Fuhrmann, P, Gülzow, V.: dcache, storage system for the future. In: European Conference on Parallel Processing. Springer, 2006; 1106–1113. Publisher Full Text
- 5.
Peters AJ, Sindrilaru EA, Adde G:
Eos as the present and future solution for data storage at cern. In: J Phys Conf Ser. IOP Publishing, Bristol, UK, 2015; 664. : 042042. Publisher Full Text
- 6.
Bonaldi A, Brüggen M, Burkutean S, et al.:
Square Kilometre Array science data challenge 1: analysis and results.
Mon Not R Astron Soc.
2020; 500(3): 3821–3837. Publisher Full Text
- 7.
SRCNet: Srcnet v0.1 implementation plan. Technical Report SRC-0000009-01, February, 2025; Accessed: 2025-08-20. Reference Source
- 8.
Square Kilometre Array Observatory (SKAO): SRCNet use cases. Technical Report SRC-0000004-01, Square Kilometre Array Observatory: Signed technical report. 2025.
- 9.
Gaudet S, Hill N, Armstrong P, et al.:
Canfar: the Canadian advanced network for astronomical research. In: Software and Cyberinfrastructure for Astronomy. SPIE, 2010; 7740: 577–586. Reference Source
- 10.
Hartley P, Bonaldi A, Braun R, et al.:
SKA science data challenge 2: analysis and results.
Mon Not R Astron Soc.
2023; 523(2): 1967–1993. Publisher Full Text
- 11.
van Haarlem MP, Wise MW, Gunst AW, et al.:
LOFAR: the low-frequency array.
Astron Astrophys.
2013; 556: A2. Publisher Full Text
- 12.
Ponce A, et al.:
Efficient data delivery for astronomical observatories via staged and policy-aware transfers.
J Instrum.
2021.
- 13.
Elmsheuser J, Di Girolamo A:
Overview of the atlas distributed computing system. In: EPJ Web Conf. EDP Sciences, Les Ulis, France, 2019; 214. : 03010. Publisher Full Text
- 14.
Mkrtchyan T, Chitrapu K, Garonne V, et al.:
dcache: inter-disciplinary storage system. In: EPJ Web Conf. EDP Sciences, 2021; 251. : 02010. Publisher Full Text
- 15.
Zhao Y, Uram TD, Papka ME, et al.:
Big data staging with mpi-io for interactive x-ray science. In: 2020 IEEE/ACM Workflows in Support of Large-Scale Science (WORKS). IEEE, Atlanta, GA, USA, 2020.
- 16.
Lu X, Oral HS, Wang B, et al.:
Datastager: scalable data staging services for petascale applications. In: Proceedings of the International Conference for High Performance Computing, Networking, Storage and Analysis (SC). ACM, Austin Texas, 2015.
- 17.
Smith B, et al.:
Interactive workflows with jupyter and shared datasets in big science platforms.
Journal of Instrumentation.
2022.
- 18.
Ahmed C, Müller D:
Performance of storage backends for large-scale image analysis pipelines.
Journal of Instrumentation.
2020.
- 19.
Zhou Q, Xu M, Singh Gill S, et al.:
Energy efficient algorithms based on VM consolidation for cloud computing: comparisons and evaluations.
J Cloud Comput.
2020. Publisher Full Text
- 20.
Khan A, Lee CG, Hamandawana P, et al.:
A robust fault-tolerant and scalable cluster-wide deduplication for shared-nothing storage systems. arXiv Preprint.
2018. Publisher Full Text
- 21.
Li H, Dong M, Liao X, et al.:
Deduplication-based energy efficient storage system in cloud environment.
The Computer Journal.
2015; 58(6): 1373–1383. Publisher Full Text
- 22.
Lin B, Zhu F, Zhang J, et al.:
A time-driven data placement strategy for a scientific workflow combining edge computing and cloud computing.
arXiv Preprint.
2019. Publisher Full Text
- 23.
Cuadrado-Cordero I, Orgerie A, Menaud J:
Reuse, reduce, support: design principles for green data mining.
Business & Information Systems Engineering.
2022.
- 24.
Garrido J, Darriba L, Sánchez-Expósito S, et al.:
Toward a Spanish SKA Regional Centre fully engaged with open science.
J Astron Telesc Instrum Syst.
2021; 8(1): 011004. Publisher Full Text
- 25.
Bonnarel F, Allen MG, Salgado J, et al.:
Prototyping access from visualisation tools to ska science images and cubes stored in a Rucio data lake through IVOA discovery and access services. 2024.
- 26.
Ott J, Team C:
Carta: cube analysis and rendering tool for astronomy. In: American Astronomical Society Meeting Abstracts# 235. 2020; 52(1): 364–11. Reference Source
- 27.
Ponelat JS, Rosenstock LL:
Designing APIs with swagger and OpenAPI. 2022; 424. Reference Source
- 28.
Voron F:
Building data science applications with FastAPI. Packt Publishing, Birmingham, UK, 2023; 422. Reference Source
- 29.
Parra-Royón M:
manuparra/preparedata-tests: SRCNet preparedata tests v1.0.2.
Zenodo.
2025. http://www.doi.org/10.5281/zenodo.17909872
