1. Introduction
Measurable or Minimal Residual Disease (MRD) is a term originating from leukemia diagnostics of blood or bone marrow samples. In the 1980s, when the term MRD was coined, the technologies used for detection and disease surveillance were rather insensitive. Accurate and sensitive (≤0.01% or ≤10−4) detection was first possible using polymerase chain reaction (PCR) approaches that targeted specific genetic aberrations or translocations in Acute Lymphoblastic Leukemia (ALL),1 describing “molecular remission” that proved to be a superior indicator than clinical parameters or cell morphology. Today, modern next-generation sequencing (NGS) or next-generation flow techniques have further improved MRD detection, eliminating the need for a priori definition of specific molecular markers.
Following MRD in leukemia, the NGS analysis of circulating tumor DNA (ctDNA) led to the broad extension of MRD to solid tumors.2 Subsequent trials generalized this framework to several solid tumor entities, e.g. non-small cell lung cancer,3 breast cancer,4 melanoma,5 urinary-tract cancers,6 prostate,7 and pancreatic cancers.8 Just these mentioned entities account for more than 40% of all cancer-related deaths within the EU-27.9 In all these entities, ctDNA positivity after surgery or systemic therapy usually constitutes an early molecular herald of relapse. Despite this, the number of CE-/IVDR-certified, MRD-approved ctDNA assays in the European Union remains very low.
In 2019, the EU Horizon 2020 project called for the first-ever pre-commercial procurement (PCP) proposals addressing the topic SC1-BHC-10-2019 - Innovation Procurement: Next Generation Sequencing (NGS) for routine diagnosis. Two proposals were awarded, one of which was Instand-NGS4P (Grant agreement ID: 874719).
Instand‑NGS4P (https://cordis.europa.eu/project/id/874719, https://www.instandngs4p.eu) was a PCP project running from 2020-2025 that included many European medical centers, patient advocacy groups (ECPC, FAVO), a standards organization (DIN), and partners linked to major European research infrastructures (e.g., BBMRI‑ERIC, ELIXIR). Its aims were to develop a European standard and the respective modular technical-clinical framework for NGS workflows for routine diagnostics and to engage with subcontractors, who were selected in an open tendering process and contracted to develop pre-commercial innovative modular prototypes or developments (e.g. reference materials, library preparation kits, or analysis software) in the domain of NGS examinations for common and rare cancers, in children and adults. The consortium selected 8 contractors in the last competitive round of tendering, from the original 24 tenders received. We here report on our technical testing of two of the MRD custom panel solutions and the cell-free DNA (cfDNA) reference standards that were developed during the project run time.
The two patient groups targeted within the PCP project Instand-NGS4P were leukemia patients and solid tumor patients. For these patient groups, the project aimed to foster the development of automatable prototype solutions for solid tumor tissue, MRD, and germline pharmacogenomic in vitro diagnostics that would be compliant with relevant regulations and technical standards. This development would be carried out by competing commercial subcontractors in accordance with the rules for EU Horizon PCP projects.
To encourage automatable innovative developments within the diagnostic workflow, the unmet needs were identified by the consortium and refined based on the results of an open market consultation; moreover, innovation challenges were defined and subdivided into four areas of the diagnostic workflow: i) pre-analytics and wet laboratory, ii) sequencing, iii) bioinformatics, and iv) clinical data interpretation, e-medication, and reporting.
To connect these four areas, our project initiated the first-ever European standardization documentation for NGS-based IVD, CEN/TS 17981–1:2023, in vitro diagnostic Next Generation Sequencing (NGS) workflows - Part 1: Human DNA examination, and CEN/TS 17981–2:2023, in vitro diagnostic Next Generation Sequencing (NGS) workflows - Part 2: Human RNA examination. At the time of writing this manuscript, these CEN/TS documents are the basis on which the international standardization documents ISO/AWI 25379–1 and ISO/AWI 25379–2 are being drafted.
In the final phase of the Instand-NGS4P project, prototype testing began in Spring 2024 and continued until the end of the project in Fall 2025. Here, we present the technical results from two MRD wet laboratory prototypes for pancreatic and ovarian cancer, applied to synthetic reference samples with known low-level mutation levels (variant allele frequency, VAF). The prototypes were developed within Instand-NGS4P by the subcontractor consortium TWIST/Platomics/MGI (TPM). Instand-NGS4P specifications included the use minimal volumes of blood sample, the use of patient identity fingerprinting for quality control purposes,10,11 unique molecular identifiers (UMI) for bioinformatic error correction, and the improvement of mutation detection from 0.5% VAF limit of detection (LoD) to 0.1% VAF LoD or better.
From a technical perspective, for cfDNA-based MRD assays to be clinically meaningful, they must achieve exceptionally high sensitivity and specificity. These assays are tasked with detecting extremely low levels of tumor-derived DNA among a vast background of non-tumor circulating cfDNA. A false-negative MRD result can have significant clinical implications by underestimating the disease, potentially leading to insufficient treatment and rapid disease progression. On the other hand, false-positive results, often arising from misinterpreting sequencing errors as true tumor signals, may lead to unnecessary therapeutic escalation and toxicity. Therefore, the development of robust, cost-effective assays and gene panels, as well as advanced error suppression strategies, is critical. Balancing these diametrically opposed demands will be essential for cfDNA-based MRD testing to become a standard of care in oncology.
2. Materials and methods
Instand-NGS4P master panel
TPM designed and tested a master capture panel of capture probes within the Instand-NGS4P consortium, comprising 1,648 cancer genes and intronic regions for fusion gene detection with a total target region size of 7.6 Mbp. From this stock of pre-designed capture probes, customized sub-panels can be produced and delivered within a few business days.
Instand-NGS4P pancreatic sub-panel and ovarian sub-panel
The consortium experts specified gene lists for MRD detection in pancreatic cancer (
Table S1) and ovarian cancer (
Table S2), based on publicly available data from The Cancer Genome Atlas on the most recurrently mutated gene in these cancer entities. We used the freely available NIH National Cancer Institute’s GDC Data Portal to retrieve the TCGA Ovarian Serous Cystadenocarcinoma (TCGA-OV), or the TCGA Pancreatic Adenocarcinoma (TCGA-PAAD) mutation data, respectively. We used the GDC portal’s Analysis Center with the OncoMatrix App to display the most recurrently mutated genes. For each of the two panels, we selected the most frequently mutated gene, e.g. TP53 for TCGA-OV, together with additional genes that were recurrently mutated in the TCGA cohort among cases lacking TP53 mutations. For the pancreatic cancer panel we included TP53 and DNMT3A as CHIP-and-also-cancer genes, based on two of our previous studies with colon inflammation/cancer and esophageal cancer that may develop in inflamed tissue.12,13
As an important note, extremely deep sequencing is necessary to achieve 0.1% VAF LoD. This is expensive if the panel’s target region is large. To focus on a small target region, TPM further analyzed publicly available data for cancer mutation hotspots. While performing this analysis, TPM found that publicly available data were duplicated, either because they were reported in different studies with names that did not clearly match, or because different targeted sequencing panels or different samples from the same patient were sequenced. No clear data deconvolution was feasible. To avoid the risk of skewed frequencies at mutation hotspots, it was decided to use the expert-specified gene lists and rely on frequency data from The Cancer Genome Atlas. Thus, capture probes for the entire coding regions of the genes were used in the custom panels for pancreatic cancer and ovarian cancer.
New cfDNA pan-cancer reference standards
Newly developed Twist cfDNA Pan-Cancer Reference Standards v2 with 0%, 0.1%, and 0.5% VAF were used to iteratively determine the raw sequencing output required to detect variants in the standard with 0.1% VAF after bioinformatic error correction. The 0.1% and 0.5% VAF reference standards contain the following documented synthetic variants at the respective expected allele frequencies: 225 SNVs, 49 insertions, 167 deletions, and 15 structural variants.
Step 1: First explorative experiment at user site
In a first exploratory experiment at the user site UKSH, libraries were prepared as technical duplicates using 20 ng of each 0%, 0.1%, and 0.5% sample of the Twist cfDNA Pan-Cancer Reference Standards v2. The standards were frozen in tubes with 300 ng cfDNA in 15 μL. The volume is too small for mid-to-long-term frozen storage; therefore, a working solution was prepared from a 7 μL aliquot diluted with 93 μL molecular-grade water, from which 14.3 μL (20 ng) was used for each library.
Twist cfDNA Library Preparation Kit, using 9 PCR cycles. Library length distribution and amount were measured using Agilent TapeStation D1000 Screen Tape (Agilent, USA). 1,600 ng of each library was pooled into an 8-plex pool, yielding 12,800 ng. Capture was performed using the pancreatic cancer and ovarian cancer sub-panels. All 12,800 ng of 8-plex pool were used for capture with the panel and the Twist Target Enrichment Standard Hybridization v2 capture reagents. 16 PCR cycles were used to amplify the library pool after capture.
Previous experience with UMI-based error correction using kits from other vendors suggested that raw sequencing output would need to be at least 10 times the final number of sequences remaining after error correction. The initial exploration sequencing run on the Illumina NextSeq 1000 P2 flow cell with 2 × 100 bp paired-end reads was specified to have a sequencing output of 3.33 Gbp per library. This meant a raw coverage in the pancreas panel libraries of 66,600×. After bioinformatic error-correction, the number of reads per family was found to be rather high, and the previously specified sequencing output was found to be too low to distinguish true mutations from unspecific and probably false-positive variant-calls in the 0.1% Twist cfDNA reference sample replicates.
Step 2: Second experiment at user site
In a second experiment, the performance was assessed for input amounts of 40 ng and 20 ng, respectively. The number of PCR cycles was reduced to 8 cycles in the library preparation. 2,000 ng of each library was pooled into an 8-plex pool for subsequent capture. The number of PCR cycles in the capture reaction was reduced to 14 cycles. The sequencing was performed on an Illumina NovaSeq 6000 S4 flowcell with 2 × 150 bp and on an Illumina NovaSeqX 10B flowcell with 2 × 150 bp, respectively. 10 GB of paired-end reads were specified as sequencing output per library for 40 ng and 20 ng experiments.
Step 3: Third experiment: sequencing at subcontractor site MGI
In a third experiment, the library pools from the first and second runs were sequenced on the MGI DNBSEQ-G400 instrument (MGI, China) and specified to yield a sequencing output of 5 Gbp per pancreas panel library. For MGI sequencing, 50 ng of each pooled Twist DNA library was converted into an MGI-compatible single-stranded circular (ssCir) library using the MGIEasy Universal Library Conversion Kit (App-A, MGI Tech Co., Ltd.), following the manufacturer’s instructions. Briefly, the linear double-stranded Twist libraries were subjected to Adapter Conversion PCR (5 cycles) to add MGI-compatible adapter sequences, followed by magnetic bead purification to remove residual primers and short fragments.
The purified products were then heat-denatured to obtain single-stranded DNA, which was circularized to form ssCir libraries. Non-circular molecules were enzymatically digested, and the resulting ssCir libraries were purified again. Subsequently, DNA nanoballs (DNBs) were generated by rolling-circle amplification and loaded onto DNBSEQ-G400 flow cells for sequencing according to standard MGI protocols, using paired-end 150 bp (PE150) read mode.
3. Results
Sequencing metrics
Sequencing of enriched libraries yielded a mean of 56.3 million raw paired-end reads per sample (range: 30.2–81.9 million), corresponding to an average output of 8.4 Gb per library. As shown in
Figure 1, the sequencing depth of the original Illumina libraries was on average 88.8% higher than that obtained after conversion and sequencing on the MGI platform, which is approximately in line with expectations from the 10 Gbp sequencing output specified in the Illumina experiment versus the 5 Gbp sequencing output in the MGI experiment.

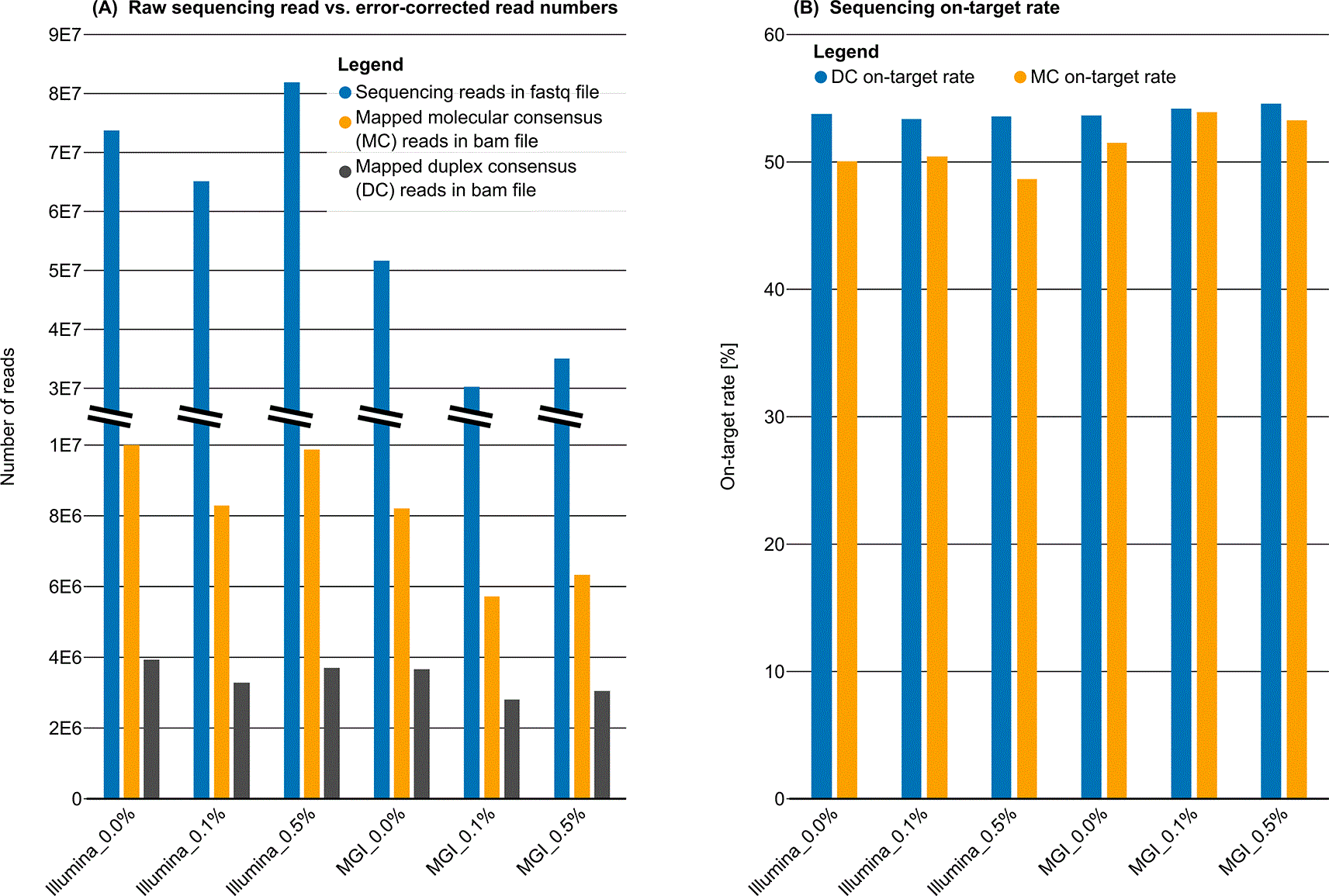

Figure 1. Sequencing depth and on-target performance of the pancreas panel.
This figure summarizes the sequencing depth required to achieve adequate molecular consensus (MC) and duplex consensus (DC) read recovery for a sequencing on-target rate of >50%. (A) Total sequencing output for Illumina and MGI platforms across three cfDNA Pan-Cancer Reference Standards with variant allele frequencies (VAFs) of 0.0% (negative control), 0.1%, and 0.5%. Note the break in the x-axis scale. For each sequencing technology and reference sample, the total number of reads generated (raw FASTQ) and the number of aligned reads retained in MC and DC BAM files are shown. (B) On-target rates following hybridization-capture enrichment, illustrated by sequencing technology, reference sample, and consensus level (MC vs. DC). Library preparations used 40 ng of input reference standard and the same library was aliquoted for Illumina and MGI sequencing.
After alignment and hybridization capture, a mean on-target rate of 52.4% (range: 48.7–54.2%) was achieved. This resulted in an average molecular consensus (MC) coverage of 13,540x (range: 10,213–16,476x) and a duplex consensus (DC) coverage of 6,036x (range: 5,011–6,975x) across the targeted regions. These coverage levels were sufficient to detect variants at low VAFs.
Accuracy and sensitivity of the pancreatic cancer panel
Assay performance for the pancreatic cancer panel was evaluated using the cfDNA Pan-Cancer Reference Standards, which comprise 44 documented mutations within the panel’s target regions. Key performance characteristics are summarized in
Figure 2.

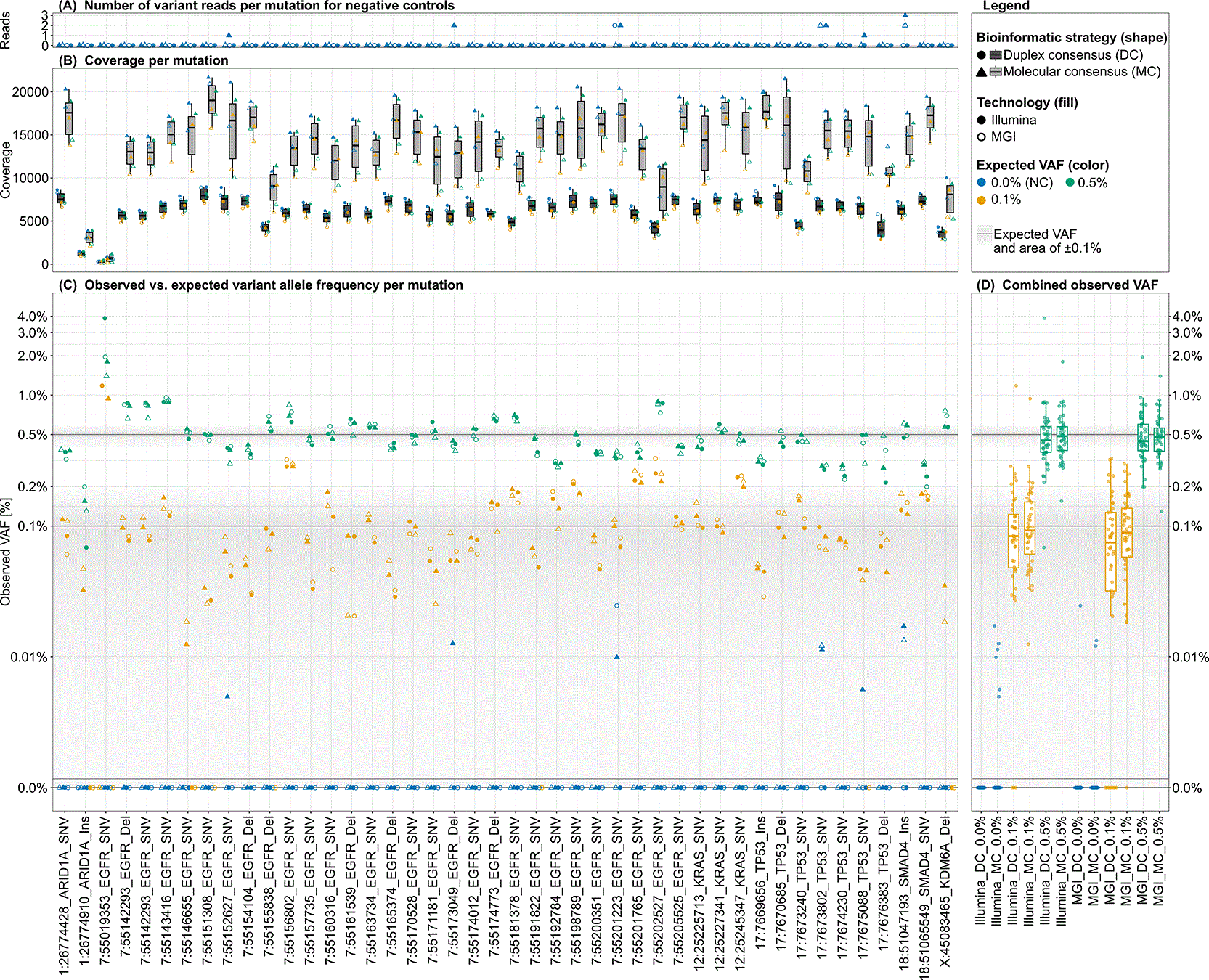

Figure 2. Technical assessment of sensitivity and specificity for mutation detection using a pancreatic cancer panel.
The figure summarizes variant detection performance across all 44 mutation positions included in the pancreatic cancer panel and reference samples. Shown are the number of variant reads, sequencing coverage, and observed versus expected variant allele frequency (VAF). Data are stratified by bioinformatic strategy (duplex and molecular consensus; circles and triangles), sequencing technology (Illumina and MGI; filled and open symbols), and cfDNA Pan-Cancer Reference Standards allele frequency (0.0%, 0.1%, and 0.5%; blue, orange, and green, respectively). A combined analysis across all panel positions is also shown. (A) Number of variant reads detected at each mutation position in the 0.0% reference (negative control). Any detected signal in this panel represents a false-positive event. (B) Sequencing coverage at each mutation position across all reference samples and experimental conditions. (C) Observed VAF for each experiment. Expected VAFs for each reference sample are indicated by solid grey lines, with the ±0.1% VAF range shown as a shaded grey area.
False positive signals observed in the 0.0% negative control reference sample are shown in
Figure 2A. Eight false positive events were detected in total, seven of which occurred in MC and one in a DC experiment sequenced with MGI. The number of supporting variant reads for these false positives was three reads for MC and two reads for DC.
Coverage at variant loci is presented in
Figure 2B. Median coverage was approximately 12,500× for MC and 5,000× for DC analyses, with relatively uniform distribution across most loci. Two loci, chr1:26774910_ARID1A_Ins and chr7:55019353_EGFR_SNV, showed consistently reduced coverage and were reported to the panel manufacturer to address them in subsequent panel versions. The observed MC-to-DC coverage ratio of approximately 2.5 exceeds the theoretically optimal expectation of 2.0, indicating the removal of 25% additional reads during DC construction due to missing the read representing the respective complementary strand.
Observed VAFs for all reference mutations are shown in
Figure 2C. All expected 0.5% VAF variants were detected. Of the 176 expected 0.1% VAF signals, 12 (6.8%) were not detected. Excluding the two previously described lowly covered loci, the number of missed 0.1% signals is reduced to eight. Two additional missed variants were located in the X-chromosomal gene KDM6A, which exhibited only approximately half the coverage of autosomal loci, consistent with the male reference standard genotype. Of the 12 missed signals, nine occurred in MGI experiments and three in Illumina experiments; when excluding previously described low-coverage and X-chromosomal loci, five signals were missed in the MGI experiments and none in Illumina experiments.
Figure 2D summarizes VAF distributions across all variants, stratified by sequencing technology and bioinformatic strategy. For 0.1% VAF reference samples, interquartile ranges (IQRs) were fully contained within the ±0.1% VAF window around the expected value. For the 0.5% reference samples, the upper quartiles remained within this range, whereas the lower quartiles extended slightly below −0.1%. Overall, MC-derived VAFs were more closely centered around expected values than DC-derived VAFs, while no strong systematic differences were observed between sequencing platforms. A modest trend toward improved performance with Illumina sequencing should be interpreted in the context of almost double the sequencing depth (88.8% higher) in the Illumina experiment and additional PCR cycles introduced during the Illumina-to-MGI library conversion.
Applying a minimum coverage threshold of 4,000× reduced the number of missed 0.1% variants from 12 to five (one Illumina DC and four MGI DC). Across all experiments, nine false positive events were observed, predominantly in MC analyses (six Illumina and two MGI), whereas only a single DC false positive was detected (MGI, two supporting reads).
Accuracy and sensitivity of the ovarian cancer panel
The performance of the ovarian cancer panel was evaluated using 79 documented reference mutations located within the panel’s target regions (
Figure 3). Based on results from the pancreatic panel analysis, Illumina sequencing was selected, and the DC bioinformatic strategy was applied to maximize specificity. Because DC coverage was below 4,000×, the threshold defined in the previous subchapter, sequencing depth was considered insufficient for reliable assessment of variants at 0.1% VAF in 7 of the 79 reference loci (8.9%). Consequently, downstream analyses were restricted to the 0.5% reference samples analyzed in technical replicates.

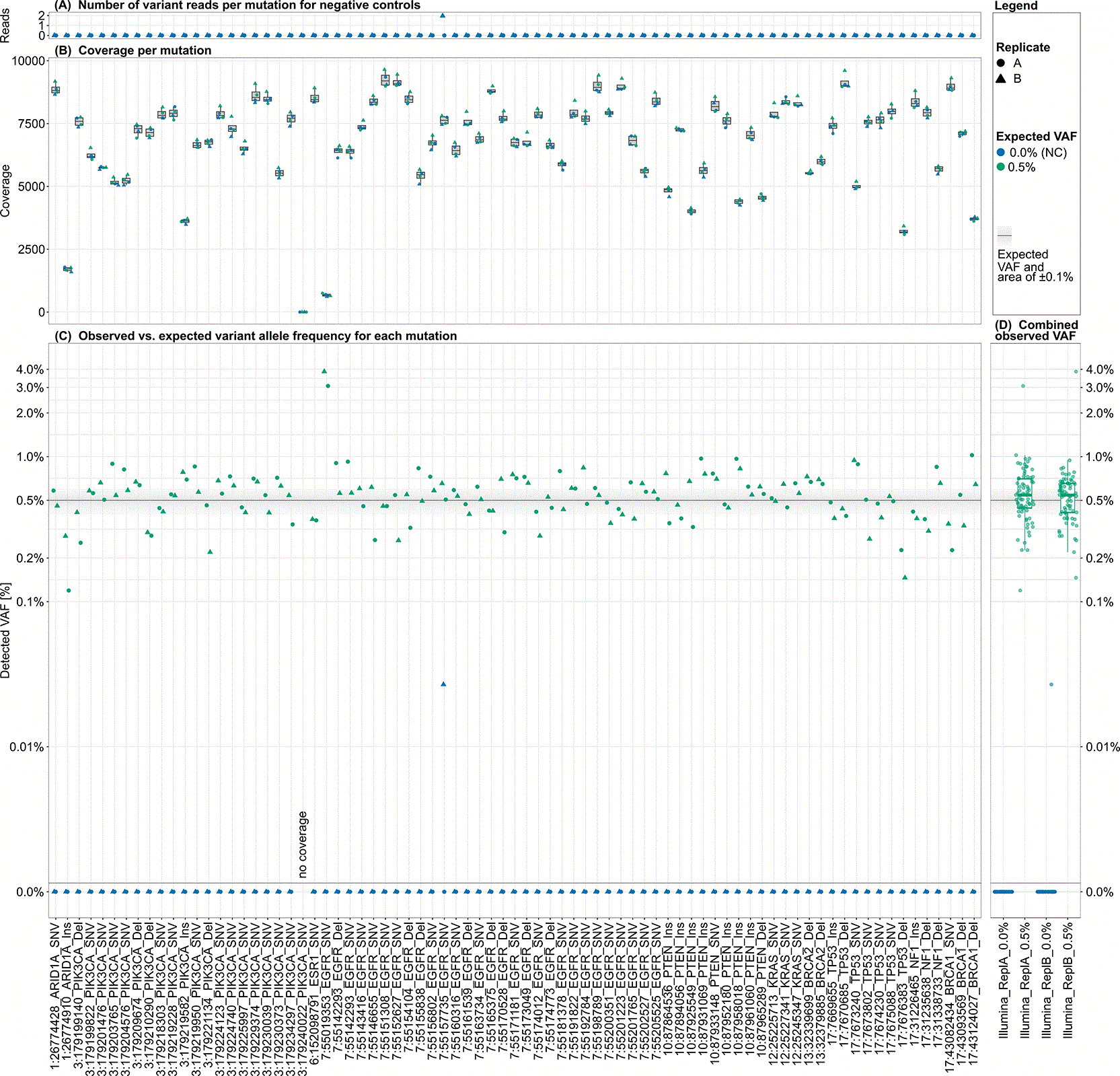

Figure 3. Technical assessment of sensitivity and specificity for mutation detection using an ovarian cancer panel.
The figure summarizes variant detection performance across all 79 mutation positions included in the ovarian cancer panel and reference samples. Shown are the number of variant reads, sequencing coverage, and observed versus expected variant allele frequency (VAF). Data are stratified by technical replicates (circles and triangles) and cfDNA Pan-Cancer Reference Standards allele frequency (0.0% and 0.5%; blue and green, respectively). A combined analysis across all panel positions is also shown. (A) Number of variant reads detected at each mutation position in the 0.0% reference (negative control). Any detected signal in this panel represents a false-positive event. (B) Sequencing coverage at each mutation position across the two reference samples and technical replicates. (C) Observed VAF for each experiment. The expected VAF for the 0.5% reference sample is indicated by a solid grey line, with the ±0.1% VAF range shown as a shaded grey area.
False positive signals in the 0.0% negative control sample are shown in
Figure 3A. Only one false positive event (0.63%) was observed, supported by two variant reads.
Coverage across variant loci is shown in
Figure 3B. Coverage was generally uniform, with a mean of 7,277× (range: 0–9,647×). Three loci exhibited substantially reduced coverage: chr1:26774910_ARID1A_Ins and chr7:55019353_EGFR_SNV, consistent with the pancreatic panel results, and an additional locus, chr3:179240022_PIK3CA_SNV, which lacked coverage with sequencing reads entirely. As communicated by the manufacturer, this locus is addressed in the updated panel design version.
Observed VAFs for the 0.5% reference variants are shown in
Figure 3C. All expected variants were detected, except at the locus with no sequencing coverage. Combined VAF distributions for all loci and replicates are presented in
Figure 3D. The lower quartiles of the observed VAFs fell within −0.1% of the expected value, whereas the upper quartiles extended beyond +0.1%. Notably, the median VAF in both replicates were very similar, while the quartiles were shifted to slightly lower VAFs. This suggests that differences between replicates may be larger than the differences observed between sequencing technologies.
Assay sensitivity for low cfDNA input amounts
Assay performance was further evaluated using reduced cfDNA input amounts. Previous studies have reported that a standard 10 mL blood draw from a cancer patient typically yields 4–5 mL of plasma containing approximately 5–10 ng/mL cfDNA, corresponding to a total cfDNA yield of 20–50 ng.14 To assess assay performance at the lower end of this range, additional experiments were performed using 20 ng cfDNA input. Results were compared with the pancreatic panel experiments described above, which were generated using 40 ng cfDNA input.
Sequencing metrics for libraries prepared from 20 ng cfDNA are summarized in
Figure 4A and compared with the corresponding 40 ng experiments shown in
Figure 1A. Sequencing yielded a mean of 75.3 million raw paired-end reads per sample (range: 51.0–90.6 million), corresponding to an average sequencing output of 11.3 Gb per library. The mean on-target rates were 50.4% (range: 50.1–50.9%) for duplex consensus DC data and 28.1% (range: 26.9–29.4%) for MC data. Two technical replicates of the 0.0% negative control, three replicates of the 0.1% reference sample, and two replicates of the 0.5% reference sample were prepared, enriched, and sequenced.

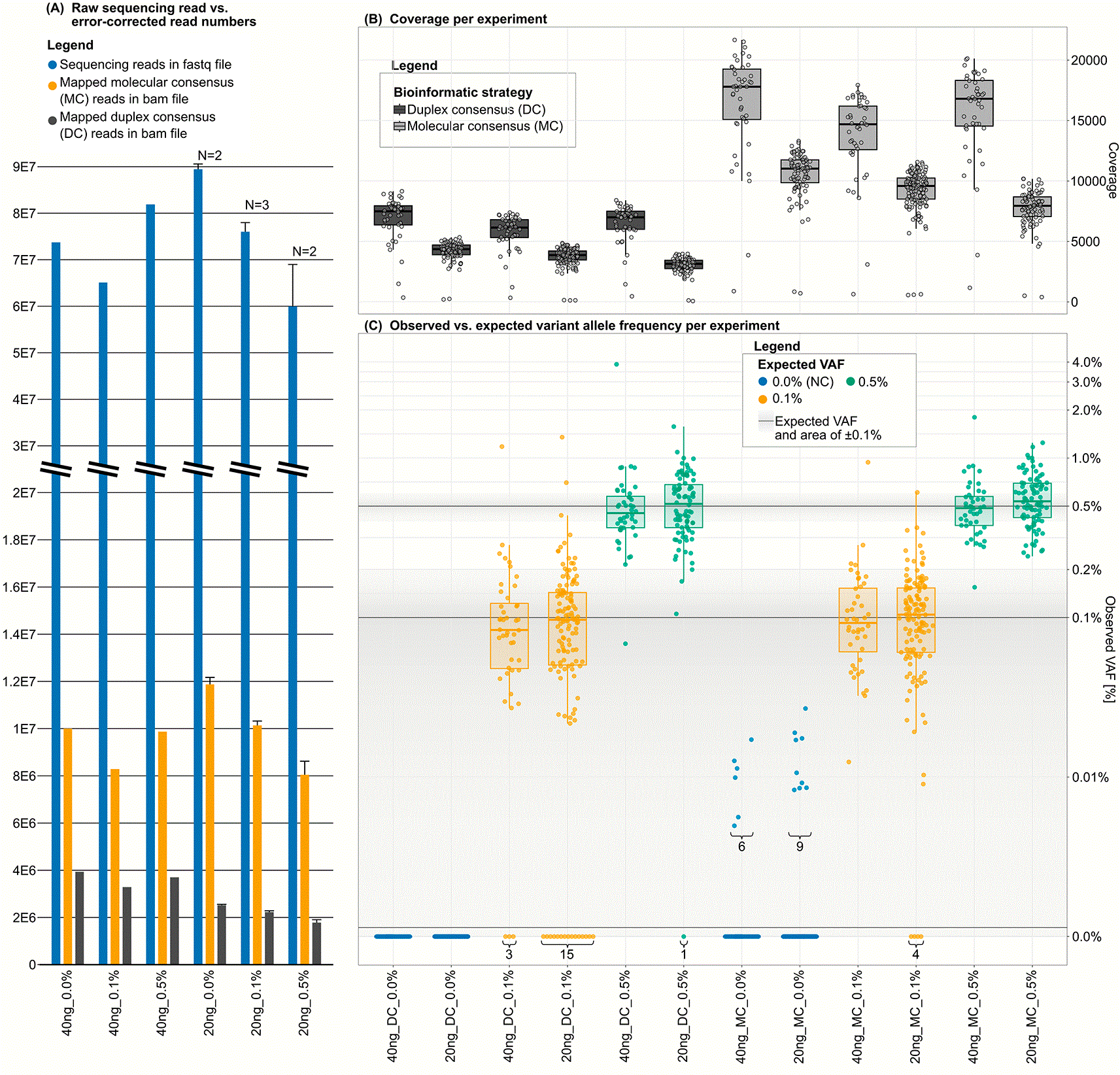

Figure 4. Technical assessment of sensitivity and specificity for cfDNA input amounts of 40 ng versus 20 ng.
The figure summarizes Illumina sequencing performance and variant detection for the 44 mutation positions of the pancreatic sub-panel using 20 ng cfDNA input and compares the results with the corresponding experiments performed using 40 ng input (cf.
Figure 2). Shown are sequencing output, sequencing coverage, and observed versus expected VAF. Coverage data are stratified by bioinformatic strategy DC and MC; dark and light grey, respectively) and the expected VAFs of cfDNA reference standards (0.0%, 0.1%, and 0.5%; blue, orange, and green, respectively). Technical replicates are indicated above the corresponding sequencing experiments in panel A. (A) Total sequencing output for the 40 ng and 20 ng cfDNA input experiments. For each reference sample, the total number of reads generated (raw FASTQ), and the number of aligned reads retained in the MC and DC BAM files are shown. Note the break in the y-axis scale. (B) Sequencing coverage across all mutation positions for the 40 ng and 20 ng input experiments, stratified by bioinformatic strategy. (C) Observed VAFs for all experiments grouped by cfDNA input amount, bioinformatic strategy, and reference sample. Expected VAFs for each reference sample are indicated by solid black lines, with the ±0.1% VAF interval shown as a shaded grey area. Numbers below and above the x-axis indicate the number of undetected variants and false positive signals, respectively.
Coverage across the reference loci is shown in Figure 4B. Despite increased sequencing depth, coverage at the target loci was lower than in the corresponding 40 ng input experiments for both the MC and DC datasets, indicating that sequencing had reached saturation with respect to the number of unique input molecules. As in the 40 ng experiments, the locus chr7:55019353_EGFR_SNV exhibited substantially reduced coverage, whereas coverage at chr1:26774910_ARID1A_Ins was comparable to that observed for the remaining loci. Although overall coverage was reduced, the distribution of coverage across loci was more tightly clustered around the median, indicating greater coverage uniformity.
Observed VAFs for all reference mutations are shown in Figure 4C. All expected 0.5% VAF variants were detected except for one variant located at chr7:55019353_EGFR_SNV. Of the 132 expected 0.1% VAF signals (44 reference mutations analyzed in triplicate), 15 were not detected in the DC analyses, whereas four were not detected in the MC analyses, including one at chr7:55019353_EGFR_SNV. In the two negative-control MC replicates, nine false positive signals were observed, compared with six false positive signals in the corresponding 40 ng MC experiment consisting of a single replicate. Applying a minimum threshold of three supporting variant reads would reduce the number of false positive signals from nine to one.
The VAF distributions remained comparable to those obtained with 40 ng cfDNA input, although a modest increase in variability was observed. As expected, the reduced cfDNA input resulted in lower sequencing coverage and a higher number of undetected low-frequency variants in the DC analyses. In contrast, the MC analyses retained a higher proportion of detectable 0.1% VAF variants but also yielded more low-level false positive signals than the DC analyses. Owing to the lower library complexity, however, fewer false positive signals were observed per replicate than in the corresponding 40 ng experiments. Applying an additional filter requiring at least three supporting variant reads reduced the number of false positive signals to one across the two negative-control replicates. Overall, the workflow maintained reliable detection of variants at 0.5% VAF at normal coverage with cfDNA input amounts as low as 20 ng. At lower allele frequencies and reduced cfDNA input, the MC strategy may represent a suitable alternative to the DC strategy by improving sensitivity while maintaining an acceptable level of specificity, reflecting the reduced number of false positive signals observed under these conditions.
Bioinformatic workflow
We here publish the complete bioinformatic strategy used to generate error-corrected UMI-based MC and DC data. All software tools, including version information, and all parameters used during data processing are reported. A comprehensive resource describing the full workflow, including software, parameters, and executed commands, is provided in the Supplementary File S1.
4. Discussion
In this study, we evaluated the technical feasibility of detecting low-level variants using two targeted enrichment panels for pancreatic and ovarian cancer, with VAFs ranging from 0.5% down to 0.1%. By systematically comparing 40 ng and 20 ng cfDNA input, two sequencing platforms and two bioinformatic strategies, we provide practical recommendations regarding filtering criteria, sequencing depth, and analytical workflows for reliable low-level VAF variant detection.
Across 123 reference variants covered by the two panels, the overall specificity of the assay developed by the Instand-NGS4P subcontractor consortium TPM was high. In the 40 ng experiments, our envisaged amount for future clinical validation studies, only two false-positive signals were observed with the DC bioinformatic strategy, which could be effectively mitigated by applying a minimum variant-read-count threshold. Notably, most false positives originated from the MC bioinformatic strategy, which was included as a more sensitive alternative to the DC approach. Specifically, eight of nine false positives detected in the pancreatic panel occurred in MC analyses, whereas only two false positives were identified using the DC strategy across all 123 loci. These findings highlight a trade-off between sensitivity and specificity, with MC offering increased sensitivity at the high cost of reduced specificity.
Sensitivity analyses revealed platform-dependent differences. While DC sensitivity was comparable across strategies for Illumina sequencing, it was reduced in MGI experiments, where eight 0.1% VAF mutations were missed compared with three variants on Illumina. In contrast, the MC strategy detected all reference variants in Illumina datasets and missed only a single 0.1% variant in MGI data. When excluding loci with insufficient sequencing depth, primarily due to uneven panel coverage or X-chromosomal localization in the genetically male reference sample, no variants were missed using Illumina DC, whereas five variants remained undetected in MGI datasets.
The observed performance differences between Illumina and MGI platforms are at least partially attributable to the substantially higher sequencing depth specified for the Illumina experiment (88.8% higher) and to the additional five PCR cycles required for Illumina-to-MGI library conversion, which may introduce or amplify polymerase-induced artifacts. The Illumina sequencing results for adequately covered loci indicate that the bioinformatic DC strategy provides superior specificity without compromising sensitivity relative to the bioinformatic MC strategy.
Coverage uniformity of the panel designs was generally satisfactory, although three loci consistently showed reduced depth. According to the manufacturer, these design-related limitations will be addressed in future panel iterations. Based on empirical observations, we propose a minimum depth of 4,000× duplex-consensus reads to ensure robust detection of variants with a 0.1% VAF using Illumina sequencing. Therefore, the approach we here present is an optimal compromise between affordability and sufficient sensitivity and specificity.
Under the selected analytical conditions (DC using Illumina sequencing with a minimum depth of 4,000× DC reads), the assay demonstrated high analytical performance. When sensitivity and specificity were evaluated without applying an additional filter requiring at least 3 supporting variant reads, the assay achieved a specificity of 98.37%, calculated from all observed false-positive calls across the pancreatic and ovarian datasets. Sensitivity was 100%, as all variants present at a variant allele frequency of 0.1% in the pancreatic panel were consistently detected.
Compared with other recently published NGS-based methodologies, the approach developed by the TPM consortium has a limit of detection (LoD) of ≤0.1%. Although alternative strategies have reported LoDs as low as 0.001%15 or even 0.0001%,16 these gains in analytical sensitivity are achieved at the cost of substantially increased complexity and expense. Specifically, such approaches rely on bespoke hybridization panel design for each individual sample or require very deep sequencing, comparable to whole-genome sequencing at approximately 60× coverage, representing a 19.2-fold increase in sequencing depth relative to the method presented here, thereby limiting their economic feasibility for routine application.
Whether the sensitivity and specificity observed with 40 ng cfDNA input are maintained at lower input amounts was further evaluated using only 20 ng cfDNA. The expected reference mutations were detected at VAFs comparable to those observed in the 40 ng experiments. All 0.5% reference variants with feasible sequencing coverage were successfully detected. Although the number of undetected 0.1% reference variants increased in the 20 ng DC analyses, the number of low-level false positive signals per replicate in the 0.0% negative control was lower than in the corresponding 40 ng experiments. Furthermore, applying the previously defined threshold of at least three supporting variant reads reduced the number of false positive signals to a single event. These findings suggest that, under reduced-input conditions, the lower library complexity shifts the balance between sensitivity and specificity, making the MC strategy a potentially advantageous alternative to the DC strategy for the detection of low-frequency variants, as the gain in sensitivity is accompanied by only a minimal reduction in assay specificity.
Overall, this study establishes a closed, transferable, and reproducible workflow for low-level VAF variant detection using standardized reference materials. Developed within the Instand-NGS4P project, this approach represents a promising technical foundation for future MRD applications and clinical translation. By directly comparing sequencing platforms and bioinformatic strategies, our work provides a transparent assessment of methodological trade-offs relevant to low-level variant detection. The technical performance observed here is consistent with the favorable evaluation at the conclusion of Instand-NGS4P Phase III, further supporting the robustness of the TWIST/Platomics/MGI consortium’s approach. Moreover, by incorporating feedback from the European Commission’s final review, this study emphasizes both the clinical relevance and the degree of standardization achieved for the MRD panels developed within this EU-funded framework.
Several limitations should be acknowledged. This study was intentionally restricted to technical performance metrics and standardized reference samples. In addition, the workflow was assessed using a cfDNA input of 40 ng, which may not always be obtainable from patient plasma samples in routine clinical practice. Panel designs may evolve to improve coverage uniformity or to incorporate additional genes as therapeutic landscapes change. Importantly, prior to clinical implementation, the described workflows and panels must be validated in real-world clinical studies using patient material and undergo lab-developed test (LDT) accreditation or IVDR certification based on those data.
Beyond the results presented here for one representative solution, the broader Instand-NGS4P project subjected each final-phase approach to multi-site evaluation and evaluation from technical, clinical, and patient perspectives, with further manuscripts to follow. Taken together, these efforts culminated in a project that, according to the European Commission’s General Project Review, fully achieved its objectives and delivered exceptional results with significant immediate or potential impact.
Ethics and consent
No human samples were used in this study. All experiments were performed using synthetic reference materials (synthetic Twist cfDNA Pan-Cancer Reference Standard v2). Because no human participants or identifiable human biological materials were involved, ethics approval and informed consent were not required.
Data availability
The aligned bam files generated and analyzed during the current study are publicly available in the European Nucleotide Archive (ENA) under accession number PRJEB108992.17 The supplementary materials, including a detailed description of the bioinformatic workflow (steiert_et_al_supplementary_file_S1.pdf
) and the list of genes covered by the ovarian and pancreas panels (steiert_et_al_supplementary_tables.xlsx), are available at https://doi.org/10.5281/zenodo.18967866.18
Data are available under the terms of the Creative Commons Attribution 4.0 International (CC-BY 4.0).
Software availability
A detailed description of all software and software versions, together with a generalized script containing all commands and parameters used for the bioinformatic analyses in this manuscript, is provided in Supplementary File S1.
Acknowledgments
We thank Yewgenia Dolshanskaya, Sören Franzenburg, and Janina Fuß (all CCGA Kiel) for support with laboratory methods, and Georg Hemmrich-Stanisak, Teide Boysen, and Jörg Ottens for support with bioinformatics and infrastructure maintenance. A.K. and H.B. acknowledge computational support from the OMICS compute cluster at the University of Lübeck.
The authors acknowledge the use of ChatGPT (OpenAI, GPT-5.2) and Grammarly (Superhuman Platform Inc., 1.15.4) to improve the clarity, grammar, and overall language of the manuscript. The authors take full responsibility for the content of the work.
