Introduction
In January 2020, the high-energy physics community was looking forward to another busy year full of workshops, schools and conferences. The situation dramatically worsened in Europe by the end of February and the final and lethal blow to all these live events happened in the middle of March. The quick escalation of the situation was personally experienced by the authors during the organization of the PRecision Effective FIeld Theory School (PREFIT20) from the 2nd to the 13th of March1 and during a COST short-term scientific mission to Hamburg. The PREFIT20 school had to be switched from lecturers being on-site to online presentations as events were running and turned out to be the last major live event in our field. The short-term scientific mission looked like an ordinary trip during the out-bound journey (9th of March), but one and a half weeks later (18th of March) almost all flights were cancelled and the airport at Frankfurt became completely deserted, with all shops closed.
By the end of March, lock-down, working from home and online education became the standard. This also meant all conferences and workshops were cancelled or postponed until the end of summer. Within a couple of weeks the dominant platform to interact with colleagues became Zoom. The system got so wide-spread that term "Zoom meeting" became the 15th most frequently used term in 20201. In the particle physics community, collaborations spanning over several countries or continents are quite common, having members from different countries in Europe or even from the Americas and Asia. Hence people were more-or-less familiar with virtual meeting platforms and the technical transition had no major difficulties or problems. This was also witnessed by the authors participating in several virtual collaboration meetings, seminars, online workshops and by giving lectures.
Our experience suggests that although distant collaborations had been set up and were working flawlessly well before the pandemic, the situation changed because several institutions and universities in Europe introduced travelling
restrictions, and completely prohibited short visits and brain-storming sessions during conference coffee breaks. Also, it is very common that new collaborations form spontaneously, a process for which in-person meetings, workshops and structured programs at centers for scientific exchange like those offered by, e.g., Aspen, GGI, INT, KITP, MIAPP and MITP, play an important role2. During a pandemic virtual presence and online platforms can keep an already working collaboration going, but new collaborations become much harder to start due to the lack of personal contacts between potential members. In the particle physics community well before the pandemic the usual habit was to approach people personally during a workshop or conference and start an informal collaboration growing out of stimulating discussions over coffee breaks.
The pandemic not only changed the professional lives of researchers but also their personal lives. This can also have consequences to scientific output and should not be disregarded. With lockdown and online education introduced in schools researchers not only had to cope with new ways to keep their current collaborations going and to establish new ones despite the lack of all personal contacts but also had to prepare for lecturing using virtual classrooms. The latter aspect is of particular significance as the community generally regards chalk board lecturing as the best way to convey course material and scientific ideas11,12. All of these factors have an effect on scientific research and it is not at all clear how the community could adopt to new circumstances.
In this paper we analyze the research output in the form of papers and proceedings of the high-energy particle physics phenomenology community by using various open search engines to retrieve data on published papers during the pandemic and in the past twenty years to get a better understanding of the true effects of the pandemic and to see what kind of changes it induced in the community. To have a broader perspective we also collected data related to the high-energy particle physics theory community and the two major experiments, ATLAS and CMS, conducted at CERN’s Large Hadron Collider (LHC) as well. We have selected these two experiments since these are the biggest ones in our community founded in the middle of the 1990s, hence their publishing trends extends well before the pandemic.
Methods
In order to extract publication data we used the search engines of two publicly available databases, which cover basically all relevant scientific publications (these include both peer-reviewed and non-peer-reviewed publications as well) in the field of high-energy physics: INSPIRE13 and arXiv14. These engines allow for sophisticated searches by restricting hits through the use of many criteria, like paper categories3
(hep-ph, hep-th, hep-ex, etc.), by requiring papers to have a certain number of authors or by listing papers published or uploaded within a given period of time. As these highly specialized tools have become quite mature it is possible to perform automatic queries by invoking the site’s search engine directly with an API (Application Programming Interface). By using a special URL, the search engine can be instructed to perform a search according to the parameters specified through the URL and to return the result in some machine readable format. For example, if publications that appeared in 2021 and categorized as hep-ph are extracted from INSPIRE the following URL should be invoked from the browser:
https://inspirehep.net/api/literature?fields=hits.total&format=json&q= publication_info.year:2021%20AND%20arxiv_eprints.categories:hep-ph
The result is delivered in the JSON format, which is tolerably readable by the human eye but easily digestible by the many commonly available interpreting languages, like Python. In our case only the total number of papers fulfilling certain criteria was needed, hence the method we have employed is:
1. URL is constructed with all needed keywords.
2. URL is invoked from Python.
3. Result is delivered in JSON format.
4. Total number of papers is extracted and written into data file.
5. Histograms are created with GNUplot.
In the case of the arXiv database we did not use the arXiv API. Instead, by selecting the advanced search option, the total number of records fulfilling the search criteria (for details see the corresponding section) were gathered manually.
In recent times a strong increase in conference proceedings can be seen in all the categories we have investigated. In order to avoid this proliferation as much as possible and to get a clearer view of publishing trends we have filtered out all records without a DOI number. This method does not fully eliminate proceedings from the search results but restricts their number to a subset which is indeed published in one form or another. The filtering according to the DOI number was only possible with the INSPIRE API. Hence, we have validated our arXiv results by taking a look at the annual statistics reported from both search engines to see if the presence of proceedings in the arXiv search results affects the trends obtained with the INSPIRE API.
With the INSPIRE API we have collected annual statistics starting in the year 2001 and up to 2021. We have not considered 2022 because entries in INSPIRE do not acquire a DOI until they are published in a journal a few months later. To get the annual number of papers we have requested that the field publication_info.year includes the year for which total number of publications are collected. Moreover, the document type had to be article, all the records were supposed to have a DOI number and to belong to the target category (hep-ph, hep-th or hep-ex) for which we collected the data. In case of the hep-ex category we have only accepted papers by the ATLAS and CMS collaborations and, hence, rejected any other. By varying the number of authors we were able to get statistics data for various collaboration sizes.
In the case of the arXiv search engine our set of selection criteria was very modest. We have performed searches in the same three categories as in case of the INSPIRE API, filtered records according to their submission year and, for a finer resolution, the month in which the submission happened.
Annual statistics using inspire API
For the long-term annual trend in publishing the INSPIRE API was used in the three different categories: particle phenomenology (hep-ph), theory (hep-th) and experiment (hep-ex), the latter being restricted to the ATLAS and CMS collaborations only, and the results were filtered by requiring a valid DOI number attached to each record in order to minimize bias due to the proliferation of proceedings. Specifically we are interested in the total number of papers on an annual basis and in the number of authors.
For the interpretation of the data collected in this way, it is also important to identify scientific events with potential impact on the publishing behavior of the high-energy physics community, such as new discoveries, the schedule of LHC operations, or other important developments. For the categories we have analyzed events with potential impact are listed in Table 1.
Table 1. Noteworthy events with potential impact on publishing trends and tendencies in the high-energy physics community since the start of LHC operations.
| Event | Date |
|---|
| LHC Run I | late 2009 - early 2013 |
OPERA announcement of measurement
of superluminal neutrinos15 | 23 September 2011 |
CERN announcement of Higgs boson
discovery16 | 04 July 2012 |
ATLAS and CMS presentation of
diphoton excess at 750 GeV17,18 | 15 December 2015 |
LIGO announcement of first
measurement of gravitational waves19 | 11 February 2016 |
| LHC Run II | 2016 – 2018 |
Results
Total number of papers
The total number of published papers in the period 2001 to 2021 are depicted in Figure 1. It is evident that the start of LHC operations with Run I had a tremendous effect on publication activity in high-energy physics. As it can be seen in Figure 1a, before 2010 the number of papers produced in the phenomenology community remained at a steady level with a slight increase hardly discernable due to fluctuations. However, as first LHC results started to pour in the number of papers increased rapidly. A certain fraction of the increasing number of papers in 2011 can be also attributed to the OPERA announcement on the measurement of superluminal neutrinos15. In 2014 and with the end of Run I the increase flattens out, the annual publication rate becomes roughly constant although with a different normalization, roughly a factor of two compared to pre-LHC days. A small peak can be seen in Figure 1a in 2016, which can be attributed to the 750 GeV diphoton excess17,18. The Run II of LHC has a less dramatic effect on the number of phenomenology papers and it is also shifted by a year or so starting to ramp up only in 2018. The increase in the number of publications at the end of the LHC Run II did not finish in 2019, instead it is still visible in data taken for 2020 and 2021. Knowing that the COVID-19 pandemic had its first real effects in March 2020 this is a remarkable observation. The publishing trend did not change by the measures enforced on the phenomenology community but on the contrary even with all difficulties induced by the pandemic the community flourished.

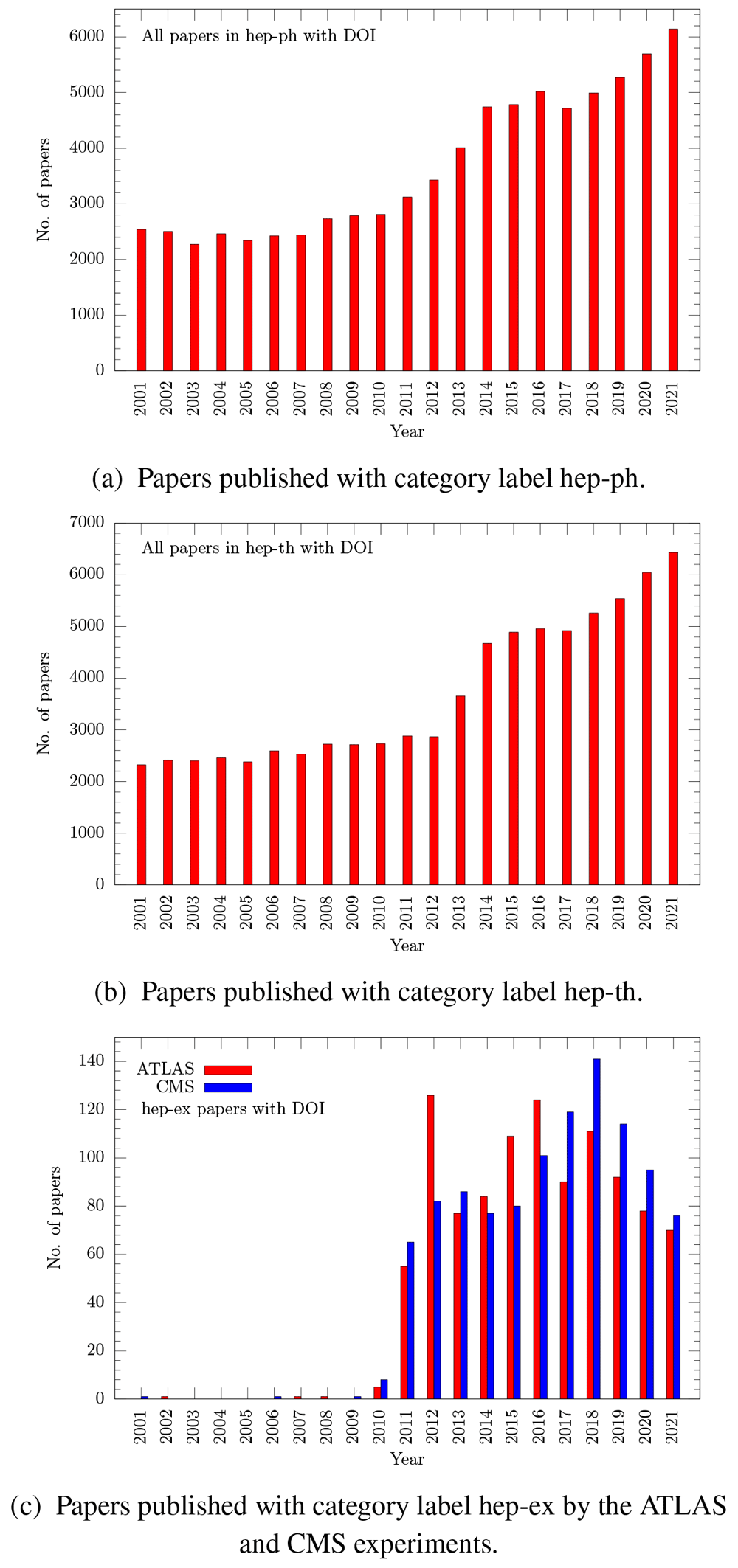

Figure 1. Total number of published papers according to INSPIRE filtered using various arXiv category labels and requesting a valid DOI number.
A look at the high-energy theory category in Figure 1b shows that the number of papers published grows only moderately until the year 2013, where a sudden increase happened in the normalization. This change of normalization coincides with new achievements in multi-loop amplitude calculations where the first publications appeared on arXiv in 201320,21 and completely changed the way loop integrals are being calculated nowadays. The real change in the trend appeared after the Run I starting in 2015 and 2016. Then, a second, less dramatic increase starts in 2018, a trend in agreement with the previous LHC related ramp-up. The number of theory papers increases not during but just after the end of the LHC Run II. This could be a consequence of the lack of new physics found in both runs, leading the community to speculate about the lack of new signals.
The annual number of published papers produced by the ATLAS and CMS collaborations are shown in Figure 1c and it is evident that the publication activity really started around 2011 and 2012 once real data was taken and subsequently analyzed. As for Run I, ATLAS outnumbered CMS which started to catch up during Run II later on. Also between the two runs the continuous analysis of recorded data produced a steady flow of published papers. As more and more data has been analyzed the rate of papers decreases, which is already visible in the numbers recorded after 2019.
A. Number of authors
In high-energy physics collaborations of many sizes exist. A pandemic can have different effects on different collaboration sizes hence it is very informative to dissect the annual number of papers according to different collaboration size ranges. This partitioning can only affect phenomenology and theory papers because in the hep-ex category we only consider ATLAS and CMS publications. The latter two collaborations have constant size since the start of LHC operations in 2009 with approximately 3.000 authors in case of ATLAS and around 2.500 authors in case of CMS.
For the hep-ph and hep-th categories, the annual statistics for single-author papers is shown in Figure 2. Restricting ourselves to the phenomenology papers only, in Figure 2a it can be seen that the number of papers displays a rather steady trend with somewhat larger fluctuations due to the smaller amount of papers produced on an annual basis. Due to higher fluctuations, possible trends are harder to identify but a slight increase can be observed at the start of LHC Run I in 2010 and ending in 2012. Recent years, starting with 2016, brought a steady decrease of number of papers with a slight increase starting in 2018 in accord with the end of LHC Run II. This slight increase has continued until 2020 and has ramped up in 2021.

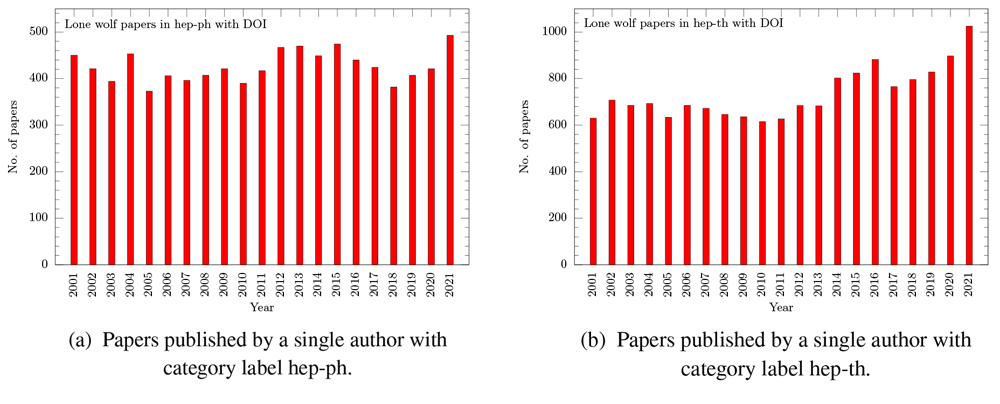

Figure 2. Total number of published papers according to INSPIRE filtered using hep-ph (left) and hep-th (right) arXiv category labels, requesting a valid DOI number and with a single author.
In Figure 2b, single-author hep-th papers are listed as a function of publication year. Before LHC Run I it follows a more-or-less constant trend with some fluctuations, even some decrease can be seen ending in 2010. A ramp-up period can be identified starting in 2010 in line with the start of LHC operations resulting in a peak in 2016, part of which can be attributed to the diphoton excess announcement in December 2015 and the LIGO announcement of first measurement of gravitational waves in February 201619. Another period of increasing publication activity started in 2017 in line with the end of the LHC Run II. The year 2020 witnessed an increasing publication activity that continued in 2021 for single-author papers in hep-th, so it seems that the pandemic was not a significant factor in this respect.
For small-size collaborations, which we define to consist of two to five authors, the number of published papers on an annual basis is plotted in Figure 3 for both communities, phenomenology and theory. In Figure 3a, it is visible that before the LHC Run I the phenomenology community more-or-less followed a steady publishing tendency with the same amount of papers produced annually with some fluctuations. The start of Run I resulted in a steady increase in published papers with a slight slow-down tendency as nearing the Run II. The year of 2016 witnessed a remarkably good year for publishing most probably by the diphoton anomaly announced in late 201522,23. Run II ignited one more increase which seems to continue.

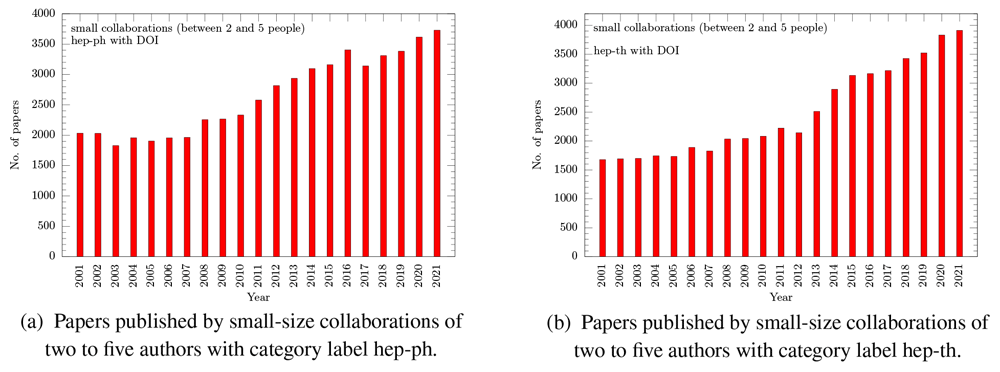

Figure 3. Total number of published papers according to INSPIRE filtered using hep-ph (left) and hep-th (right) arXiv category labels, requesting a valid DOI number and by collaborations with between two to five authors.
On the other hand, in Figure 3b, publishing trends of small hep-th collaborations can be seen with a very similar behavior as in hep-ph, although with a slightly elongated slow increase. The big jump in publishing happens not through the Run I period but slightly after with no clear sign of superluminal neutrino or the diphoton excess announcements. The same trend is visible in recent years, as the numbers of publications grow again with the end of Run II.
Medium-size collaborations4 are neither very common in phenomenology nor in theory as can be seen from the annual statistics in Figure 4. It seems evident that the start of LHC operations during its Run I was a crucial factor in forging collaborations of this size since both in phenomenology and in theory the number of papers published drastically increased throughout and after this period. In the phenomenology statistics a clear peak is visible in 2016, correlated in time with the diphoton excess. In recent years, trends continue to be positive.

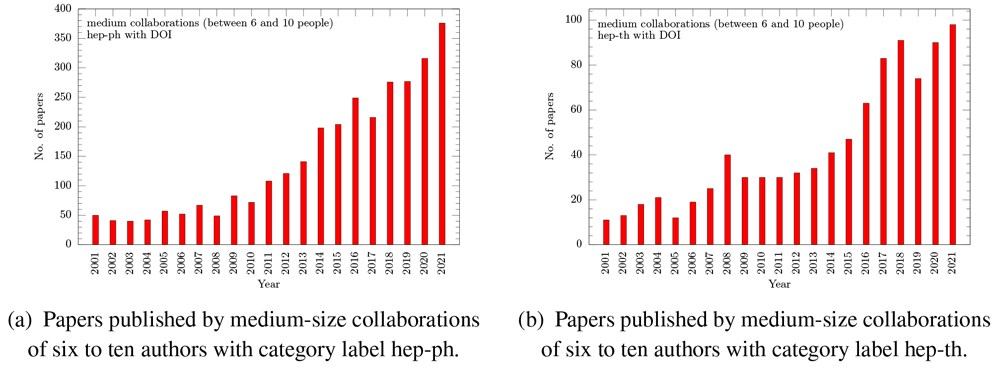

Figure 4. Total number of published papers according to INSPIRE filtered using hep-ph (left) and hep-th (right) arXiv category labels, requesting a valid DOI number and by collaborations with between six to ten authors.
Large-size collaborations5 of more than ten authors involved do not have a long history in the analyzed two communities as can be seen in Figure 5. In the theory community even nowadays these can be regarded as scarce with less than a dozen papers produced annually. As Figure 5a shows the advent of LHC physics and the first results from LHC Run I catalyzed the formation of these kind of collaborations. In comparison, less than twenty such papers were published on an annual basis before the LHC era. The past recent years however do witness a rising trend of publications from large-size collaborations in the hep-ph category, culminating in an enormous peak in 2020 (more than 20% increase compared to 2019) and 2021. This dramatic increase in the number of publications by large-size collaborations in phenomenology can be explained by the extraordinary performance of LHC during and since Run I. The high-quality data created a strong driving force for precise predictions, which, on the other hand, require a significant amount of collaborators. Consequently, the demand for state-of-the-art predictions can often only be fulfilled within a reasonable time-frame by joining efforts, hence large(r) collaborations have been and are being formed. The peaking behavior can also be seen in the publication trend in the hep-th community but since the number of publications there is smaller by a factor of two the increase in 2020 compared to 2019, and the decrease in 2021, can be partially attributed to fluctuations. However, it is clear from the trend (at least for the hep-ph community) that the pandemic did not have any effect on the publishing trend. On the contrary, the past two years were fruitful for producing papers for this size of collaborations.

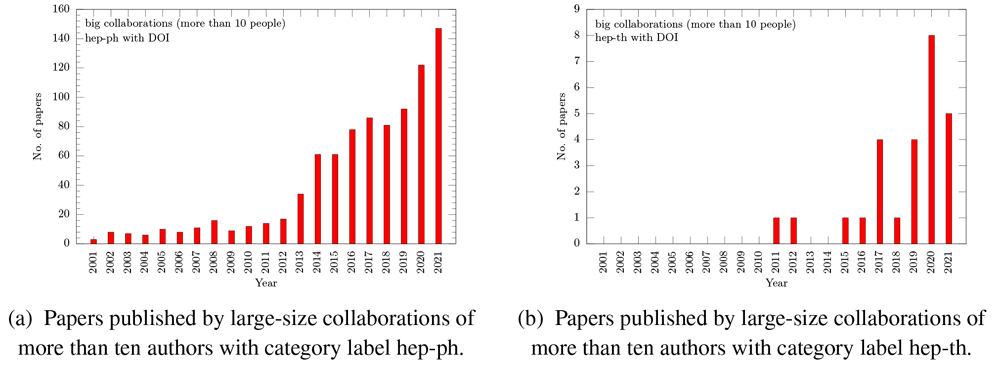

Figure 5. Total number of published papers according to INSPIRE filtered using hep-ph (left) and hep-th (right) arXiv category labels, requesting a valid DOI number by collaborations with more than ten authors.
Judging from these annual statistics, it seems that the effect of the pandemic on the three communities in high-energy particle physics (hep-ph, hep-th and ATLAS, CMS in hep-ex) is at most moderate and in the worst case resulted in a stagnation in the publishing trends or a very slight decrease. Collaborations of larger sizes seem to be immune to the COVID-19 restrictions, being able to publish with the same or even higher frequency. In the case of the ATLAS and CMS collaborations the overall trend for the recent years shows a decreasing rate of publications and the data for 2020 and 2021 also mirror this well-established trend, which is likely to change after the start of the LHC Run III in 2022..
Monthly statistics using arxiv
The search engine of arXiv allows us to extract publishing data not only on an annual but also on a monthly basis, i.e., we can get some insights on the monthly distribution of publications. The engine does not just restrict the search to published papers, but even with conference proceedings contained in the collected samples, it is interesting to look at publication and arXiv submission trends at a finer resolution. In order to convince ourselves that statistics gathered on a monthly basis including conference proceedings still can be used to identify trends in publishing, the total annual statistics collected via arXiv can be compared with the histograms in the previous section based on the data of the INSPIRE API. As an example of this, cross-check annual submission statistics were collected in the hep-ph category on arXiv and the resulting histogram is plotted in Figure 6. Comparing this figure to Figure 1a shows that the trends are the same, although the overall normalization is different. Before the LHC Run I period both statistics follow a more-or-less constant trend with an increase in the number of publications due to the LHC Run I. Even the publishing peak in 2016 is visible with arXiv results and the increasing frequency of recent years can be identified. These findings give us enough confidence to take a look at the monthly charts obtained from arXiv and to search for tendencies in them.

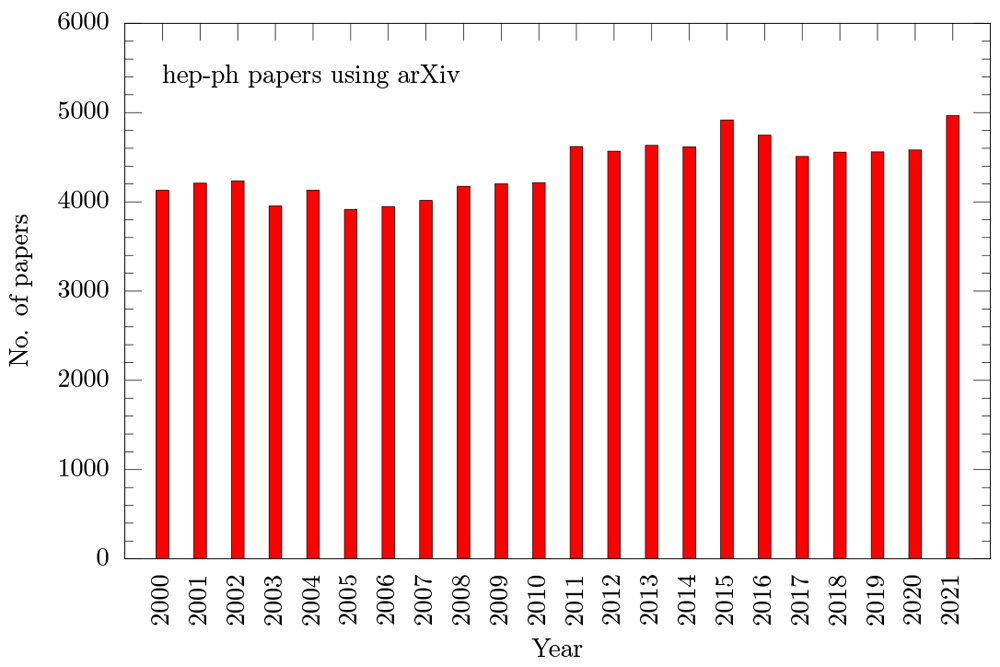

Figure 6. Annual submission statistics in the hep-ph category using the arXiv search engine.
In Figure 7 we have plotted the monthly statistics for seven consecutive years, from 2015 to 2021, for both hep-ph and hep-th. As it can be seen from both plots the publishing trend is relatively constant for phenomenology papers but for theory papers a clear pattern emerges. The publishing frequency is systematically lower in the first two months of the year and increases to a local maximum in the summer but just to turn back and reach a second minimum in August and September and then it ramps up to reach the maximum frequency as the year ends. The histograms contain both 2020 and 2021 results and these data fit perfectly well into the general trend of recent years. In order to create these histograms we have used the original submission date for the records to filter results. In this way it is easy to see for example that the 750 GeV diphoton excess really created a swell of publications6, both in phenomenology and theory papers, resulting in an excess of 15–20 % of publishing in December 2015 with a significant surplus carried over to January 2016 (more than 30% for phenomenology and 17% for theory compared to the same period of previous year).

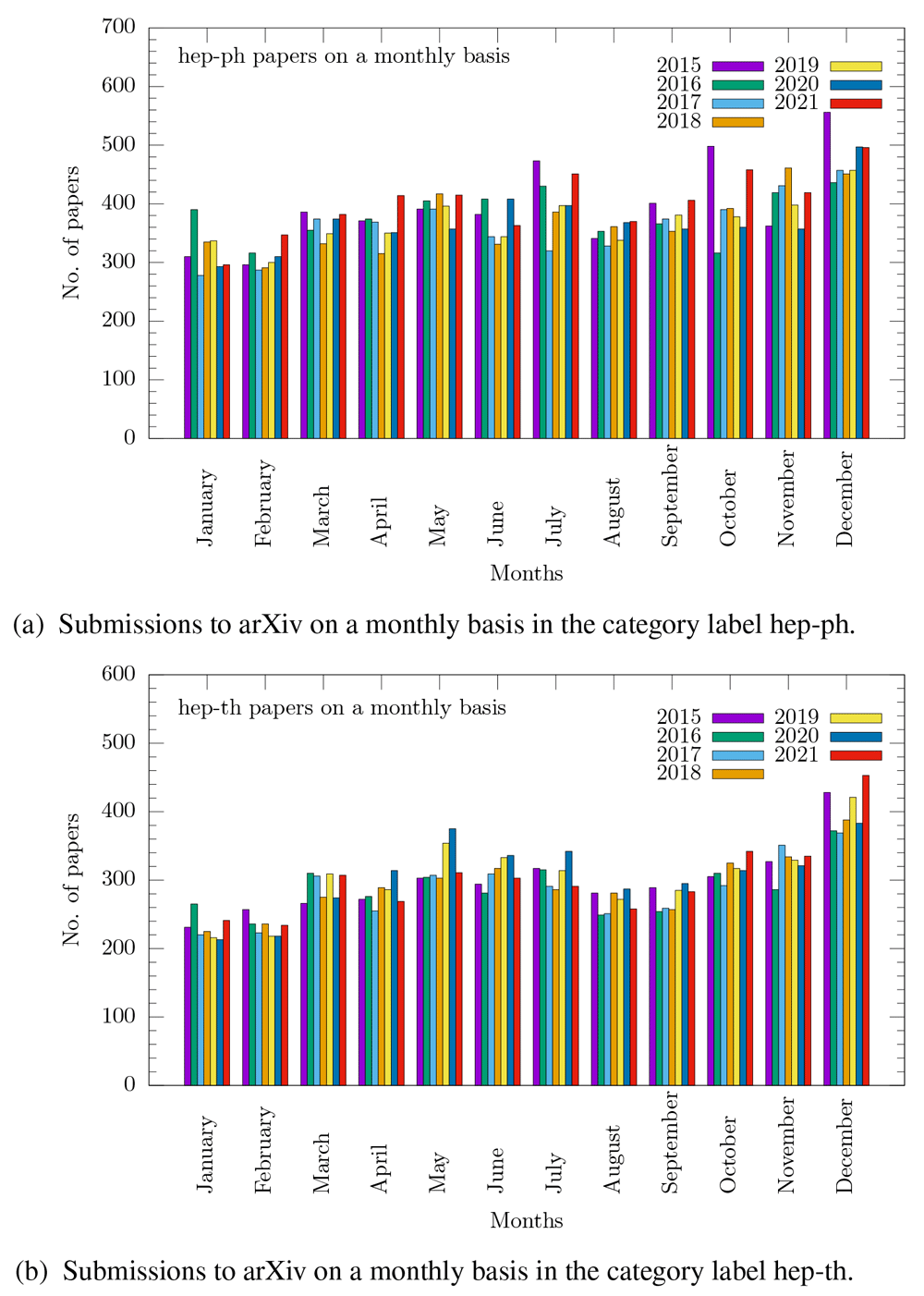

Figure 7. Submission to arXiv in the hep-ph (up) and hep-th (down) categories between 2015 and 2021.
For further details see the main text.
From these statistics it seems that the pandemic did little to change the already settled publishing trends and at times it helped overshoot the same month from previous years. We cannot identify any dramatic increase nor dramatic decrease in the publication rates.
Conclusions
Despite the pandemic, the high-energy physics community continued with the increasing trend in the number of publications that started with the operation of the LHC. At the same time the face-to-face interaction remains a vital component in the process of exchanging scientific ideas, for work in existing collaborations and for the start of new ones. Here, workshops, conferences and topical programs at centers for scientific exchange play an important role by creating suitable environments and atmospheres. The complete lack of such interactions could have a negative impact. While the various virtual presence platforms seem suitable and efficient for administrative purposes and supersede in-person meetings, they cannot serve as a substitute for the true melting pots of new ideas during social events. Travel and workshop attendance can also help to focus on research in the absence of the usual other errands, lectures and administrative burdens.
In summary, the particle physics community successfully adapted to the COVID-19 pandemic and the associated restrictions for the time being, but to avoid complete stagnation and to really progress towards a bright future the high-energy physics community needs to restart in-person events, scientific visits and black board discussions.
Ethics and consent
No ethical approval or consent was required.
Disclaimer
Author German Rodrigo is currently on leave at the European Research Council Executive Agency, European Commission, BE-1049 Brussels, Belgium. The views expressed are purely those of the writer and may not in any circumstances be regarded as stating an official position of the European Commission.
Data availability
Repository: Hepstat: Particle physics facing a pandemic - dataset https://doi.org/10.5281/zenodo.7392919 This project contains the following underlying data:
arxiv (containing annual and monthly statistics extracted from arXiv)
gnuplot (contains all the GNUplot scripts used to create all the figures of the paper in two subfolders: one for arXiv and one for the INSPIRE statistics)
inspire (contains the annual statistics obtained from INSPIRE)
.py files:
- arxiv-annual.py: this script is used to extract annual statistics from arXiv
- arxiv.py: this script is used to obtain the monthly statistics from arXiv
- inspire.py: this script is used to get the various annual statistics from INSPIRE
All data has been extracted from open sources and underlying results and all computer code are available on GitHub24
Data are available under the terms of a CC0 licence and no additional source data are required.
