Introduction
Endocrine disrupting chemicals (EDCs) are natural or synthetic chemicals that interfere with the normal functioning of the endocrine system in humans and animals. However, the impact of EDCs in general and man-made chemicals in particular on human health is not so well-understood. They are ubiquitous and have been implicated in the increase in the prevalence of common non-communicable diseases (NCDs) over the last decade1. Man-made EDC chemicals, from here on referred to as EDCs, can be found not only in the environment (water, soil, air), but also in consumer products (plastics, food packaging, electronics and food packaging), in personal care products (e.g., sunscreen, cosmetics), as well as in food and drinking water2. Efforts to minimize exposure to harmful EDCs include regulations on their use in consumer products, bans on certain chemicals, and public education campaigns to raise awareness of their potential adverse health risks. Many of these approaches rely on results obtained from scenarios on exposure to single chemicals or at best to a family of chemicals. In reality, however, we are exposed to multiple EDCs simultaneously throughout our lives. Not only do some EDCs accumulate in the environment and enrich in certain tissues3, but their mixtures will lead to additive, and in rare cases, synergistic or antagonistic effects4.
Deviations from normal healthy state or development do cause individual suffering and impose enormous costs on health care systems5. Although ample evidence of the adverse effects of EDC exposure in wildlife and animals was already reported by the International Program on Chemical Safety in 2002 and has been complemented by a large number of epidemiological studies over the past decades, significant gaps still remain in our understanding of the health effects and mechanisms of EDC in the human population3,6–8 The so-called immunotoxicology lists among the less explored topics. Indeed, the effects of EDCs on the immune system have been poorly investigated. However, dysregulated immune pathways may underlie and are important drivers of common human diseases. The fact that EDCs may affect the immune system and cause abnormalities relevant to disease is poorly addressed5. Despite growing evidence feeding to his emergent field of research, more research is needed to fully understand the breadth of EDCs´ impact on the immune system, especially concerning long-term health effects and the combined impact of multiple disruptors to which we are exposed chronically. Additionally, understanding individual and group susceptibility needs to be considered.
In this article we present the concept and objectives of the ENDOMIX project to address the above-mentioned challenges and needs.
ENDOMIX conception
The vision and aim of ENDOMIX is to thoroughly clarify and understand the overall immunotoxic or immunomodulatory impact of EDC mixtures and underlying mechanisms leading to adverse health outcomes. ENDOMIX is a cutting-edge research initiative that aims to uncover the true impact of EDCs on human health by bridging existing knowledge gaps between science and policy. It was born out of the need to synthesize available information from different approaches and sources, and the urgent demands of society to protect individual health by reducing exposure to and minimizing chemical risks. The project takes an interdisciplinary approach, covering the full chain from population-based studies to mechanistic understanding of EDC effects at the cellular and target organ level, and translating this into policy recommendations.
ENDOMIX strongly focuses on EDCs and their possible combined effects with other stressors, including socioeconomic aspects, and addresses an area that is under-researched and where knowledge is grossly lacking. Exposure to EDCs is associated with important adverse health outcomes in humans across the life course, including impaired respiratory and cardiometabolic health, neurodevelopment autoimmunity, and altered reproductive health9. These constitute health outcomes with a large burden of disease worldwide10. The exact underlying biological pathways are mostly unclear. Many studies overlook the fact that there are age windows in which exposure to EDCs are more critical, making certain populations like pregnant women, neonates, infants and children more vulnerable to their effects. ENDOMIX takes a unique approach to this problem by focusing on a) chemical mixtures (real life EDCs), b) immunotoxicity as a critical central mechanism, c) strong study designs, of multiple European cohorts with data on chemical exposures and NCDs across the life course, d) modelling approaches complemented by bioassays that provide novel knowledge about real-life mixtures and their effects, e) mechanistic and causal molecular investigation including in vitro barrier and target organ models as well as different animal species considering the 3R rules, and f) knowledge synthesis through novel text mining approaches for biomechanistic insights, modelling and risk estimation.
Existing gaps in scientific understanding, policy, and knowledge transfer hamper the effectiveness of European regulations in assessing, preventing, and reducing human and environmental exposure to EDCs. Addressing this uncertainty by integrating robust data sources, existing data from biobank samples, modelling strategies, and bioassays will be transformative in identifying real-life mixtures that are of concern and should be looked at more carefully. The effects of chemical mixtures may be more significant than their components, potentially causing irreversible adverse effects during vulnerable periods of life such as pregnancy, early childhood, and adolescence. This aligns with the Developmental Origins of Health and Disease (DOHaD) framework, which posits that many adult diseases originate in early life, with chemical exposure during these vulnerable periods potentially driving adverse health outcomes7,11. Adolescence is a key period of rapid and unique development, in which individuals may be very prone to major endocrine and metabolic changes, and thus potentially highly sensitive to EDCs, but this has rarely been examined in epidemiological studies. Further, it is not considered in the design of single in vivo studies nor experimental settings for risk assessment. ENDOMIX will therefore break new ground by focussing on puberty endpoints.
A recent report of the Lancet Commission for Planetary Health identified immunotoxicity, the focus of ENDOMIX, as one of “three particularly worrisome, and inadequately charted consequences of chemical pollution”12, the other two being neurotoxicity and reproductive toxicity. Even though that it is documented that acute or chronic EDC exposure on the immune system results in autoimmune diseases13, or common diseases like diabetes, obesity, allergies and respiratory diseases, the impact of EDCs on health outcomes mediated by the immune system is poorly acknowledged or completely overlooked in most of current approaches. ENDOMIX will advance the field by studying immunotoxicity as a driver of deviations in human health development following exposure to EDCs, and a perpetuator of pathologies.
Dysregulated immune pathways are known drivers of common diseases such as diabetes, obesity and respiratory diseases. In particular, dysregulated immune responses in pregnancy may have long-term effects on offspring, even if the pregnancy seemed normal. The fact that EDCs can affect immune responses upon binding to the hormone receptors expressed on the surface of or in immune cells14,15 and cause abnormalities relevant to pathology is poorly recognized or not recognized at all. The primary focus of ENDOMIX on the emerging field of immunotoxicity is not limited to immune-related diseases, but applies to a wide range of pathophysiological conditions. Acute or chronic exposure to EDC chemicals and mixtures can impact the immunome, a term used to comprise the genes and proteins that constitute the immune system16, and also affect the frequency, phenotype and functionality of immune cells, with different effects depending on individual predisposition, time and duration of exposure. However, whether and how exposure to chemicals, and in particular EDCs and chemical mixtures of concern, is associated with immune-mediated pathologies has not been studied in depth. The vision of ENDOMIX is to fully elucidate and understand the overall effects of complex EDC mixtures and the underlying mechanisms,
Our strategy is to cover the entire knowledge chain to achieve this ambitious goal (Figure 1). In a first step candidate EDC mixtures relevant for endocrine disruption, immunotoxicity and immunomodulation will be identified using a previously developed prioritization workflow for neurotoxic chemicals based on simulated worst case exposure, high-throughput toxicokinetics models and high-throughput toxicity data with data-gap filling through toxicity prediction models17. The identified potential mixture effect contributors will be searched for in population-based blood exposure data from a large collection of 16 cohorts and cohort consortia European cohorts including target and non-target analysis using high-resolution mass spectrometry (HRMS) data. Based on this information, complex EDC mixtures will be reconstituted in the laboratory at the concentration ratios as they were detected in human blood. The reconstituted mixtures will be used to investigate their effects at the level of immune cells and target organs. The concentration ratios of the chemicals in the mixtures correspond to the concentrations found in the cohort samples, but the overall concentration is higher to be able to measured but the results will be extrapolated down to the real-life concentrations. Tissue barrier systems, organ-on-a-chip-approaches and zebrafish embryo models behavioral assays will be utilized to understand EDCs' impact on defined endpoints. By combining the gained knowledge on defined associations between exposures and health outcomes and identified cell- and organ-dependent mechanisms, we will continue using cohort samples and model systems to understand causality between these exposures and defined health outcomes and identify underlying mechanisms. Finally, at the end of the project, we will be able to provide evidence-based recommendations to regulators and policy makers, inform the public and contribute to improved risk assessment.

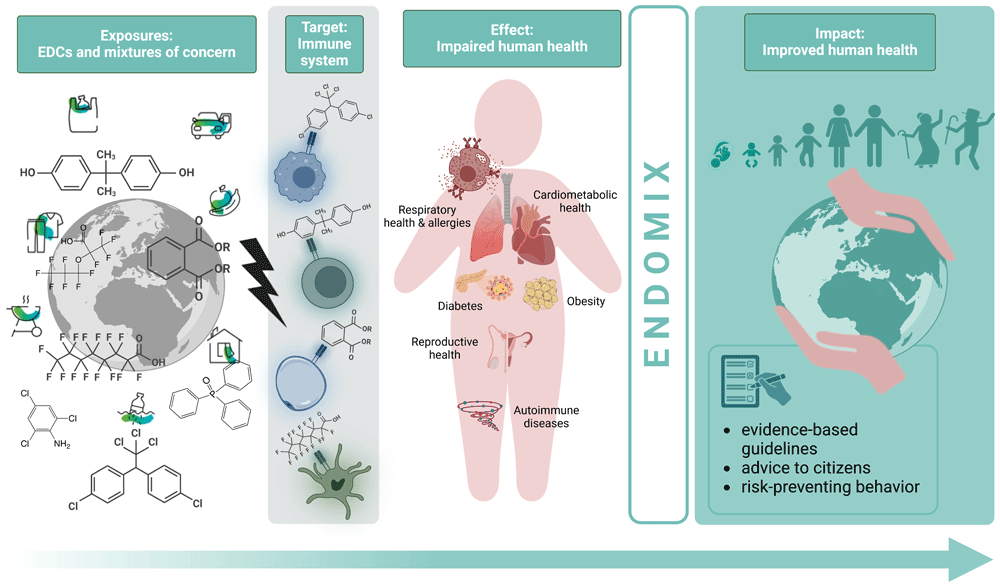

Figure 1. The ENDOMIX strategy from data generation to its translation into policy guidelines and recommendations.
With a combination of life-course population-based cohort data, high-throughput screening and modelling to identify new mixtures of concern, in vitro cell, barrier and organoid models, in vivo models, omics, and computational approaches, ENDOMIX will deliver evidence-based guidelines and advice to citizens on improving human health.
ENDOMIX objectives
ENDOMIX aims at unravel the overall immunotoxic or immunomodulatory impact of EDC mixtures leading to adverse health outcomes. The overarching objective of ENDOMIX is to deliver new information and concepts about the immune-mediated health impact of EDC mixtures, and their underlying biological mechanisms, which will build the basis to elaborate on approaches that help minimize EDC exposures in the future.
Mixtures identified as potentially concerning will be tested in in vitro and in vivo assays, including primary immune cells, organoids, alternative models such as Caenorhabditis elegans and zebrafish embryos, and classic mouse models to uncover mechanistic insights. Barrier models will be used to determine the transport and targets of EDC mixtures. Computational approaches will bolster associations between multiple exposures and health outcomes.
Our objective is to provide clear scientific evidence on exposure scenarios, co-exposures' effects (including lifestyle and socioeconomic factors), target cells and organs, and mechanistic pathways. ENDOMIX will integrate harmonised data on EDC exposures, immune markers, and health outcome endpoints from multiple European cohorts to accelerate this integrative approach. Additionally, we will identify novel bioactive EDCs through predictive exposure and toxicokinetic modelling, combined with data mining from high-throughput screening (HTS) bioassays, with an emphasis on immunotoxicity and immunomodulation, to prioritise drivers of mixture effects.
Objective 1: Identification of complex EDC mixtures in European populations
Existing knowledge about EDC impact on health mostly came from studies of single chemicals and previous experimental design is often insufficient as they focus on known chemicals only. People are exposed to a wide range of EDCs that can potentially interact and will certainly act together in mixtures. Therefore, it is vital to improve our understanding of the effects of exposure to real-life EDC scenarios at different life stages. Additionally, the problem is that there are potentially thousands of chemicals in our blood and there are hundreds of chemicals that potentially cause endocrine disruption and immunomodulation, but they were never systematically matched to identify chemicals that are mixture effect drivers. ENDOMIX cutting edge and novel approach is that we will simulate mixtures of potential concern by data mining of the toxicology literature, simulating mixture exposure with help of high-throughput toxicokinetic modelling and mixture effect models. This approach has so far led to >7000 candidate chemicals out of a starting list of 100,000 chemicals that could potentially be contributing to mixture effects. ENDOMIX will derive complex EDC mixtures and health outcomes in European populations using an exceptional wealth of data and biosamples analysis by systematic in silico prioritization leveraging toxicology literature, high-throughput toxicity & exposure methods and mixture effect models. In silico mixtures predictions will be augmented with existing blood biomonitoring data through searching for candidate chemicals of concern data from cohort samples within the consortium. Newly detected bioactive compounds will be confirmed in a small subset of blood samples from the cohorts before complex chemical mixtures are designed for testing in the HTS assays.
ENDOMIX will design in vitro studies to analyse endpoints that are relevant for immunotoxicants and associated mediators of health outcomes as defined in the cohort studies. Based on key characteristics (KC) of immunotoxicity, we will select adequate HTS assays addressing relevant key events of endocrine disruption and immunomodulation as a comprehensive apical endpoint of immunotoxicity in innate and adaptive immune cells. These assays are suitable for screening large numbers of chemicals, mixtures and ultimately even extracts from blood samples of the cohorts. The large number of screened chemicals and mixtures in the HTS assays will then be used to develop a smaller number of representative mixtures of immunotoxicants that will be tested in more specialised and more complex bioassays, primary cell cultures and in vivo model systems.
Our strategy starts with population-based studies that include many cohorts covering the life course (prenatal, perinatal, infancy, childhood, adolescence, adulthood) and comprising regions across Europe and beyond with very detailed data (Participating cohorts, Figure 2). ENDOMIX not only brings together large multiple existing cohorts with already measured EDCs in biosamples, but its novelty lies in the identification and study of EDC as mixtures and the focus on the immune-mediated effects of EDCs. In addition to the identification of new mixture contributors, ENDOMIX will use existing targeted screening data of a number of EDCs: polychlorinated biphenyls, organochlorine pesticides, per- and polyfluorinated compounds, metals, parabens, phthalates, phenols, and organophosphate pesticides. Further, for cohorts with limited availability of EDC data, such as for relatively rare outcomes like autoimmune diseases, we will proceed to quantify chemicals suspected to contribute to immunotoxic mixture effects, such as polychlorinated biphenyls, organochlorine pesticides, and per- and polyfluorinated compounds. Another strength is the covering of various life stages allowing the study of different windows of susceptibility to EDCs including early-life and adolescence, two major sensitive periods subject to important endocrine and physiological changes. We expect that EDC mixtures may vary over time due to changes in EDC use, exposure sources, and policies, and across different populations depending on determinants such as age, sex, socioeconomic status, and lifestyle habits. In addition to most of the identification of new mixture contributors, involved cohorts benefit from exposure and health outcome data already harmonised in the context of previous or ongoing EU-funded projects including the LifeCycle project18 and projects that are part of the European Human Exposome Network (EHEN, including ATHLETE19, LongITools20 and Expanse21. ENDOMIX will use existing targeted screening data of a number of EDCs: polychlorinated biphenyls, organochlorine pesticides, per- and polyfluorinated compounds, metals, parabens, phthalates, phenols, and organophosphate pesticides.

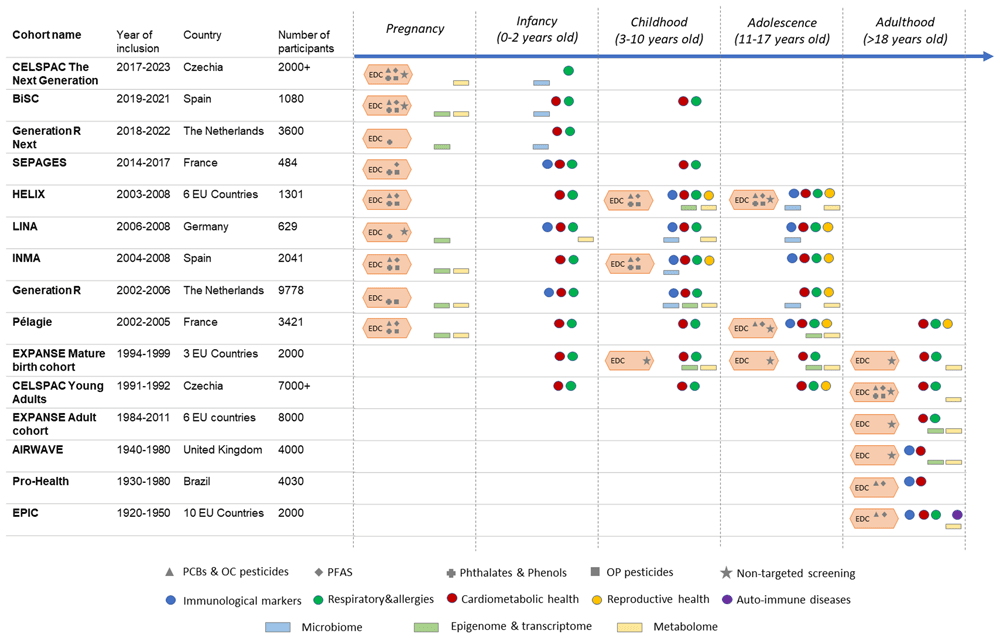

Figure 2. Overview of the observational studies involved in ENDOMIX.
Cohort study name, life course timepoints (pregnancy, infancy, childhood, adolescence, and adulthood) and illustration with coloured signs representing the availability of chemical exposure data measured with targeted analysis throughout the life course is shown. Further, available microbiome, epigenome, transcriptomics, and metabolomics data are indicated.
Objective 2: Associations between exposure to EDC mixtures, occurrence of allergies and respiratory, cardiometabolic and reproductive health as well as autoimmunity
Mixtures that occur in real life will be tested for immunotoxic effects from HTS using in vitro bioassays and predictive exposure models. After identifying mixtures of concern and testing their effects in simple bioassays, we will examine their potential determinants including socioeconomic, environmental and lifestyle-related factors and their link with several important health outcomes, of which; the choice was based on the potential involvement of the immune system as a mediator of disease development. Immune cells can be targeted by EDCs, are ubiquitous in the human body, can traffic to target organs and if dysfunctional, they are able to initiate, trigger or perpetuate disease. Health outcomes to be studied within ENDOMIX therefore are (1) allergies & respiratory health (eczema, atopic dermatitis, allergic rhinitis, wheezing, asthma, lung function, COPD), (2) cardiometabolic & cardiovascular health (body mass index, waist circumference, adiposity, dyslipidemia, insulin resistance, diabetes, stroke, acute myocardial infarction) (3) reproductive health (age at menarche, age at voice break, Tanner stages, menstrual cycle characteristics, sex hormone levels), and (4) autoimmune diseases (rheumatoid arthritis, ulcerative colitis, Crohn´s disease). The health outcomes will be studied at different age periods, from childhood to adulthood (e.g., from early changes in blood pressure to the onset of cardiovascular diseases) in cohorts and disease models. We will additionally explore how EDCs may be associated with overall health by analysing their potential effects on more than one health outcome, an approach particularly relevant for public health to identify the EDC mixtures that contribute to multimorbidity.
The association of EDCs with the health outcomes may be linked to central immunotoxicity processes with a focus on inflammation. ENDOMIX will identify immune markers focused on inflammation using a proteomics approach and will examine their relation with EDC exposure. Immune markers focused on inflammation will comprise cytokines, chemokines, their respective receptors and a wide range of other immune proteins that will be identified through novel proteomic analyses using Olink® inflammation panels. Many biological pathways. metabolic perturbations may serve as biological pathways involved in immune-related effects of EDCs on human health. ENDOMIX will make use of available epigenetic, microbiomic, and endogenous metabolomic data of participants of the human cohorts. By doing so, we will offer insights into the relationships of exposure to EDCs, immune markers and DNA methylation, microbiome, and metabolome at multiple life stages and their association with human health outcomes.
Studying EDC mixtures in epidemiology raises methodological challenges due to the high correlations between different EDCs and the high dimension of data to be considered (tens to hundreds of chemicals). ENDOMIX will overcome these challenges by using advanced statistical methods suitable for chemical mixtures. These include unsupervised dimensionality reduction and clustering methods that will allow the identification of specific profiles of exposure independently of their health effects, and supervised techniques (e.g., Bayesian Kernel Machine Regression, Quantile G-computation) to estimate both the overall effect of the EDC mixture on disease risk and the contribution of each individual compound to the mixture effect. Another statistical challenge is the integration of immunological markers as potential intermediate endpoints between EDC exposure and health. We will perform mediation analysis in a high dimensional context to disentangle the direct and indirect effect of EDCs through changes in immunological markers. To synthesize information across different biological layers, we will use a multi-omics framework using graphical networks and multi-block approaches, such as two-way orthogonal PLS (O2PLS) and multi-omics factor analysis (MOFA), to integrate the information from EDC exposures, omics layers, possible sex differences and disease outcome.
Objective 3: Impact of prioritized EDC mixtures on the immunome, innate and adaptive immune cell functionality and target organs
To investigate the direct effects of priority EDC mixtures on the immunome, innate and adaptive immune cells’ frequency, phenotype and functionality, we will first characterise the imunome and which cell subtypes are the most affected by EDC mixtures by mass cytometry, based on CyTOF® (cytometry by time of flight) technology. The unique metal labelling of antibodies allows the simultaneous identification of up to 50 protein markers in one cell with the further advantage of no background signal compared to other methods. After identifying the cell subtypes affected the most, more specific immunoassays involving innate and adaptive immune cell populations will be employed to test the impact of chemicals. Moreover, cytokine-bead arrays will be applied to determine cytokines in monocyte, dendritic cell, T and B cell culture supernatants to gain further insights into cytokine secretion patterns22. For T cells, maturation and differentiation assays will be conducted under chemical treatment. For B cells, alterations in antibody production (Ab) capacity (e.g. IgG, IgM) will be determined under the impact of EDC mixtures. Together, these assays will provide detailed information about EDC effects on immune cell differentiation, maturation, plasticity and functionality and will thus increase our knowledge on chemical drivers of acute and chronic diseases. Finally, gene expression analyses using semi-high-throughput qPCR and omics approaches will be employed in chemical-exposed immune cell populations to gain further insights in altered intracellular pathways.
Further, barrier and organ in vitro models including organoids will unravel how EDCs behave within tissues, and how EDC mixtures cross barriers and if immune cells work as messengers or mediators of organ toxicity. The models were carefully chosen to be meaningful regarding the health endpoints studied in cohorts. Besides using human in vitro models, as described above, we will employ innovative models that faithfully mimic the organs of interest and human response (Figure 3).

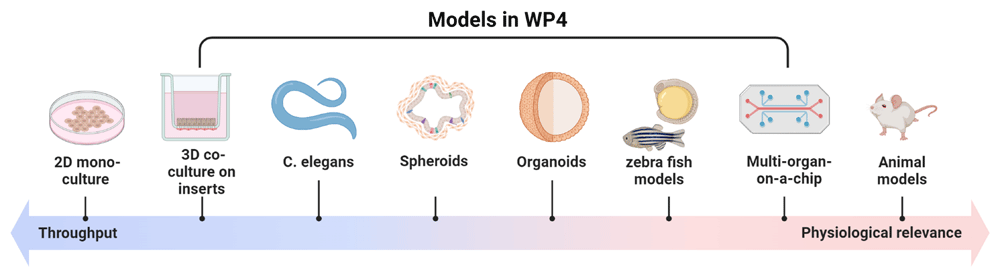

Figure 3. Models used in ENDOMIX.
Different models are used in ENDOMIX to study the impact of endocrine disrupting chemical (EDC) mixtures in tissue barriers, cell-cell interaction and whole organisms.
Here, barrier models, co-culture and 3D models, including organoids and organ-on-a-chip models that are already published and running in the laboratories of the ENDOMIX partners, will be used. When adequate or possible, immune cells will be combined with the cell systems. These systems include: in vitro lung barrier23,24, in vitro blood-brain-barrier25,26, in vitro placenta barrier27 and in vitro intestinal barrier28,29.
Further, for target organ models, we use lung organoids30, in vitro heart spheroids31,32, intestinal organoids33,34 and liver spheroids35,36. Immune cells will be co-cultured to understand EDC effect on their interaction. At the molecular level, we will identify gene and protein expressions of nutrient transporters, regulation of genes related to lipid and glucose metabolism gene and associated transcriptional factors, and perform nuclear receptor transactivation assays. Established gene and protein signatures indicative of triglyceride accumulation37 will be transferred to further models to derive characteristic and predictive gene expression patterns in vitro, indicative of a certain endocrine effect.
Organoids will be generated from primary samples, like placenta organoids or will be stem-cell derived Multi-organ in vitro models will be used to study interactions between different organs (e.g. intestinal-hepatic interaction or liver-adipocyte interaction) and the effect on chemical biotransformation. Because of its defined short life cycle, C. elegans can be exploited to test the effect of chemicals on the whole life cycle of an organism (from egg production to development to mature organism). Our innate immune models with C. elegans include bacterial infection models and detection of antimicrobial proteins and peptides. EDC mixtures and individual chemicals will be tested on development and innate immune responses by C. elegans38,39. Moreover, a zebrafish embryo model will be used to complement in vitro approaches as C. elegans to evaluate the impact of EDC on the outcome of metabolic liver diseases and on related intestine-liver axis disruptions including alterations of microbiota and immune cell functions. The zebrafish embryo model represents a 3R-compliant40, alternative model that, up to 5 days post-fertilization (dpf), is considered to be a non-protected life stage, according to EU regulations41.
There is a gap in the availability of complex, higher-throughput immunotoxicity screening systems. We propose that the zebrafish embryo model can fill this gap, particularly for identifying innate immunotoxicants, as the innate immune system develops in isolation in 5-day-old zebrafish embryos. A new alternative assay to detect innate system immunomodulation will be developed and applied in embryonic zebrafish that quantitates, in parallel, a concentration-response relationship on a diverse suite of ~25 immunomodulatory molecules including markers for phagocytes (neutrophils, monocytes, macrophages), inflammation-related serum proteins (complement, C-reactive protein), antimicrobial peptides (defensins), cell receptors that signal a defensive response (TLRs), cells that release inflammatory mediators (macrophages, mast cells, NK cells), and markers of physical barriers (tight junctions). In addition, automated morphometrics will be applied to quantitate gastrointestinal area which, when increased in the absence of other morphological effects, may indicate intestinal inflammation. Individual chemicals and mixtures developed in this project will be tested in a concentration response format. Transgenic lines labelling neutrophils or macrophages will be used to quantify immune cell migration into the gastrointestinal (GI) tract.
Critical periods of exposure and possible sex differences are also considered in ENDOMIX´s design as for example placenta organoids and immune cells from both sexes are employed to represent exposure that affects not only mother and offspring in a transgenerational approach but also sex-related disease development. The use of alternative models including transgenic zebrafish with labelled macrophages and C. elegans as a model of dysbiosis will provide valuable data on EDC impact and immune-mediated mechanisms and thereby greatly reduce the use of vertebrate animal experiments.
Objective 4: Establishment of causality of EDC exposure on health outcomes
The direct causality between exposure to EDC mixtures and deviations from normal healthy development or disease outcomes needs to be confirmed to deliver evidence for improved chemical regulations. ENDOMIX will utilize the information obtained in Objectives 1–3 to design studies addressing causality of EDC exposures on health outcomes. The models will further consider the EDC association with health outcomes through their impact on immune cells and target organs. These approaches include deep characterisation in cohort samples using omics-based biomarkers and the effect and perinatal exposure using transgenerational in vivo models. Experimental mouse models will be used whenever in vitro or alternative models cannot answer the scientific question. Mixtures identified previously will be tested in well-defined transgenerational 3R-conform mouse models to verify adverse effects observed in human cohorts and in in vitro models. Control treatment will depend on the nature of the defined mixtures. These models may include: asthma in the offspring of exposed mothers, rheumatoid arthritis in offspring of exposed mothers and will include mechanistic studies42–44. As for reproductive health, we will study potential EDC effects on the reproductive performance of female and male offspring of EDC-exposed dams (same exposure protocol as for the other disease models)45,46. To assess puberty onset in female offspring, we will assess vaginal opening and oestrous cycle analyses, and as ovarian follicle maturation analyses47,48. For male offspring, sperm analyses will provide insights into their fertility status49.
Objective 5: Engagement with regulators and providing guidance on exposure to the European community
The European public needs access to well-founded information on the effects of complex mixtures of EDCs to avoid disinformation. Citizens need to be empowered to self-regulate and reduce their exposure to EDCs and mixtures of concern in everyday life to increase the number of healthy life years. ENDOMIX will provide guidance on exposure to EDCs and mixtures and information about potential adverse effects and lay the ground work for regulatory changes and preventive measures for citizens, regulators, and relevant stakeholders within the healthcare value chain. The circle will be closed by using the generated information to develop action plans and recommendations to address priority mixtures of concern that impact health and proposing a more harmonized battery of risk assessment with specific toxicological endpoints and well-defined biomarkers.
To combine information from experimental and epidemiological studies conducted in ENDOMIX and existing and future literature, we will adopt a Weight-of-Evidence (WoE) approach. These approaches are commonly used in authoritative risk assessment programs by organizations such as the WHO, EU, and US-EPA33,50. In addition, we will utilize novel text mining methodologies to create knowledge graphs that capture the relevant complex biomechanistic insights. Specifically, we will employ the Integrated Network and Dynamical Reasoning Assembler (INDRA) Reach (Reading and Assembling Contextual and Holistic Mechanisms from Text) environment, which uses automated large-scale reading of scientific literature, natural language processing (NLP) approaches, and structured databases to collect and assemble mechanistic understanding of cellular processes and associated health effects35. This approach has already been successfully applied for genotoxic compounds51 and will be extended to EDCs in this study. Through INDRA, mechanistic information from multiple sources will be de-duplicated, standardized, and assembled into sets of statements with associated evidence levels. These Statements can then be used to construct executable rule-based models and a variety of network models, such as knowledge graphs51. We aim to assess the concordance between the traditional WoE approach and generated Statements to provide an expert-led assessment of the validity of this novel computational approach to evidence synthesis”
Science to policy translation
The scientific insights and knowledge generated by ENDOMIX will be the basis for subsequent application in policy making and development of new regulations. The consortium aims to develop new hands-on research-based guidance and policy options and will provide policy makers and decision makers with new data and evidence-based information. To strengthen the science-policy interface and promote acceptance and uptake of the developed new knowledge base and guidelines, active stakeholder involvement and a thorough consultation process will be ensured through the set-up of a dedicated Stakeholder Board (SHB). The SHB involves members advocating for future policies, scientific advisors, and a citizen representative who provide input early on in the process to ensure their perspectives are considered when developing policy recommendations. ENDOMIX will contribute to the EU’s goal to ensure EU policy making is based on evidence, provide simple, clear and transparent recommendations and involve stakeholders along the knowledge chain in the development. Further, communication and dissemination activities including educational approaches will facilitate science-to-policy translation of the ENDOMIX findings and guidelines.
The strategy chosen for ENDOMIX to fulfill the objectives is shown in Figure 1 and Figure 4.

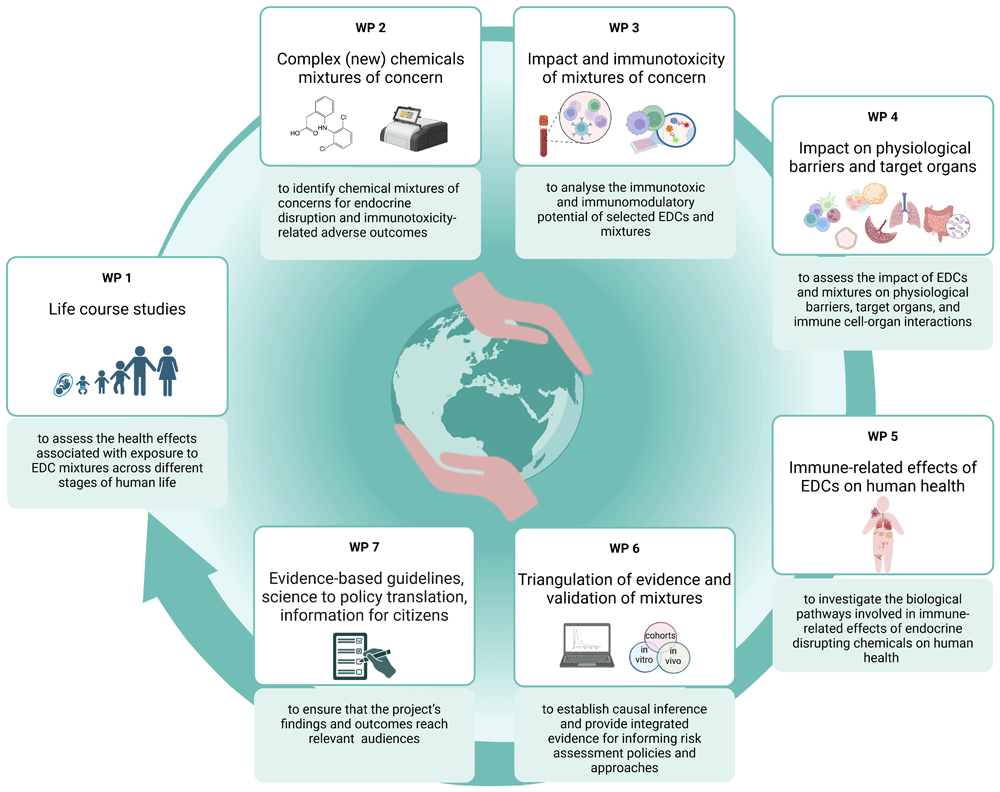

Figure 4. The ENDOMIX concept and workflow.
The ENDOMIX project is structured into well-coordinated work packages (WPs) fostering an interdisciplinary approach to understanding the true impact of endocrine disrupting chemical (EDCs) on human health. In addition to the WPs related to the desired research outputs, work dedicated to project coordination and management, clustering activities and ethics requirement is underlying this concept.
Within ENDOMIX, we bring together renowned experts in toxicology, clinical science, environmental immunology, social, environmental and molecular epidemiology, biology, statistics and data science, and risk assessment. Exposure to chemicals can lead to different adverse effects in humans depending on sex, gender, and age. Population studies have shown different exposure patterns in men and women that show a risk factor for diseases such as those related to the immune, reproductive, and metabolic area. Population-based data from the cohorts will be separately analysed for females and males to understand the possible different impacts of different EDC mixtures depending on the sex and on life stages. As for experimental models, ENDOMIX will incorporate the sex difference dimension into the toolbox by using in vivo data from animals of both sexes where available for benchmarking the in vitro assays and by adapting methods and protocols using cell lines from males as well as from females (where available) as research o has shown the relevance of including both sexes in experiments52. Thus, sex differences in sensitivity, sex-specific variables of biomarkers and sex-specific cut-off values will be considered. From a scientific point of view, sex parameters are specifically considered in our work and attempts to include cell lines and 3D organoids originating from tissues originating from males and females will be made wherever possible. ENDOMIX has already designed organoid studies to contemplate sex differences between female and male, this is particularly relevant for placenta organoids, where the origin of the tissue is often overlooked. Models relying on available cell lines may be a limiting factor for some of the outcomes. Molecular markers are available to determine sex and can be used for retrospective analyses of sex differences. In the epidemiological studies, the models will be adjusted for sex or stratified by sex where applicable.
In conclusion, the ENDOMIX project aims to unravel the complexity of exposure to EDCs and their impact on human health. In particular, ENDOMIX aims at contributing to the understanding of immune-mediated health outcomes and providing comprehensive insights into the biological mechanisms linking EDC exposure to adverse health outcomes, by incorporating multi-omics data, including immunomics, epigenomics, transcriptomics, metagenomics, and metabolomics so to enhance our understanding of the molecular pathways affected by EDCs. By employing already existing cohorts covering different life phases, ENDOMIX can explore the effects of early life EDC exposure and its influence on long-term health trajectories. The knowledge generated by ENDOMIX will inform evidence-based policy-making aimed at reducing EDC exposure, mitigating associated health risks, raising public awareness about the risks of EDC exposure and promoting health-promoting behaviours.
Disclaimer
The views expressed in this article are those of the author(s). Publication in Open Research Europe does not imply endorsement of the European Commission.
Ethics and consent
Ethical approval and consent were not required for writing this project summary. The ENDOMIX project itself will be conducted on existing prospectively collected data from different European cohort studies. All participating cohorts have been approved by the relevant ethics boards and informed consent was obtained for all participants.
All research that involves human data is conducted under the rules and legislation in place, including the Declaration of Helsinki, the IHC guideline for Good Clinical Practice, as well as the ISO guidelines on good clinical practice ISO 14155:2020, the European Directive 2001/20/EC on Good Clinical Practice, and the EU General Data Protection Regulation (2016/679).
Data availability statement
No data are associated with this article
