1. Introduction
The application of fertilizers in agricultural fields is essential to ensure food production and safety. World population growth is expected to increase food demand by more than 50% by 2050. Consequently, the demand for fertilizer products is expected to increase proportionally to guarantee the availability of food. Fertilizer products contain primary macronutrients such as nitrogen (N), phosphorus (P), and potassium (K); secondary macronutrients such as calcium (Ca), magnesium (Mg), and sulfur (S); or a combination of both, which are required to provide the nutrients that plants need and to increase soil fertility and crop productivity.
Conventional fertilizers are produced through synthetic and manufacturing processes from raw materials such as air, natural gas, and mined ores. The application of conventional fertilizers is very extended in the European Union (EU) since they are used on 75% of agricultural land, and their application is expected to increase globally at a rate of +2% in the next few years (European Commission, 2019a). The EU is largely dependent on imports of most conventional fertilizers and their main macronutrients (N, P, K), which come from finite and non-renewable sources located in third countries. Additionally, the use of conventional fertilizers has associated harmful environmental impacts due to the methods used for the extraction of nutrients, manufacturing processes, and significant CO2 emissions associated with the transport of fertilizer products to other countries different from the production regions (Basosi et al., 2014).
Among the EU’s political priorities, the replacement of conventional fertilizers by circular fertilizers produced from locally available secondary raw materials, such as wastewater and biowaste, is prioritized and promoted. An important initiative to support this goal is the new EU Fertilising Products Regulation that went into force in 2022 (Regulation EU 2019/1009) (European Commission, 2019b), which establishes the conditions to make use of recycled or organic materials for fertilizing purposes and introduces them in the EU market. According to data provided by the European Commission (European Commission, 2016), it is estimated that recycled biowaste could substitute up to 30% of conventional fertilizers, whereas the recovery of phosphorus from sewage sludge, biodegradable waste, meat and bone meal, or manure could replace up to two million tons of the six million tons of phosphate rocks that are imported every year by the EU. The application of circular fertilizers in agriculture has several benefits since their use improves soil structure, carbon storage, water, and nutrient retention, as well as reduces the carbon footprint compared with the production of conventional fertilizers (Culas et al., 2025; Lam et al., 2020).
Multiple value chains for circular fertilizers have appeared in the last decade as promising alternatives to replace the use of conventional fertilizers. These value chains differ in the input secondary raw materials (e.g., wastewater, biowaste, manure), production processes based on nutrient recovery technologies (e.g., composting, anaerobic digestion, precipitation, stripping), and output circular fertilizers (e.g., compost, struvite, ammonium sulfate, phosphates, etc.). Nevertheless, all of them allow the matching of the availability of valuable nutrients contained in the different secondary raw materials with the necessity of using circular fertilizers to replace the conventional ones, to boost the circular economy concept, and to increase the sustainability of industrial processes. Some of these value chains are already well established and the circular fertilizers market-available (e.g., compost production from biowaste) (Czekała et al., 2017; Toledo et al., 2020), whereas others are still under research because of low technology readiness level (TRL) (e.g., vivianite production from urban wastewater) (Wilfert et al., 2018; Wu et al., 2019) or their commercialization is hindered due to legal barriers (e.g., struvite production from urban wastewater) (de Boer et al., 2018). Despite the huge number of options found in the literature related to circular fertilizer value chains, no specific methodologies have been identified in other studies that can contribute to identifying and selecting the most promising circular fertilizers to replace the use of conventional fertilizers in the EU.
In this sense, in the framework of the FER-PLAY project (a Horizon Europe funded project), a database was created to gather and harmonize the existing knowledge on key circular fertilizer value chains produced in the EU from seven secondary raw materials (urban wastewater (UWW), industrial wastewater (IWW), sewage sludge (SS), biowaste (BW), biological by-products (BBP), treated manure (TM), and digestate (DIG), and a practical methodology based on two stages (funnelling process and scoring system) was developed to identify and select the most promising ones for promoting their wide-scale production and use in agricultural fields, taking into consideration 16 criteria defined in this study, which include, among others, secondary raw material availability, technical viability, nutrient content, type of transport and ease, and type of storage and ease.
2. Methods
2.1. Mapping and selection of circular fertiliser value chains
A complete database (freely accessible online, https://doi.org/10.5281/zenodo.11060654) was created, including the most important characteristics of several circular fertilizer value chains, classifying all of them into seven different raw secondary materials: urban wastewater (UWW), industrial wastewater (IWW), sewage sludge (SS), biowaste (BW), biological by-products (BBP), digestate (DIG) and treated manure (TM). The list of output products (Table 1) includes struvite, vivianite, K-struvite, phosphates, stabilized sludge, compost, P-rich ashes, ammonium sulfate, ammonium nitrate, biochar, hydrochar, mineral concentrate, spent mushroom substrate, liquid fraction of digestate, solid fraction of digestate, hair powder pellets, and horngrits/homchips. At the time of the selection process, 48 value chains were mapped, but the database is constantly updated and currently includes 51 value chains. The value chains were selected based on a mapping conducted by the partners of the FER-PLAY project, which integrates circular fertilizer producers, farmer associations, and R&D centers with experience in circular bioeconomy. The following sources were considered for the mapping: the selection of circular fertilizer value chains and data collection related to each value chain: i) know-how of partners’ and partners’ extensive networks; ii) peer-reviewed scientific publications; iii) past and current projects and initiatives developed under the EU funding programs relevant to the topic; iv) databases; v) statistics and market studies; and vi) external stakeholders linked to each value chain.
For each value chain selected, the FER-PLAY database (freely accessible online, https://doi.org/10.5281/zenodo.11060654) includes information related to: i) production (including process description, raw material availability, volume produced, number of production plants, Technology Readiness Level (TRL)), ii) distribution/trade (including national/international demand, transport area, transport ease, import, export), iii) storage and application (storage ease, storage necessities, storage emissions, pH, uptake speed, application form, application type, application timing, application dose, application emissions), iv) product content (including nitrogen, phosphorus, potassium, organic matter, sulphur, moisture content, calcium, magnesium, other micronutrients, heavy metals, pharmaceuticals, pathogens, microplastics), v) cost (including CAPEX, OPEX and market price) and vi) legislation (including applicability in organic farming, possibility of application in nitrate vulnerable zones (NVZ), national regulatory framework, product function category (PFC) and component material category (CMC) according to the Regulation EU 1009/2019)).
2.2. Funnelling process
Several circular fertilizers are available in the market or are close to being marketed. To ensure geographic representativity, coverage, and replicability multi-assessment, it was crucial to assess only those value chains that are well characterized and represent the variability of agricultural applications and practices. To this end, a funnelling process based on a GO/NO-GO approach was applied. The funnelling process facilitates:
The selection of relevant circular fertilizer value chains from a multitude of existing value chains so that further impact assessment is feasible and resource effective.
Quickly disregard those value chains that are not properly characterized or not viable for industrialization and/or their application due to various problems (e.g., low nutrient content, toxicity, technical nonviability), not considering them for the assessment phase.
The GO/NO GO approach (Figure 1) is based on the application of a set of six predefined criteria. Every value chain was examined against the first criterion, and if the result was positive (GO), it was analyzed against the following and so on: Only those value chains that passed all stages obtained the “GO” label and were considered as promising and subjected to further assessment through the scoring system. After applying the funnelling process to the 48 circular fertilizer value chains, the obtained results were reviewed to ensure consistency. The value chains that seemed promising and received the “NO GO” label were scrutinized in detail. To accept the inclusion of these circular fertilizers, they must be widely used in Europe because their use demonstrates their capacity as a circular fertilizer in addition to their advanced development of production technology.

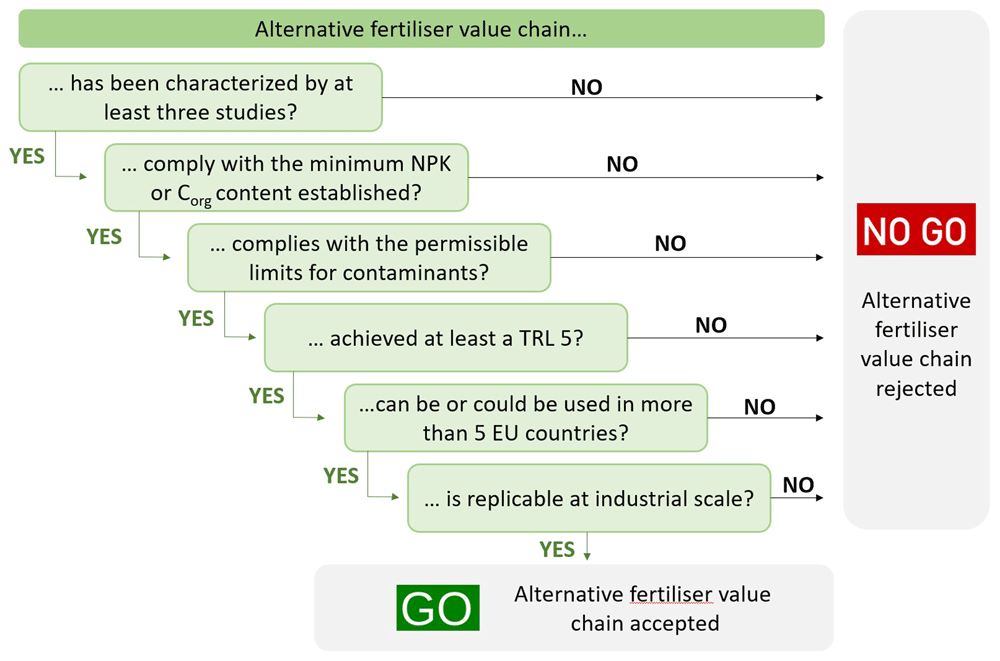

Figure 1. GO/NO GO approach for the evaluation of each value chain.
Six criteria were considered during the funnelling process to classify the GO/NO GO. These criteria cover different aspects of circular fertilizer value chains. Their definitions are as follows:
C1. Data availability. At least three different studies have characterized the value chain.
C2. Nutrient and organic carbon content. C2 was split into two categories: 2(A)-Nutrient content and 2(B)-Soil improvement capacity. On the one hand, the circular fertilizer (linked to category 2(A)) presented the minimum NPK content established by one of the possible PFC according to Regulation EU 2019/1009. On the other hand, the circular soil improver (linked to category 2(B)) presents the minimum organic carbon (Corg) content established by one of the possible PFC from the classification according to Regulation EU 2019/1009.
C3. Toxicity. The circular fertilizer does not exceed the maximum permissible limits for contaminants (e.g., heavy metals, such as cadmium, arsenic, chromium, and mercury; microorganisms, such as Salmonella spp and Escherichia coli; and pharmaceuticals) established in Regulation EU 2019/1009.
C4. Technical viability. The technology used for the recovery of nutrients in the value chain achieved a Technology Readiness Level (TRL) of at least five.
C5. Versatility. The circular fertilizer can or could be used in more than five countries according to their national legislation and/or comply with Regulation EU 2019/1009. Due to the difficulty of accessing and interpreting the national/regional laws of the different countries, this criterion mainly uses Regulation EU 2019/1009 as a reference.
C6. Industrialization. The circular fertilizer value chain is replicable at the industrial level around the EU, that is, feedstocks that are common in the EU.
For the evaluation of the criteria based on the European Fertilizing Regulation (C2, C3, and C5), at least one PFC was designed for each of the analyzed circular fertilizer value chains. For this classification, the NPK and Corg contents assigned in the FER-PLAY database for each fertilizer were considered since they are the main parameters linked to the nutrient content and soil amendment capacity. Compliance with the requirements of any of the CMC for the raw materials from which the fertilizer was produced was excluded from the study. The absence of a PFC assignment directly indicates that C2 has not been fulfilled. Table 2 summarizes the PFC classifications related to the 48 value chains evaluated during the funnelling process.
Table 2. Product Function Category (PFC) classification for circular fertiliser value chains evaluated during the funnelling process.
| Raw material | Fertiliser | PFC |
|---|
Urban
wastewater
(UWW) | Struvite | 1.C.I.a.i |
| Vivianite | 1.C.I.a.i |
| K-struvite | - |
| Phosphates | - |
| Stabilized sludge | 3.A |
Industrial
wastewater
(IWW) | Struvite | 1.C.I.a.i |
| Vivianite | 1.C.I.a.i |
| K-struvite | 1.C.I.a.i |
Sewage sludge
(SS) | Struvite | 1.C.I.a.i |
| Vivianite | 1.C.I.a.i |
| Phosphates | 1.C.I.a.i |
| Composted sewage sludge | 3.A |
| Biowaste (BW) | Composted biowaste (green
compost) | 3.A |
Composted biowaste (food
waste and green compost) | 3.A |
| Struvite | 1.C.I.a.i |
| P-rich ashes | 1.C.I.a.i |
| Biochar | 1.A.I./3.A/3.B |
| Hydrochar | 1.A.I./3.A/3.B |
Biological by-
products (BBP) | Composted biological by-
products | 3.A |
| Hair powered pellets | 1.A.I/1.C.I.a.i/3.A |
| Feather meal | 1.A.I/1.C.I.a.i/3.A |
| Horngrit/homchips | 1.A.I/1.C.I.a.i/3.A |
| Meat-, Meatbonemeal | 1.A.I |
Digestate
(DIG) | Untreated (raw) digestate with
animal manure | - |
Untreated (raw) digestate
without animal manure (plant-
based) | - |
| Liquid fraction of digestate | - |
| Solid fraction of digestate | 3.A |
| Composted digestate | 3.A |
| Struvite | 1.C.I.a.i |
| Vivianite | 1.C.I.a.i |
| K-struvite | - |
| Phosphates | - |
| P-rich ashes | 1.C.I.a.i |
Enriched biosolids with
struvite | - |
| Tenebrio molitor frass | 1.A.I |
Treated manure
(TM) | Composted animal manure | 3.A |
| Ammonium nitrate | 1.C.I.b.i |
| Ammonium sulphate | 1.C.I.b.i |
| Mineral concentrate | 1.C.I.b.i |
| Vivianite | 1.C.I.a.i |
| Phosphates | - |
| Biochar | 3.A |
| Hydrochar | 3.A |
| Solid fraction of manure | 3.A |
| Liquid fraction of manure | - |
| K-struvite | 1.C.I.a.i |
| Spent mushroom substrate | 3.A |
| Manure-processing effluent | - |
2.3. Scoring system
Once the GO/NO-GO approach was applied, the circular fertilizer value chains that obtained the “GO” label were validated using a scoring system. The scoring system was based on the assignment of points under a set of ten defined categories. The scores ranged from 1 to 5, with 1 indicating “poor compliance” with the criteria, and 5 showing “excellent” compliance. The criteria defined for the application of the scoring system are described below. Table 3 summarizes the requirements established for the assignment of values from 1 to 5 corresponding to each scoring criterion.
Table 3. Criteria for the scoring system of circular fertiliser value chains.
| Criteria | 1 | 2 | 3 | 4 | 5 |
|---|
| SC1 | The lower
abundancy | 75% less ref | 50% less ref | 25% less ref | The highest abundane
(ref) |
| SC2 | The lower
references | 75% less ref | 50% less ref | 25% less ref | The highest references
(ref) |
| SC3 | TRL 5 | TRL 6 | TRL 7 | TRL 8 | TRL 9 |
| SC4 | The lower
production | 75% less ref | 50% less ref | 25% less ref | The highest production
(ref) |
| SC5 | - | Not marketable | - | Marketable | - |
| SC6 | Liquid or
frozen or solid,
flammable and
toxic | Liquid or frozen or
solid, flammable or
toxic | Liquid or frozen,
no chemical
hazards | Solid, refrigerated | Solid, no temperature
requirements |
| SC7 | Liquid or
frozen or solid,
flammable and
toxic | Liquid or frozen or
solid, flammable or
toxic or emissions | Liquid or frozen,
no chemical
hazards | Solid, refrigerated | Solid, no
temperature
requirements |
| SC8 | Manually | Mechanically located | Mechanically
(located and
random) | Compatible with
existing technologies or
possible of automation-
mechanically | Compatible with existing
technologies and
possibility of automation |
| SC9 | - | Use not allowed | - | Use allowed | - |
| SC10 | - | Manure content | - | No manure content | - |
SC1. The secondary raw material is abundant across Europe. The abundances of the seven raw materials in Europe were classified based on the available information included in the FER-PLAY database. The raw material with the highest amount of annual production in Europe received a score of 5, whereas the other raw materials received a score based on the percentage of abundance compared to the most abundant raw material (Table 3). In the case of the production of biological by-products, only production data from Germany was available because of the inaccessibility of the data.
SC2. References on nutrient recovery technology across Europe. To determine the level of study and knowledge of the technology and fertilizer evaluated, a bibliographic search was conducted using Scopus (https://www.scopus.com). A bibliographic search was carried out for each fertilizer evaluated according to their keywords. The search was limited to studies conducted in Europe over the last ten years in Europe. A total of 641 scientific articles were found on the 30 circular fertilizers evaluated at this stage. The fertilizer with the highest number of references received a score of 5, whereas the others received a score based on the percentage of the number of references compared to the most referenced (Table 3).
SC3. Production maturity across Europe. The scoring for this criterion was based on the TRL established by the EU (TRL EU). The TRL varied from 5 (1 point) (the minimum requirement to reach this scoring stage) to 9, the maximum existing TRL, and therefore, the maximum score (5 points). The TRL data for each fertilizer were defined based on the information gathered during the creation of the FER-PLAY database.
SC4. The forecasted volume of circular fertilizer is significant across Europe. This criterion is based on the expected volume of production for each fertilizer included in the FER-PLAY database. Considering that there is not an expected production value for Europe for all circular fertilizers, the available data corresponding to each country were extrapolated to the European area based on the national production and area of each country. The fertilizer with the highest forecasted volume of annual production received a score of 5, whereas the other fertilizers received a score based on the percentage of the forecasted volume compared to the most abundant (Table 3).
SC5. Marketability of circular fertilizers across Europe. This criterion is based on the EU Fertilizing Products Regulation (Regulation EU 2019/1009). This regulation establishes rules for placing EU fertilizing products on the market. Therefore, those products that fulfilled the requirements of this legislation received a score of 4 points, whereas those that did not fulfil them received a score of only 2 points.
SC6. Circular fertilizer transport and ease. The characteristics of the fertilizer for its transport in terms of the state of the fertilizer (liquid, frozen, or solid), chemical risks (flammable or toxic), and temperature requirements were evaluated, as shown in Table 3.
SC7. Circular fertilizer type of storage and ease. The characteristics of the fertilizer for its storage in terms of the state of the matter (solid, liquid, or frozen), chemical risks (flammable, toxic, or emissions), and temperature requirements are shown in Table 3.
SC8. Circular fertilizer application in agricultural fields. The ease of fertilizer application was evaluated using this criterion. Fertilizers that must be applied manually received the lowest score (1 point), whereas those with existing machinery with the possibility of mechanical automation received the highest score (5 points). Intermediate scores are presented in Table 3.
SC9. Circular fertilizer is used for organic production. This criterion is based on EU Regulation EU 2021/1165, which authorizes certain products and substances for their use in organic production. Therefore, all fertilizers in the list received a score of 4 points, whereas those not in the list received only two points.
SC10. Nitrogen content in circular fertilizers. The NVZ are geographical areas designated by governments to protect water resources from nitrogen pollution. Excess nitrogen from agricultural sources is one of the main causes of water pollution in Europe. The designation of NVZ is intended to prevent the overapplication of nitrogen-based fertilizers, which can result in excessive nutrient runoff and leaching. In EU countries, farmers within designated NVZ are required to fulfil national regulations regarding the application of nitrogen as fertilizer from manure (such as limits on the amount that can be applied and the timing). Due to the great difficulty in accessing these national regulations as well as the variety of conditions depending on the categorization of the areas, it was considered to "penalize" fertilizers obtained from manure. Consequently, all fertilizers that contained or came from animal manure were scored with two points since their application in the NVZ will always be limited (either by quantity or by season). The other fertilizers obtained a score of three points.
3. Results and discussion
3.1. Classification based on the funnelling process
Out of a total of 48 circular fertilizer value chains evaluated during the funnelling process (Table 1), 27 obtained a favorable classification of "GO" (Figure 2). Consequently, they passed directly to the second stage of assessment through the scoring system. In contrast, 23 were classified as "NO GO" and were initially discarded. Table 4 summarizes the circular fertilizer value chains initially discarded, as well as the criteria and reasons for which they were discarded.

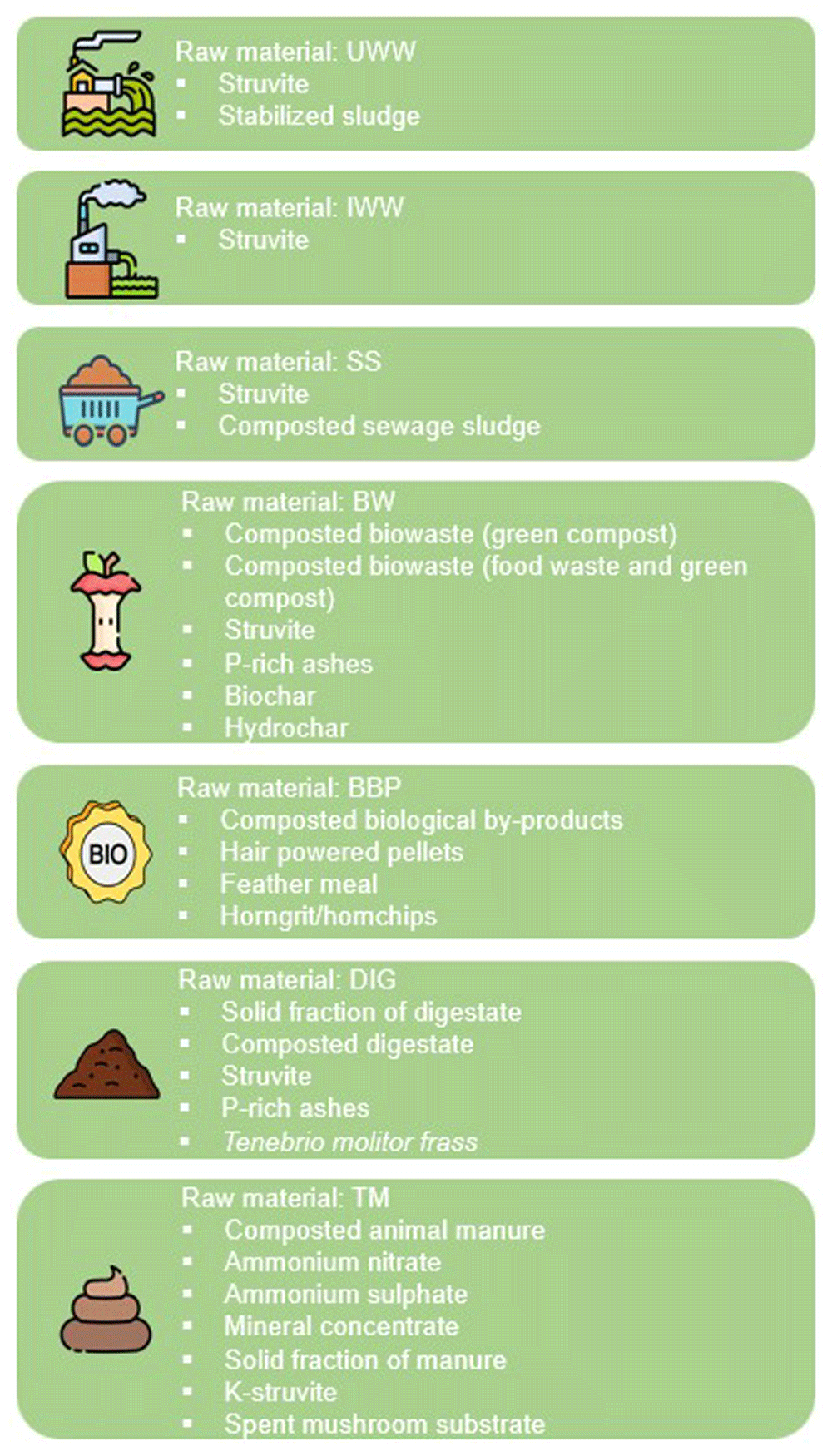

Figure 2. Value chains classified with the “GO” label after the funnelling process.
Table 4. Value chains classified with the “NO GO” label after the funnelling process.
| Raw material | Fertiliser | Critical criteria | Reasons |
|---|
Urban wastewater
(UWW) | Vivianite | C3-Toxicity | No qualitative data found |
| C4-Technical viability | TRL 3 (TRL < 5) |
| C6-Industrialization | More development is needed |
| K-struvite | C2(A)-Nutrient content | P2O5 < 12% |
| C3-Toxicity | No qualitative data found |
| C4-Technical viability | TRL 4 (TRL < 5) |
| C5-Versatility | Does not comply with EU regulation and
could not be classified under any PFC |
| C6-Industrialization | More development is needed |
| Phosphates | C2(A)-Nutrient content | No qualitative data found |
| C3-Toxicity | No qualitative data found |
| C4-Technical viability | TRL 3–4 (TRL < 5) |
| C5-Versatility | No qualitative data found |
| C6-Industrialization | More development is needed |
Industrial
wastewater
(IWW) | Vivianite | C3-Toxicity | No qualitative data found |
| C4-Technical viability | TRL 4 (TRL < 5) |
| C6-Industrialization | More development is needed |
| K-struvite | C6-Industrialization | More development is needed |
Sewage sludge
(SS) | Vivianite | C3-Toxicity | No qualitative data found |
| C6-Industrialization | More development is needed |
| Phosphates | C4-Technical viability | TRL 3–4 (TRL < 5) |
| C6-Industrialization | More development is needed |
Biological by-
products (BBP) | Meat-, Meat bone meal | C1-Data availability | Not enough data in studies |
| Digestate (DIG) | Untreated (raw) digestate
with animal manure | C2(A)-Nutrient content or C2(B)-
Soil improvement capacity | Cannot be classified under any PFC.
Does not comply with any NPK & Corg
requirements |
Untreated (raw) digestate
without animal manure
(plant-based) | C2(A)-Nutrient content or C2(B)-
Soil improvement capacity | Cannot be classified under any PFC.
Does not comply with any NPK & Corg
requirements |
| Liquid fraction of digestate | C2(A)-Nutrient content or C2(B)-
Soil improvement capacity | Cannot be classified under any PFC.
Does not comply with any NPK & Corg
requirements |
| Vivianite | C3-Toxicity | High potential of iron toxicity |
| C6-Industrialization | More development is needed |
| K-struvite | C2(A)-Nutrient content | No qualitative data found |
| Phosphates | C2(A)-Nutrient content | No qualitative data found |
Enriched biosolids with
struvite | C2(A)-Nutrient content | Cannot be classified under any PFC |
| C5-Versatility | Not complied and do not have PFC
classification |
Treated manure
(TM) | Vivianite | C3-Toxicity | High potential of iron toxicity |
| C6-Industrialization | More development is needed |
| Phosphates | C2(A)-Nutrient content | No qualitative data found |
| C3-Toxicity | No qualitative data found |
| Biochar | C3-Toxicity | No qualitative data found |
| Hydrochar | C3-Toxicity | High potential of zinc and cadmium
toxicity |
| Liquid fraction of manure | C2(B)-Soil improvement capacity | Corg < 5%. Cannot be classified under
any PFC. Does not comply with any NPK &
Corg requirements |
| C3-Toxicity | No data found in the database |
| C5-Versatility | It could not comply with any PFC
classification |
| Manure-processing effluent | C2(B)-Soil improvement
capacity | Corg < 5%. Cannot be classified under
any PFC. Does not comply with any NPK &
Corg requirements |
Among the value chains that obtained the "GO" label, only struvite passed the funnelling process for fertilizers produced from IWW. Consequently, struvite obtained from industrial wastewater did not compete with other fertilizers within its own category during the application of the scoring system. For other secondary raw materials, such as UWW and SS, only two circular fertilizers passed favorably the funnelling process, whereas for the rest of the raw materials (BW, BBP, DIG and TM), the “GO” label was obtained for four to seven circular fertilizer value chains.
For the UWW raw material, the value chains that received the “NO GO” label were vivianite, K-struvite, and phosphates. They were discarded based on criterion C4 because the TRL did not exceed 4 for any of them. This low TRL directly leads to a lack of data that prevents the determination of their toxicity (C3) and, in some cases, their nutrient content (C2). Unfortunately, their low level of technological maturity means that their versatility (C5) and industrialization (C6) are not possible. In the specific case of vivianite, different bibliographic references have concluded that phosphorus recovery as vivianite is an innovative practice that is still in its infancy (Wu et al., 2019). The same pattern related to the level of immaturity of the nutrient recovery technology was detected for vivianite, K-struvite, and phosphates produced from IWW and SS.
Regarding the discarded value chain for BBP, meat bonemeal is a specific fertilizer produced in Germany. Although it was included within the 48 value chains initially selected because it is a promising option according to the literature (Bøen & Haraldsen,, 2013; Sica et al., 2025), not enough data are available at the European level to properly assess it as a promising circular fertilizer.
DIG was the raw material with the most "NO GO" labels, discarding seven value chains from the initial 12. The main reason for discarding was criterion C2. Untreated (raw) digestate with animal manure, untreated (raw) digestate without animal manure (plant-based), liquid fraction of digestate, K-struvite, phosphates, and enriched biosolids with struvite did not comply with any NPK and Corg requirements established for these fertilizers in Regulation EU 2019/1009. Therefore, they could not be classified within any PFC. Consequently, versatility (C5) was affected as well. In the case of vivianite, this value chain is discarded due to its high potential for iron toxicity (C3) (European Commission: Joint Research Centre et al., 2019).
In the case of TM, six circular fertilizer value chains were classified with the “NO GO” label. For vivianite and phosphates, the reasons are consistent with those described for DIG. In the case of biochar and hydrochar, the “NO GO” label was due to the toxicity criterion (C3). For biochar, no quantitative data were found, whereas for hydrochar, the values for zinc and cadmium content exceeded those established in the legislation. The liquid fraction of manure and manure-processing effluents could not be classified under any PFC because they did not comply with the NPK and Corg requirements established for C2.
Even though untreated (raw) digestate with animal manure, untreated (raw) digestate without animal manure, and the liquid fraction of digestate were classified as “NO GO” during the funnelling process, there are important reasons to consider their evaluation in the second assessment stage based on the scoring system. By one hand, according to data provided by the European Biogas Association (EBA, 2024), the direct application of digestate as a circular fertilizer in agriculture is the most frequent destination for digestate in Europe (73%), followed by the use of upgraded digestate as a biofertilizer (15%). Some European countries, such as Sweden, have already designed voluntary schemes and guidelines for the application of digestates in soil. On the other hand, anaerobic digestion is booming in Europe owing to the demand for renewable gas, and digestate will be produced in increasing quantities in the upcoming years (Bumharter et al., 2023; EBA, 2024a). Therefore, this is considered a favorable context to take advantage of the potential use of digestate as a fertilizer. Additionally, several studies have demonstrated the advantages of using digestate as a circular fertilizer in agricultural fields. (Karimi et al., 2022) Long-term fertilization with digestate helps maintain soil fertility and support soil life, ensuring that high-yield agricultural lands can be sustainably utilized (Karimi et al., 2022). Several other benefits of digestate as an organic fertilizer are also worth highlighting. Compared to the same organic material in its raw form, digestate contains a higher percentage of readily available minerals, such as nitrogen, which enhances its fertilizing value. In addition to providing essential nutrients to plants, digestate offers further advantages over conventional agricultural fertilizers (Czekała et al., 2020).
3.2. Classification based on the scoring system
In total, 30 circular fertilizer value chains passed the funnelling process (Section 3.1) and were evaluated through the application of the scoring system. Considering the criteria SC1-SC10 for each value chain and the corresponding score detailed in Table 3, Table 5 summarizes the score obtained for each fertilizer evaluated. The maximum score was obtained for the struvite produced from SS at 37 points.
Table 5. Scores obtained for each value chain after the assessment with the scoring system.
In bold are the circular fertilisers with the higher score.
| Raw material | Fertiliser | Score |
|---|
| UWW | Struvite | 36 |
| Stabilized sludge | 33 |
| IWW | Struvite | 36 |
| SS | Struvite | 37 |
| Composted sewage sludge | 31 |
| BW | Composted biowaste (green compost) | 31 |
| Composted biowaste (food waste and green compost) | 33 |
| Struvite | 32 |
| P-rich ashes | 24 |
| Biochar | 26 |
| Hydrochar | 27 |
| BBP | Composted biological by-products | 28 |
| Hair powered pellets | 27 |
| Feather meal | 27 |
| Horngrit/homchips | 27 |
| DIG | Untreated (raw) digestate with animal manure | 28 |
| Untreated (raw) digestate without animal manure | 27 |
| Liquid fraction of digestate | 28 |
| Solid fraction of digestate | 31 |
| Composted digestate | 31 |
| Struvite | 34 |
| P-rich ashes | 26 |
| Tenebrio molitor frass | 25 |
| TM | Composted animal manure | 33 |
| Ammonium nitrate | 23 |
| Ammonium sulphate | 23 |
| Mineral concentrate | 24 |
| Solid fraction of manure | 30 |
| K-struvite | 21 |
| Spent mushroom substrate | 34 |
For raw materials related to wastewater (UWW, IWW, and SS), the fertiliser with the highest score was struvite (36–37 points). Considering the triplicate representation of struvite in these categories, stabilized sludge was selected as one of the seven most promising fertilizers instead of struvite, as there were only three points of difference in their score for UWW (33 vs. 36). Additionally, considering that SS comes from urban wastewater, it was decided to consider the production of stabilized sludge from the SS raw material.
For fertilizers produced from BW, the composted biowaste (food waste and green compost) obtained the highest score with 33 points compared with the other five value chains evaluated.
The fertilizers produced from BBP raw materials obtained the lowest score compared to the rest of the value chains because of the lack of data for criterion SC4. Even though composted biological by-products were the fertilizer that achieved the highest score (28), considering that the composted BW was already selected as one of the seven most promising value chains to be assessed in the future based on a multi-assessment analysis, considering that there is only one point of difference with the other value chains evaluated for BBP, feather meal was selected as a promising option to be included in the list of the seven most promising value chains, taking into account its advantages compared with the other three value chains with the same score: i) this organic fertilizer is produced through controlled physical hydrolysis of fresh feathers, ii) its nitrogen content is equivalent to that of blood meal, but the nutrient release is slower, which is better for organic crops, and iii) higher availability of data for this value chain.
Regarding DIG raw material, struvite obtained the highest score of 34 points. Considering that struvite has already been represented previously as a promising fertilizer from UWW and IWW, solid fraction of digestate with a score of 31 points was selected as a promising fertilizer from DIG to be assessed in the future under a multi-assessment analysis. In the case of fertilizers produced from TM raw material, spent mushroom substrate obtained the highest score of 34 points.
The selection of the seven most promising fertilizers based on the FER-PLAY methodology are: struvite from UWW, struvite from IWW, stabilized sludge from SS, composted biowaste from BW, feather meal from BBP, solid fraction from DIG, and spent mushroom substrate from TM. This selection was conducted to ensure i) geographical representativeness, ii) availability of all raw materials and technologies in Europe, and iii) existence of the necessary machine for the application of each fertilizer in agriculture.
4. Conclusions
The practical methodology, developed in the framework of the FER-PLAY project and based on two stages (funnelling process and scoring system), allowed the identification and selection of the most promising circular fertilizer value chains out of a total of 48 included in the database created during the mapping of circular fertilizers in Europe, demonstrating that it is a useful tool that facilitates the analysis of data associated with the huge number of circular fertilizers that have appeared in the last decade as promising alternatives to conventional fertilizers.
The funnelling process, which is the first stage of the selection process, was used as a GO/NO GO approach to evaluate the 48 value chains based on six criteria that covered different aspects of the fertilizers, such as the composition, maturity of the production technology, and industrial replicability in different EU countries.
The scoring system, the second stage of the selection process, allowed the assessment of 30 circular fertilizer value chains based on the assignment of points under a set of ten defined categories covering different characteristics of the fertilizers, such as the availability of secondary raw materials across Europe, the marketability of the circular fertilizers across Europe, as well as practical aspects such as transport and storage of the fertilizer products and ease of use.
Combining the methodology developed in the framework of the FER-PLAY project with the specific interests of the stakeholders involved in the fertilizer value chain allowed the selection of one value chain for each raw material evaluated, with the seven most promising circular fertilizer value chains for Europe: struvite from UWW, struvite from IWW, stabilized sludge from SS, composted biowaste from BW, feather meal from BBP, solid fraction of digestate, and spent mushroom substrate from TM. The evaluation of the selected value chains in this study will be complemented through a multi-assessment analysis of their environmental, social, and economic impacts to promote their wide-scale production and use in agricultural fields in Europe.
Data availability statement
Underlying data
The FER-PLAY database is freely accessible online on Zenodo (https://doi.org/10.5281/zenodo.11060654). (Inagro (Belgium) et al., 2024)
Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).
Additional data for this article consists of bibliographic references, which are included in the References section.
Author contribution
Investigation, Elisa Gambuzzi, Rita Gentili, Jessica Pérez-García, Ambrogio Pigoli, Inès Verleden, Pedro Villanueva-Rey, Werner Vogt-Kaute, Wim Moerman and Lucía González-Monjardin; methodology, Elisa Gambuzzi, Rita Gentili, Jessica Pérez-García, Ambrogio Pigoli, Inès Verleden, Pedro Villanueva-Rey, Werner Vogt-Kaute, Wim Moerman and Lucía González-Monjardin; writing – original draft preparation, Lidia Paredes; writing – review & editing, Elisa Gambuzzi, Rita Gentili, Ambrogio Pigoli, Inès Verleden, Werner Vogt-Kaute, Wim Moerman and Lucía González-Monjardin.
Acknowledgements
The authors would like to thank all members of the FER-PLAY project: CETENMA, CIC, EBA, NURESYS, INAGRO, DREVEN, REVOLVE, ACR+, COLDIRETTI, NATURLAND, and ASAJA.
Faculty Opinions recommendedReferences
- Anceschi A, Guerretta F, Magnacca G, et al.:
Sustainable N-containing biochars obtained at low temperatures as sorbing materials for environmental application: municipal biowaste-derived substances and nanosponges case studies.
J Anal Appl Pyrolysis.
2018; 134: 606–613. Publisher Full Text
- Arcas-Pilz V, Rufí-Salís M, Parada F, et al.:
Recovered phosphorus for a more resilient urban agriculture: assessment of the fertilizer potential of struvite in hydroponics.
Sci Total Environ.
2021; 799: 149424. PubMed Abstract
| Publisher Full Text
- Basosi R, Spinelli D, Fierro A, et al.:
Mineral nitrogen fertilizers: environmental impact of production and use.
Academia. EduR Basosi, D Spinelli, A Fierro, S JezFertil.
Compon Uses Agric Environ Impacts.
•academia.Edu, 2014. Reference Source
- Bøen A, Haraldsen TK:
Meat and bone meal and biosolids as slow-release phosphorus fertilizers.
Agricultural and Food Science.
2013; 22(2): 235–246. Publisher Full Text
- Bożym M, Siemiątkowski G:
Characterization of composted sewage sludge during the maturation process: a pilot scale study.
Environ Sci Pollut Res Int.
2018; 25(34): 34332–34342. PubMed Abstract
| Publisher Full Text
| Free Full Text
- Bumharter C, Bolonio D, Amez I, et al.:
New opportunities for the European Biogas industry: a review on current installation development, production potentials and yield improvements for manure and agricultural waste mixtures.
J Clean Prod.
2023; 388(14): 135867. Publisher Full Text
- Cempa M, Olszewski P, Wierzchowski K, et al.:
Ash from poultry manure incineration as a substitute for phosphorus fertiliser.
Materials (Basel).
2022; 15(9): 3023. PubMed Abstract
| Publisher Full Text
| Free Full Text
- Company E, Farrés M, Colprim J, et al.:
Exploring the recovery of potassium-rich struvite after a nitrification-denitrification process in pig slurry treatment.
Sci Total Environ.
2022; 847: 157574. PubMed Abstract
| Publisher Full Text
- Culas RJ, Anwar MR, Maraseni TN:
A framework for evaluating benefits of organic fertilizer use in agriculture.
J Agric Food Res.
2025; 19: 101576. Publisher Full Text
- Czekała W, Dach J, Dong R, et al.:
Composting potential of the solid fraction of digested pulp produced by a biogas plant.
Biosyst Eng.
2017; 160: 25–29. Publisher Full Text
- Czekała W, Lewicki A, Pochwatka P, et al.:
Digestate management in polish farms as an element of the nutrient cycle.
J Clean Prod.
2020; 242: 118454. Publisher Full Text
- de Boer MA, Romeo-Hall AG, Rooimans TM, et al.:
An assessment of the drivers and barriers for the deployment of urban phosphorus recovery technologies: a case study of the Netherlands.
Sustain.
2018; 10(6): 1790. Publisher Full Text
- EBA: Exploring digestate’s contribution to healthy soils. 2024. Reference Source
- EBA:
European Biomethane Map 2024. 2024a. Reference Source
- Eureau: Wastewater treatment-sludge management - Briefing Note. 2021. Reference Source
- European Commission: Circular economy: new regulation to boost the use of organic and waste-based fertilisers. 2016. Reference Source
- European Commission: Fertilisers in the EU Prices, trade and use. EU Agricultural Markets Briefs, 2019a. Reference Source
- European Commission: Regulation (EU) 2019/1009 of the European Parliament and of the Council of 5 June 2019 laying down rules on the making available on the market of EU fertilising products and amending Regulations (EC) No 1069/2009 and (EC) No 1107/2009 and repealing Regulation (EC) No 2003/2003. 2019b. Reference Source
- European Commission: Joint Research Centre, Delgado Sancho L, Eder P, et al.:
Technical proposals for selected new fertilising materials under the Fertilising Products Regulation (Regulation (EU) 2019/1009) : process and quality criteria, and assessment of environmental and market impacts for precipitated phosphate salts & derivates, thermal oxidation materials & derivates and pyrolysis & gasification materials. Publications Office of the European Union, 2019. Reference Source
- Fernández-Rodríguez MJ, Mancilla-Leytón JM, Jiménez-Rodríguez A, et al.:
Reuse of the digestate obtained from the biomethanization of olive mill solid waste (OMSW) as soil amendment or fertilizer for the cultivation of forage grass (Lolium rigidum var. Wimmera).
Sci Total Environ.
2021; 792: 148465. PubMed Abstract
| Publisher Full Text
- Ferraro A, de Sario S, Attanasio A, et al.:
Phosphorus recovery as struvite and hydroxyapatite from the liquid fraction of municipal sewage sludge with limited magnesium addition.
J Environ Qual.
2023; 52(3): 584–595. PubMed Abstract
| Publisher Full Text
- Fu H, Wang B, Wang H, et al.:
Assessment of livestock manure-derived hydrochar as cleaner products: Insights into basic properties, nutrient composition, and heavy metal content.
J Clean Prod.
2022; 330: 129820. Publisher Full Text
- Gerber T, Steinbacher F, Hauser B:
Holzfasersubstrat zur kultur von pelargonium-zonale-hybriden - Biophysikalische und pflanzenbauliche untersuchung.
J Appl Bot.
1999; 73(5–6): 217–221. Reference Source
- Hämäläinen A, Kokko M, Kinnunen V, et al.:
Hydrothermal carbonisation of mechanically dewatered digested sewage sludge—Energy and nutrient recovery in centralised biogas plant.
Water Res.
2021; 201: 117284. PubMed Abstract
| Publisher Full Text
- Houben D, Daoulas G, Dulaurent AM:
Assessment of the short-term fertilizer potential of mealworm frass using a pot experiment.
Front Sustain Food Syst.
2021; 5: 714596. Publisher Full Text
- Inagro (Belgium), Consorzio Italiano Compostatori (https://www.compost.it/), Centro Tecnológico del Agua, et al.:FER-PLAY database. [Dataset], Zenodo. 2024. http://www.doi.org/10.5281/zenodo.11060654
- Karimi B, Sadet-Bourgeteau S, Cannavacciuolo M, et al.:
Impact of biogas digestates on soil microbiota in agriculture: a review.
Environ Chem Lett.
2022; 20(5): 3265–3288. Publisher Full Text
- Lam KL, Zlatanović L, van der Hoek JP:
Life cycle assessment of nutrient recycling from wastewater: a critical review.
Water Res.
2020; 173: 115519. PubMed Abstract
| Publisher Full Text
- Luyckx L, Van Caneghem J:
Recovery of phosphorus from Sewage Sludge Ash: influence of chemical addition prior to incineration on ash mineralogy and related phosphorus and heavy metal extraction.
J Environ Chem Eng.
2022; 10(4): 108117. Publisher Full Text
- Menkveld HWH, Broeders E:
Recovery of ammonium from digestate as fertilizer.
Water Pract Technol.
2017; 12(3): 514–519. Publisher Full Text
- Nisticò R, Guerretta F, Benzi P, et al.:
Thermal conversion of municipal biowaste anaerobic digestate to valuable char.
Resources.
2019; 8(1): 24. Publisher Full Text
- Samanta P, von Ungern-Sternberg Schwark L, Horn H, et al.:
Nutrient recovery and ammonia-water production by MF-vacuum evaporation treatment of pig manure.
J Environ Chem Eng.
2022; 10(1): 106929. Publisher Full Text
- Samoraj M, Mironiuk M, Izydorczyk G, et al.:
The challenges and perspectives for anaerobic digestion of animal waste and fertilizer application of the digestate.
Chemosphere.
2022; 295: 133799. PubMed Abstract
| Publisher Full Text
- Sica P, Müller-Stöver D, Magid J:
Enhancing the fertilizer value of recycled phosphorus for horticulture crops through Acidification and placement.
J Soil Sci Plant Nutr.
2025. Publisher Full Text
- Siciliano A:
Assessment of fertilizer potential of the struvite produced from the treatment of methanogenic landfill leachate using low-cost reagents.
Environ Sci Pollut Res Int.
2016; 23(6): 5949–5959. PubMed Abstract
| Publisher Full Text
- Sigurnjak I, Vaneeckhaute C, Michels E, et al.:
Fertilizer performance of Liquid Fraction of digestate as synthetic nitrogen substitute in silage maize cultivation for three consecutive years.
Sci Total Environ.
2017; 599–600: 1885–1894. PubMed Abstract
| Publisher Full Text
- Szymanska M, Szara E, Was A, et al.:
Struvite—an Innovative fertilizer from anaerobic digestate produced in a bio-refinery.
Energies.
2019; 12(2): 296. Publisher Full Text
- Tambone F, Orzi V, D’Imporzano G, et al.:
Solid and Liquid Fractionation of digestate: Mass balance, chemical characterization, and agronomic and environmental value.
Bioresour Technol.
2017; 243: 1251–1256. PubMed Abstract
| Publisher Full Text
- Taskin E, de Castro Bueno C, Allegretta I, et al.:
Multianalytical characterization of biochar and hydrochar produced from waste biomasses for environmental and agricultural applications.
Chemosphere.
2019; 233: 422–430. PubMed Abstract
| Publisher Full Text
- Toledo M, Gutiérrez MC, Peña A, et al.:
Co-composting of Chicken Manure, alperujo, olive leaves/pruning and Cereal Straw at full-scale: compost quality assessment and odour emission.
Process Safety and Environmental Protection.
2020; 139: 362–370. Publisher Full Text
- Torrijos V, Calvo Dopico D, Soto M:
Integration of food waste composting and vegetable gardens in a university campus.
J Clean Prod.
2021; 315: 128175. Publisher Full Text
- Tuhy Ł, Samoraj M, Witkowska Z, et al.:
Conversion of spent mushroom substrate into micronutrient fertilizer via biosorption in a pilot plant.
Ecol Eng.
2015; 84: 370–374. Publisher Full Text
- Van Puffelen JL, Brienza C, Regelink IC, et al.:
Performance of a full-scale processing cascade that separates agricultural digestate and its nutrients for agronomic reuse.
Sep Purif Technol.
2022; 297: 121501. Publisher Full Text
- Vukobratović M, Lončarić Z, Vukobratović M, et al.:
Use of composted manure as substrate for lettuce and cucumber seedlings.
Waste Biomass Valor.
2018; 9(1): 25–31. Publisher Full Text
- Wijdeveld WK, Prot T, Sudintas G, et al.:
Pilot-scale magnetic recovery of vivianite from digested sewage sludge.
Water Res.
2022; 212: 118131. PubMed Abstract
| Publisher Full Text
- Wilfert P, Dugulan AI, Goubitz K, et al.:
Vivianite as the main phosphate mineral in digested sewage sludge and its role for phosphate recovery.
Water Res.
2018; 144: 312–321. PubMed Abstract
| Publisher Full Text
- Wu Y, Luo J, Zhang Q, et al.:
Potentials and challenges of phosphorus recovery as vivianite from wastewater: a review.
Chemosphere.
2019; 226: 246–258. PubMed Abstract
| Publisher Full Text
- Ylmén R, Gustafsson AMK, Camerani-Pinzani C, et al.:
Recovery of phosphorous from industrial waste water by oxidation and precipitation.
Environ Technol.
2018; 39(15): 1886–1897. PubMed Abstract
| Publisher Full Text
- Zilio M, Pigoli A, Rizzi B, et al.:
Using highly stabilized digestate and digestate-derived ammonium sulphate to replace Synthetic Fertilizers: the effects on soil, environment, and crop production.
Sci Total Environ.
2022; 815: 152919. PubMed Abstract
| Publisher Full Text
