Introduction
The scientific community must adapt to an environment in which research budgets are shrinking in many parts of the world, even though scientific advances are urgently needed to tackle global challenges such as climate change, biodiversity loss, and pandemics1,2. Sharing and publishing reusable research outputs is a crucial strategy to mitigate these challenges and foster new collaborative developments3. A key concept is computational reproducibility, which ensures that other researchers can validate and verify the results reported in a scientific article using the same data and code4,5. Consequently, reproducibility is a fundamental quality criterion in science, and one might assume it is widely practiced to strengthen the credibility and transparency of research. However, several studies have shown that many research articles across disciplines are in fact not reproducible6–8 - a phenomenon often referred to as the "reproducibility crisis"9. There are various reasons for this, but a major obstacle is the perception that publishing reproducible research results is time-consuming and not worth the investment10. Nevertheless, reproducible research should be valued not only for its intrinsic scientific merit, including verification and validation, but also for its wider benefits. One of these advantages is that readers do not have to blindly trust the results in an article, but can check them themselves on the basis of the accompanying data and analysis. A key expectation is that reproducible research results are inherently more reusable by other researchers, reducing redundant efforts and accelerating the creation of new knowledge11–13. Nevertheless, someone trying to reuse someone else's code has to invest a lot of time to understand the code and incorporate parts of it into their own analysis.
In response, funding agencies, peer reviewers, and academic journals are increasingly emphasizing the need for researchers to publish all materials required for reproducibility14–16. While this emphasis represents a step forward, it also entails changes in researchers’ daily workflows, and this transition is still ongoing. Numerous tools, guidelines, and best practices have been developed to support this trend, including the FAIR (Findability, Accessibility, Interoperability, and Reusability) principles for data17 and software18 and the "Ten Simple Rules for Computational Reproducible Research”19. Gentleman and Lang20 introduced the concept of a compendium as a package including a dynamic document (i.e., the paper) and the code and data needed to produce the computational results in that document. ReproZip21 is an example implementation of the compendium concept and packages the computational environment with the source code and data so that users can start a virtual machine to re-run the analysis. The commercial publisher CodeOcean creates such virtual environments as supplements for research articles22. In addition, eLife is a scientific publisher that offers interactive papers based on a reproducible analysis23.
Encapsulating all materials in a compendium might limit the findability of the individual components contained therein, unless the metadata of the individual elements can be found externally. Moreover, researchers may want or need to publish individual research assets in dedicated repositories. As an alternative to a compendium, a so-called Research Object can be created, which aggregates digital assets that are part of an analysis and are published in different repositories or archives24,25. Together with the Research Object, a particularly influential concept in the context of this paper is the Knowledge Package developed by the Group on Earth Observation (GEO), a “reusable application-sharing unit” that integrates geospatial datasets, code, tools, and the computational environment26.
However, reusing research code requires a deep understanding of the underlying logic of the analysis pipeline, e.g., how the functions work, the meaning of input parameters, and how to adapt them to other contexts. Understanding complex source code requires knowledge of the programming language and can be a challenge even for experienced programmers27. Consequently, researchers often tend to reinvent the wheel and develop analyses from scratch, or rely on proprietary, point-and-click software with a graphical user interface (GUI) that lacks reproducibility28. This challenge is further complicated by the diverse needs and skills of different stakeholders, including reviewers, researchers, and science journalists. Workflow management systems can help with this problem by providing an entry point into the analysis pipeline. Examples include Nextflow29, a command line-based tool that allows users to script workflows, and Snakemake30, which defines workflow steps as rules. The Galaxy platform31 also addresses users without programming expertise by offering an intuitive user interface for the development and execution of readily-sharable workflows.
In this paper, we introduce the Data-to-Knowledge Package (D2K-Package), a collection of links to digital research assets - such as data, code, virtual labs, web API services and workflows - that unlock the potential of open reproducible research and open FAIR data. Conceptually, the D2K-Package is built on top of the Research Object and GEO’s Knowledge Package but focuses on creating a reproducible basis out of the code and data so that the other research assets (i.e., virtual labs, web API services, and workflows) can be inferred from it. A special feature of the code component is its structuring into self-contained and reusable functions that fulfil a specific task (e.g. data transformation) instead of enabling access to the analysis script as a whole. The primary aim of the D2K-Package is to enhance the reusability of computational research outputs by enabling audiences with varying skill levels to follow the process from data analysis to knowledge generation.
In the following sections, we first outline the concept of the D2K-Package and show how researchers can develop a D2K-Package based on their reproducible analysis. Afterwards, we showcase its applicability using a hydrological use case, which we provide as a demonstrator so that the D2K-Package concept can be tested and explored. The paper concludes with a discussion on the integration of the D2K-Package into the research cycle, its benefits and limitations.
Methods
The concept of the Data-to-Knowledge Package
A D2K-Package (Figure 1) links to specific research assets to tackle key technical challenges encountered in a researcher's work:

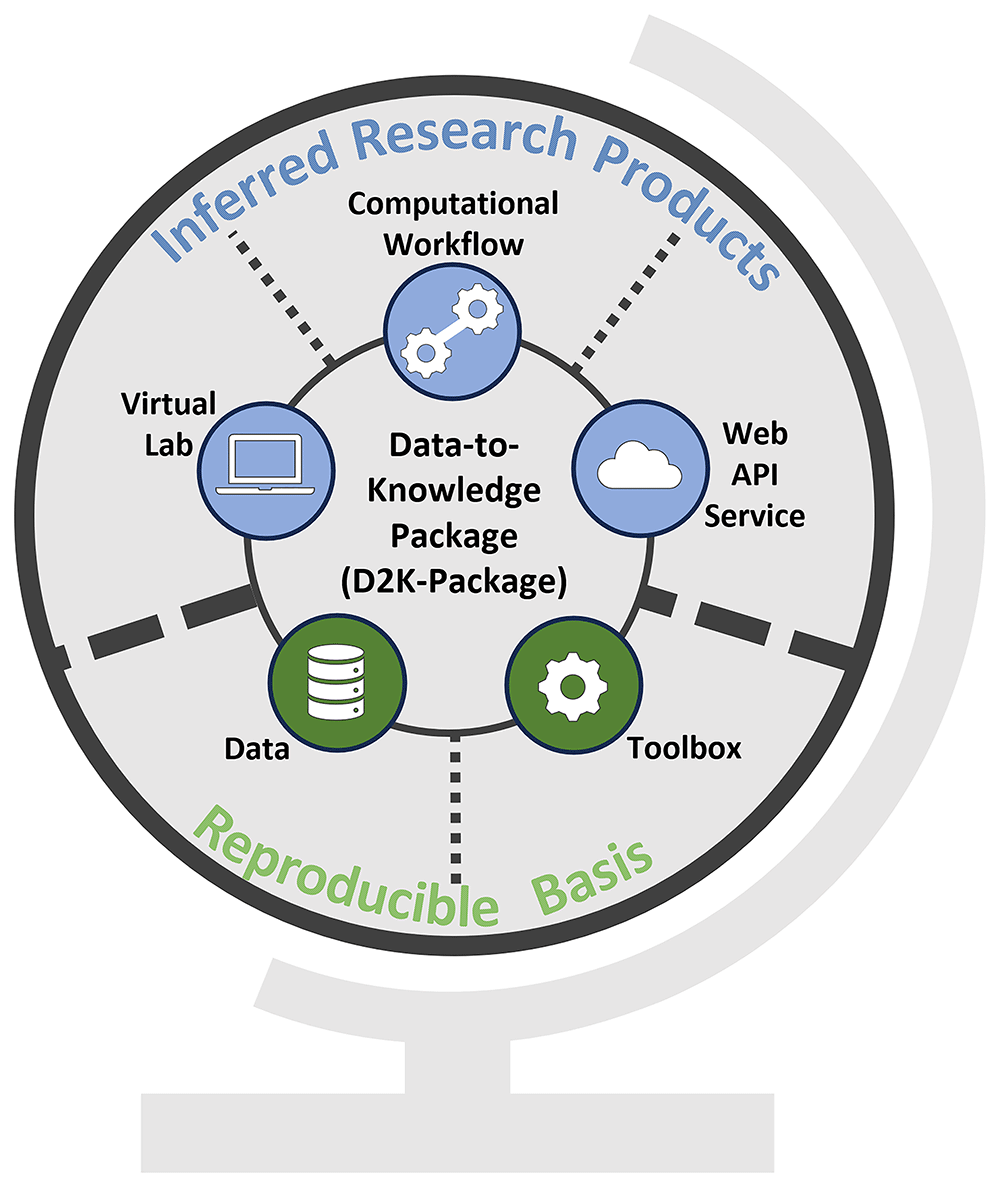

Figure 1. Conceptual overview of a Data-to-Knowledge-Package.
Bottom: Reproducible basis composed of the Data & Toolbox. Top: Inferred research products built on top of the reproducible basis. All these components are linked in a Data-to-Knowledge Package.
Verifying and reproducing the results presented e.g. in a publication needs access to the data and source code. The D2K-Package supports these tasks by linking to the Data and the Toolbox (Figure 1), which together form the reproducible basis. In a Toolbox, the code is structured in such a way that the entire analysis is divided into self-contained and reusable functions that can be chained together to reproduce the analysis or called individually in a different context. More details on the creation of a Toolbox are provided below.
Exploring the analysis and evaluating its relevance and reusability in other use cases requires restoring the computational environment. This involves tasks like installing a specific R32 version with required packages or Docker to build and run images. However, this process is time-consuming and may be challenging or even unfeasible for users lacking the necessary technical skills, which may discourage them from attempting to run the analysis. The D2K-Package supports these efforts by linking to a Virtual Lab allowing users to engage more deeply with the code.
Reusing parts of the analysis in a custom script requires copying the relevant code snippets and the necessary libraries, which can be an error-prone task. The D2K-Package overcomes this issue by linking to a Web API Service to which calls to the functions contained in the Toolbox can be sent from a source code script.
Understanding the role of each function in an analysis, which input parameters are needed, and how the functions are connected requires familiarity with the programming language and effort. This is particularly challenging if the analysis script contains several thousand lines of code. To provide an entry point to the analysis and help other researchers (with and without coding skills) receive an overview of the analysis workflow composed of the functions and the configuration, the D2K-Package links to an executable and readily-sharable Computational Workflow.
Consequently, a D2K-Package aims to facilitate various forms of reuse, including inspecting the analysis pipeline and running the analysis as-is. In addition, a D2K-Package places a particular emphasis on enabling reuse in new contexts by allowing users to customize the configuration of the analysis and extend it.
The main feature of the D2K-Package is that it acts as an overarching meta-object including links to these components but it does not create another physical copy of them in a self-contained compendium as proposed in related approaches20,33. We chose this approach to avoid redundancy (e.g., copies of a given dataset) and possible synchronization issues caused by divergent code developments. Hence, several D2K-Packages can link to the same specific research asset (e.g., a dataset). Figure 2–Figure 4 show excerpts from a reference implementation of a D2K-Package in the form of a ro-crate metadata file25. The file is a human- and machine-readable way of describing research assets of different types based on the structured data format JSON-LD and vocabularies, e.g. schema.org. The D2K-Package components Data, Toolbox, Virtual Lab, Web API Service and Computational Workflow are listed under the metadata element “hasPart”. The “@id” is a reference to the corresponding json object that contains the name, resource type and identifier (i.e. URL, DOI) of the D2K-Package component.

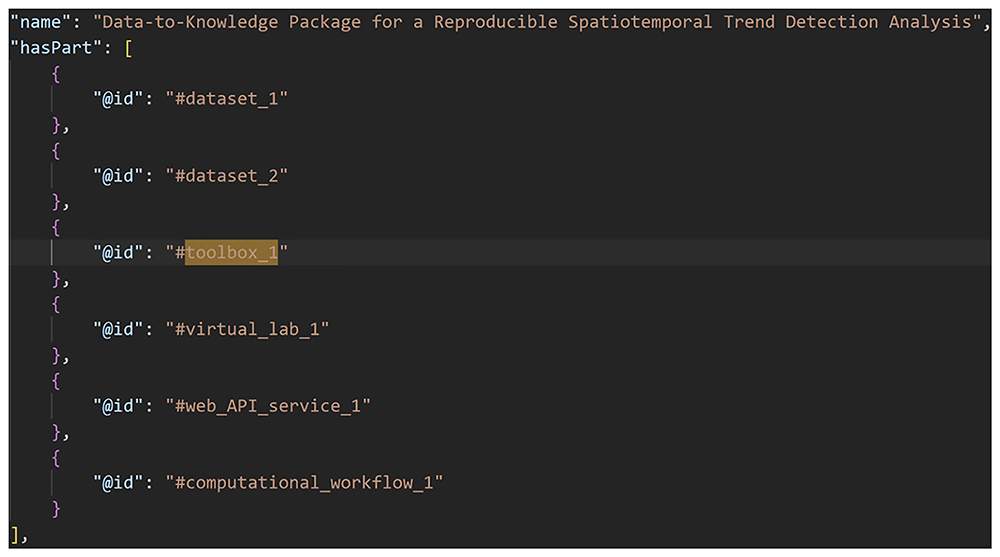

Figure 2. A Data-to-Knowledge Package’s ro-crate metadata file.
See full file here. Extract of a ro-crate metadata file (part 1) showing the components (“hasPart”) of a Data-to-Knowledge-Package.

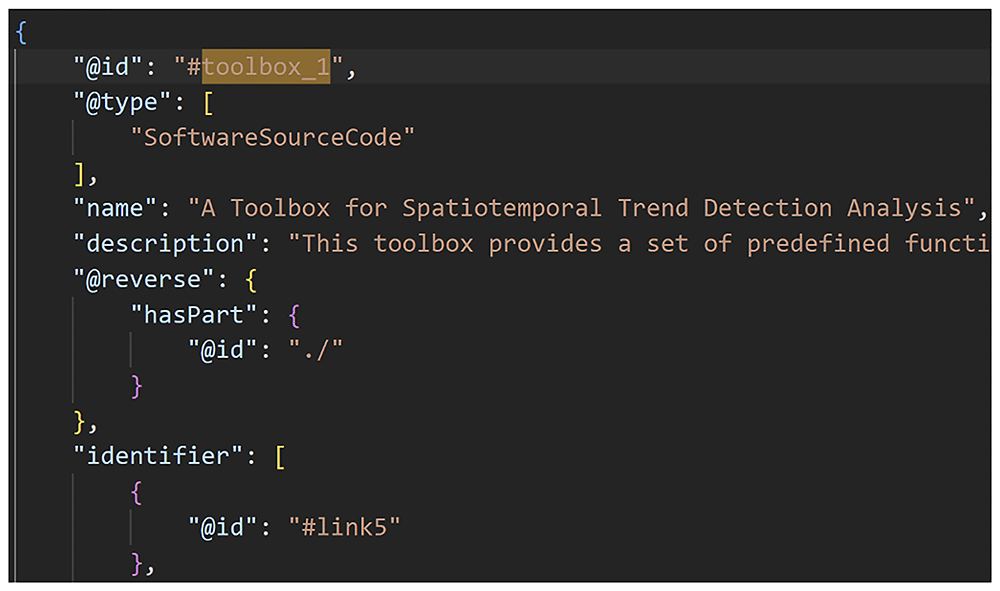

Figure 3. A Data-to-Knowledge Package’s ro-crate metadata file.
See full file here. Extract of a ro-crate metadata file (part 2) showing the Toolbox of a D2K-Package.

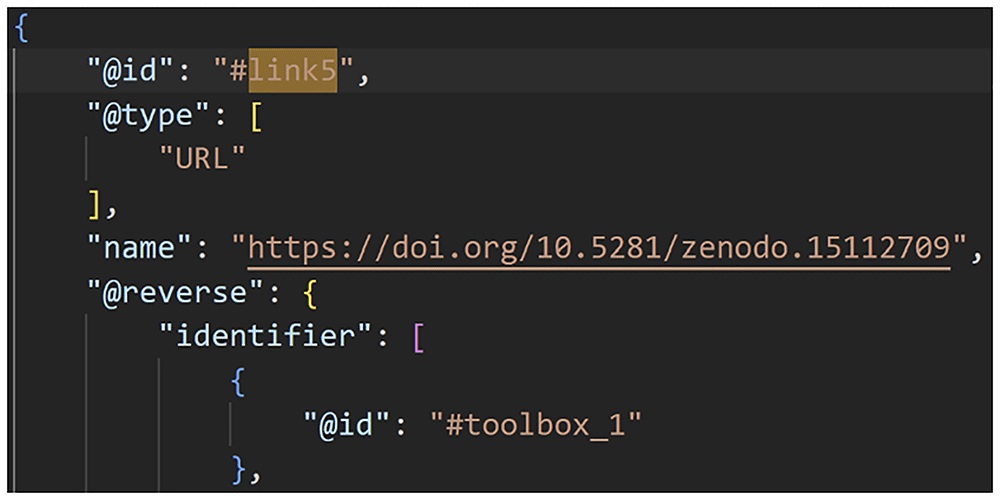

Figure 4. A Data-to-Knowledge Package’s ro-crate metadata file.
See full file here. Extract of a ro-crate metadata file (part 3) showing the link to the Toolbox component.
Ideally, the components are published as citable assets in repositories using permanent identifiers (e.g. a Digital Object Identifier, DOI) to which the D2K-Package can link34.
A D2K-Package can evolve and be expanded to include new materials in order to take account of the dynamic nature of publishing research assets. For example, a scientific paper under review can be supplemented by a D2K-Package and become part of the D2K-Package after publication. For this reason, the D2K-Package ro-crate file shown below should be published with, ideally versioned, DOIs. A D2K-Package can also refer to other research materials that facilitate the reusability of computational research. A poster, talk or similar can be a useful means of providing a detailed explanation of the context. Also, open educational resources (e.g. links to webinars, slides, tutorials) can contribute to a better understanding of the analysis and consequently facilitate reuse. Nevertheless, such creative outputs are not in the scope of this paper.
The following sections will elaborate on how the components can be created to achieve a D2K-Package that supports the reuse of computational research and the understanding of the path from data to knowledge generation. We refer to the developer who creates a D2K-Package and the user who works with it.
Data
The data is generated by the developer of a D2K-Package or integrated from a third-party data provider. Technically, a D2K-Package can link to any data. Conceptually, the D2K-Package is supposed to encourage reuse. Hence, the data should fulfil at least some of the FAIR Principles and be released openly (data complying with the FAIR principles is not necessarily openly accessible35). This means that the data should be described with rich metadata to ensure findability. In addition, accessibility should be granted by linking to each input data needed to reproduce the analysis. Ideally, the URL to the data is a permanent identifier (e.g., a DOI) to ensure the data is time-stamped, long-term accessible, and immutable. To ensure interoperability, the data should be stored in text-based formats (e.g., csv or json). Binary formats (e.g., GeoPackage, shapefile) are possible if they have an open specification.
Finally, the data should be released under an open license (ideally CC036) to ensure reusability. Open licenses that restrict remixing, transforming, or building upon the data (e.g., CC-BY NoDerivatives37) should not be used in a D2K-Package. These aspects become relevant at the latest when the D2K-Package is published. However, during the development of a D2K-Package, the data can be kept private.
Toolbox
Besides the data, a D2K-Package links to a Toolbox created by the developer. The Toolbox contains the containerized analysis code (e.g., written in R or Python) used to generate the results in a research article and a specification of the computational environment. The source code is split into reusable functions that fulfil a specific task (e.g., processing data, running a statistical analysis). The functions follow the “input - processing - output” logic, meaning that each function takes some data (e.g., a table, figure) and a parameter configuration as inputs, runs the task on that data based on the configuration, and outputs the result (e.g., a table, figure). Furthermore, the functions are designed such that they do not depend on the other Toolbox functions and can be called individually. To ensure that the developer’s original computational environment can be recreated in the container, the Toolbox contains a specification of the runtime (e.g., R version) and a list of libraries and their versions.
A D2K-Package links to at least one Toolbox but it can reference other developers’ Toolboxes from which functions are reused. As with the data, the FAIR principles also apply to the Toolbox, considering software-specific characteristics18 and the Toolbox should be made openly available at the latest when the D2K-Package is published.
The Toolbox and the data represent the central components in the concept of a D2K-Package and form the reproducible basis upon which the potential of reproducible research can be unlocked. In the following sections, we will see that virtual labs, web API services, and workflows can be created on top of the Toolbox without changing it.
Virtual lab
In the context of this work, a virtual lab is a web application where the runtime and all software dependencies are installed in a ready-to-use programming instance, such as a JupyterLab environment providing a certain python runtime and all necessary packages in a predefined version. A D2K-Package links to such a virtual lab that is created by the developer of a D2K-Package based on the description of the computational environment contained in a Toolbox. Users can follow the link to the virtual lab and immediately start interacting with the code in the browser without the challenge of restoring the computational environment locally. They can develop the code further, try it out and change it in an executable environment, or use it in hands-on classes together with students. Since all users work in the same environment, differences in the results caused by differing library or runtime versions38,39 can also be avoided.
Web API service
A web API service allows users to send requests to that service and receive a response via HTTP. Based on this request-response mechanism (also known as client-server communication), the developer of a D2K-Package can expose the functions in a Toolbox by setting up a server and deploying a web API service. The concept of a Toolbox can be seamlessly integrated into this mechanism since its functions are encapsulated, containerized, and well-defined regarding input and output. The web API service acts as a wrapper that enables immediate reuse of a Toolbox function. The wrapper takes the input information sent by the user (i.e., data, parameter configuration), executes the function, and outputs the result as part of the response for further processing in the user’s source code. Every function in the Toolbox is wrapped in such a way and has a dedicated endpoint that can be reached via a URL. A D2K-Package links to such a web API service provided by the developer of the D2K-Package.
Computational workflow
A computational workflow is a chain of steps, each running a computational process. Such an analysis pipeline, which should be scripted according to the requirements in reproducible research, comprises steps such as data import, processing, analysis, and visualization. The concept of a Toolbox with its set of functions and the web API service exposing these functions seamlessly integrate with the idea of computational workflows. The developer of the D2K-Package can describe the analysis pipeline using a human-readable workflow language (e.g., Common Workflow Language). Such a workflow description can be created based on the Toolbox functions made available via the web API service, without having to change them. As the Toolbox functions are self-contained and independent, they can be extracted from the workflow context and combined with other functions. A workflow described in this form increases the reusability of the analysis by providing a quick overview and information on which functions are used in which order, the input parameters, and the outputs. The concrete implementation details of the functions are abstracted away from the user but can be explored in the virtual lab. A D2K-Package links to one or more computational workflows created by the developer of the D2K-Package. One can reuse the entire workflow or parts of it by combining it with functions used in other workflows.
Results
We have applied the concept of the D2K-Package to a real research use case to demonstrate its applicability. In the following, we briefly present the hydrological use case and then describe the realization of the D2K-Package based on this use case.
A hydrological use case
The use case explores hydrological dynamics by addressing changes in water optical properties in the Gulf of Riga — a semi-enclosed subbasin of the Baltic Sea. Changes in water transparency and colour in the Gulf of Riga are pressing ecological concerns40, as they can significantly impact underwater habitats, biodiversity, and ecosystem services. However, the exact causes of these changes remain unclear, highlighting the need for a comprehensive investigation into the hydrological and biogeochemical processes driving these phenomena.
The use case is structured around several consecutive research questions aimed at exploring the interplay between land, freshwater, and marine ecosystems, with a focus on the River Daugava-Gulf of Riga continuum. For D2K-Package presentation purposes, we focus on the workflow addressing the first research question “Do the optical properties in the Gulf of Riga water change in the long term?” by analysing long-term changes in water transparency in-situ measurements.
Data: The use case is based on two input datasets from third-party providers, which are both released under an open license but not under a permanent identifier. For reproducibility reasons, both input datasets are made available via Zenodo (see Data Availability)41. One dataset is made available in geojson format and comes from an OGC API Features service42. It can be directly downloaded from a URL and passed to a function in the Toolbox or to a web API service. In the context of the use case, this data holds information about long-term changes in water optical properties of the Gulf of Riga. The dataset includes key variables such as geographical coordinates (latitude and longitude), sampling station identifiers, sampling dates, and corresponding water transparency (Secchi depth, m) and water colour measurements (expressed in Forel-Ule scale). The D2K-Package contains a link to the OGC API Features service as the original data source and a DOI to the Zenodo record.
The second dataset is provided as a shapefile by the Baltic Marine Environment Protection Commission, which is also known as the Helsinki Commission (HELCOM)43. This dataset includes information about assessment units for the Baltic Sea. The polygons are based on HELCOM open sea basins and are integrated with coastal water types as defined in the Water Framework Directive. The associated shapefile contains an attribute table with information, including country designation, subbasin identification (HELCOM_ID), subbasin level classification (e.g., Gulf of Riga), water type name (e.g., Gulf of Riga transitional waters), and additional data such as the area of the polygon.
For this specific dataset, users need to accept a data usage disclaimer before they can copy the download link and pass it to the function in the Toolbox. However, the download link becomes inactive after several minutes. Unfortunately, the inactive link does not redirect the user back to the page where they can accept the disclaimer again to reactivate the download link. Hence, it is disadvantageous to add the download link to the D2K-Package. Instead, we added the link to the website showing the data disclaimer, supplemented by the DOI to the Zenodo record.
Toolbox: The analysis pipeline developed in the use case is written in the open-source scripting language R32. In the context of the use case, this analysis employs a workflow for data processing, trend analysis, and visualization. By identifying temporal and spatial patterns of environmental variables, the workflow supports the exploration of underlying links between hydrological processes and water optical properties in the Gulf of Riga.
We divided the analysis into seven functions, each accepting URLs to input datasets and producing outputs that, except for the last functions in the pipeline producing visualizations, are further used as inputs in the next function. Hence, also intermediate results can be investigated or used in different contexts. The functions and the specification of the computational environment are encapsulated in a Docker container and stored on GitHub. Docker is an open-source solution to build and run containerized applications44 and has proven to be particularly useful in the context of reproducible research, for example, when it comes to handling complex dependencies29,45.
To specify the versions of the runtime and the libraries used in the Toolbox, we created an environment.yml file and used Anaconda as a package hosting service. To also take other reproducibility guidelines into account, the repository contains an open-source license to clarify usage (i.e., Apache License 2.0) and a README to document the content. A DOI-linked and citable version of the repository is made available on Zenodo, which was chosen because of its seamless integration with GitHub. The D2K-Package contains a DOI to the Zenodo record and a URL to GitHub.
Virtual Lab: We chose MyBinder to create a virtual lab based on the Toolbox. MyBinder is an open-source web application that recreates a computational environment based on a git repository containing information on the runtime, libraries and their versions, and the source code scripts46. Users can engage with the code more deeply in a ready-to-use virtual lab providing the corresponding programming environment (in this case RStudio). The resulting virtual lab can be accessed and shared via a URL with other users and thus become part of a D2K-Package.
On the downside, MyBinder is a test instance with limited resources and does not guarantee to be operational when needed. However, it is also possible to use any other MyBinder web service or deploy and host an own instance.
Web API service: Interoperability is an essential pillar of the FAIR principles and the use of standards can help to achieve it. In order to further increase reusability and leverage community standards, the web API service was realized based on the OGC API Process standard47. Such a process offers an endpoint to execute an algorithm via HTTP and is well-defined concerning input parameters and outputs. Usually, these processes take a link to the input data and also generate a link to the output data. Hence, the concept of an OGC API Process can be used to make the Toolbox functions available as a web API service. To implement the web API service based on the OGC API standard, we made use of pygeoapi, an open-source solution to deploy RESTful OGC API services48. We have created an OGC API process file for each Toolbox function. The file is responsible for taking the input parameters and creating a Docker command to execute the function.
A D2K-Package contains a link to the OGC API service. From that link, users can receive a list of available processes (i.e., the Toolbox functions via GET /processes), execute a process (POST /{processId}/execution), and receive metadata (GET /processes/{processId}). The metadata also contains a link back to the GitHub repository containing the Toolbox and the corresponding Zenodo record enabling users to explore the underlying source code and cite the resource.
Computational workflow: An important selection criterion for the right workflow tool is the availability of a drag-and-drop workflow editor. Such a canvas can support users without programming knowledge in the development, execution and modification of readily-sharable workflows. For this requirement, the Galaxy platform31 seems to be better suited than related software solutions such as Nextflow29 and Snakemake30. Galaxy is an actively maintained open-source web application that provides such a user-friendly interface. In addition, Galaxy has a large number of pre-installed tools, is extensible, has a large user community, and runs on a shared public cloud-based infrastructure.
Integrating each Toolbox function separately as a tool into the Galaxy platform is possible but inefficient if the number of functions is large. For this reason, we developed a Galaxy tool that wraps the OGC API service and makes all exposed processes (i.e., each Toolbox function) available in one Galaxy tool (see Figure 5). Users can select the processes one after the other and fill the corresponding input parameters. The functions can then be connected to a workflow to show the entire analysis pipeline including all steps from data to knowledge generation (e.g., data input, pre/post-processing, analysis, and visualization).

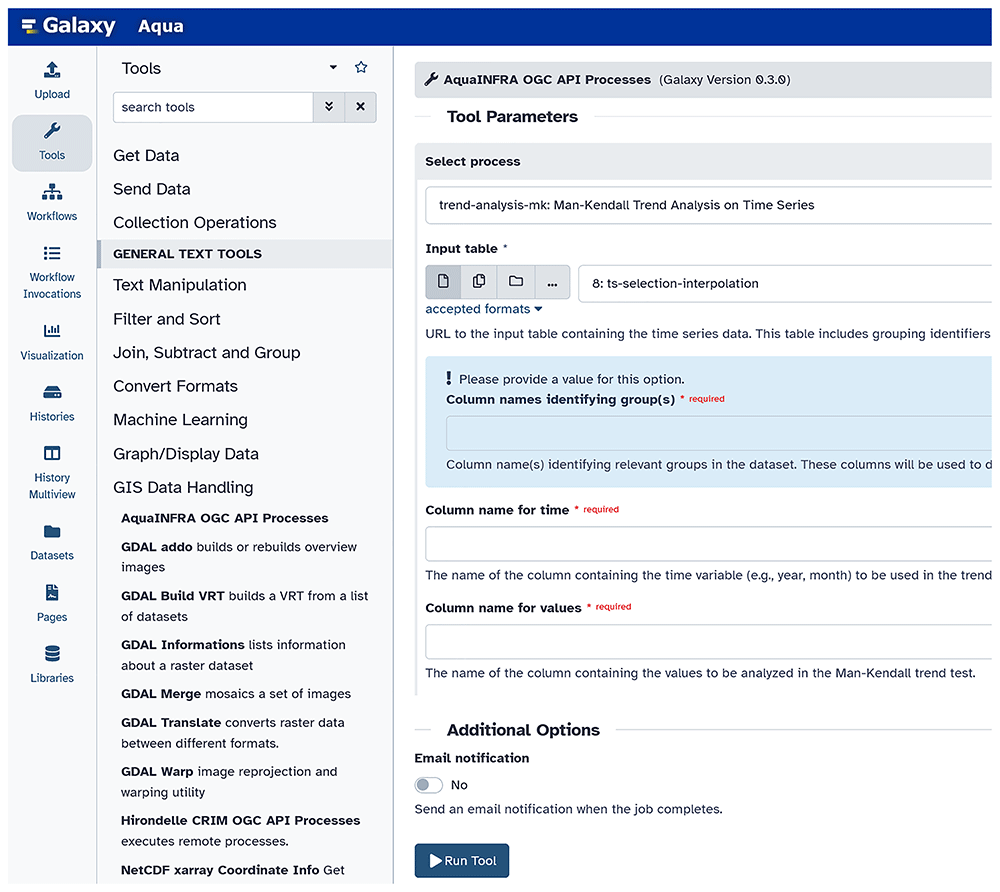

Figure 5. Integration of the OGC API Processes into the Galaxy platform (link to Galaxy, link to the code).
Users can find the tools we developed under GIS Data Handling – AquaINFRA OGC API Processes. Then, users can select the function from the dropdown list and complete the corresponding form, which is different for every function.

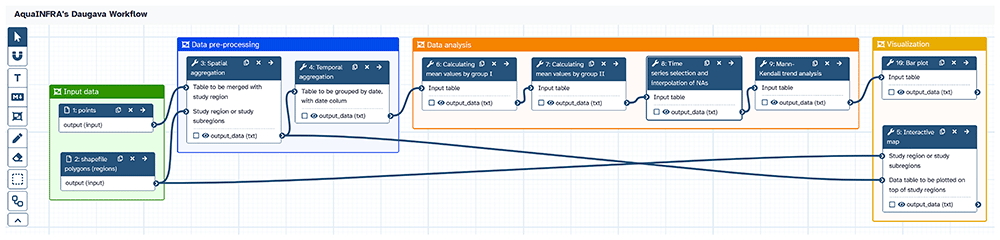

Figure 6 shows the analysis pipeline of the hydrological use case implemented as a Galaxy workflow. The two datasets introduced above are used as inputs. The functions are executed one after the other, whereby the output of one function becomes the input of the subsequent function. Users can click on each function to check and modify the configuration and then re-run the workflow. The workflow can be shared with other users within the Galaxy platform and released on Zenodo. These two links are included in the final D2K-Package.
Figure 6. Galaxy workflow showing the analysis pipeline of the hydrological use case.
The workflow is composed of seven steps (excluding input datasets, one function is used twice) and shows the entire analysis pipeline from data import to visualization.
ro-crate metadata file: We created the ro-crate file for the D2K-Package using Describo49, an open-source metadata editor for describing data. For the components of the D2K-Package, we reviewed the schema.org and bioschemas.org vocabularies to find the most appropriate resource types. As a result, we used “Dataset” for the input data, “SoftwareSourceCode” for the Toolbox, “SoftwareApplication” for the MyBinder-based virtual lab, “WebAPI” for OGC API-based web server, and “ComputationalWorkflow” for the Galaxy-based workflow. We published the file on Zenodo, an open-source repository hosted by CERN providing versioned DOIs and a profound set of metadata. Research assets can be added to the D2K-Package creating a new version and a new DOI of the record. The DOIs of previous versions are still available.
In summary, we have used the following technologies to realize the concept of a D2K-Package. The data is made available via DOIs provided by Zenodo. The code in the toolbox is written in R, containerized with Docker, and stored on GitHub. In addition, the virtual lab is created with MyBinder. The web API service is implemented in Python and is based on the pygeoapi framework, which follows the OGC API Processes standard. We used the Galaxy platform to implement the workflow. Finally, the ro-crate metadata file was used to implement the D2K-Package.
User interface

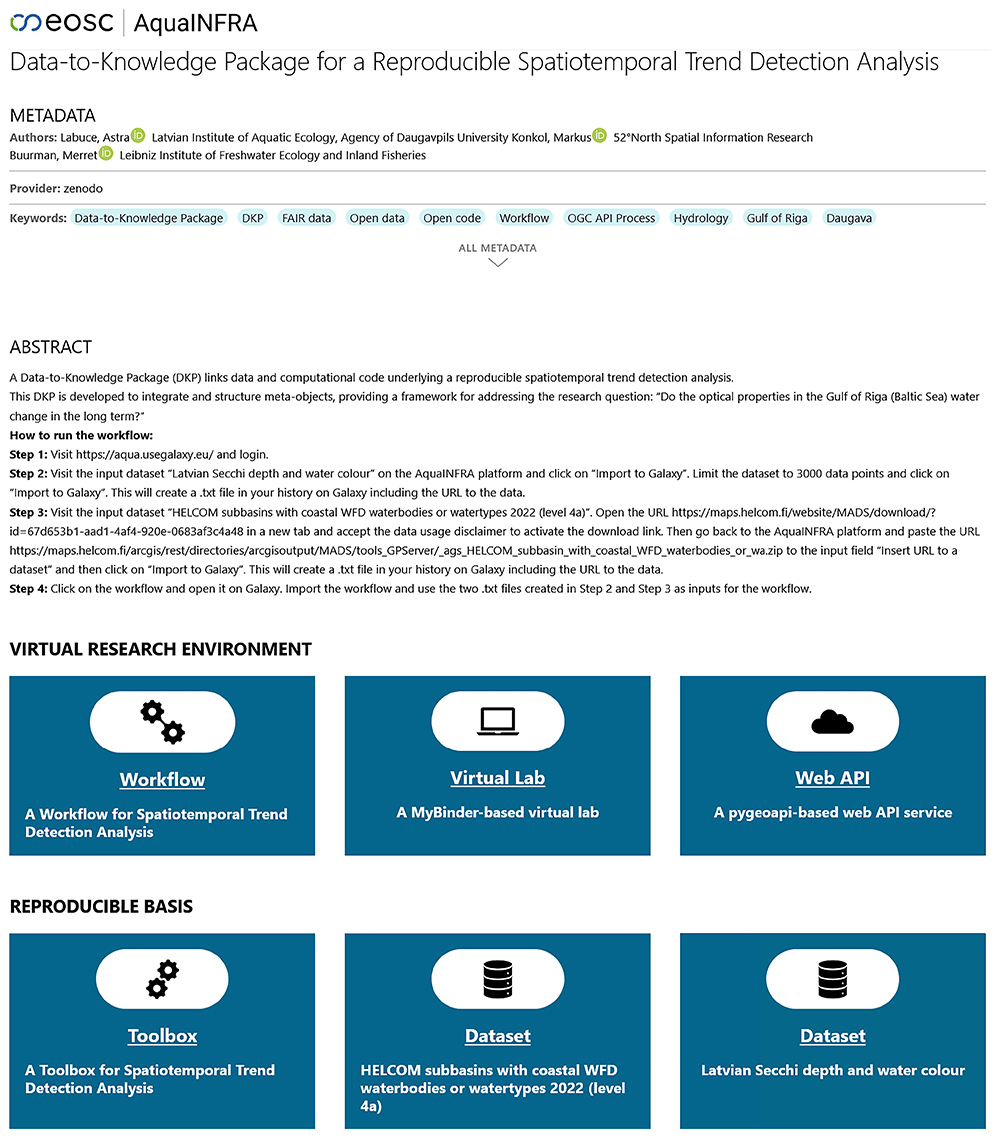

Figure 7 shows a possible user interface for a D2K-Package. The landing page first shows the metadata such as title, authors, and a description. Below this is the so-called Virtual Research Environment (VRE), consisting of a Galaxy-based workflow, a MyBinder-based virtual lab and a pygeoapi-based web API service. The tile for the workflow was placed at the beginning, as it is intended to serve as the first entry point into the analysis. Clicking on it redirects the user to the Galaxy platform. Similarly, the virtual lab tile directs users to MyBinder and the Web API tile to the pygeoapi server. Below the VRE, users see the reproducible basis, consisting of input data tiles redirecting users to the website where they can find the download link and a Toolbox tile redirecting users to the GitHub repository.
Top: Metadata and a description. Middle: Virtual Research Environment linking to the workflow, virtual lab, and web API. Bottom: Reproducible basis linking to the toolbox and the input datasets.
Discussion
The goal of the Data-to-Knowledge Package (D2K-Package) is to help researchers understand the path from data to knowledge generation and reuse open FAIR data and code. The D2K-Package aims to foster collaboration among researchers and facilitate knowledge dissemination, reducing redundant efforts and accelerating scientific progress. It incorporates reproducible code and data at its core, while providing multiple opportunities to understand and build upon the work. We applied the D2K-Package concept to a real research use case and demonstrated how the D2K-Package and its components (i.e., Data, Toolbox, Virtual Lab, Web API Service and Computational Workflow) can be designed.
The question arises as to how the D2K-Package relates to other technologies that support reusability. Code Ocean, for example, offers a virtual environment in which users can execute and work with the source code. The D2K-Package does not compete with Code Ocean. Instead, one of its capsules could act as a virtual lab and be linked from a D2K-Package to become part of it. However, there is still a conflict between the commercial background of Code Ocean and the D2K-Package, which focuses on open-source technologies.
One might also argue that creating a Docker image integrating an execution environment and providing an own API service is an alternative to the web API service based on pygeoapi as suggested in this work. Similar to the previous case, such an approach is possible and could be linked from a D2K-Package. However, we suggest using frameworks such as pygeoapi to ensure adherence with community standards, for instance, OGC API Processes.
Next, the advantages of developing a D2K-Package are discussed, but the challenges and limitations are also critically examined.
Research cycle
The D2K-Package offers several opportunities to unlock the potential of a reproducible analysis throughout the research cycle. The first entry point to the analysis is the workflow, which can help users understand the analysis and underlying configuration. By using tools such as Galaxy, users can re-run the workflow, modify it, or reuse parts of it in other contexts. This can be useful for researchers who are compiling a literature review at the start of a research project and trying to find related work to build on. Facilitating the reuse of an analysis entails the risk that the code will be reused without being scrutinized. The D2K-Package should not be understood as a shortcut to reusing research materials without having a thorough understanding of the implementation details. Instead, users can delve deeper into the code by exploring the virtual lab including the source code files. This virtual lab can be beneficial for other researchers who need a deeper understanding of the code before they can reuse parts of it. They do not have to spend time restoring the computational environment, but can start immediately. A researcher developing an analysis to answer a research question might want to reuse some of the functions provided by the Toolbox and can do so by integrating the remote OGC API Processes into the script. Experiencing the concrete benefits of this approach might incentivize researchers to develop a D2K-Package out of their own analysis before submitting the report to a conference or journal. Doing so can help them to ensure that the analysis is reproducible, verifiable, and reusable. Moreover, the resulting D2K-Package submitted for peer review can later be updated and expanded to also reference the peer-reviewed publication.
The research cycle shows the steps that can be supported by the Data-to-Knowledge Package.
A D2K-Package, especially the workflow, can also be a helpful tool for reviewers who already have to invest a considerable amount of time in reviewing the paper and do not have the time to familiarize themselves with the analysis underlying the results of the paper. Users who do not have the necessary skills can also benefit from the workflow, as no knowledge of a programming language is required to follow the analysis, modify the underlying configuration, and use a different dataset (also known as “replication”50).
Use case
Applying the D2K-Package to the use case revealed a number of challenges. The input data can become an issue if users need to accept data usage disclaimers or login before they can access the download link. This is an issue with respect to machine-readability as it is not possible to use the download link in the code without manual action.
The analysis pipeline was almost completed by the researcher working on the use case when we started to apply the D2K-Package to it. As a result, it was necessary to change the code. For example, the entire code had to be split into individual reusable functions that follow the logic “input - processing - output” instead of having a series of lines of code that can be executed one after the other. Consideration also needed to be given to how the code could be split into functions and how small the functions should be. It is important to find the right balance to design functions that are small enough to be reused in other contexts while still performing a meaningful task. Ultimately, each developer decides for themselves when a function is reusable. In addition, developers need to think carefully about which input parameters should be passed to the function and what the intermediate results are. Such problems are well known in connection with the development of software libraries, but can still pose a major challenge for non-software developers. For a D2K-Package to be practicable, it should therefore be considered from the start in order to avoid too much work afterwards, which is anyway recommended to ensure reproducibility51. The following list of prerequisites might help potential users to determine whether a D2K-Package fits their work.
Data: While theoretically data in a D2K-Package can be kept private, it contradicts the idea of reusability and should be shared openly unless there are good reasons not to. This requires a repository with sufficient data storage.
Toolbox: A D2K-Package can only include scripted analyses written in open-source programming languages. A sequence of clicks in a graphical user interface describing the analysis process cannot be considered.
Virtual lab: In the case of MyBinder, the code needs to be stored on one of the integrated technologies, for instance, GitHub, GitLab or Zenodo.
Web API Service: The developer of a D2K-Package needs access to a server that runs a service software, for instance, pygeoapi.
Workflow: For a workflow, the code needs to be structured into independent and self-contained functions following the input-processing-output logic. Other developed software, such as a user interface cannot become a workflow.
In addition, we have created a user guide with concrete steps for developing a D2K-Package as a living document, i.e. we will continue to improve it based on user feedback52.
A persistent counterargument in connection with reproducible research is the time required for this. Based on our experience with the use case, it cannot be denied that this challenge also applies to the creation of a D2K-Package. Hence, it is unrealistic to expect that every kind of workflow is transformed into a D2K-Package, though a transformation is not required if the creation of a D2K-Package is considered from the beginning. Possible guiding questions to decide whether a D2K-Package is meaningful or not are:
Should other researchers be able to reuse parts of the analysis in their own work?
Should the analysis pipeline be presented as a workflow using, e.g., Galaxy?
If both answers are negative, the creation of a D2K-Package will probably not bring added value. However, if one or even both questions can be answered in the affirmative, a D2K-Package is a low-hanging fruit. The reason for this is that in order to create workflows or reusable code, the functions have to be developed in such a way that they can be called and executed individually anyway. In addition, containerization is necessary anyway to ensure executability. Consequently, the creation of a Toolbox is no longer a major additional expense.
Creating a MyBinder-based virtual lab is easy once a Toolbox has been created, as it contains all the necessary information. However, resolving dependency conflicts (e.g. incompatible library versions) can be a challenge. Moreover, a Toolbox also makes it easier to provide OGC API processes, as these only need to execute the containerized functions. Integrating the functions into the Galaxy platform, on the other hand, requires a certain amount of additional work, as the necessary tools have to be created.
Reproducibility
The core of a D2K-Package is the reproducible basis composed of data and code. However, the D2K-Package does not have an explicit mechanism to check and guarantee that the analysis generates the same results. Suppose a researcher uses a random number in the script but does not set a seed as recommended in literature19. The analysis script is still executable, but the results could be different, which does not meet the requirement for consistent results. A similar problem can occur if the developer of a D2K-Package does not specify the computational environment sufficiently, which can also lead to divergent numbers, figures, or tables53.
One possibility to mitigate these issues is to add automatic tests to the toolbox. As the analysis is divided into individual, self-contained functions, unit tests could be suitable for checking reproducibility. This can be achieved with the help of GitHub Actions, a tool with which code can be executed after the occurrence of a certain event, e.g. after a commit or regularly at a certain point in time. Also, libraries can be used in the code to test for reproducibility, such as testthat for R54.
Another option is to add a folder containing the results to the toolbox or even the raw data19. Users would then receive the chance to run the analysis and compare the new output to the original results. Tools such as Galaxy’s GraphicsMagick55 can help to spot differences between two images.
Finally, a review process could be implemented to check for adherence to the requirements of a D2K-Package.
Persistence
Making the D2K-Package persistent can be achieved by publishing it in a repository that assigns DOIs to its records. It is more difficult to ensure the persistence of the individual components linked from a D2K-Package. Ideally, all components generated by the developer of the D2K-Package are published in a repository offering DOIs. A Toolbox maintained on GitHub can be published permanently via the GitHub-Zenodo integration. The Galaxy workflow and the source code files responsible for the OGC API Processes can also be published on Zenodo.
However, we have seen in the hydrological use case that the data may only be available under a URL and not a DOI. Therefore, if the data is not maintained in the long term, either the data or the link to the data may change over time, which affects reproducibility. One way to mitigate this problem is to download the data and publish it in a repository such as Zenodo, if the license allows it. This approach would facilitate access and assign a permanent identifier to the data. However, this approach leads to duplication and is only possible if the file size restriction of the repository allows it, which is usually not the case for big data. This limitation is not specific to the D2K-Package, but shows where the idea of reproducible research and FAIR and open data conflicts with reality. Furthermore, the problem is not an exceptional case, but can always occur if the researcher has not generated the data and has no control over it. The responsibility lies with the data providers, who must provide open and FAIR data that is also machine-readable.
One might argue that DOIs are not enough for publishing source code persistently. While DOIs are a widely accepted and well-known solution in the scientific field, the Software Hash Identifier (SWHID, formally known as Software Heritage Identifier) is a globally accepted framework tailored to source code56. One of the benefits of using Zenodo is that it has Software Heritage integrated, meaning that every software record hosted on Zenodo is automatically made available via Software Heritage. This integration results in a bi-directional linking from Zenodo to Software Heritage and vice versa.
Portability
The D2K-Package is designed to facilitate the portability of individual components to ensure sustainability and longevity. The code is encapsulated in a Docker container, which can be deployed wherever needed and maintained on any web application based on git, such as GitHub or GitLab. The MyBinder instance used to realize the Virtual Lab is a test instance. It is not guaranteed to work at all times and has limited resources, which reduces its capacity when many users access the instance simultaneously. Nevertheless, the Toolbox is not tied to a specific MyBinder deployment but can run on any other instance offering the same functionality.
A similar problem exists with the pygeoapi-based web API service and the Galaxy platform which require a server. While the Galaxy tool wrapping the OGC API Processes can only run on a Galaxy platform, it is not bound to a particular Galaxy instance. Every operator hosting a Galaxy instance can also run that tool. Thus, also the workflows can be run on different Galaxy instances. We see the responsibility for providing server capabilities not with the researchers but with those who have reproducibility as a requirement, such as funders and publishers. Initiatives like the European Open Science Cloud and their concept of a “Node” can be a promising opportunity to provide access to such tools and services. Yet, the realization of the D2K-Package in this work is just a reference implementation. It can be realized using different technologies. The workflows, for instance could also be realized using other tools depending on the user requirements, such as Nextflow29 to address experienced programmers.
In addition to sustainability, the development of a portable solution is advantageous in the case of big data. For example, the Toolbox could be deployed where the data is stored to avoid data transfer.
Ethics and consent
Ethical approval and consent were not required.
Data availability
Source data
Zenodo: Encouraging reusability of computational research through Data-to-Knowledge Packages - A hydrological use case (Input data)41. https://doi.org/10.5281/zenodo.15234377
All datasets are released under an open license (Creative Commons Attribution 4.0 International).
Acknowledgements
We are grateful for inspiring discussions with and support from Jörg Meyer (Karlsruhe Institute of Technology, DFG project ISABEL - 496155047) and Björn Grüning (Head of the Freiburg Galaxy Team).
