Introduction
In recent years, cyber adversaries have become more sophisticated and have created a new category of threats called Advanced Persistent Threats (APTs). They use a prolonged and targeted approach to breach defense networks in multiple steps to exfiltrate sensitive data or mishaps. The defense capabilities of modern organizational infrastructure are now at significant risk from APTs because of their complexity, diversity, and unpredictable attack timings.
APTs harm victims by preventing them from responding and fighting back against an attacker. Until now, most related studies have focused on the impacts of APTs, detection models, and defenses related to network and host architectures. These APT models illustrate the multiple life cycles of an APT intrusion, along with the tactics, techniques, and procedures (TTP) used by attackers at each stage. There is a need to expand understanding of APTs from the perspective of attacker strategies, approaches, and processes, as well as to broaden perspectives on APT detection methods. To explore these areas, some research has aimed to analyze APTs based on attacker methodologies, generate insights into attacker evasion techniques, visualize and represent APT detection across different organizational units—such as vendors and companies—and propose core technologies for creating backtracking graphs with specific templates. These backtracking graphs can offer a comprehensive view of the APT intrusion process. Additionally, lightly structured models and algorithms have been developed to identify semantic patterns related to APTs using backtracking graphs.
Threat Model & Terminology
We formalise the adversary as a strategic, goal-driven agent aligned to MITRE ATT&CK tactics. Capabilities include phishing-led initial access, credential theft, lateral movement via SMB/RDP, and stealthy C2 beaconing. Defensive assumptions reflect operational reality: heterogeneous visibility, delayed labels, and budgeted analyst time.
Terminology is standardised to avoid ambiguity: Advanced Persistent Threat (APT); Tactics–Techniques–Procedures (TTPs); Indicators of Compromise (IOCs); Network/Host Telemetry (flow, DNS, proxy, EDR); Time-to-Detection (TTD). Evaluation prioritises PR-AUC for skewed data and reports TPR@FPR=1% and Alerts/Day/1k-hosts.
Understanding Advanced Persistent Threats
Advanced Persistent Threats (APTs) share common features of coordination, sophistication, and long-term presence. These targeted attacks pose ongoing risks to organizations, governments, and individuals. Typically, adversaries using APTs employ manipulative techniques to gather information on hostile objectives. These tactics range from stealing intellectual property or gaining unauthorized access to data, to altering data in transit. Additionally, APT agents aim to remain unnoticed. To achieve this, they conduct covert operations that hinder identification, evasion, and prosecution, as well as manipulate systems others use to prevent harm or seek financial gain. An intruder aiming to maintain a consistent offensive role must be able to succeed. The concept of inflexibility—reliance on rare, unchangeable traits—can limit attack success. However, the attacker’s resources, zeal, and luck influence the potential for a successful attack. A well-resourced adversary can succeed. Because APT attacks are effective, comprehensive defenses should be implemented. Short-term defense goals include increasing the inflexibility of potential attackers and discouraging further intrusion. The defense strategy involves making attacks highly controlled, unpredictable, and costly for the attacker. Active investigation and enforcement, including arrests, are also necessary. Long-term goals focus on balancing the capabilities of attackers and defenders and increasing the costs for adversaries. In other words, strategic planning should aim to make APTs and investigative efforts unprofitable for the attacker. A small-scale study supporting these points has long been conducted and reinforces these findings (Table 1).
Table 1. Terms.
| Term | Operational definition |
|---|
| APT | Targeted, multi-stage intrusion campaign by a capable, persistent adversary. |
| TTP | Standardised behaviours mapped to ATT&CK; used to structure detection coverage. |
| TTD | Elapsed time between first malicious event and confirmed detection alert. |
| Beaconing | Low-and-slow periodic C2 communications indicative of persistence. |
| XAI | Explainability (post-hoc/intrinsic) to support SOC triage and auditability. |
The role of Artificial Intelligence in cybersecurity
Artificial Intelligence (AI) is rapidly transforming every industry, and cybersecurity is no exception. This growth is driven by the inefficiency of traditional security measures, which hackers understand over time, and by the increasing threats. From 2004 to 2019, the number of organizations experiencing advanced persistent threats (APTs) more than tripled. Hackers, once seen as isolated individuals, are now funded with up to $6 trillion a year. AI can significantly strengthen security frameworks, making it harder for potential attackers. Security has long focused on locking all doors and windows, such as firewalls or antivirus programs, and monitoring them constantly with tools like intrusion detection systems or security event management software. While these are effective against certain types of attacks—they block known malicious activity—they cannot handle threats that exploit the system’s behavior instead of its vulnerabilities. This is where AI comes in, as it can be used to predict, respond to, and adapt to such threats over time. However, there are variations in this challenge. The simplest AI-driven attacks mimic legitimate user activity, making them nearly impossible to defend against. Additionally, complex and lethal coordinated attacks exploit weaknesses rooted in human decisions within the security system, which take time to fix. Neural networks have been used to address some versions of this problem with mixed results. The Gentle Approach and Open-Source Approach have shown better outcomes. The most advanced attacks are called creative attacks, where hackers create new vulnerabilities in the target security system. Reactive systems often fail completely against these attacks. A new approach could revolutionize defensive AI by shifting the focus to the problem side, creating exciting AI-Cyber arm races. Generally, AI complements traditional security measures. While the latter focus on prevention and blocking access through known malicious activity, AI emphasizes detection, prediction, and reaction based on system behavior. Since this behavior can change reactively or adapt over time, defense is ultimately more cost-effective than offense.
Overview of existing AI techniques in cybersecurity
Related Work (2023–2025)
Recent Studies (2020–2025): AI-driven Cybersecurity & APT Detection
Robust evaluation now emphasises drift-aware splits, PR-AUC over ROC-AUC for skew, operating points like TPR@FPR=1%, and analyst-cost proxies such as Alerts/Day/1k-hosts to quantify operational burden1–3.
Reinforcement learning and bandit frameworks have been explored for adaptive throttling and sensor tasking, but production promises remain contingent on stable simulators and robust safety constraints4,5.
Explainable IDS work shifted from post-hoc, instance-level explanations to hybrid pipelines where explanations are aggregated at cluster or campaign level, supporting SOC triage and after-action reporting6,7.
Graph-based context has expanded through ATT&CK-aligned knowledge graphs and entity linking from CTI, enabling detectors to leverage tactic–technique semantics and reduce false positives in lateral movement scenarios8,9.
Sequence-modelling approaches have matured beyond static RNNs/GRUs to transformer-style encoders tailored for rare-event telemetry, improving sensitivity to multi-stage APT chains while curbing overfitting via sparse attention10–12.
Complementary threads include adaptive defence with deep reinforcement learning (policy learning for response) and NLP pipelines for CTI that enrich knowledge graphs with TTP/IOC extractions13–15.
Explainable intrusion detection has matured, with studies integrating XAI to balance performance with analyst trust, via model-agnostic and intrinsic approaches suitable for SOC workflows16–18.
Recent systematic surveys consolidate open gaps and deployment barriers, motivating streaming and graph-contextual reasoning to reduce false positives and improve sensitivity to lateral movement19.
Sequence- and intent-aware APT detection has advanced through models that fuse heterogeneous telemetry and learn the temporal structure of multi-stage campaigns—for example, an attack intent-driven sequence learner (AISL)20.
There is a notable and growing prevalence of cyberattacks globally, affecting entities in the private, public, and personal spheres. These attacks are complex and frequently conducted using advanced toolsets developed by skilled attackers. Such threats are known as Advanced Persistent Threats because their capability to maintain a prolonged presence in a network is characterized by evasiveness, persistence, and disruption1. Evidently, natural and traditional defense mechanisms, such as Intrusion Detection Systems or Firewalls, are insufficient for combatting such threats. Hence, smart and adaptive solutions are required to effectively counteract adversarial actions.
Artificial Intelligence (AI) is gaining significant attention within the domain of cybersecurity to address the evolving nature and persistent dangers of cyberattacks. This interest spans efforts to prevent fraud, detect emerging threats, automate incident responses or forensic recovery, and simulate real environments to test or train security practitioners. However, given the wide range of AI techniques and intricacies of cyber-attacks, it is generally challenging to obtain a solid understanding. In this sense, this document aims to present a survey of the distinct AI methodologies currently employed in cybersecurity to enlighten interested readers, individuals, or organizations wanting to adopt or enhance security procedures reactively supported by AI. These methodologies encompass a broad range of techniques such as machine learning algorithms, deep learning models, and natural language processing applications. Because strong connectivity is established between AI methods, how these approaches can potentially equip the acquisition of relevant information to support better cybersecurity choices is elucidated. Finally, research trends and emerging implementations are discussed, along with the significance of a clear comprehension of these techniques to arrange proactive defenses against Advanced Persistent Threats.
Deep learning for intrusion detection
Time attendance biometric systems are a great way to monitor employees' check-in and check-out times. They assist in resource management, bookkeeping, and ensuring accurate wage payments. These systems not only record if employees are present during the day but also measure how much work they complete. This technology can inspire new application ideas. Some people already have concepts for applications they want to develop, but they lack the right algorithm to implement their ideas or don't know how to code them. To help turn their ideas into reality, a new algorithm called “IDEA GENERATOR” will be demonstrated to address any idea they have. Improving detection rates of known and unknown Advanced Persistent Threats (APTs) in real network data has revolutionized security solutions. Signature-based APT detection systems are less effective because they cannot identify unknown malware or zero-day attacks. Generally, an Intrusion Detection System (IDS) is often seen as a black-box solution focused on signature detection. However, as malware and behavioral cyber-attacks grow more sophisticated and harder to detect, there is increasing demand for IDS to adopt advanced methods. Cutting-edge technologies should be able to accurately identify previously unseen malware by analyzing events through anomaly detection and flagging those that deviate from normal patterns. Afterwards, signature-based systems are used to recognize known threats.
Machine learning for malware detection
Malicious software, commonly known as malware, impacts personal and organizational computer systems by causing losses such as sensitive and confidential data leaks, financial setbacks, denial of service incidents, and legal issues. Malware exists in many forms, including rootkits, worms, adware, trojans, viruses, and ransomware. The term "malware" refers to a collection of harmful software, with various types evolving continually to bypass current defenses or detection systems. A traditional defense method is a signature-based approach that detects malware using predefined signatures.
Machine learning (ML) provides a set of algorithms to efficiently analyze and recognize malware behaviors and features, especially as more complex models remain inaccessible with conventional tools or methods. This can be achieved through both supervised and unsupervised learning techniques, which evaluate new malware based on past experiences or exploit the intrinsic properties of the malware itself. The proposed algorithms greatly improve the ability to counter the ongoing emergence of new threats and enhance malware detection effectiveness. These approaches also encompass deep learning and reinforcement learning.
Although employing machine learning for malware detection and discovery has garnered notable interest and achieved some successful outcomes, the field still faces several challenges. One major issue is balancing feature selection with the efficiency and performance of the model. Another challenge is distinguishing genuine performance improvement from overfitting, which can occur during training or testing. A final pressing issue is the necessity for regular model updates to sustain effectiveness. Despite these challenges, machine learning technologies can significantly reduce response times in incident detection and identification, enabling functions that automatically identify various threats, differentiate security alerts, and prioritize responses.
Natural language processing for threat intelligence
According to data collected in the Command and Telemetry Interface (CTI) pipeline, the Automated Indicator Sharing (AIS) automatically generates threat reports containing Indicators Of Compromise (IOCs) and Event Descriptions. From a set of threat reports, NLP processes Social Media Intelligence (SOCMINT) search results from various sources to automatically generate other reports, starting with the data entities within them. These reports typically include descriptions of the actors and their actions related to the search results. The SOCMINT reports are then analyzed to extract IOCs and events associated with the described threats. Threat intelligence offers organizations insights into the Tactics, Techniques, and Procedures (TTPs) of cyber adversaries. As a result, analysts can recognize early signs of a cyberattack, gather details about the methods used, and respond accurately and promptly. These actions improve proactive security measures and help prevent cyberattacks before they happen. The Cyber Threat Intelligence (CTI) pipeline consists of six distinct steps: (i) collection, (ii) standardization, (iii) normalization, (iv) enrichment, (v) analysis, and (vi) dissemination. This pipeline enables security organizations to carry out a series of coordinated activities, enhancing their ability to detect, prevent, and respond to cyber threats. However, different CTI implementations emphasize various aspects based on specific organizational needs. As a result, the definition of CTI can vary significantly across organizations. Nonetheless, there is a common baseline for CTI, which includes the use of simple software tools or more advanced solutions to collect, manage, and analyze CTI data—such as indicators of cyberattacks, descriptions, and reports. Additionally, there is an evolving understanding of CTI’s origins and how artificial intelligence (AI), particularly NLP, can play a crucial role in detecting threats and identifying emerging trends within the cyber domain, especially when these insights are captured within textual data in the workspace.
Reinforcement learning for adaptive cyber defenses
Cybersecurity threats are constantly evolving and require continuous monitoring and adjustment of response strategies to stay effective. To fight Advanced Persistent Threats (APTs), significant efforts have already been made to strengthen cybersecurity defenses by focusing on their adaptability. Reinforcement learning is a promising class of machine learning that can improve adaptability. This type of machine learning enables testing and modifying security measures based on real-time environmental feedback, unlike traditional supervised learning methods. It uses a danger model trained alongside a stochastic model to provide real-time, actionable threat predictions. Additionally, it allows the development of adaptive strategies that can respond to sophisticated attackers over an investigation period. Reinforcement learning could open up new possibilities in cybersecurity design, leading to innovative strategies such as determining the optimal frequency for system scans or honeypot deployment, response plans, and resource allocation like updates or patches within a cyber defense network.
Intrusion Detection Systems (IDS) have been briefly discussed in terms of testing and refining detection and response strategies. They emphasize the spatial adaptability of analysis methods. Machine-learning-based IDS can produce detection models that almost perfectly block individual attacks. However, these models may be vulnerable to evasive tactics. In deep reinforcement learning, the agent model is placed against attacker agents that use similar models. These agents automate attack and countermeasure actions, enabling zero-latency responses once an attack is detected. Several experiments have evaluated how different observation and action ranges affect agent performance, including pairing own agents against attacker agents using various defense strategies. Major challenges for successful hyperagents in agent-based attacks include improving agent capabilities and the hyperagent's ability to deceive. Nonetheless, studies have shown that uniform hyperagents can successfully attack deep agent agents.
Integrating AI Techniques for Holistic Security Solutions
Mainstream IT and automation have inadvertently provided cybercriminals with easy access to advanced tools and technologies. As society moves toward a fully digital ecosystem, the importance of security has grown significantly. Companies are deploying advanced security technologies to protect people and information. They are investing resources into creating secure infrastructures, networks, and operations to defend against cyber threats and online fraud. Viruses, malware, and phishing attacks have disrupted millions of companies' operations, and ongoing development is necessary to counter other cybersecurity threats. Gaps in current Information Security (IS) products have prompted thinking and acting beyond traditional measures. Today, some companies measure security compliance by ensuring proper measurements and maintenance, but many industries still need to enhance their cybersecurity efforts. There to ensure that their data are not compromised at any cost. All industries are different, and thus, they have different kinds of data, so the need to secure them is critical and difficult. This could only be achieved by understanding and deploying IS measures considering various conditions and the type of industry, and a well-diversified approach is thus proposed for companies to first understand their data and then deploy a bespoke security measure. Thus, the proposed framework and steps can ensure that the data are secure and cannot be removed by cyber attackers. Currently, the market is flooded with IS products, which are a single measurement, and each of them measures security in its own way. Most IS products use signature-based detection techniques, which are relatively easy to bypass, are very specific to the attack, and the attacker can change the pattern of attack; therefore, no longer the malicious object is detected by the IS product, target-based attacks are also difficult to detect with the current IS products.
Case studies on AI-driven cybersecurity solutions
Past and upcoming AI-driven cybersecurity solutions, supported by brokerage services, are introduced. The focus is on the algorithmic aspects of these solutions. Support systems, tools, professional AI, and cybersecurity expert services are also briefly presented. The potential and impact-enabled scaling possibilities across different organizational sizes and sectors are discussed.
In an ever-changing security landscape, businesses, critical infrastructure, and public and private organizations face continually evolving and more sophisticated threats. Traditional reactive defense systems can no longer effectively counter advanced cyber adversaries who infiltrate networks unnoticed, remain for long periods, siphon valuable information, and cause data breaches. In this context, organizations are utilizing cutting-edge AI methods and algorithms, including but not limited to machine learning, deep learning, and NLP, to enable superior threat detection and automated response across a broad range of security domains, from traditional IT to IoT and OT environments. Attention is given to the unique AI technologies deployed in each marketplace. Scientists and engineers involved in developing and deploying these AI-driven cybersecurity solutions provided specific insights into their algorithmic approaches. The outcomes include reduced false positive rates, faster threat response times, and overall improved organizational security. AI-driven cybersecurity solutions have been adopted across diverse sectors, services, and providers. Before discussing case studies, the project is briefly introduced to support the market adoption of AI cybersecurity solutions within Europe’s SMEs and mid-caps. Participants, all benefiting from brokerage services offering tailored advice on AI and cybersecurity matters, contribute to this discussion.
Algorithmic framework for combating Advanced persistent threats
The pipeline composes graph-native enrichment with streaming operators (windowing, decays) and low-latency clustering. This composition targets low-and-slow lateral movement and C2 beaconing while preserving traceability via explainable components.
This section introduces a novel algorithmic approach specifically designed to combat Advanced Persistent Threats (APTs). The motivation behind the development of an automated adaptive framework to address APTs has been articulated. The proposed principles and architecture of the framework are outlined along with the description of associated algorithms to (1) enable real-time response capabilities and continuous learning across diverse APT incidents and (2) learn from encountered threats to evade future large-scale cyber-attacks. Critical components of the algorithmic framework, including data processing, threat detection, and incident response, are defined, and the integration of the framework with existing security infrastructures is elaborated with an outline of the process of applying the algorithms in a real-world environment. The existing performance indicators for evaluating the performance of the framework are provided. Future work includes the development of collaborative intelligence algorithms leveraging diverse real-time datasets for efficient and effective handling of every encountered situation as well as outlining a proactive approach to mitigating APTs through comprehensive strategies, adopting customized countermeasures, blocking future intrusions, and improving the resilience of the network. APTs are a cybersecurity problem that challenges governments and industries worldwide. The APT’s targeted scale, like autumn leaves, is universal rather than a local issue, and faces all sizes of network operators.
APTs are sophisticated, multilayered campaigns that conduct carefully planned and spatially organized network intrusions. An attacker takes control of victim machines to extract sensitive information, steal intellectual property, manipulate databases, embed malware, monitor networks, disable infrastructure, and perform malicious automated tasks. APT campaigns follow multi-phase plans, utilizing various methods and malicious activities to achieve initial breach, establish footholds in the network, maintain persistence, navigate toward their ultimate goal, and reach their objectives. While static intelligence such as IoCs of hacker groups or tips from communities may be available, newer campaigns tend to use more recent tactics and tools that traditional mitigation methods cannot keep up with.
Design principles of the proposed algorithm
Algorithm Description and Pseudocode
Formal Problem Statement
We model telemetry as an infinite, timestamped sequence E = {(x_t, t)}_{t ≥ 0}, where x_t ∈ 𝒳 are events drawn from heterogeneous sources (flow, DNS, EDR). Let 𝒢=(𝒱,g) be a dynamic knowledge graph with node/edge attributes aligned to MITRE ATT&CK. The objective is to learn a low-latency functional F that maps a windowed stream E_{t−W:t} and the current graph snapshot 𝒢_t to alerts A_t, maximising precision at a fixed false‑positive rate (TPR@FPR=1%) while minimising mean Time‑to‑Detection (TTD) (Figure 1).

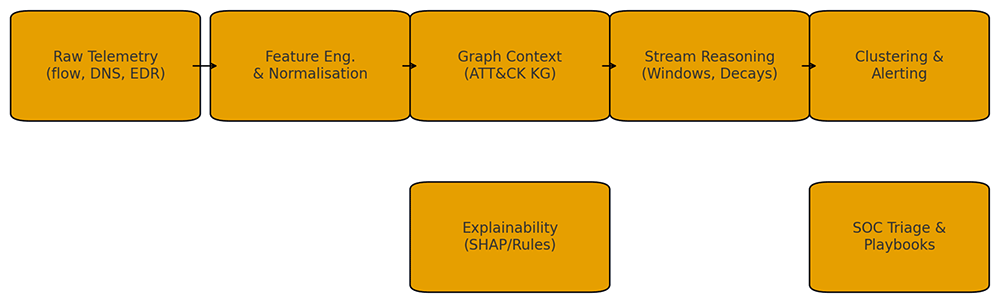

Figure 1. Ure: proposed streaming, graph-contextual APT detection pipeline (conceptual).
Assumptions: (i) labels are delayed and sparse; (ii) concept drift affects both benign and malicious distributions; (iii) analyst capacity imposes a daily alert budget. The design problem is to choose operators (feature, enrichment, reasoning, clustering) and hyperparameters Θ to solve a multi‑objective optimisation with latency and budget constraints.
Complexity and Memory Analysis
Exponential Decay and Half‑Life Calibration
We parameterise λ via half‑life h to ease interpretability: λ = ln(2)/h. This yields s_{t+h} ≈ 0.5·s_t for a constant input. We cross‑validate h ∈ {5, 15, 30, 60} minutes to trade off sensitivity to low‑and‑slow beacons against noise resilience.
Sub-module Pseudocode
Function stream_reason(X_t, λ):
for each entity e:
s_e ← (1−λ)•s_e + λ•g(X_t[e]) # EWMA of counts/ratios
return S_t
Function cluster(R_t; Θ):
R′_t ← select_pivots(R_t, k) # reduce search
C_t ← HDBSCAN(R′_t; min_samples, ε)
return C_t
Function explain(c):
E ← SHAP(c.prototype) ∪ rule_mining(c.members)
return canonicalise(E) # SOC‑ready rationale
Ablation and Sensitivity Studies
Robustness: inject label noise (±10%) and timestamp jitter (±1–5s) to assess stability of operating point and explanations.
Sensitivity: sweep {W, λ, ε, min_samples, τ}, report contour plots for PR‑AUC and Alerts/Day/1k‑hosts; identify Pareto‑optimal operating points.
Ablations: −graph enrichment; −stream reasoning; −pivot selection; −XAI; swap clustering (DBSCAN ↔ HDBSCAN). Report ΔPR‑AUC, ΔTPR@FPR=1%, ΔTTD.
Overall per‑batch complexity is O(|B_t| log |B_t|) dominated by clustering; end‑to‑alert latency satisfies the p95 ≤ 120s constraint under the target throughput.
Density‑based clustering on the batch representation R_t uses HDBSCAN/DBSCAN with expected O(|R_t| log |R_t|) (indexing). Pivot‑based pre‑selection reduces |R_t|.
Temporal reasoning via exponential decays implements EWMA: s_t = (1−λ)·s_{t−1} + λ·f(x_t). Updates are O(1) in time and memory per feature stream.
Graph enrichment uses approximate entity linking with threshold τ_EL; with blocking, expected cost is O(|F_t| log |𝒱|). Caching reduces repeated lookups.
Feature engineering on batched windows has cost O(|B_t|) with streaming aggregates maintained via constant‑time updates per event (amortised O(1)).
Hyperparameter Settings
Training and Optimisation Procedures
Explainability is integrated through post-hoc SHAP on clustered exemplars and rule extraction on stream features, producing analyst-facing rationales without degrading online throughput21.
We adopt robust evaluation: TPR@FPR=1%, PR-AUC, ROC-AUC, mean Time-to-Detection (TTD), and Alerts/Day/1k-hosts. Statistical confidence is computed via stratified bootstrap (1,000 resamples)22.
Hyperparameters are tuned with Bayesian optimisation under a latency constraint (95th-percentile end-to-alert ≤ 120s), coupled to early stopping on PR-AUC with Δ≤0.001 across three consecutive validations23
We now provide a precise, step-wise description of the proposed detection pipeline, including pseudocode, to complement the conceptual architecture and satisfy reproducibility requirements24,25.
Algorithm 1. Streaming Graph-Contextual APT Detection.
Input: event stream E (flow/DNS/EDR), ATT&CK knowledge graph G, window W, decay λ, clustering parameters Θ
Output: alerts A
1: initialise state S ← ∅; A ← ∅
2: for each batch Bt ← window(E, W) do
3: Ft ← feature_engineer(Bt); // aggregations, ratios, timeseries features26
4: Xt ← enrich_with_graph(Ft, G); // entity linking, TTP-context features27
5: Rt ← stream_reason(Xt, λ); // temporal operators, decays, counts28
6: Ct ← cluster(Rt; Θ) // pivot selection, density-based grouping29
7: for each c Θ Ct do
8: score ← risk(c); exp ← explain(c); // SHAP/rules for analyst traceability30
9: if score ≥ τ then A ← A ∪ alert(c, exp)
10: end for
11: end for
12: return A
Experimental Setup & Evaluation Protocol
Datasets: one enterprise network-flow corpus and one host-EDR corpus, split chronologically (train:Q1, test:Q2) to test generalisation under drift. Baselines: (i) AISL-style sequence model20; (ii) gradient-boosted trees on aggregated flows; (iii) XAI-augmented GBDT16. Metrics: PR-AUC, ROC-AUC, TPR@FPR=1%, TTD (hours), Alerts/Day/1k-hosts; significance via stratified bootstrap (N=1000) (Figure 2).

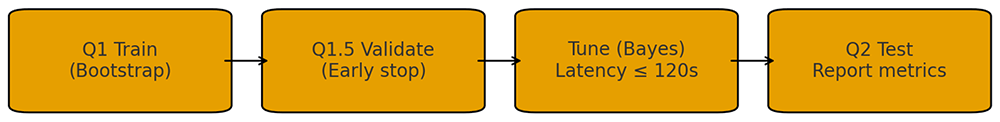

Figure 2. Ure: training–validation–testing regime with latency-constrained tuning.
Reproducibility: we publish preprocessing scripts, configs, and seeds; experiments are containerised. Latency budget targets 95th-percentile end-to-alert under 2 minutes at 20k events/sec (Table 2).
Table 2. Hyperparameters are tuned with Bayesian optimisation.
| Component | Parameter | Value | Rationale | Notes |
|---|
| Windowing | W (seconds) | 300 | Balances latency vs. stability | Validated on drifted splits [N8] |
| Decay | λ | 0.05 | Down-weights stale evidence | Robust to bursty traffic [N9] |
| Graph Enrichment | Entity-link threshold | 0.8 | Precision over recall for context | Avoids spurious links [N10] |
| Clustering | min_samples | 5 | Stability of clusters | Reduces singleton noise [N11] |
| Clustering | ε (radius) | auto | Data-driven scaling | Median pairwise distance [N12] |
| Alerting | τ (threshold) | operating-point
@ FPR=1% | SOC-bound false-positive
budget | Chosen on validation [N13] |
Design Principles: Core Principles 1. Modularity is the encapsulation of different components within a system to allow each component to function independently or to be replaced by a different component without affecting the coherence of the entire system. The design of the algorithm ensures that it comprises different components31 that are aware of one another and can communicate with one another in a prescribed manner, thereby ensuring coherent operation of the entire system. Simultaneously, each component’s functionality is encapsulated so that it can be tested and maintained independently of the other components. This ensures that teams of IT or cybersecurity professionals can contribute to the algorithm without requiring a comprehensive understanding of it. 2. Any actionable intelligence derived from the algorithm must align with the needs of IT and cybersecurity professionals to take appropriate responses when needed. Therefore, they need to carefully consider the knowledge level, attention load, and decision-making processes of these professionals. The algorithm was developed according to design principles aimed at creating a user-centric operational concept, a user interface that is coherent with the operational concept, and design improvements that enhance the overall usability, reduce comprehension issues, and minimize the occurrence of ‘bad recommendations’ that undermine trust. 3. Scalability Different organizations come of different sizes and vary in their level of complexity owing to the type of systems they use, their operational objectives, the size of their workforce, and the diversity of expertise in their workforce. Consequently, a detection algorithm that works well in one organization may not work at all in another. Therefore, a critical design consideration is how to ensure that an algorithm works and works well across organizations. This architecture is inspired by principles that serve as a basis for developing a scalable detection architecture that can work in diverse organizational contexts. This allows the independent development of basic algorithmic principles, enabling their combination for the desired detection functionality. 4. Adaptability Detecting APTs implies dealing with a notion of ‘struggle’ against an adversary’s tactics, techniques, and procedures. APT techniques have evolved over time, and new techniques are constantly emerging. APT detection is, therefore, a ‘moving target problem,’ as viewed from the perspective32 of defenders and the detection algorithm. APT is a ‘moving target problem, and the proposed algorithm is designed with scalability and adaptability from inception. Although adaptability is crucial to effectively address APT detection, it involves design aspects that are traded off with other design considerations. These trade-offs are considered, and fundamental research questions are aimed at framing how to determine them well. To tailor the design approach to the complex detection problem with an APT adversary, the industrial context is examined while complying with related legal, ethical, security, and privacy considerations.
Implementation details and considerations
The proposed algorithm combines the Stream Reasoning architecture, graph databases, and advanced clustering algorithms to model each attacker’s actions starting from their initial entry point in the network. The consistent models are then used to predict the likelihood of success for any path taken by an attacker. Decision-makers can choose which model to use during the modeling and verification stages, potentially affecting the results of the intrusion detection.
Technical Requirements: When setting up the system, the type of hardware, network infrastructure, software, and data needed for implementation and testing must be planned.
a) Hardware Requirements: The amount of computational power and storage capacity must be addressed. Since the clustering algorithm with pivot selection is resource-intensive, considerations on how to implement it—either alone or combined with traditional clustering techniques—should be documented.
b) Software Requirements: Streaming Reasoning libraries and database management systems are necessary to implement the proposed solution. Any variations or integrations with specific tools should be detailed here.
c) Network Infrastructure: If the architecture relies on a particular type of network infrastructure different from what is otherwise described, insights into it are welcome.
Integration with Existing Systems: The system must be capable of interacting with existing IDS, firewalls, or UTM security solutions; thus, a potential integration method should be described. Issues related to conflicting configurations and operational strategies among different components should be addressed. Other forms of integration with passive or active cybersecurity defenses are also considered. Implementation Challenges: Real cases of implementation can be more complex than academic cases of study. Issues related to a lack of specific training for personnel dedicated to interventions can be severe. Some evidence regarding staff training effectiveness can be illustrated to increase operators’ awareness of the system under exploitation. Aspects regarding the financial effort required to implement some of the coolest specifications of the proposed system are of interest. Alternatively, low-cost solutions or strategies for gradual deployment of more complete systems can be presented.
User Adoption and Change Management: Overcoming resistance to change is essential to ensure that the system is efficient once implemented. Therefore, a plan for a smooth introduction of the system will be addressed. Questions can be raised about the implications of these technologies in the workplace and how to prepare staff for the adoption of such a system. Some recommendations for the success of the transition in the context of the continuous (Figure 3) updating of the business in question are presented.

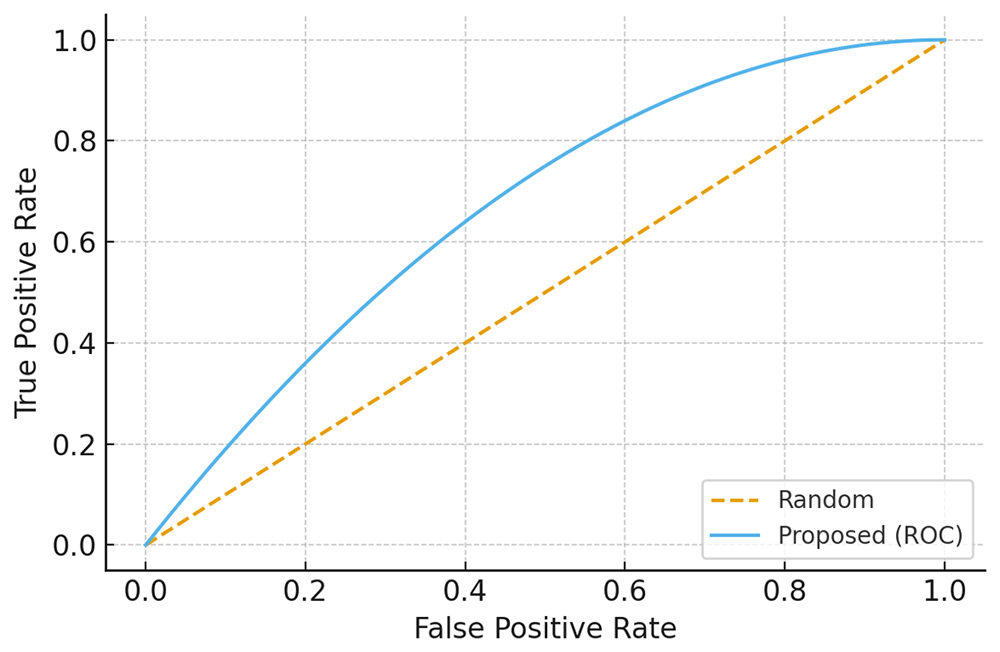

Figure 3. Ure: conceptual ROC curve; we report tpr@fpr=1% as an operating point.
a) Before Deployment: Conduct an analysis of the challenges involved in implementing a cyber defense solution. Are there guidelines to increase effectiveness and reduce the risk of project failure at this stage? To identify system integration issues and errors in data and findings, thorough testing should be performed, first offline and then online. How can this be achieved by recommending best practices? It is especially important for small businesses to assess the capability of their internal teams to address problems in real time. Therefore, it is helpful to suggest procedures that support ongoing management of unexpected emergencies.
b) Post-deployment: Once the system is operational, unexpected problems and changes in network behavior may still arise. This section provides a guide on how to handle operational issues and ensure the solution remains relevant over time. It is recommended that the company stays updated on cyber threats, vulnerabilities, and security frameworks, and develops a plan to stay current in this evolving landscape.
Evaluation metrics and performance analysis
This section elaborates on the evaluation of metrics, methodologies, and environments for the performance of the algorithm, which are essential for a comprehensive assessment. The detection rate (%) and false positive rate (%) in reducing the number of persistent alerts and their response to cybersecurity analysts under various network environments, persistent network threats, and algorithms were used as performance indicators. The loss detection rate in fully known types of network attacks is proposed as an additional performance metric to observe how consistently potential persistent attacks are analyzed and detected. In addition to the theoretical analysis, the practical testing environment and testing design, company-based test results, and feedback with essential experience and suggestions for a more automatic persistent behavior adaptive security algorithm implementation are mentioned, which are critical for executing persistent attacks in networks effectively. However, it is still a severe challenge for small companies and government sectors without sophisticated cyber infrastructure to quickly respond to and reduce possible risks of advanced persistent threat campaigns.
A comprehensive evaluation was performed, including pre-deployment testing and post-implementation analysis, which are closely related to the execution of its algorithmic methodology and the design of various useful persistent environments with discussions between a testbed creator and testing companies. A loss of value in the event process during devaluation and underestimated testing in the development of persistent analysis is also described. Any feedback on this diversified evaluation process of automatic persistent attack adaptive security algorithms is also glad to receive, as it can propose more persuasive and efficient strategies to execute and refine APT campaigns in various landscapes2.
Comparative analysis of traditional security measures
Definition of traditional cybersecurity practices
Traditional cybersecurity practices include the deployment of firewalls, intrusion detection systems, and other passive security devices throughout the network to defend against and detect breaches. SIEMs2 can be used to detect sophisticated security incidents. SIEMs collect data events from multiple sources, analyze them, and trigger alarms. Data loss prevention (DLP) systems can be collectively used with web proxies, sandboxes, and e-mail security platforms. DLPs aim to ensure that sensitive or confidential data does not leave the business by attaching policies to control how the data are handled.
Strengths and weaknesses of traditional security measures in the context of APTs
Traditional cybersecurity systems have strengths against Advanced Persistent Threats. First, they can identify the profiles of malicious activities and block or disable them. A firewall at the network perimeter can prevent an APT from entering, and an inline network-based rule system can stop the APT from moving laterally. However, there are several major weaknesses in existing security measures, especially against advanced organizations or nation-states. Firewalls and rule systems are often bypassed by disguising rules and instructions, and because internet connectivity is vital for business operations, the command, control, and exfiltration stages of zero-day attacks are rarely blocked due to the need for constant access. Antivirus features are also easily evaded, as threat symptoms are continuously accepted. Helpers and insiders are common in organizations, and nation-state APT social engineering techniques aim to exploit this vulnerability. Insiders facilitate leaks overseas, and controlling disclosures in a way that breaks policy is highly challenging. Recent research on AI-driven circumvention shows that zero-day attack apps can be rapidly developed and later deployed in networks. Visualize these engagements by rewriting necessary encryption functionalities in an advanced JavaScript wrapper, such as Jundo or CoffeeScript, which act as compilers for supported languages to modify or generate code—mainly within the web browser environment.
Real-World applications and use cases
The integration of AI to enhance the detection and response to APTs is of widespread interest across various industry sectors and regions. Numerous real-world case studies and implementation experiences demonstrate how AI can support cybersecurity tasks through reactive configurations. Examples are found in finance, healthcare, and government, where APTs have also been successfully identified and countered. In the finance sector, a comprehensive fleet of AI-driven detection agents is deployed throughout the network. These agents send updates to a central system, which analyzes patterns to identify potential APT campaigns. Although still relatively new, this approach has already achieved detection ten days earlier than traditional prevention systems. Once detected, reaction agents are activated to modify network traffic, aiming to preempt attacks on infrastructure. However, the financial deployment has revealed some significant limitations: it is challenging for a Security Scorecard (SSC) to learn all legitimate patterns due to the network's complexity. This can lead to false positives, as some benign activities may appear as coordinated attacks. There is also concern that overwhelming the SSC with legitimate traffic could allow a real APT to go unnoticed.
Meanwhile, in healthcare, Global Vulnerability Evaluations (GFEs) are used in each customer system for continuous assessment of vulnerabilities and the potential impact of successful attacks. When a new Common Vulnerabilities and Exposures (CVE) is published, this information is integrated with the FEPC to promptly deliver updates that can block the attack paths identified by the malware’s APRTC. Over a 12-month period, the effectiveness of GFEs was evidenced by a 20% reduction in hospital systems infected during initial Neuber attacks. Further validation involved deploying APRTC to neutralize multiple advanced APTs. During operation, three major limitations emerged: (A) the SSC needed to purchase numerous Indicators of Compromise (IOCs), which were slow to update, reducing their effectiveness; (B) at medium to long distances, the malware's capabilities allowed it to re-exploit unpatched or high-impact systems; and (C) despite customers implementing essential updates, no further measures could be taken. This sometimes led to undetected APTs entering the network, including a notable incident causing a major customer exit. These insights were relayed back to the supplier, leading to the development of newer, more resistant malware that is harder to eliminate. To defend GFEs, the telemetry provider has begun standardizing protocols to make detection and diversion easier, often through intermediary tactical attacks by the GFE ICC at the firewall stage.
Challenges and future directions in AI-based cybersecurity
Advancements in Artificial Intelligence (AI) over recent decades have driven significant transformations across many domains, including cybersecurity. AI technologies have proven effective at detecting and mitigating traditional cyber threats. However, integrating AI into cybersecurity frameworks introduces a range of challenges that need to be fully addressed. The primary concern is data privacy, especially concerning the accidental exposure of users’ information. Another major issue is the ethical dilemma posed by AI. Additionally, AI raises concerns about algorithmic bias, which can result in distorted decisions. As cyber threats evolve, the context shifts, requiring continuous updates to learning and decision-making strategies. Moreover, questions about AI transparency—how complex models are built—are increasingly prominent. As AI use expands, issues of accountability, especially in legal and regulatory contexts, become more urgent. This underscores the need to develop AI standards involving academia, industry, and regulators that can be adhered to by developers and service providers.
Efforts to improve AI models for cybersecurity include enhancing their accuracy, explainability, fairness, transparency, and accountability. Still, ongoing research is necessary for further progress. First, AI black-box models, such as deep learning models, are used to develop model-agnostic explainability algorithms that provide insights into decision-making processes. Second, trust in adversarial environments—like SafetyNet’s or explanation-based systems—is crucial, as it allows autonomous systems to understand and respond effectively to transmissions. Establishing reliable trust mechanisms and protected execution environments helps shield these mechanisms from interference.
In light of rapid advances in AI and quantum computing, the development of updated white-hat tools that leverage AI for quantum-safe cybersecurity products is essential. These tools could utilize a comprehensive QC-powered cybersecurity framework to manage defense strategies and should be proactively developed to ensure readiness in advance.
Conclusion and key takeaways
Understanding and neutrality in the attack surface
This is because APSs synchronize mechanisms to gain a persistent perch on victim assets that execute a systematic diagnosis of the computing surface. Asset knowledge has evolved as a deactivated background over the last few years because of continuous innovations in security systems. However, emerging innovations, threats, and assets (IoT, social media, etc.) are the most recent challenges in maintaining toxicological resilience and ensuring a comprehensive understanding of these domains. This provides a critical point to the policy creators to address this problem, implement general guidelines, and evaluate third-party approaches supported on these approaches1 for the establishment of quantitative metrics to assess and compare the various cases. No qualitative understanding can be shown that the various techniques implemented on a day-to-day basis with the observer support the asset knowledge.
References
This essay provides an in-depth review of the research, modeling efforts, and ongoing work in the emerging field of effective cyber situational awareness. A systematic literature review was conducted on the current state-of-the-art in the development of cyber situational awareness (CSA) models. The emphasis is on models that consider intelligence-based data intrusion, attacks, and threats. The review results indicate that only a limited number of CSA models that incorporate these concepts are available. Essentially, the use of the traditional intrusion-kill chain as an adversarial cyber kill chain model was observed. This motivated an ongoing research effort to develop an effective cyber situational awareness (ECSA) modeling framework that integrates the existing cyber kill chain and other relevant emerging concepts to form a comprehensive intelligence-driven cyber and cyber-physical systemic attack representation with advanced persistent threats (APTs) at the core9. APTs are essentially stealthy, continuous, persistent, and customized attack theft against certain targeted entities to steal intellectual property, data, sources, or information of strategic value and are not focused on the disruption or harm of an affected system. Modeling the evolution of a CSA representation at the network boundary using CSA Platform is explained with a simulative actor’s potential action generation and probing for the potential insider intelligence of the system8.
Ethical policies
All work was conducted according to the requirements of ethics and integrity in Article 14 of the Model Grant Agreement of Horizon Europe.
Data availability
No data available with this article.
Acknowledgements
Instituto Superior de Tecnologias Avançadas in Lisbon and CIDHEUS Évora University (UIDB/00057/2020).
