Plain language summary
We provide the genome sequence of the yellow mealworm, Tenebrio molitor, by combining high-throughput sequencing technologies to obtain a genome assembly that well represents the 10 mealworm chromosomes. We also identified the Tenebrio molitor gene set and compared its organisation to that of the red beetle. This new genomic resource will help breeders to develop new mealworm lines to face future global human nutrition problems by providing protein-rich and ecologically friendly mealworm production systems.
Introduction
The global population is estimated to reach approximately nine billion people by 2050, thus the demand for animal protein is expected to increase by 76%1. Such increase questions the sustainability of our conventional food and feed production systems. At the same time, we also need to reduce the impact of agriculture on our environment2. Today, insect production is considered a sustainable alternative for food and feed production for several reasons. First, the suitable nutritional composition of edible insects3 and second, the relatively low environmental impact its production involves compared to other conventional livestock production systems4,5.
In this context, the yellow mealworm beetle Tenebrio molitor has been described as a promising alternative protein source for animal and even human nutrition6. For these reasons several companies have pioneered the production of T. molitor at industrial scale. However, despite being promising for sustainable food security, mass production of T. molitor remains relatively primitive and challenging7.
The genetic improvement of T. molitor is one of these challenges. Indeed, several quantitative traits of industrial importance such as growth rate, fertility, protein rate or susceptibility to pathogens need to be mapped to allow the development of molecular-based breeding programs to speed up the development of new lines with improved agronomic traits. However, prior genomic resources on T. molitor are needed to accelerate such genetic programs.
Previous efforts to produce T. molitor transcriptomes and more recently the draft genome using 10X genomics technology have been published8. While this latter technology was promising on diploid and heterozygous insects9–12, its application to T. molitor produced a fragmented assembly with a 90% of BUSCO completeness and no genome annotation. This particular effort motivated the development of a new genome assembly that would allow deeper genomic analyses such as quantitative trait locus mapping or genome estimated breeding value analysis.
Here, we propose a T. molitor genome assembly based on the combination of long, short reads and Hi-C data. The genome assembly and annotation quality are analysed and a comparison to the red flour beetle (Tribolium castaneum) genome is described to show how the current genome can be an asset for academic research and breeding.
Methods
Biological material and insect rearing
Tenebrio molitor samples were provided by Ynsect and bred at CEA-Genoscope (Evry, France). The individuals were fed with bran and apple and kept at room temperature and humidity. For the genome sequencing, male nymphs which possess XY chromosomes were selected, put on a starvation for three days and used for DNA extraction. For mRNA extraction, eggs, larva, nymphs, adult males and females were isolated without specific diet.
DNA extraction
Genomic DNA (gDNA) was extracted from a single nymph male to generate both Illumina PCR-free, PromethION and Dovetail Hi-C libraries. In order to generate long reads on the Oxford Nanopore Technologies devices, high-quality and high-molecular-weight (HMW) DNA was needed. For this purpose, DNA was isolated following the protocol provided by Oxford Nanopore Technologies, Oxford, UK (ONT), “High molecular weight gDNA extraction from plant leaves” provided by the ONT Community in March, 2019 (CTAB-Genomic-tip). This protocol involves a conventional CTAB extraction followed by purification using commercial Qiagen Genomic tips (QIAGEN, MD, USA). DNA fragment size selection was performed using Short Read Eliminator (Circulomics, MD, USA) instead of AMPpure XP beads. A single nymph male weighting 170mg was cryoground in liquid nitrogen. The fine powder was divided in one-third for Hi-C library and two-thirds for both Illumina PCR-free and PromethION libraries. The two-thirds of the powder were transferred to a lysis Carlson buffer supplemented with RNase A. After 1h-incubation, proteins were removed with chloroform centrifugation and DNA was precipitated with isopropanol and centrifugation. The pellet was then purified using the Qiagen Genomic tip 100/G, following the manufacturer’s instructions. DNA was quantified by a dsDNA-specific fluorimetric quantitation method using Qubit dsDNA HS Assays (Catalog #Q32851, ThermoFisher Scientific, Waltham, MA). HMW gDNA quality was checked on a 2200 TapeStation automated electrophoresis system (Agilent, CA, USA) and the length of the DNA molecules was estimated to be over 60Kb.
PromethION library preparation and sequencing
HMW gDNA was size-selected using Short Read Eliminator kit (SKU SS-100-101-01, Circulomics, MD, USA). The ONT library was prepared according to the following protocol, using the Oxford Nanopore SQK-LSK109 kit. Genomic DNA fragments (3µg) were repaired and 3'-adenylated with the NEBNext FFPE DNA Repair Mix (Catalog#M6630, New England Biolabs, Ipswich, MA, USA) and the NEBNext® Ultra™ II End Repair/dA-Tailing Module (Catalog#E7546, NEB). Sequencing adapters provided by ONT were ligated using the NEBNext Quick Ligation Module (Catalog#E6056, NEB). After purification with AMPure XP beads (Beckmann Coulter, Brea, CA, USA), half of the library was mixed with the Sequencing Buffer (ONT) and the Loading Bead (ONT) and loaded on a PromethION R9.4.1 flow cell. The second half of the library was loaded on the flow cell after a Nuclease Flush using the Flow Cell Wash Kit (Catalog#EXPWSH003, ONT) according to the ONT protocol. After 48h of sequencing run, a second Nuclease Flush was performed and a third library was loaded on the flow cell. Nucleotide bases were called using Guppy version 4.0.113 and the raw reads were used for genome assembly.
Illumina PCR-free library preparation and sequencing
The PCR-free library was prepared using the Kapa Hyper Prep Kit (Catalog#KK8505, KapaBiosystems, Wilmington, MA, USA), following the manufacturer’s recommendations. Briefly, qDNA (1.5µg) was sonicated to a 100–1,500-bp size range using a Covaris E220 sonicator (Covaris, Woburn, MA, USA). The fragments were end-repaired, then 3'-adenylated and Illumina adapters were added. The ligation products were purified with AMPure XP beads (Beckmann Coulter Genomics, Danvers, MA, USA). The library was quantified by qPCR using the KAPA Library Quantification Kit for Illumina Libraries (Catalog#07960140001, KapaBiosystems), and the library profiles were assessed on an Agilent 2100 Bioanalyzer (Agilent Technologies, Santa Clara, CA, USA). The libraries were sequenced on an Illumina HiSeq4000 instrument (Illumina, San Diego, CA, USA) using 150 bp read chemistry in paired-end mode. After the Illumina sequencing, an in-house quality control process was applied to the reads that passed the Illumina quality filters, as described by Alberti and colleagues14.
Dovetail Hi-C library preparation and sequencing
The one-third of the cryoground powder (from the DNA extraction section) was used to generate a Hi-C library using the Dovetail Hi-C preparation kit (Dovetail Genomics, Scotts Valley, CA, USA), according to the manufacturer’s protocol (manual version 1.03). After the cross-linking of animal tissues, the chromatin was normalized and then immobilized on capture beads before enzyme restriction digestion. The digested DNA ends were marked with biotin and ligated to create chimeric molecules. After reversal cross-linking, DNA was purified and then followed by library generation. The Dovetail Hi-C library quality was checked as described above and sequenced on an Illumina HiSeq4000 instrument (Illumina, San Diego, CA, USA) using 150 base-length read chemistry in paired-end mode.
RNA extraction
Total RNA was extracted from eggs, larva, nymph and adults male and female. Tissue samples were mechanically homogenized using ZR Bashing Bead Lysis tube (ZymoResearch, CA, USA) with the FastPrep-24™ 5G Instrument (MP Biomedicals, Santa Ana, CA, USA). Nucleic acids were then extracted from homogenized suspension using the ZR-Duet DNA/RNA MiniPrep Plus kit (Catalog # D7003, ZymoResearch, CA, USA). Extracted RNA was quantified with RNA-specific fluorimetric quantitation on a Qubit 2.0 Fluorometer using Qubit RNA HS Assay (Thermo Fisher Scientific, Waltham, MA, USA). Integrity of total RNA was assessed on an Agilent Bioanalyzer, using the RNA 6,000 Pico LabChip kit (Catalog # 5067-1513, Agilent Technologies, Santa Clara, CA).
RNA library preparation and sequencing
RNA-seq library preparations were carried out from 500ng total RNA using the TruSeq Stranded mRNA kit (Catalog #20020595, Illumina, San Diego, CA, USA), which allows mRNA strand orientation, i.e sequence reads occur in the same orientation as anti-sense RNA. Poly(A)+ RNA was selected with oligo(dT) beads, chemically fragmented and converted into single-stranded cDNA using random hexamer priming. Then, the second strand was generated to create double-stranded cDNA. cDNA were then 3'-adenylated, and Illumina adapters were added. Ligation products were PCR-amplified. Ready-to-sequence Illumina libraries were then quantified by qPCR using the KAPA Library Quantification Kit for Illumina Libraries (Catalog #KK4824, KapaBiosystems, Wilmington, MA, USA), and libraries profiles evaluated with an Agilent 2100 Bioanalyzer (Agilent Technologies, Santa Clara, CA, USA). Each library was sequenced using 151bp paired end reads chemistry on a NovaSeq 6000 Illumina sequencer.
Genome assembly
The T. molitor genome size was estimated using GenomeScope15 (GenomeScope, RRID:SCR_017014) v1 with Illumina reads (Table S1, Extended data) and a k-mer value of 31. We applied YACRD16 (version 0.6.0) to the raw nanopore reads (Table S1, Extended data) to detect potential chimeras. Both "all-vs-all alignment" and "yacrd scrubbing" steps were performed with the recommended parameters and removed 109,066 chimeric reads. The 2,372,861 non-chimeric reads were corrected using NECAT17 with parameters GENOME_SIZE, PREP_OUTPUT_COVERAGE and CNS_OUTPUT_COVERAGE set to 310,000,000, 60 and 40, respectively, to first correct the longest 60x reads and afterwards, the longest 40x corrected reads were extracted to assemble 250,277 reads.
Because nanopore reads contain systematic errors in homopolymeric regions, the output assembly was polished three times using Racon18 (Racon, RRID:SCR_017642) with default parameters with the nanopore reads and two times Hapo-G19 with the Illumina reads. The assembly was merged into a single haplotype genome assembly using HaploMerger220 (Figure S2, Extended data) and polished using two rounds of Hapo-G with the Illumina reads.
To increase the contiguity of the assembly to a chromosome-scale level (Table S1, Extended data), we aligned Hi-C paired-end reads to the polished haploid assembly with bwa − mem21 (BWA, RRID:SCR_010910). Because Hi-C captures conformation via proximity-ligated fragments, paired-end reads are first mapped independently (as single-end reads) and subsequently paired in a later step. Hi-C reads and alignments contain experimental artifacts so the alignments need some additional processing. We use alignment filtering method using Arima Genomics pipeline (https://github.com/ArimaGenomics/mapping_pipeline) and applied the script "filter l" to each bam file (Read1 and Read2) and afterwards paired the filtered single-end Hi-C reads using "two_read_bam_combiner.pl". Then, with Picard tools (https://broadinstitute.github.io/picard/), we added read groups to the combined BAM file (with the command AddOrReplaceReadGroups) and discarded any PCR duplicates present in the paired-end BAM file (with the command MarkDuplicates). We scaffolded the assembly with the Hi-C data using SALSA222 and obtained 138 scaffolds. Only scaffolds larger than 35kb were kept resulting in a final assembly of 112 scaffolds (Table S3 and Figure S10, Extended data). The largest scaffolds were manually checked for missassembly using the sequencing information and the synteny with the ten Tribolium castaneum chromosomes (cf. comparative genomics section).
Transcriptome assembly
RNA-seq reads from six transcriptomes derived from different developmental stages (larvae, pupae, juveniles, adults), sexes (females and males) and public data of two RNA-seq samples generated from pooled bacterial infected T. molitor (PRJNA646689, Underlying data) were assembled using Velvet23 (Velvet, RRID:SCR_010755) version 1.2.07 and Oases24 (Oases, RRID:SCR_011896) version 0.2.08 with k-mer size set to 81 and 63 for the in-house and public RNA-seq reads, respectively (Table S2, Extended data). The contigs 5'and 3'ends were cleaned. The sequences were masked for low-complexity using DustMasker (version 1.0.0 from the BLAST 2.10.0 package) and only contigs larger than 150bp with more than 75% of unmasked bases were kept. To address the problem of merged chimeric contigs, a post-processing of Oases contigs has been done. Assembly tools often erroneously merge sequences into one single contig and Oases is prone to this behaviour. To address this problem, we used an in-house script that splits chimeric contigs. Splitting a contig into regions where different ORFs appear, or regions where abrupt shifts in read coverage occur, could streamline the gene-prediction process. Based on combined resources such as the pileup-coverage, the research of ORFs (TransDecoder https://github.com/TransDecoder/TransDecoder/releases) and domains, this tool aims to split contigs sequences with different functional sites form different contigs.
Genome annotation
Repeated sequence masking. Low complexity regions of the assembly were masked with the DustMasker25 algorithms (version 1.0.0 from the BLAST 2.10.0 package). Transposable elements (TEs) and other repeats were annotated and masked using RepeatMasker26 (RepeatMasker, RRID:SCR_012954) version open-4.0.5 with rmblastn26 version 2.10.0+. The assembly was compared to classified sequences of the RepeatMasker complete database 20150807. We set the custom library RepeatMasker.lib of version 4.0.5 to the -lib parameter27.
Transcriptome and proteome alignments. mRNA contigs from the eight samples were aligned to the assembly in a two-step strategy. First, BLAT28 (BLAT, RRID:SCR_011919) (version 36 with default parameters) was used for fast localizing genomic regions and the best match of each contig was kept. A second local alignment was performed with Est2Genome29 (version 5.2 with default parameters). Aligned contigs with overlap higher than 80% and more than 95% identity were retained. Additionally, proteomes of four other Coleoptera (T. castaneum, Ontophagus taurus, Asbolus verrucosus, Dendroctonus ponderosae) and T. molitor proteins from UniProt30 database were aligned to the genome in a two-step strategy. First, using BLAT (version 36 with default parameter) matches with score higher than 90% of the best match score were retained. Second, alignments were refined using Genewise31 (version 2.2.0 default parameters) and proteins with more than 75% of their length aligned onto the assembly were kept.
Gene predictions. To identify the gene structure, the transcriptomic and protein alignments were combined using Gmove32 (Gmove, RRID:SCR_019132) (Note S2, Extended data). Protein alignments from the five coleoptera were merged into a single file and provided to Gmove (–prot parameter). We also set transcriptomic alignments from eight different samples (Table S2, Extended data) to the –rna parameter and activated the –score option to keep the gene model with the highest score. Based on T. castaneum gene features, we set the maximal size of intron and minimal size of exons to 150,000bp and 3bp using the -m and -e parameters, respectively. To prevent false positive gene predictions due to a large number of single-exon transcripts, sample-specific single-exon transcripts were removed before running Gmove.
Several criteria were applied sequentially to filter the gene predictions. We used HMMER33 (Hmmer, RRID:SCR_005305) (version 3.2.1, June 2018) to find pfam domains, DIAMOND34 (DIAMOND, RRID:SCR_016071) version 0.9.24 for protein searches against ncbi-nr database, RepeatModeler35 (RepeatModeler, RRID:SCR_015027) version 2.0.1 for ab initio repeats screening and TransposonPSI36 to compare predicted models with transposable elements. Gmove initially predicted 24,870 genes, 27% of which were intronless. While we are more confident in multi-exon gene predictions we became cautious with intronless genes corresponding potentially to transposable elements or false positive predictions caused by the fragmented alignments of transcripts. To solve this problem, we launched HMMER (version 3.2.1 with e-value set to 10e-5) for detecting known pfam domains and a DIAMOND analysis against ncbi-nr database for protein hits (version 0.9.24 with – evalue 10e-5, –unal 0). Furthermore, Repeat-Modeler version 2.0.1 was used for screening ab initio repeats in the T. molitor assembly and 46.77% of the genome was masked. Then, we focused on overlaps between the predicted genes and repeats, using commands from BEDtools. Genes with exons highly covered by repeats (>90%) were automatically classified as repeats. In parallel, we used transposonPSI.pl to align the virtual cDNA proteins of the 24,870 predictions against the TransposonPSI_08222010 library. We selected the single best transposonPSI match for each protein (from file proteins.fasta.TPSI.topHits) and tagged the corresponding genes as transposable elements. At this point, we excluded genes (single and multi exon) that were either highly covered by repeats (RepeatModeler) or TE tagged (TransposonPSI) without any blastp/pfam hit. We also excluded intronless genes that were predicted only by RNA-seq evidence (not any Coleoptera protein overlap) and at the same time composed of >80% untranslated regions (ratio UTR/(UTR+CDS)) without any pfam/blastp hit.
Additionally, we searched for overlaps between predicted intronless genes and CDS of proteic or mRNA evidence. Then, we discarded any intronless gene accomplishing none of the following conditions: (i) A gene that is predicted from at least one mRNA and one protein evidence. (ii) A gene that is predicted from mRNA transcripts of at least two different samples and (iii) A gene that is predicted from at least a T. molitor protein (from Uniprot). If none of the above criteria was met and a gene did not have any pfam/blastp hit either, then it was removed. After this filtering process the different annotation supports were combined to obtain a final set of 21,435 gene predictions (see Figure S11, Extended data for the genome annotation workflow).
Comparative genomics
Homology search between the 21,435 T. molitor predicted genes and the 22,610 T. castaneum protein isoforms was performed. We used blastp37 (NCBI BLAST, RRID:SCR_004870) v.2.10.0+ with a maximum e-value set to 1e-10 and found 10,495 reciprocal best hits between the two species. Using NUCmer from the MUMmer4.0beta38 (MUMmer, RRID:SCR_018171) package, we plotted the alignments between the 16 longest T. molitor scaffolds and the 10 T. castaneum chromosomes. To observe the synteny between the two beetle genomes, we combined the associations inferred from the MUMmer plot with the localization of the orthologous genes constructed a Circos plot39 (Circos, RRID:SCR_011798). Finally, 9,760 reciprocal best matches out of the total best hits (10,495) corresponded to orthologous genes between the 16 T. molitor scaffolds and the 10 T. castaneum chromosomes.
Results and discussion
Tenebrio molitor chromosome-scale genome assembly
The T. molitor genome size was estimated around 310 Mb with an heterozygosity rate of 1.43% (Figure S1, Extended data). By combining long, short reads and Hi-C data, we obtained a final genome assembly of 287.9 Mb (Table 1) representing a single haplotype of the T. molitor diploid genome (2n=20)40 with a BUSCO41 (BUSCO, RRID:SCR_015008) completeness of 99.5% (using version 5.0.0 with Insecta database odb10) while the predicted genome size was 310 Mb (Figure S1, Extended data). The assembly presents a N50 of 21.9Mb, which is higher than T. castaneum’s one42 and much higher than the previously published T. molitor genome N50 (24.1kb). In our assembly, the largest 16 scaffolds represent 90% of the total assembly, leading to a chromosome-scale assembly which provides a high-quality support for gene annotation.
Table 1. Assembly and BUSCO Metrics for T. molitor (versions 2020, 2021) and T. castaneum.
Assembly
statistics | Tenebrio 2021 | Tenebrio
2020 | Tribolium |
|---|
| # Contigs | 112 (110 nuclear + 2 mitochondrial) | 31,390 | 2,082 |
| Cumulative size | 287,931,689 | 280,780,514 | 165,944,485 |
| Max contig length | 33,042,542 | 271,822 | 31,381,287 |
| Mean contig length | 2,570,819 | 8,945 | 79,704 |
| N50 (L50) | 21,885,684 (6) | 24,131 (3,180) | 15,265,516 (5) |
| N90 (L90) | 5,674,206 (16) | 3,289 (16,525) | 885,624 (12) |
| auN | 18,643,178 | 30,387 | 15,592,941 |
| GC% | 36.72% | 36.03% | 33.86% |
| Number of N | 28,500 (0.01%) | 0 (0.00%) | 13,515,130 (8.14%) |
| BUSCO on genome (N = 1,367) |
|---|
| Complete | 1,360 (99.5%) | 1,213 (88.7%) | 1,357 (99.2%) |
| Duplicated | 7 (0.5%) | 52 (3.8%) | 6 (0.4%) |
| Fragmented | 3 (0.2%) | 67 (4.9%) | 5 (0.4%) |
| Missing | 4 (0.3%) | 87 (6.4%) | 5 (0.4%) |
Nearly 6% of the assembly was masked for repeated elements with a majority of simple DNA repeats (49,992) and transposons (29,182). The next most abundant repeats were long interspersed nuclear elements (11,417) followed by long terminal repeats (7,950). Overall, these four types of repeats account for 5.31% of the masked genome assembly (Table S4, Extended data).
Several studies pointed out the presence of a 142bp satellite highly present in the T. molitor genome8,43,44. RepeatMasker detected 406 instances of the satellite repeats across 26 scaffolds covering up to 248,412 bp (or 0.08% of the assembly). Additionally, we performed a BLAST analysis with more stringent alignment parameters (BLASTn overlap >80%, identity ≥90%) and the satellite was newly detected in 17 scaffolds. We also found two variant sequences of this satellite (blastn evalue≤10e-5, word_size=10) highly represented in scaffold 23. The longest form covers approximately 89% of the satellite (126-129bp), with average identity score 77%, while the shorter one, which is more abundant, covers about 44% of satellite (62-66bp) with mean sequence similarity of 85% (Figure S5, Extended data).
Furthermore, mitochondrial genome was detected in two scaffolds. More precisely, the mitochondrial genome of T. molitor (15,785 bp) was aligned to the assembly using Minimap245. It is present three times in scaffold 93 with an identity score of 85-89% (Figure S6, Extended data) and in several other regions of the same scaffold with a lower identity score of 53–73% (Table S5, Extended data). It is also found in scaffold 65 but with a lower identity score of 50–75% (Figure S7, Extended data). Furthermore, a 7kb region seemed common between scaffolds 65 and 94 (Figure S8, Extended data). This region is located at the beginning of scaffold 65 and at the end of scaffold 94 and is not covered by any Illumina mitochondrial reads (Figure S9, Extended data), suggesting a probable unknown part of the mitochondrial genome.
Tenebrio molitor genome annotation
By combining RNA-seq and Coleoptera proteomes, we predicted a total of 21,435 genes which is higher than the number observed in T. castaneum. Beside this difference, other metrics are very comparable (Table 2). Quality of the gene prediction was assessed using BUSCO version 5.0.0 with Insecta database odb10 which contains 1,367 genes and showed a gene completeness of 96.5%.
Table 2. Annotation and BUSCO metrics for T. molitor 2021 and T. castaneum.
| Annotation Statistics | Tenebrio 2021 | Tribolium |
|---|
| Number of genes (without isoforms) | 21,435 | 14,503 |
| Number of intronless genes | 4,898 | 1,109 |
| Gene length (mean : median) | 7,590 : 1,779 | 8,032 : 2,364 |
| Gene length without UTR (mean : median) | 5,785 : 1,147 | 7,900 : 2,341 |
| Number of exons per gene (mean : median) | 4.15 : 3 | 5.19 : 4 |
Number of exons per gene (mean : median) Restricted to
multi-exon genes | 5.08 : 4 | 5.54 : 4 |
| CDSs length (mean : median) | 1,177 : 783 | 1,839 : 1,454 |
| CDSs length (mean : median) Restricted to multi-exon genes | 1,356 : 1,071 | 1,921 : 1,548 |
| Cumulative size of coding sequences (%) | 25,230,147 (8.8%) | 26,681,223 (16.1%) |
| Number of introns | 67,414 | 60,774 |
| Intron length (mean : median) | 1,465 : 55 | 1,446 : 53 |
| Percentage of contigs with >= 1 gene (% in bases) | 82.9% (99.2%) | 18.5% (97.6%) |
| BUSCO with Insecta database (N = 1,367) | | |
|---|
| Complete | 1,319 (96.5%) | 1,361 (99.6%) |
| Duplicated | 8 (0.6%) | 339 (24.8%) |
| Fragmented | 12 (0.9%) | 3 (0.2%) |
| Missing | 36 (2.6%) | 3 (0.2%) |
Not surprisingly, the two species share similar characteristics in terms of CDS lengths and number of exons (Figure S3, Extended data) as illustrated in a linear regression model with R2=0.931 (Figure 1).

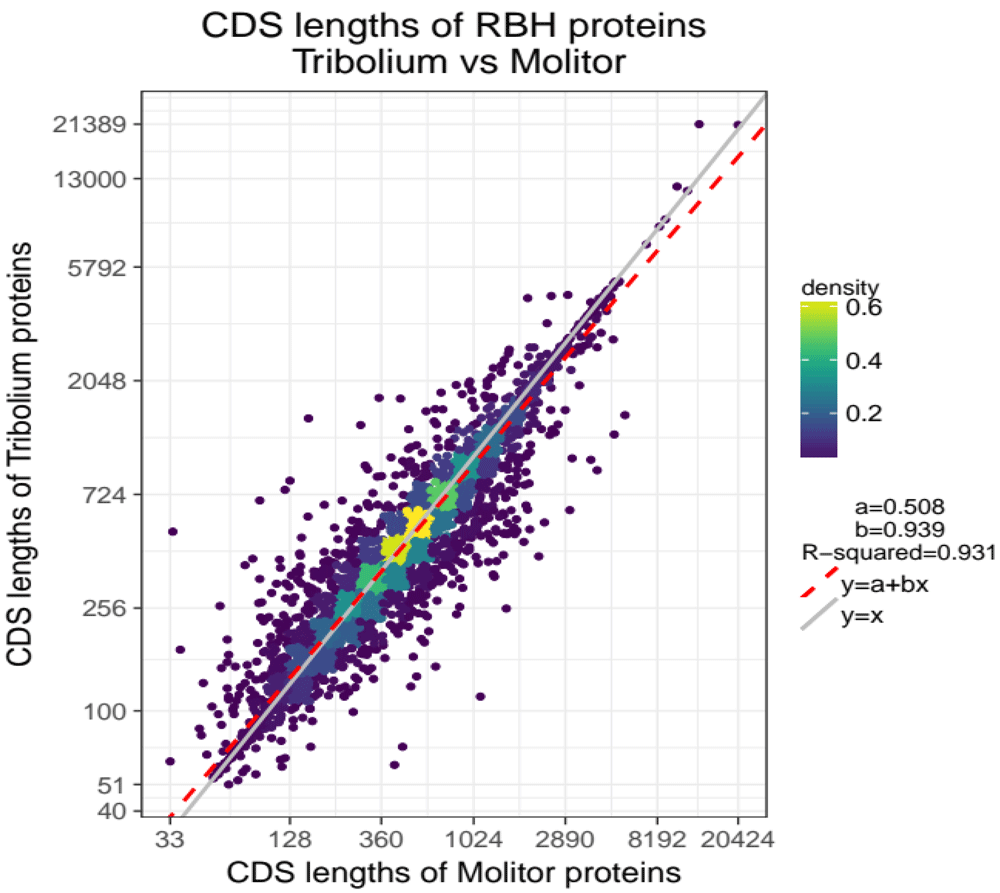

Figure 1. CDS length association for 10,495 orthologous genes of T. molitor and T. castaneum.
Comparison plot with CDS lengths of T. molitor on x-axis and CDS lengths of T. castaneum on y-axis. Lengths (points) are log-scaled and coloured based on their density (highest density= yellow, lowest density=dark violet). The linear regression model best fitting the data is represented by the red-dashed line y = a + bx with parameters a=0.508 and b=0.939. Higher densities are observed in the central part of the cloud and along the red-dashed fitted regression line.
After stringent gene prediction filtering (see Methods section), the gene structure patterns remained enriched in single-exon genes 22% (compared to 7% of T. Castaneum) (Table 2). Interestingly, 85% of them have a pfam or BlastP hit (evalue=10e-5), suggesting that they are bona fide gene predictions. Preliminary results show the existence of paralogous genes among them. Further investigations of gene duplication events and functional analysis have to be pursued to better understand the evolution and the biological roles of these monoexonic genes.
Macrosynteny between the Tenebrio molitor and Tribolium castaneum genomes
The macrosynteny between the T. molitor scaffolds and T. castaneum chromosomes (Figure 2) showed a strong conservation of the genome. The current T. molitor assembly lacks the integration of genetic data and linkage groups to reconstruct the entire chromosomes, and the assembly remains fragmented which makes the detection of possible chromosome rearrangments impossible. Future genetic works on T. molitor leading to the construction of a high-density map will greatly help to anchor the current assembly on linkage groups to obtain the complete two-dimensional chromosome organisation.

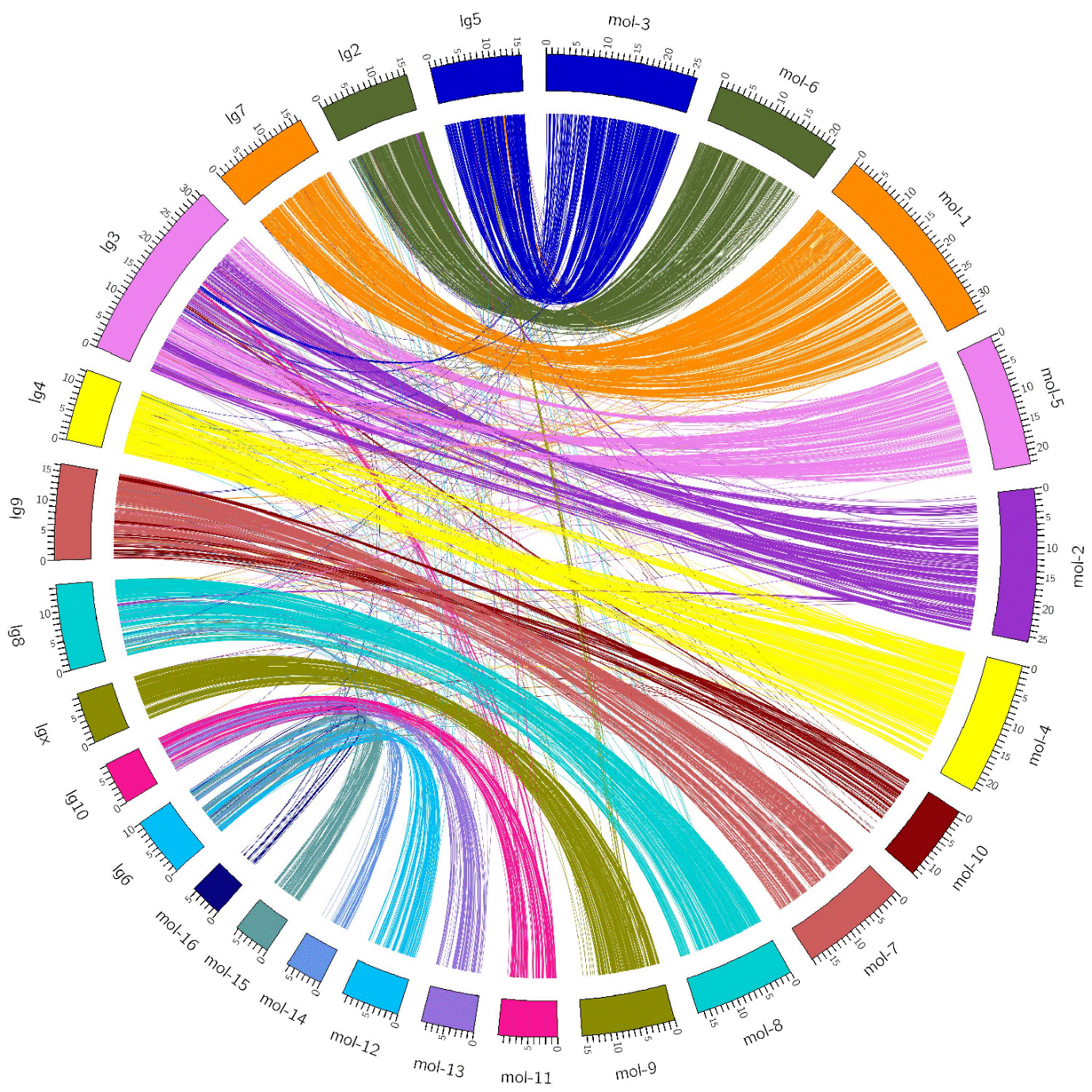

Figure 2. Synteny between T. molitor and T. castaneum.
In the right semi-circle the longest 16 T. molitor scaffolds are represented by orthogonal curved blocks placed next to each other. They are followed by the 10 T. castaneum chromosomes (left semi-circle). The unit length of the tick spacing of the blocks is 1Mb so that each block is proportional to the real size of a scaffold/chromosome. The 9,760 protein reciprocal best matches are drawn with colorful arches linking the orthologous regions between the two species.
Conclusions
Our sequencing and assembly strategy to build the heterozygous genome of T. molitor by combining long read and Hi-C showed its efficiency and provided a high-quality genome assembly and the first genome annotation with a high completeness. Thanks to this new genomic resource, future works focusing on population, quantitative and functional genomics of genes of interest will be facilitated and will greatly improve our knowledge on the molecular basis of the T. molitor biology. The presence of a relatively large number of monoexonic genes supported by transcripts and conserved protein domains constitutes a field of investigation to understand the biological role and the evolution of these genes. The comparison of T. molitor to other available Coleoptera genomes will also aid better understanding of Coleoptera evolution and diversification. Additionally, thanks to the availability of the T. molitor genome and genes, new breeding programs can take advantage of this resource to improve and optimize mealworm production at the industrial scale through the combination of phenotypes and whole-genome genotypes to perform genome-wide association studies, quantitative trait locus analyses and genome estimation breeding values analysis.
Data availability
Underlying data
European Nucleotide Archive: Chromosome-scale assembly of the yellow mealworm genome. Accession number PRJEB44684.
European Nucleotide Archive: Chromosome-scale assembly of the yellow mealworm genome. Accession number PRJEB44703.
European Nucleotide Archive: Chromosome-scale assembly of the yellow mealworm genome. Accession number PRJEB44755.
NCBI BioProject: Mater immunity, reference transcriptome of Tenebrio molitor. Accession number PRJNA646689.
Other underlying data for the tenebrio genome are available on GitHub and Zenodo.
Zenodo: madoui/Tenebrio_Genome: updated supp data. https://doi.org/10.5281/zenodo.549969146.
This project contains the following underlying data:
Supplementary_Data.pdf / Supplementary Table 6: Samples’ accession numbers.
Data / monoexonic (BED file with coordinates of monoexonic genes)
Data / repeat (BED file with coordinates of the repeats)
Extended data
All extended data are available on GitHub and Zenodo.
Zenodo : madoui/Tenebrio_Genome: updated supp data. https://doi.org/10.5281/zenodo.549969146.
This project contains the following extended data within the file ’Supplementary_Data.pdf’:
Supplementary Table 1: Genomic data
Supplementary Table 2: Transcriptomic data
Supplementary Table 3: Metrics for long reads, contigs and scaffolds through different steps
Supplementary Table 4: Repeats
Supplementary Note 2: Gmove
Supplementary Figure 1: GenomeScope Profile for T. molitor
Supplementary Figure 2: K-mer plot before and after Haplomerger
Supplementary Figure 3: Comparison of CDS lengths and number of exons of orthologous genes between T. molitor and T. castaneum
Supplementary Figure 4: Aligning T. molitor to T. castaneum
Supplementary Figure 5: Position of the 142 bp satellite (TMSATE1) on scaffolds 16, 58, 99, 23 and their coverage by Illumina Reads
Supplementary Figure 6: Presence of mitochondrial genome on scaffold 94
Supplementary Table 5: Alignment between the mitochondrial genome and the scaffold 94
Supplementary Figure 7: Presence of mitochondrial genome on scaff 65
Supplementary Figure 8: Alignment of scaffolds 94, 65
Supplementary Figure 9: Coverage of scaffolds 65, 94 by Illumina mitochondrial reads
Supplementary Figure 10: Assembly workflow
Supplementary Figure 11: Annotation workflow
This project also contains the following extended data:
Data on GitHub and Zenodo are available under the terms of the
Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).
