Plain language summary
The resolution of an imaging system is a key parameter since it allows observation of smaller details and thus increases the knowledge about the observed sample. Although essential for studying living samples, optical microscopy has intrinsic resolution barriers which preclude the observation of details smaller than a few 100’s of nanometer without modifying the samples (e.g. by adding fluorescent tags). However, reaching the nanoscale on unmodified objects without damaging them is essential to understand the intimate structure of the matter. Here we propose a method based on point scanning (confocal) microscopy that allows resolution bellow 90 nm on any samples and we demonstrate our imaging capability on living cells and nanomaterials.
Introduction
Achieving resolutions below 100 nm is key for many fields, including biology and nanomaterial characterization. Although nearfield and electron microscopy are the gold standards for studying the nanoscale, optical microscopy has seen its resolution drastically improve in the last decades1–6. So-called super-resolution microscopy is generally based on fluorescence photophysics7 and requires modification of the sample at least by adding fluorescent tags, an inevitably invasive step. Optical imaging systems based on confocal microscopy (CM) grant both efficient 3D resolution and optical sectioning ability, and are thus widely spread. The majority of CMs are dedicated to image fluorescent-labeled samples, providing images with molecular specificity. The last three decades of improvement are therefore chiefly linked to the enhancement of fluorescence imaging8–10. However, fluorescent tags are dim and fragile, which limits both the acquisition rate and the duration of studies. Labeling is moreover invasive by nature, and it remains very challenging and practically impossible to label samples while ensuring reliable innocuousness (e.g. human grafts or embryos). Label-free imaging is thus key for many applications, including medical diagnostics, and is generally based on recording the light back-scattered by the sample. In this scope, optical coherence tomography11–13 -including its confocal scheme14- and reflectance confocal microscopy (RCM)15 are the most used techniques. RCM has been demonstrated to be efficient for various biomedical applications including skin imaging16–18, ophthalmology19,20, and neuro-biology21,22. However, label-free microscopy remains limited in term of resolution as compared to fluorescence-based systems.
One elegant and efficient way to increase the resolution of CM-based setups consists not only of counting the number of photons passing through the confocal detection pinhole with a mono-detector (e.g. (avalanche) photodiode) but effectively recording the spatial distribution of the light transmitted by the pinhole using a 2D sensor (e.g. CCD or CMOS camera). This 2D signal is then (digitally or optically) shrunk before shifting to the next scan point in the sample. Optical super-resolution is obtained since the collected point spread function (PSF) is re-allocated into a distance where the spatial information of the adjacent PSFs can be optically resolved. The concept of photon reassignment has been originally described by Sheppard23 and has been implemented in fluorescence CM24–26 (resolution gain of about x1.5), Raman microscopy27 (resolution gain up to x1.41), and two-photon microscopy28,29 (resolution gain x1.81). However, by applying this concept to RCM, it is possible to obtain a true doubling of the lateral resolution since there is no Stokes-shift between the excitation and detection wavelengths. DuBose et al. recently demonstrated the first example of photon reassignment for resolution enhancement in reflectance ophthalmology30 (i.e. with micrometer resolution, the eye being the last focusing optics).
We present in this article a method to enhance CM resolution by using a fully-optical photon reassignment method and a reflectance-based imaging scheme. This approach grants: (i) instant super-resolution imaging even at depth (> 100 µm) without any computation; (ii) a lateral resolution below 90 nm, an axial resolution below 250 nm using visible light; and (iii) compatibility with any sample including nanomaterials and living label-free biological samples.
Results
We have designed an approach with a penetration depth of hundreds of micrometers, low photo-induced damage (i.e. no-UV light, average light power over the field of view < 100 W/cm2 for a signal to noise ratio > 100), a temporal resolution below 1 second, and a spatial resolution better than 90 nm. To do so, we use a 445 nm light source and a high numerical aperture microscope objective compatible with thick sample imaging (Silicon immersion 60x, NA=1.3, WD=0.3mm) (see Figure 1a, Methods and associated Figure 5 for a complete description of the optical setup). The laser is focused on the sample with a diffraction-limited size and laterally scanned with a 2D-mirror. The back-scattered light is then filtered by a confocal pinhole. The image of the confocal pinhole is re-scanned directly onto a 2D camera sensor with a doubled scanning-amplitude as compared to the object plane. This induces a two-fold reduction of the effective PSF in the image plane. The diffraction-limited PSF of diameter d is collected from the sample with a separation distance of s, as illustrated in Figure 1a.

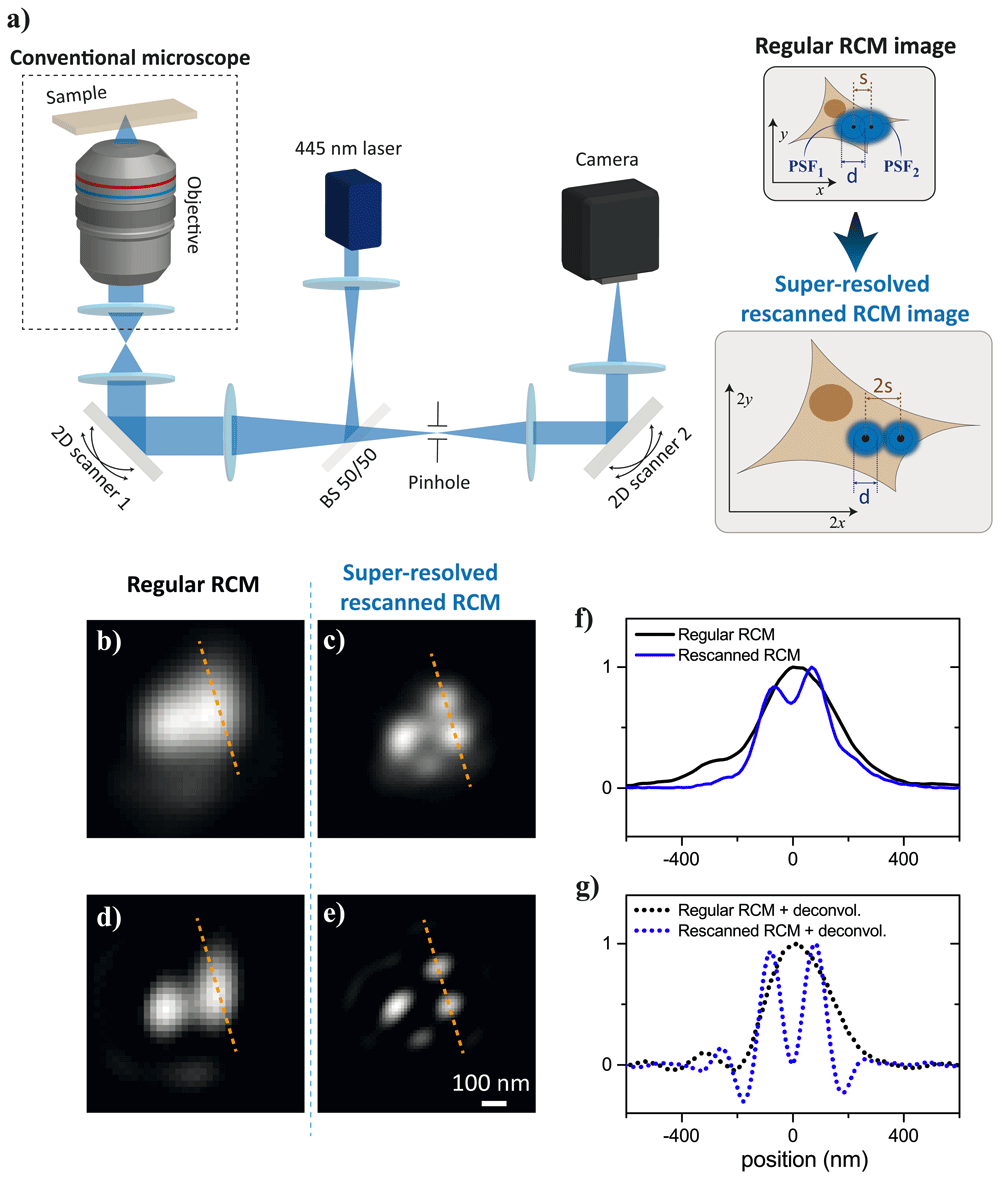

Figure 1.
(a) Experimental setup and concept to achieve label-free confocal super-resolution, BS 50/50 is a 50%;50% non-polarizing beamsplitter (see Methods for detailed information). (b) 100 nm gold beads observed with conventional reflectance confocal microscopy (RCM). (c) Same zone as for (b) observed with rescanned-RCM. (c) Deconvolution of (b). (e) Deconvolution of (c). (f) Line-out of (b,c). (f) Line-out of (d,e).
The collected PSF is rescanned into the 2D detector, maintaining the same diameter d but with a separation distance of 2s. This fully-optical photon-reassignment directly leads to super-resolved images without requiring any computation (see Extended data: Annex 1 for theoretical explanations)31. We named this approach rescanned-RCM as compared to regular-RCM, where the image is reconstructed point-by-point in a de-scanned mode. As an example, in Figure 1b-f the resolving capabilities of rescanned-RCM is largely improved as compared to regular-RCM when imaging nanoparticles (100-nm gold nanobeads). In Figure 2, an example of resolution enhancement on high-resolution US Air Force resolution target is also presented.

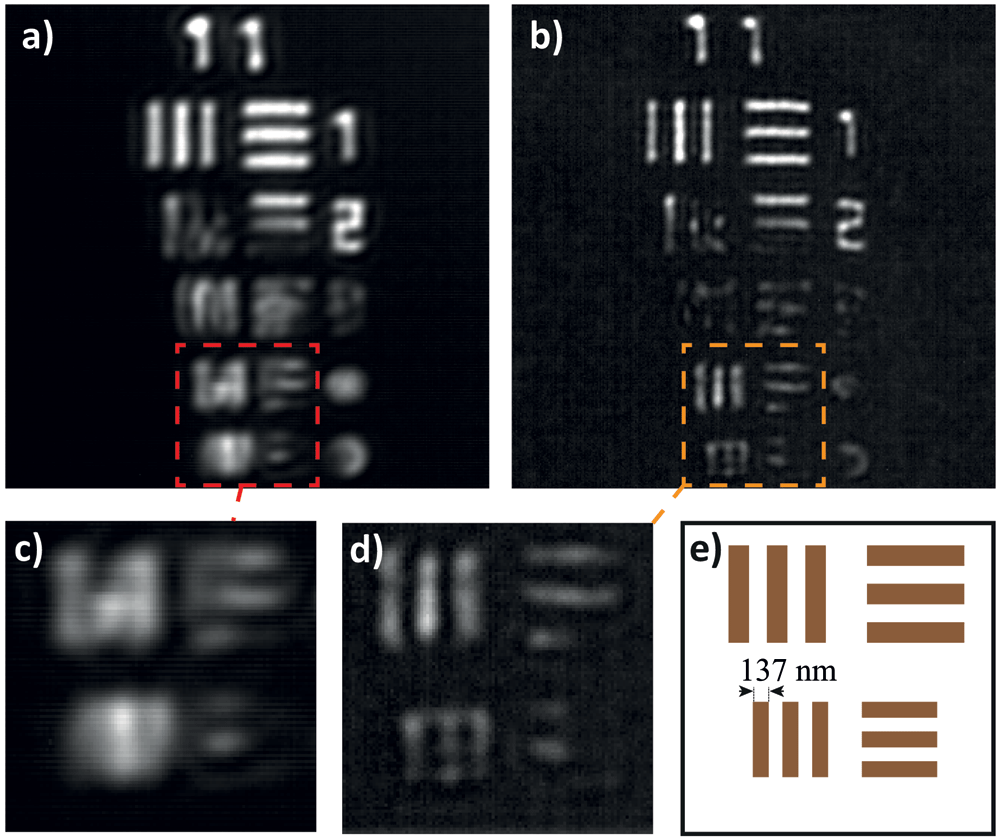

Figure 2.
High-resolution positive US Air Force target element 11 observed by (a) regular reflectance confocal microscopy (RCM); (b) re-scanned RCM; (c,d) zoom in of the elements 11-4 and 11-5 from the target in (a) and (b), respectively; and (e) scheme of the theoretical resolution target. Images are 2D deconvolved.
To quantify the performance of our setup, we focus on (i) the lateral and axial resolution enhancement, we then discuss (ii) the background rejection capability and (iii) present 3D biological sample reconstructions on quasi-metrological samples (diatom shells in water), and living adherent cells with a focus on intra-cellular organelle dynamics.
Resolution enhancement
Here we compare the lateral and axial 3D PSF and the associated 2D and 3D modulation transfer function (MTF) of both regular-RCM and rescanned-RCM on 60 nm gold nanoparticles (see Methods) acting as point-objects. For a fair comparison between an optimal conventional RCM (recorded on a monodetector) and the super-resolved rescanned-RCM, the optical setup has been upgraded to have both RCM modalities running in parallel for simultaneous acquisition (see Methods for the detailed dual-modality setup). Qualitatively first, the PSF size in the rescanned mode is reduced in comparison with the standard PSF of a regular-RCM (Figure 3a–d). The gain is even clearer when looking at the Fourier domain: the frequency support of the rescanned-RCM image is extended as compared to the frequency support of the regular-RCM image (Figure 3e and 3f).

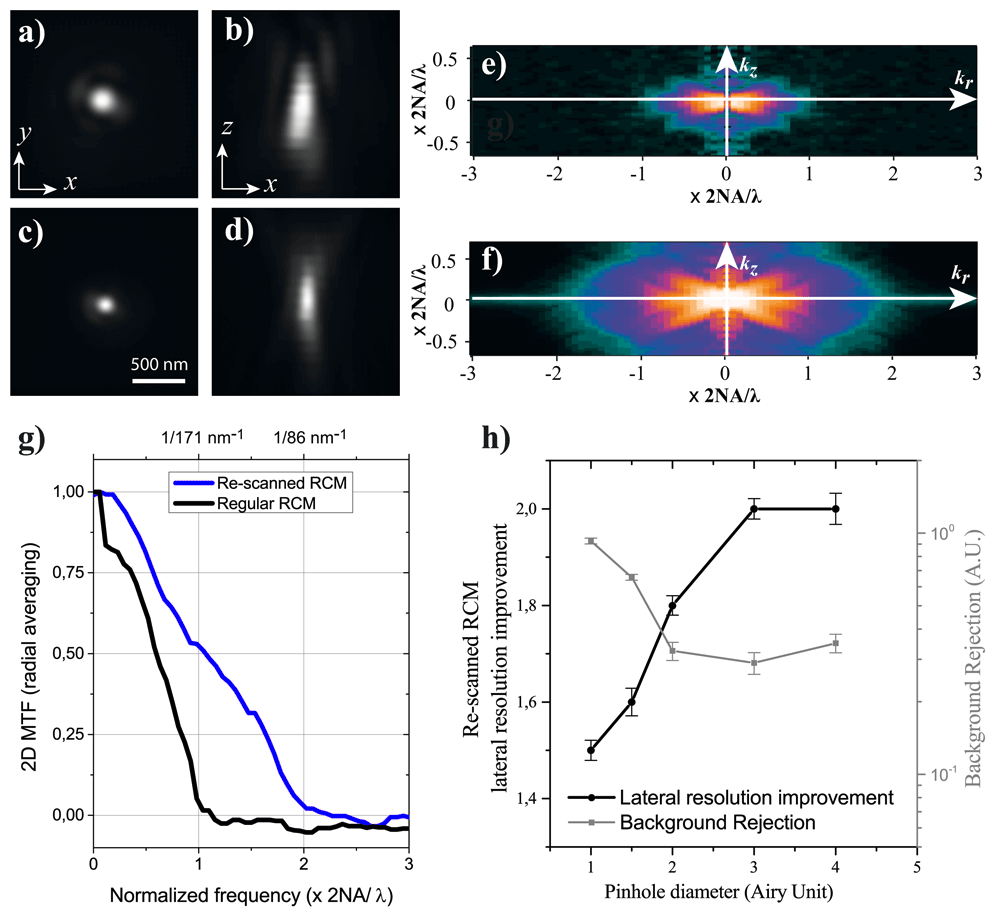

Figure 3. Experimental results of the point spread function (PSF), modulation transfer function (MTF), and background rejection of regular (pinhole of 1 Airy-size) and re-scanned super-resolved reflectance confocal microscopy (RCM), measured on 60 nm gold beads embedded in immersion oil.
(a) (x, y) PSF of regular RCM; (b) (x, z) PSF of regular RCM; (c) (x, y) PSF of rescanned-RCM; (d) (x, z) PSF of rescanned-RCM; (e) numerical 3D Fourier transform of regular RCM PSF (radial average of each kz plane); (f) numerical 3D Fourier transform of rescanned RCM PSF (radial average of each kz plane); (g) 2D MTF of regular and re-scanned RCM obtained by radial average of (a) and (c), respectively; (h) experimental results on the relation between the re-scan pinhole size and both lateral resolution and background rejection in the microscope. Resolution and background rejection normalized by those measured with regular RCM (pinhole size of 1 Airy Unit).
To quantitatively determine the actual resolution of the microscope and its imaging performance, we have computed the 2D MTFs from both re-scanned and regular RCM frequency supports (Figure 3g). The lateral resolutions of the microscopes have been measured to be nm for the regular RCM and nm for the re-scanned RCM (consistent with the theoretical resolution value nm). A twofold lateral resolution enhancement as compared to the regular RCM can thus be achieved using the setup in Figure 1.
Although the effect on the axial resolution of re-scanning has been investigated for florescence CM (and even enhanced using structured illumination32), we didn’t find any demonstration of the effect on the axial resolution for the reflectance-imaging scheme. Figure 3b and 3d demonstrate that rescanning the pinhole-image on a 2D sensor not only increases the lateral resolution but also the axial one. The frequency support (Figure 3e and 3f) is also increased along the axial direction kz when using re-scanned RCM. We experimentally determined the axial resolution of the re-scanned RCM to be nm as compared to the regular RCM theoretical axial resolution of nm. This gain of 1.5 ± 0.05 is consistent with the experimental gain measured at 1.4 ± 0.1.
Relation between background rejection and resolution
Another important aim of confocality lies in its out-of-focus light rejection capability. This aptitude is linked to the pinhole diameter with respect to the PSF size (the so-called ). Both background rejection value (using a Sandison et al. approach33) and lateral resolution have been computed, varying the pinhole size. The values have been normalized by regular-RCM values (with pinhole size set to 1 Airy Unit). Gold beads (60 nm diameter) in immersion oil were imaged (see Methods), the light back-scattered by the coverslip is acting as a source of background light. Opening the pinhole in the imaging path leads to a resolution increase until it reaches a maximum plateau at 2x improvement (Figure 3h). The background rejection, which directly affects the signal-to-noise ratio of the microscope, decreases concerning the pinhole diameter. We found an optimum at a pinhole diameter of 3 Airy Units: a 2x resolution gain and a background rejection preserved at 30% as compared to regular RCM is achieved (Figure 3h).
Metrological sample imaging
We have demonstrated that the resolution of RCM can be doubled in the lateral directions and enhanced by a factor of 1.5 in the axial direction without compromising the background rejection. To validate the measurements performed on punctual objects, 3D biological samples with metrological properties have been imaged. Fossil diatom shells immersed in water (see Methods) have been considered as biological resolution targets since they have quasi-fractal structures34. Figure 4a and Movies 1 and 2 (see Extended data)35 show a 3D reconstruction of a diatom shell with both regular-RCM and the rescanned-RCM. The regular and rescanned-RCM images present notable differences: this is due to the overall 3D frequency support, which hugely differs between both modalities. The gain of resolution with rescanned-RCM is visible when using the rescanned-RCM (see in particular the insets in Figure 4a) and it shows how the small details of shells can be extracted and reconstructed in 3D. The gain in 3D (i.e. (x →× 2, y →× 2, z →× 1.5) is consistent with the own measured on beads.

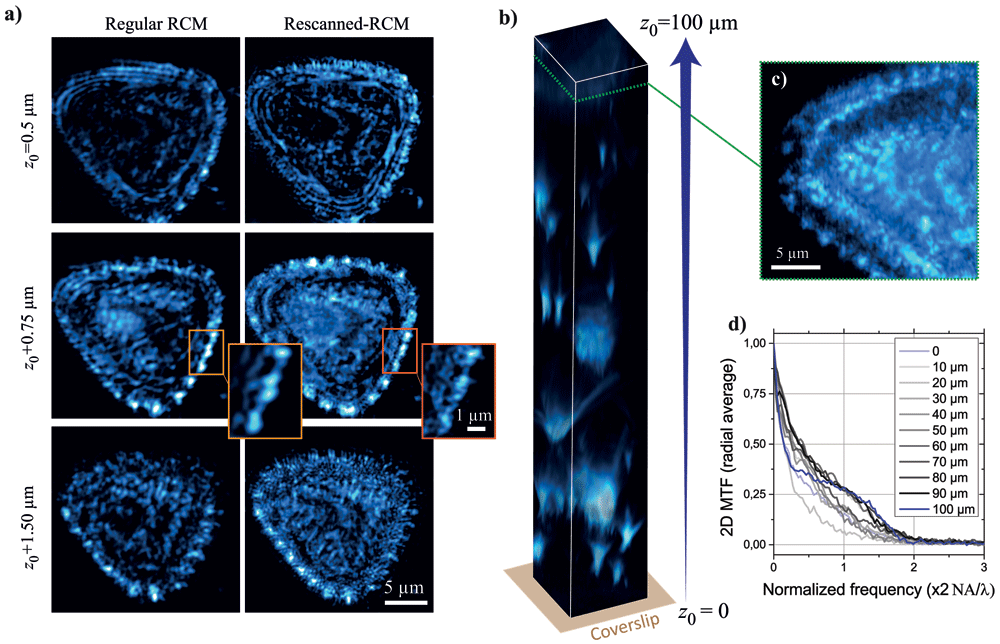

Figure 4. Diatom shells imaging in different planes.
(a) From z0 = 0.5µm (up) to z0 + 1.5µm (down) imaged with regular reflectance confocal microscopy (RCM) (left) and rescanned RCM (right). (b) z-stack volume imaging of a diatom gel from z0 = 0µm (coverslip) to z0 = 100µm. (c) 2D image form (b) at plane z0 = 95µm. (d) 2D MTFs measured on (b) at different depth from 0 to 100µm in the sample. See Videos 1 and 2 for complete 3D visualization of the diatom shell (a).

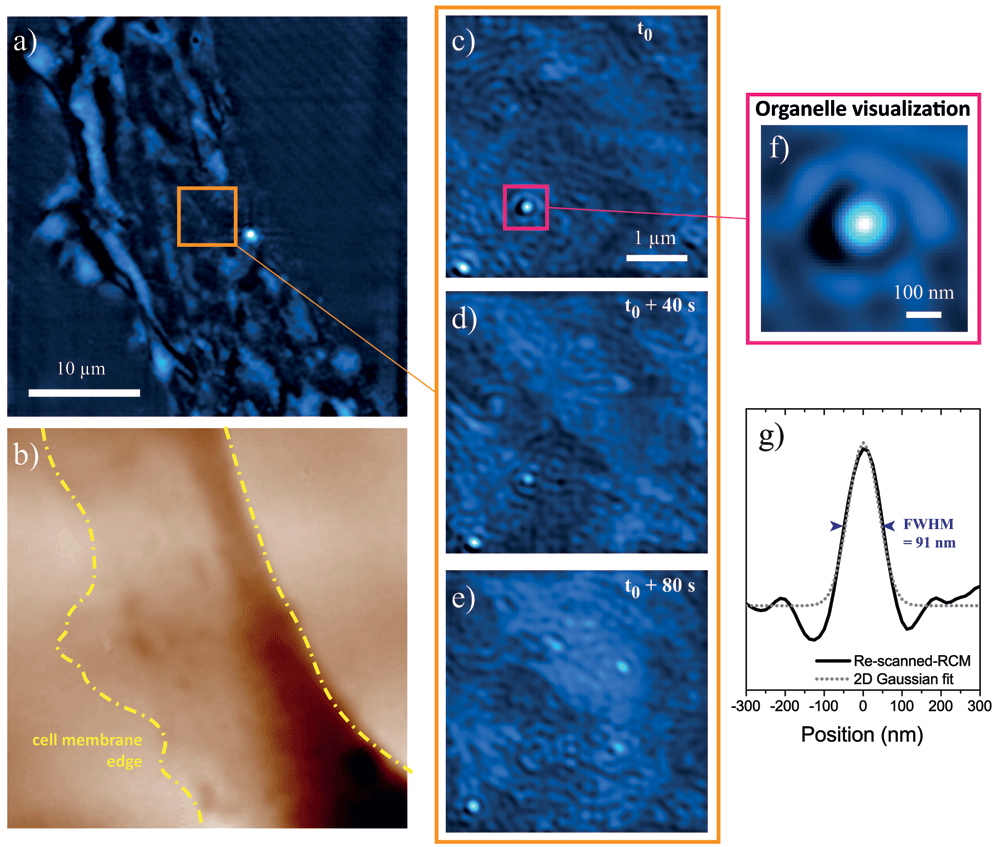

Figure 5.
(a) Mouse embryonic fibroblast cell lamellipodium imaged with re-scanned reflectance confocal microscopy (RCM). (b) Same as (a) observed with quantitative phase imaging (the darker the look-up table, the longer the optical path). (c–e) Zoom on (a) at three different time points separated by 40s. (f) Zoom on a sub-structure of (b). (g) Line-out and 2D Gaussian fit of (f). All images are 2D-deconvolved. See Video 3 for the dynamic sample imaging.
We have studied the effect of at-depth imaging regarding the lateral resolution improvement of rescanned-RCM versus regular-RCM. Diatom shells in agarose gel (see Methods) were imaged up to the maximum depth authorized by our microscope objective (100 µm, Figure 4b and 4c). By computing the 2D MTF at different depths starting from the coverslip (z0=0) up to 100 µm, we demonstrate that the resolution doubling granted by rescanned-RCM is preserved at depth in scattering samples (Figure 4d).
Rescanned-RCM can also be applied in nano-material sciences to perform metrological characterization of label-free samples with unprecedented optical resolution (imaging of 90 nm diameter silver nanowires without using non-linear properties, see Extended data: Annex 2)31.
Live sample imaging
Finally, we applied rescanned-RCM to image living cells. Label-free adherent cells (mouse embryonic fibroblasts, MEF) have been observed and results are presented in Figure 5. For fast 2D imaging (temporal resolution of 1.25 Hz), we focus on a thin part of the cell, a lamellipodium at 1 µm above the coverslip and image over time. The laser power has been reduced to limit phototoxicity (laser power of 30 µW, average power over the field-of-view of 100 W/cm2). Such temporal resolution with limited phototoxicity allows us to discriminate and follow organelles in their native environment during minutes (no visible effect of the laser on the sample after five minutes of constant imaging).
On a large field of view (Figure 5a and 5b) the lamellipodium and membrane edges are visible in label-free, both in RCM and quantitative phase imaging36. Some slowly varying fringes are also visible in the images and are formed by the interferences between the light back-scattered from the top and the basal membrane on this thin part of the cell. Our improved resolution is key to detect and follow organelles with a very large signal-to-noise ratio (>100, Figure 5c–e). The diameter of the detected object has been measured down to approximately 90 nm (Figure 5f and 5g) and the non-spherical shape of some organelles such as mitochondria can be studied and followed in very crowded environments without using labeling and with limited phototoxicity.
Discussion
We demonstrated that CM can reach an unprecedented 3D resolution by combining photon reassignment (originally developed for fluorescence-based CM) with label-free reflectance imaging. 3D super-resolution imaging can be achieved with an efficient background rejection and at depth imaging capabilities. Our optical photon-reassignment setup unlocks optical resolution of (rx, ry, rz)@λ=445nm=(86,86,248) nm3 without requiring any computation. This is a doubled lateral resolution and x1.5 resolution improvement in the axial direction regarding regular RCM. Currently, the only far-field optical techniques that surpass our resolution are based on fluorescence photophysics (including depletion and saturation) but at the price of high-phototoxicity or sparse-labeling (single fluorescent particle imaging). Long duration live sample imaging without constraint on the sample and/or medium can only be achieved with structured illumination microscopy37 and are limited to > 100 nm resolution. Our resolution improvement beyond the 100 nm resolution barrier and without requiring neither fluorescence nor computation is a new step in biological sample imaging. It unlocks studies in very crowded environments such as a living cell and at any depth within the sample, where state-of-the-art label-free techniques such as interferometric scattering (iSCAT) microscopy38 reach their limits. Our approach can be applied to any samples and we have demonstrated its efficiency not only on biological samples (diatom shells and living cells) but also on nanomaterial characterization without requiring near-field or electron microscopy.
Using on-the-shelves only components, we were able to form 5 × 5 µm2 super-resolved images at 1.25 Hz. It has been demonstrated that the scanning speed of optical-reassignment-based methods can be tremendously increased using custom optical elements and a more challenging alignment26,30,39,40. Our rescanned-RCM is a cost-effective solution for any optical microscope, the overall price of this add-on being less than 4k€ (including the laser, scanners, and camera; see Methods). This study paves the way to fully-optical fast investigations of the intimate 3D nano-structure of any samples with limited invasiveness.
Methods
Experimental setup
A 445 nm laser diode (500mW, Newgazer Technology, Shenzhen, China) is spatially filtered through a 50 µm diameter P1 pinhole (see Figure 6) and collimated onto a 2D scanning galvo-mirror system (GVS002, Thorlabs, USA) placed in a plane conjugated with the pupil of the microscope. The apochromatic microscope objective (UPLSAPO60XS2, 60x NA=1.3, silicon immersion, Olympus, Japan) focuses the light on the sample with a diffraction-limited d-size as shown in Figure 1. The back-scattered light is recollected by the system using the same optical path as illumination. After passing through a 50/50 non-polarized beamsplitter, the back-scattered light is filtered through a second pinhole P2. The size of this pinhole is directly linked to the performance of the system as discussed in results and Figure 3. In our setup, we have used a 200 µm pinhole for optimal resolution and background rejection. The light passing through the pinhole is collimated and sent on a second 2D galvo-mirror system (GVS002, Thorlabs, USA) conjugated with the pupil plane. This re-scanning mirror system redirects the collected photon onto a low-cost CMOS camera (DCC1545M, Thorlabs, USA) with a scanning amplitude of twice the amplitude of the first scanning mirror system. To compare the performance of the reflectance photon reassignment scheme and an optimal regular RCM we used an arm (Figure 6) constituted of a 90/10 non-polarized beamsplitter, a pinhole P3=50µm and a mono-detector (amplified photodiode). To perform z-scans, the microscope objective is moved by minimum increments of Δz = 50 nm (MFC-2000 Z-Axis Drive and Controller, ASI, USA). An ADC/DAC acquisition card (NIUSB-653, National Instrument USA) is used to tune the angular position of the 2D galvo mirrors (angular resolution of 15 µrad) and to digitize the amplified photodiode voltage.

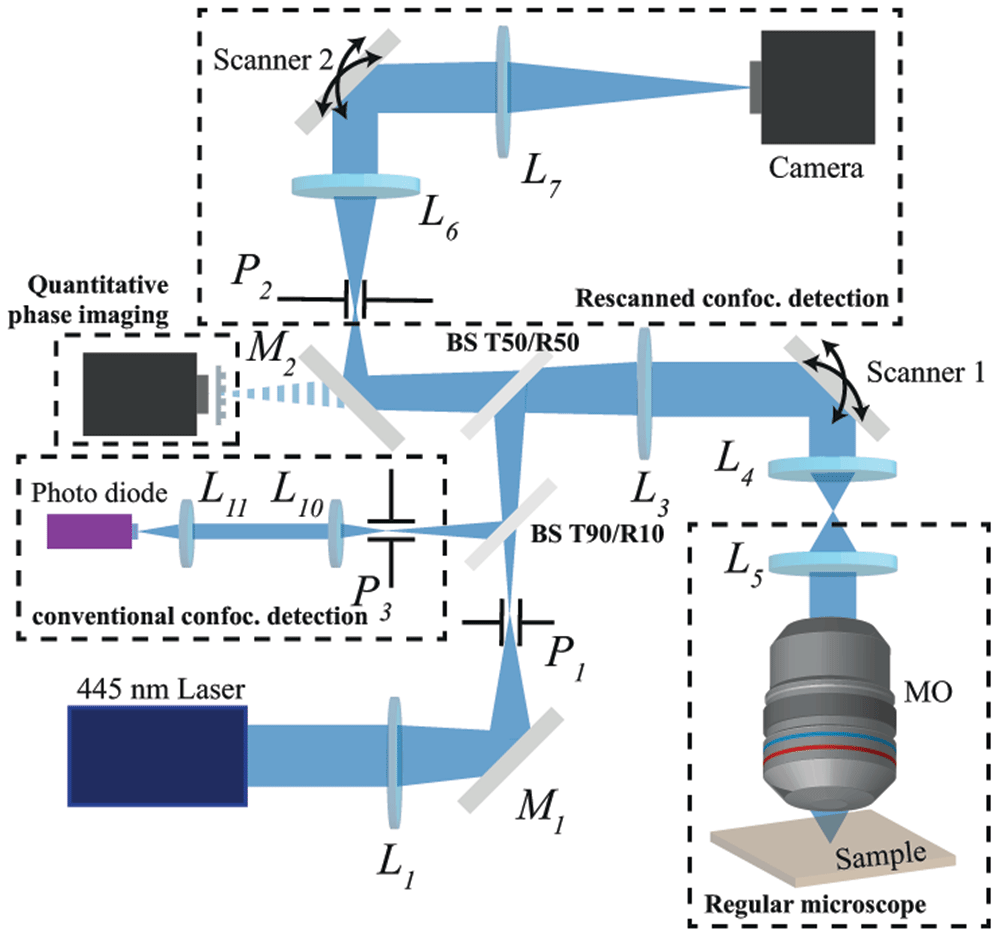

Figure 6. Complete optical setup overview.
Ln are doublet lenses, Mn mirrors, Pn pinholes, TX/RY X%/Y% transmission/reflection beamsplitters, and scanners are 2D galvanometer scanners.
Acquisition software and image processing
A homemade software written in Labview (NI LabView 2013, National Instrument USA) has been developed to drive the setup. The images don’t require any further treatment to achieve super-resolution. However, for quantitative measurements, a deconvolution algorithm was applied to the raw images. The deconvolution algorithm is based on a classic Wiener filter applied considering experimental PSF and implemented in Labview. As an alternative, it is possible to use the DeconvolutionLab2 open-source software41.
Sample preparation
Gold beads. For resolution measurements, 60 nm diameter beads were used acting as punctual sources (OD 1, stabilized suspension in citrate buffer, PubChem Substance ID 329765549, Sigma Aldrich). The beads were deposited by spin-coating on a plasma cleaned cover-slip. Objective immersion oil (Nikon) was added to quasi-match the refractive index of the coverslip and minimize its back-scattered light. For studies of agglomerated but resolved objects (Figure 2b–f), 100 nm diameter gold nanobeads were used (OD 1, stabilized suspension in citrate buffer, PubChem Substance ID 329766387, Sigma Aldrich). A droplet of this solution was dried on a coverslip at room temperature for five hours to create bead clusters. As for 60 nm beads, the dried sample was immersed in immersion oil to minimize the back-scattered light from the coverslip.
Diatom shells. The diatom sample was prepared from diatomaceous earth (La Droguerie Ecologique - SDEB ECODIS, France) -a siliceous sedimentary rock composed of fossilized diatom shells- suspended in distilled water. The solution was spin-coated on a coverslip to have a uniform distribution of the diatom shells. The coverslips were immersed in distilled water to mimic biological sample imaging conditions. For thick 3D biological phantom composed of diatom shells, a 1% fossil diatom shell, 1% agarose (Low melting, Roche) solution in distilled water was prepared. The solution was then heated in the microwave 90 seconds so the agar could dissolve within the mixture. The gel was hot-deposited on a microscope coverslip. After cooling, imaging was performed.
Live cells. Wild type mouse embryonic fibroblasts (MEFs, source: courtesy of Arnaud Mourier lab). MEFs were isolated from mouse embryos of a pathogen-free C57Bl6/N mouse (Day 13.5) using classical trypsin procedure. Briefly, embryos were mechanically dispersed in presence of trypsin by repeated passage through a 1000 pipette tip and plated with MEF media (DMEM, 10% FCS, 1% nonessential amino acids, 1 mM L-glutamine, penicillin/streptomycin). Immortalization of primary MEFs was then achieved using classical viral transduction of pMX-LargeTcDNA expressing SV40 large T antigen. Cells were grown in DMEM high glucose (4.5 g/l) with L-glutamine and sodium pyruvate supplemented with 10% FBS, and 1% penicillin-streptomycin (Corning, USA) in a humidified cell culture incubator (37°C and 5% CO2). After several days, cells were plated at low confluency on coverslips. The rescanned-RCM imaging was performed at room temperature (24°C) in less than 30 minutes after taking the sample out of the incubator.
