The review reveals a dynamic field characterized by rapid advancements and a strong focus on overcoming the economic and technical barriers to hydrogen's viability as a heating solution. While promising, the literature consistently highlights the need for supportive policies, further technological innovation, and comprehensive safety and regulatory frameworks to fully realize the potential of hydrogen in heating applications.
Green hydrogen, produced through water electrolysis powered by renewable energy sources, is at the forefront of this transformation. The process involves splitting water into hydrogen and oxygen using electricity generated from renewable resources such as solar, wind, or hydroelectric power (Munyaneza, 2024). This method not only provides a carbon-neutral hydrogen source but also aligns with global sustainability goals by integrating renewable energy into the heating sector.
The cost of green hydrogen production is heavily influenced by the local price of electricity from renewable sources, which varies significantly by geography. Regions with abundant solar irradiance, such as India, the Middle East, and North Africa, often benefit from lower photovoltaic electricity prices—sometimes below $20/MWh—making electrolytic hydrogen more cost-competitive (Cortez et al., 2024; Singla et al., 2021). In contrast, countries located at higher latitudes, such as Canada or the Nordic states, may experience higher generation costs due to seasonal variability and reduced solar availability, though these regions can compensate with wind or hydro resources to some extent. This geographic disparity affects not only the levelized cost of hydrogen (LCOH) but also the strategic planning of hydrogen infrastructure and export opportunities. Incorporating these regional dynamics into techno-economic assessments is crucial for identifying viable deployment zones and for policy frameworks that aim to ensure competitive and equitable hydrogen markets globally.
The methodologies for integrating hydrogen into existing heating infrastructures are complex and varied. Several pilot projects across Europe and Asia have demonstrated the feasibility of converting existing natural gas networks to hydrogen. These projects typically involve a phased approach, starting with a blend of natural gas and hydrogen, which gradually transitions to 100% hydrogen. The technical considerations for such transitions include assessing the material compatibility of existing pipelines, upgrading seals and fittings to handle hydrogen's unique properties, and implementing advanced monitoring systems to ensure safety and efficiency (Ozturk et al., 2023).
Storage and delivery systems are another critical area of focus. Due to hydrogen's low density, innovative solutions for efficient storage and transportation are crucial. Technologies such as liquid organic hydrogen carriers (LOHCs), metal hydrides, and advanced compression techniques are under development to address these challenges. Each method offers distinct advantages and limitations in terms of energy density, safety, and cost, influencing their suitability for different scales of operation and geographic conditions (Moradi & Groth, 2019; Reynolds et al., 2024).
The cost and performance characteristics of compressed hydrogen storage tanks vary significantly depending on the tank type and the pressure they are designed to withstand. The five primary categories—Type I through Type V—differ in both materials and structural design. Type I tanks are made entirely of metal (typically steel or aluminum) and are the least expensive but also the heaviest, limiting their use primarily to stationary applications. Type II tanks use a metal liner with partial composite wrapping, offering moderate weight reduction at a slightly higher cost. Type III tanks feature a full composite wrap over a metal liner, providing a good balance between weight and strength, making them suitable for mobile applications. Type IV tanks are fully composite with a polymer liner, enabling very high pressure (up to 700 bar) while being significantly lighter—ideal for transportation but also much more expensive. Type V tanks, still under development and not widely commercialized, aim to be linerless all-composite structures, offering the lowest weight but at very high cost and with ongoing challenges in safety certification and durability (Muthukumar et al., 2023; Wang et al., 2021).
Understanding the trade-offs between cost, weight, safety, and pressure capability is crucial when selecting storage solutions for different hydrogen heating system configurations, particularly in scenarios where mobility, space, or infrastructure limitations exist.
The storage and technical challenges involved in supplying hydrogen to combined heat and power (CHP) systems for heating are complex, primarily due to hydrogen's inherent physical properties and the operational demands of CHP systems. Hydrogen has a very low density, necessitating its compression into high-pressure tanks to achieve an energy density practical for use. These tanks must be constructed from materials capable of handling high pressures while resisting hydrogen embrittlement, which can make metals brittle over time.
In addition to the type-specific storage characteristics, it is essential to consider the energy expenditure involved in each storage method. Compressing hydrogen gas for high-pressure storage requires substantial energy input, especially when targeting pressures of 350–700 bar, which are common in industrial and transportation applications. Similarly, storing hydrogen in liquid form at cryogenic temperatures (−253°C) demands significant energy for liquefaction—estimated to consume approximately 30–40% of the energy content of the hydrogen itself—along with continuous energy input to maintain such low temperatures. In contrast, solid-state hydrogen storage systems, such as metal hydrides and physisorption-based materials, typically require much less energy for maintaining storage conditions. These systems operate at moderate temperatures and pressures and may, in some cases, offer nearly passive storage with only minimal energy input needed for hydrogen release. Although solid-state options face challenges related to slow kinetics and material costs, their energy efficiency during storage makes them particularly promising for stationary applications where volume and weight constraints are less critical (Shin & Ha, 2023; Singla et al., 2021; Yadav et al., 2022).
The scalability of hydrogen storage is also critical, as CHP systems vary in size and may serve large facilities, requiring substantial hydrogen volumes. Efficient compression and decompression technologies are vital to maximize energy efficiency and minimize losses, ensuring operational cost-effectiveness. Moreover, CHP systems generally require high-purity hydrogen to maintain efficiency and prevent system damage, posing additional challenges in maintaining purity, especially after long storage periods.
Safety is another significant concern, given hydrogen's high flammability. Storage systems must be designed to prevent leaks and withstand accidents, incorporating robust safety protocols and detection systems. Innovative storage solutions, such as liquid organic hydrogen carriers (LOHCs) and metal hydrides, are under development to enhance hydrogen storage. LOHCs can store hydrogen at lower pressures and ambient temperatures, although they require complex chemical processes to release hydrogen. Metal hydrides offer high-density storage but face issues with slow kinetics and thermal management.
Lastly, the cost of developing and implementing these advanced storage technologies must be considered, balancing initial setup and operational costs with the benefits of hydrogen use in CHP systems. Integrating hydrogen storage and delivery systems with existing CHP infrastructure requires careful planning and modifications, tailoring solutions to accommodate hydrogen's unique characteristics. Addressing these multifaceted storage and technical challenges is crucial for the effective and efficient deployment of hydrogen in heating applications through CHP systems.
Furthermore, the integration of hydrogen heating systems with smart energy management technologies is being explored to optimize energy use and enhance system responsiveness to market and environmental conditions. These smart systems use real-time data analytics to adjust hydrogen production and distribution based on immediate energy demand, weather conditions, and electricity prices from renewable sources.
To provide a comprehensive understanding of these methodologies, this section reviews several key studies and real-world applications that highlight the practical challenges and innovative solutions in the deployment of hydrogen heating systems. The discussion not only showcases current capabilities and limitations but also provides insight into future directions for research and development in hydrogen technologies.
CHP and heat pump
Other technologies. The exploration of technological advancements in hydrogen for heating reveals significant progress and some promising trends. Recent advancements in hydrogen production technologies, especially in electrolysis, have significantly enhanced efficiencies and reduced costs. These improvements are largely due to innovations in catalyst materials and electrolyzer designs, facilitating the broader adoption of green hydrogen production. Notably, the development of proton exchange membrane (PEM) electrolyzers has marked a considerable technological advancement. These electrolyzers operate at higher efficiencies and are capable of adjusting dynamically to the variable supply of renewable electricity, making them particularly suitable for applications such as hydrogen for heat. This technology's relevance to our focus on hydrogen for heating applications warrants a detailed review and discussion (Nikzad et al., 2024; Zeng et al., 2024).
In terms of heating technologies, the adaptation of existing heating systems to utilize hydrogen has progressed notably. Recent pilot projects in regions like Northern Netherlands Hydrogen Valley (socalled HEAVENN project) have successfully demonstrated that existing natural gas networks and boilers can be converted to use hydrogen with minimal modifications. These conversions involve replacing specific components such as burners and nozzles to accommodate hydrogen’s different combustion properties, and the results so far have shown that these systems can achieve comparable heating efficiencies and reliability (Squintani & Schouten, 2024).
Storage technologies have also seen considerable advancements. The development of solid-state hydrogen storage methods, such as metal hydrides and complex hydrides, offers safer and more efficient ways to store and release hydrogen compared to traditional high-pressure tanks. These technologies reduce the risks associated with hydrogen storage and allow for more compact and scalable solutions suitable for both residential and industrial applications (Adaikalam et al., 2024; Zeng et al., 2022).
Moreover, the integration of hydrogen heating systems with smart grid technologies has begun to take shape. These systems leverage IoT sensors and real-time data analytics to optimize hydrogen production, storage, and distribution, ensuring maximum efficiency and minimal wastage. This integration not only enhances the operational efficiency of hydrogen heating systems but also contributes to broader energy system stability by providing demand-response capabilities that can balance intermittent renewable energy sources (Agi et al., 2024; Loukriz et al., 2024).
In summary, the technological advances in hydrogen for heating are substantial, addressing many of the limitations that have historically hindered the deployment of hydrogen as a mainstream energy carrier. However, continuous innovation and improvement are needed to overcome remaining challenges related to cost, scalability, and system integration.
The assessment of technological advances in the use of hydrogen, referred to as hydroxy, for heating purposes involves a comprehensive evaluation of recent innovations and persistent challenges. Hydrogen offers a promising pathway for decarbonizing the heating sector, traditionally reliant on fossil fuels, through significant strides in production, storage, and utilization technologies (Rincon et al., 2024).
In the realm of hydrogen production, the efficiency and sustainability of electrolysis, a process that splits water into hydrogen and oxygen using electricity, are pivotal. Innovations in this area, particularly in electrolyzer technology such as alkaline and proton exchange membrane (PEM) systems, have reduced energy consumption and operational costs. These advances have been driven by breakthroughs in catalyst materials and membrane technologies, making green hydrogen, produced using renewable energy sources like solar or wind, a more competitive option for heating applications (Gado et al., 2024).
Storage solutions for hydrogen also represent a critical area of technological development. The challenges posed by hydrogen's low density and high flammability have led to innovative storage methods, including metal hydrides and liquid organic hydrogen carriers (LOHCs) (Sung et al., 2025). These technologies allow for safer and more efficient hydrogen storage at higher densities than conventional high-pressure tanks, addressing safety concerns and enhancing the practicality of hydrogen for both residential and commercial heating systems.
The integration of hydrogen into existing heating infrastructure has seen considerable advancement through pilot projects and the development of new technologies. Innovations such as hydrogen-ready boilers and burners, which can operate on pure hydrogen or a hydrogen-natural gas blend, facilitate the retrofitting of existing systems. This gradual integration allows for the use of hydrogen as the infrastructure and supply chains evolve, as demonstrated in projects across the Northern Netherlands, where municipal heating systems have been successfully converted to hydrogen (Broersma et al., 2024).
Furthermore, alongside technological advancements, improvements in regulatory standards and safety protocols are essential to support the safe deployment of hydrogen heating systems. These enhancements address public and regulatory concerns by incorporating advanced sensor and detection systems into installations, ensuring safe operation.
Despite these promising developments, challenges remain that must be addressed to fully leverage hydrogen's potential in heating. The high initial costs associated with establishing hydrogen production facilities and retrofitting infrastructure, along with the efficiency losses in energy conversion, continue to be significant barriers. These issues underscore the need for ongoing research and development to improve the efficiency, safety, and cost-effectiveness of hydrogen technologies.
The dynamic field of hydrogen technology for heating is characterized by rapid innovations aimed at overcoming technical and economic barriers. As these technologies continue to evolve and become more cost-effective, hydrogen is increasingly positioned as a key component in achieving a sustainable and low-carbon heating future. This ongoing transition is supported by a blend of technological advancements, regulatory enhancements, and pilot projects that collectively demonstrate hydrogen's viability as a transformative energy solution for heating.
H2heat project. In the context of exploring the latest technologies for utilizing hydrogen (H2) for heating purposes, it's essential to focus on developments that go beyond the production aspect, such as electrolysis, and look more into how hydrogen is applied in heating systems. Key technologies that are shaping the use of hydrogen for heating include Combined Heat and Power (CHP) systems, the integration of CHP with heat pumps, and innovations in hydrogen transport such as tube trailer modifications (Ge et al., 2023).
Combined Heat and Power (CHP) Systems: CHP systems, also known as cogeneration systems, generate electricity and capture the heat that would otherwise be wasted to provide useful thermal energy. When these systems are powered by hydrogen, they offer a highly efficient use of fuel, which can significantly reduce greenhouse gas emissions compared to conventional fossil fuel systems. The efficiency of hydrogen CHP systems is particularly notable because they can achieve energy efficiency rates of over 80%, compared to traditional power plants which often have efficiencies around 50%. This makes hydrogen CHP a compelling option for district heating systems, industrial applications, and residential heating, especially in regions with high demands for both heating and power (Ge et al., 2023).
CHP combined with heat Pumps – main innovation of the H2Heat project. A significant innovation in the H2Heat project is the integration of CHP systems with heat pumps. This hybrid approach leverages the strengths of both technologies: the CHP system efficiently generates electricity and provides heat, while the heat pump can use a fraction of the electricity generated to extract heat from the external environment, thereby enhancing the overall efficiency of the system. This combination allows for greater flexibility and efficiency in temperature control and energy use, making it particularly effective in climates with variable heating needs. The integration also aims to maximize the utilization of green hydrogen, aligning with sustainability goals by reducing reliance on grid electricity and lowering carbon footprints.
Tube trailer modifications for hydrogen transport. The transport of hydrogen to various points of use, such as residential areas or industrial sites, is crucial for the widespread adoption of hydrogen heating technologies. Tube trailers, which are high-pressure tanks mounted on trailers, have traditionally been used to transport compressed gases. Recent modifications in these trailers include advancements in materials and engineering to safely and efficiently transport hydrogen. Innovations such as the use of lightweight composite materials help increase the payload and reduce transportation costs (Suvar et al., 2024). Moreover, advancements in tank design to handle higher pressures enable these trailers to carry larger quantities of hydrogen, improving the economics of hydrogen distribution and making it more accessible for heating applications.
The use of hydrogen for heating is advancing through innovative technologies that enhance energy efficiency and sustainability. The integration of CHP systems with heat pumps represents a forward-thinking approach to leveraging hydrogen's potential in heating, providing a model for future developments. Meanwhile, improvements in the infrastructure for hydrogen transport, like tube trailer modifications, play a crucial role in addressing logistical challenges, making hydrogen a more viable and attractive option for heating needs across various sectors. These technologies not only promise to improve the efficiency and sustainability of heating systems but also contribute to broader efforts to decarbonize energy systems globally.
One of the main characteristics that differentiate H2 from CH4 it is its minimum auto-detonation temperature, which is the temperature above which the gas can be ignite without any external influence. In the following picture you can appreciate the auto-detonation temperature for each kind of gas (Figure 1):

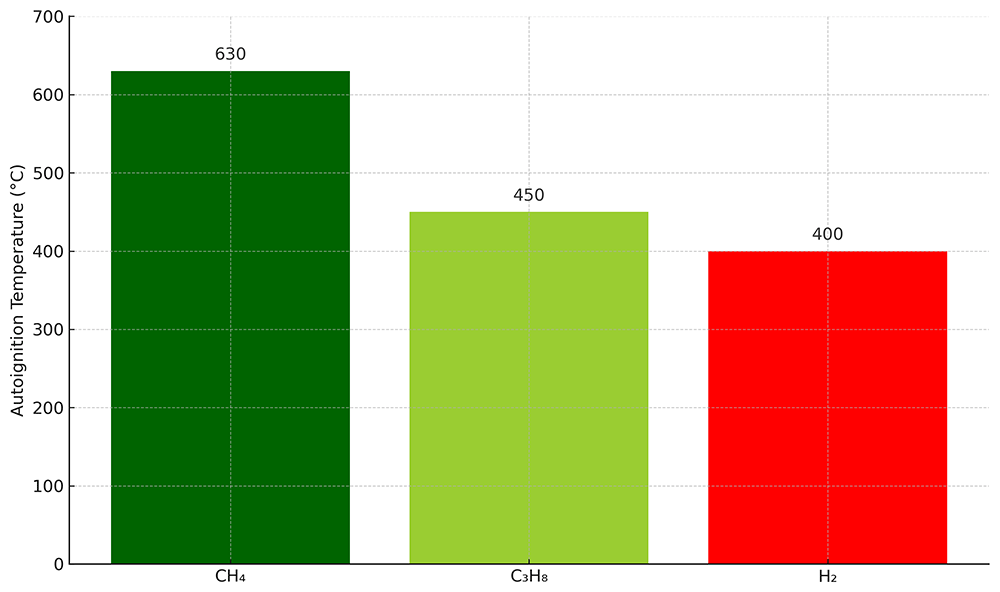

Figure 1. Comparison of autoignition temperatures for hydrogen (H2), methane (CH4), and propane (C3H8).
This figure highlights the lower autoignition temperature of hydrogen, which impacts combustion safety protocols in hydrogen heating systems. Within a combustion engine, the different basic consecutive stages, through which the gas passes before it reaches the combustion chamber of an engine, are : Airgas mixer, turbocharger, throttle valve and combustion chamber. As there is an increase of temperature in those stages, the probability of having ignition, and thus misusing the energy of H2 and having material damages is high. Therefore, the conventional way to prepare the gas for the engine with a conventional CHP only allows 10% of H2 mixed with CH4.
2G has been working on special materials achieving that the Agenitor 2G engine allows until 30–40% (depending on the quality of the natural gas) of H2 through the conventional way.
For 100% of H2, without any mixture, 2G designed special injectors which allow the mixture H2-air in the combustion chamber and thus uses the maximum energy from the gas.
For the H2Heat project 2G proposes the Agenitor404 cogeneration unit. The unit needs 101,8m3/h H2 to produce 115Kw electric and 129KW thermal power.
2G proposes an adapted double Heat Pump system to create a high water temperature heater of up to 82°C. It is not possible to reach this temperature with a single air-to-water heat pump. The first, air-to-water heat pump, raises the water temperature from 30°C to 35°C. The second, water-to-water Heat Pump, will use this water at 35°C as a heat source to raise the water temperature to 82°C.
Combined Heat and Power units (CHP) have been conceived to use all the energy of the engine, which produces electricity through the generator, and all the hotness produced during the process in the engine and in the exhaust gas, is harnessed in form of heat. Thus, almost all the energy contained in the gas is used in form of useful energy.
On the other hand, the heat pump produces heat energy out of electricity, with the special feature of increasing the thermal output compared to electricity. This means that with a heat pump we obtain a thermal power output that is twice or more the electrical power input.
In an application like an hospital, where heat energy is most demanded, the combination of both technologies allows the production of heat in the most efficient way. Thus with an engine of 115KW electric and 129KW thermic (total power 244KW), we will achieve 350KW heat power using hydrogen as fuel.
We present a renewable high efficiency energy production, which can be feed with the surplus energy from the renewable production of a wind power plant.
Identify and analyze challenges. Despite the promising technological advances, several challenges remain that impede the broader adoption of hydrogen as a heating solution. One of the primary challenges is the cost associated with the production of green hydrogen. Although technological improvements have reduced costs to some extent, the production of hydrogen through electrolysis remains expensive due to high energy requirements and the cost of electricity from renewable sources. This is compounded by the need for substantial investments in infrastructure to support large-scale hydrogen production and distribution.
Regulatory barriers further complicate the deployment of hydrogen technologies. The lack of harmonized standards and regulations across different regions creates uncertainty for investors and operators. Without clear and consistent regulatory frame-works, the risk associated with large-scale deployment of hydrogen technologies remains high, discouraging investment and innovation in this area.
Detealy expanding on the challenges and barriers to the deployment of hydrogen technologies for heating, there are several factors to consider that complicate its adoption compared to direct use of renewable electricity and other energy sources:
Cost and efficiency of direct heating with renewable electricity. Directly using renewable electricity for heating, such as through electric resistance heaters or heat pumps, can be cheaper and more efficient in certain contexts. Heat pumps, in particular, offer high efficiency by transferring heat rather than generating it, often resulting in lower operational costs compared to producing hydrogen through electrolysis and then using it for heating.
Hydrogen conversion and heat production efficiency. Hydrogen's role as an energy carrier involves conversion losses. Electrolysis itself is only about 60–80% efficient, and additional energy is lost when hydrogen is converted back to electricity or heat, making it less efficient compared to direct heating methods or heat pumps powered directly by renewable energy.
Safety concerns. Hydrogen poses significant safety challenges due to its high flammability and smaller molecular size, which can lead to leaks. For combined heat and power (CHP) systems that use hydrogen, these risks necessitate robust safety measures, complicating deployment and increasing costs.
Standards and regulations. The deployment of hydrogen technologies requires high safety and operational standards. The lack of harmonized standards and specific regulations for hydrogen use in different regions creates barriers for consistent deployment and increases the investment risk.
Noise issues. Both electrolysis equipment and CHP systems can generate significant noise, which may require additional mitigation measures to be acceptable in residential or commercial areas.
Regulatory and permitting hurdles. National and local regulations and the permitting process for new technologies like hydrogen installations can be cumbersome and slow, posing significant barriers to rapid deployment.
Public opposition. There can be substantial public resistance to new technologies, especially those involving flammable or hazardous substances like hydrogen. Public concerns about safety, environmental impacts, or changes to local landscapes can delay or block projects.
Life cycle carbon emissions. Assessing the full life cycle carbon emissions of hydrogen production, especially if not all electricity used is sourced from renewables, is crucial. It's necessary to evaluate whether using hydrogen for heating results in a net reduction of greenhouse gases compared to other heating technologies.
Comparison with other carriers like methanol. Methanol can also be used as an energy carrier and has some advantages over hydrogen, such as being liquid at room temperature, which simplifies storage and transport. Evaluating whether hydrogen or methanol (or another carrier) is the best option for heat production requires a comprehensive analysis of efficiency, safety, infrastructure, and environmental impact.
The environmental impact of hydrogen production, particularly blue hydrogen, which involves carbon capture and storage (CCS), is a subject of ongoing debate (Faber et al., 2025; Lan & Yao, 2022). While blue hydrogen is seen as a stepping stone towards a hydrogen economy (Idris-Idah et al., 2024), concerns about the efficiency of CCS technologies and the ultimate fate of captured carbon highlight the need for stringent environmental assessments and robust regulatory oversight.
These challenges underscore the need for a coordinated approach that includes technological innovation, regulatory reform, and public engagement to realize the full potential of hydrogen heating systems. Addressing these issues will require collaborative efforts from government bodies, industry stakeholders, and the research community.
Explore Opportunities for Advancement. The challenges identified present significant opportunities for advancement in the field of hydrogen heating. The increasing focus on decarbonization globally provides a strong impetus for the development and deployment of hydrogen technologies. Governments and international agencies can play a pivotal role by providing funding for research and development and by establishing incentives for the adoption of hydrogen technologies, such as subsidies, tax breaks, and grants.
There is also an opportunity to leverage advancements in renewable energy technologies to reduce the cost of green hydrogen production. As the cost of solar and wind energy continues to decline, coupling these energy sources directly with electrolysis can make hydrogen production more economically viable. Moreover, the development of decentralized hydrogen production facilities can help reduce transportation costs and energy losses, making hydrogen more accessible for local heating applications (Cortez et al., 2024).
National-international partnerships can be instrumental in accelerating the development of hydrogen infrastructure. By sharing risks and resources, these partnerships can tackle large-scale projects that might not be feasible for individual entities. Such collaborations can also foster innovation through the exchange of knowledge and expertise between the domestic and international experience (Sokil et al., 2022; Zbarsky et al., 2020).
The H2HEAT project is an example, supported by the EU's Horizon program during 2023–2028, exemplifies a strategic initiative to harness the potential of hydrogen in transforming heating solutions within the commercial sector. This project demonstrates the complete value chain of green hydrogen production from renewable energy and its utilization in commercial building heating, particularly within hospital facilities in the Canary Islands.
The H2HEAT project features a robust consortium of participants, each contributing unique expertise to ensure the project's success:
Platform Oceanic of the Canary Islands (PLOCAN) - Coordinates the project, leveraging its maritime research facilities to support hydrogen production.
Esteyco S.A (EST) - Provides engineering expertise and integrates offshore renewable energy solutions.
Neodyne Ltd - Focuses on the advanced energy management systems essential for integrating hydrogen production with renewable energy sources.
Stargate Hydrogen Solutions OÜ - Specializes in the development of innovative electrolysis technologies, crucial for efficient hydrogen production.
2-G - Implements hydrogen-powered cogeneration systems that significantly enhance heating efficiency.
International Consortium of Research Staff Associations Ltd (ICoRSA) - Contributes to policy development and research dissemination.
Cluster Maritime Canaria (CMC) - Supports with maritime and logistical expertise, fostering regional development.
Canary Islands Health Service (SCS) - Acts as an end-user, applying hydrogen solutions to decarbonize hospital heating systems.
European Marine Energy Centre Ltd (EMEC) - Provides expertise in marine energy and its application in hydrogen production.
Government of the Canary Islands (GobCan) - Supports regulatory and policy frameworks to facilitate project implementation.
Scientific Park Lviv Polytechnic National University (SPLP) - Engages in research and development, particularly in materials and technology innovations for hydrogen applications.
The H2HEAT project aims to establish a replicable model for hydrogen production and utilization that could be extended across the Canary Islands and beyond. A schematic layout of hydrogen production facilities is presented in Figure 2.

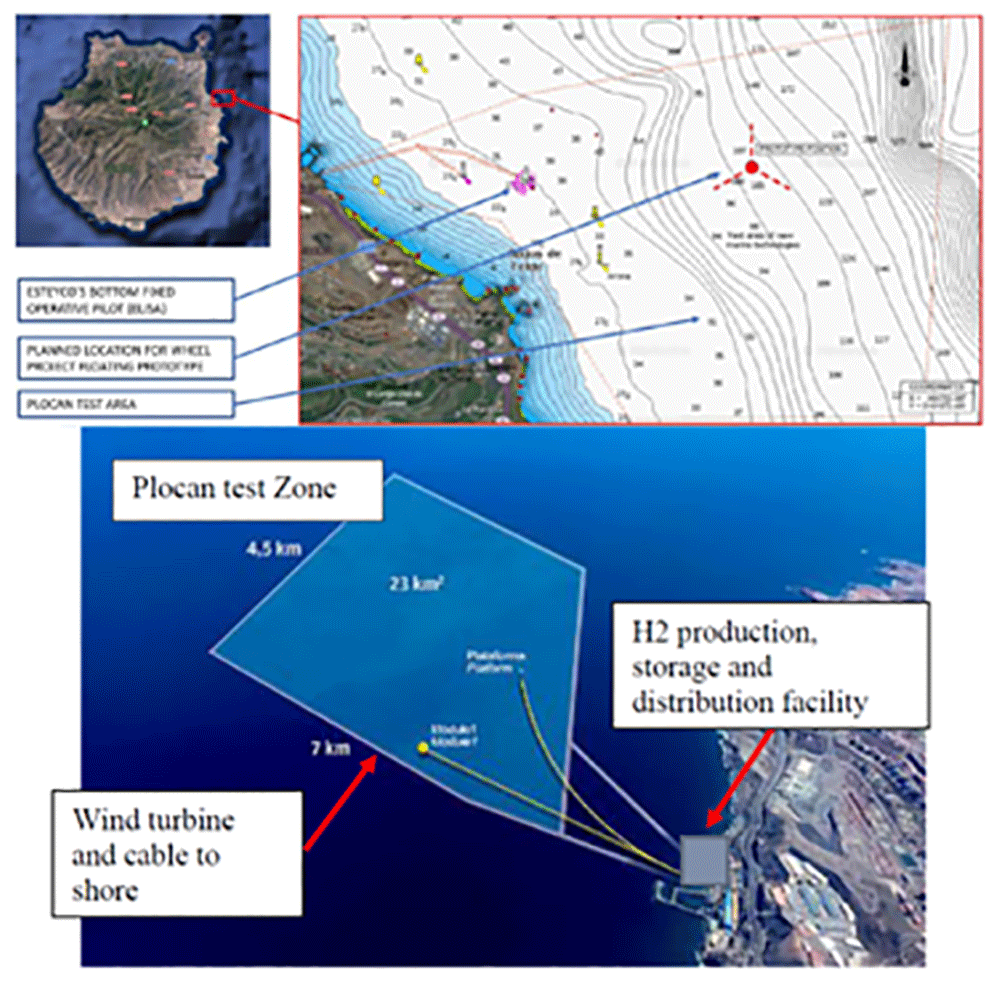

Figure 2. Schematic layout of the H2HEAT hydrogen production facility near Las Palmas, Canary Islands.
This facility uses offshore wind energy to produce green hydrogen via electrolysis, which is then used for heating applications. The figure shows the integration of renewable energy generation and hydrogen production infrastructure. The H2Heat facility near Las Palmas includes:
Innovative Production: Utilizing a 0.5MWh electrolyser developed by Stargate, the project will produce high-purity hydrogen and oxygen, leveraging renewable energy from Esteyco's turbines.
Advanced Cogeneration Technology: 2G's hydrogen-powered cogeneration technology will be employed to provide efficient heating solutions, demonstrating major advances in technology and integration.
Comprehensive Digital Integration: Featuring sophisticated control systems including energy management (EMS), demand management (DMS), and SCADA to optimize the hydrogen production and usage processes.
Environmental and Economic Benefits: The project supports the Canary Islands' 'Health Zer0 net Emissions Strategy 2030', aiming for deep decarbonization in the health sector and contributing to the broader EU goal of reducing greenhouse gas emissions.
This project not only addresses the technical feasibility of hydrogen in heating but also explores socio-economic impacts, regulatory challenges, and environmental benefits, paving the way for wider adoption and integration of hydrogen technologies in Europe and globally.
The present issues and conclusions already made stemming from the H2HEAT project underscore the necessity for robust planning and collaborative efforts to fully leverage the benefits of hydrogen technologies. To support the scalable and sustainable deployment of hydrogen-based heating technologies, the following strategic recommendations are proposed:
integrate hydrogen heating into broader national and international energy strategies, ensuring alignment with long-term decarbonization goals and sectoral interdependencies across electricity, gas, and heating networks;
establish harmonized safety protocols and regulatory standards to reduce operational risks and create a coherent legal environment that supports hydrogen deployment across different jurisdictions;
develop clear and practical guidelines for retrofitting existing infrastructure and constructing new hydrogen-compatible systems, addressing technical aspects such as material compatibility, system conversion, and safety monitoring;
promote targeted educational and public outreach initiatives to enhance public awareness, trust, and acceptance of hydrogen technologies, particularly in regions undergoing energy transitions;
increase public and private investment in research and development, prioritizing innovation in electrolyzer efficiency, hydrogen storage, and integrated heating system design to improve performance and reduce levelized costs;
encourage public-private partnerships and cross-sectoral collaboration to share risks, mobilize funding, and accelerate commercialization of hydrogen heating solutions;
support international cooperation and knowledge exchange platforms, enabling pilot project replication, standard-setting, and rapid diffusion of best practices across regions.
These recommendations aim to build an enabling ecosystem that facilitates the safe, efficient, and equitable integration of hydrogen into the global heating landscape. The implementation of the proposed measures requires a comprehensive strategy that integrates hydrogen heating into broader national and international energy plans, and takes into account the interdependencies between different energy systems and sectors to optimize the overall energy landscape and facilitate the transition to a low-carbon economy. An example of how such a strategy could be structured is shown in Figure 3.

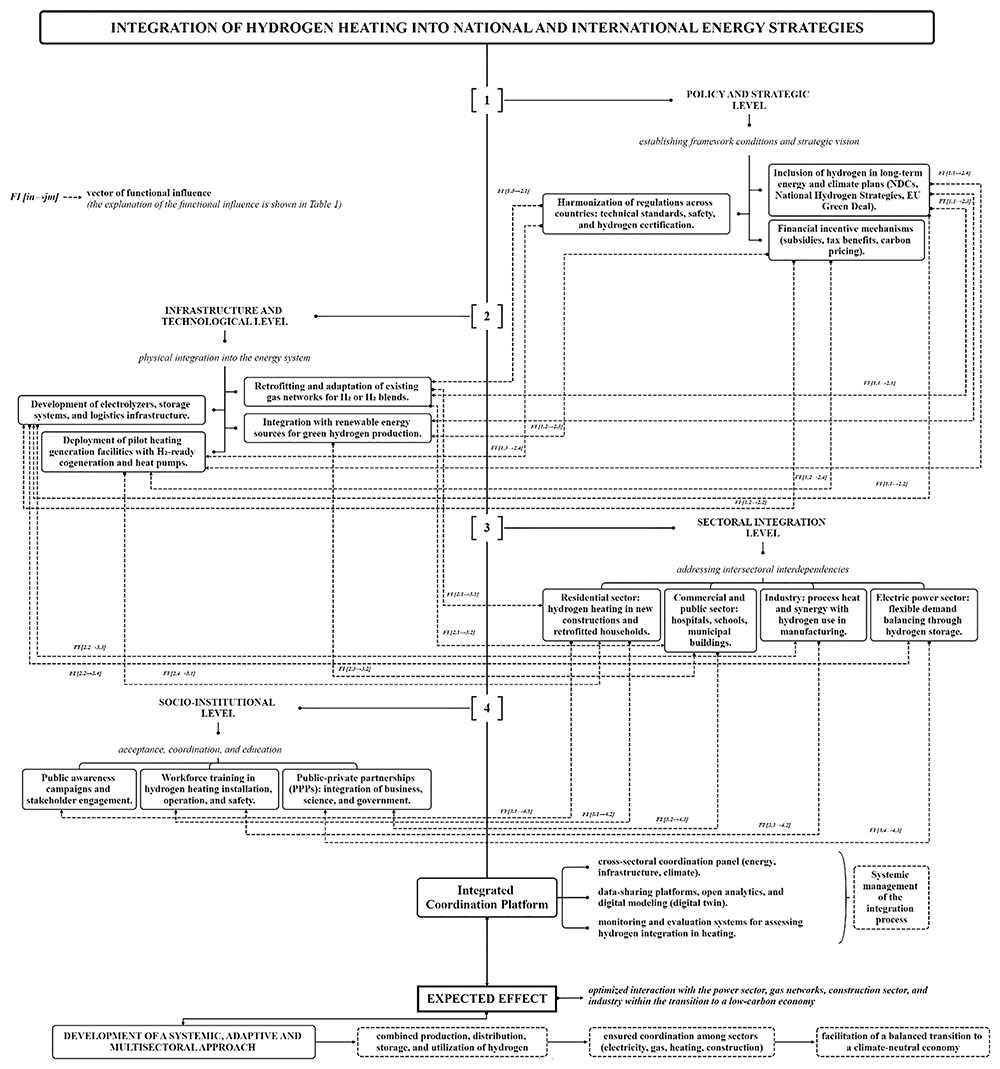

Figure 3. Strategic integration of hydrogen heating in national and international energy plans.
This figure illustrates the interdependencies between policy frameworks, infrastructure development, and technological advancements necessary for large-scale hydrogen adoption in heating applications. The strategic inclusion of hydrogen in long-term climate and energy policies directly supports infrastructure development by establishing a clear investment trajectory. Regulatory harmonization ensures that technical and safety requirements for hydrogen systems are standardized, enabling safe retrofitting of existing gas networks and large-scale deployment of hydrogen technologies. Moreover, financial mechanisms such as subsidies and carbon pricing create the necessary market conditions for accelerating capital-intensive projects, including electrolyzer installation, hydrogen storage, and the integration of renewable energy sources for green hydrogen production.
Comparative Analysis of Hydrogen Technologies for Heating: Boilers, CHP Units, PEM Fuel Cells, and Heat Pumps
In this section, we aim to provide a clear comparison between the core hydrogen technologies discussed in this paper—hydrogen boilers, Combined Heat and Power (CHP) units, Proton Exchange Membrane (PEM) fuel cells, and heat pumps. Each technology operates under different conditions, with varying costs, efficiencies, and readiness for deployment (Table 1).
Table 1. Comparative Analysis of Hydrogen Technologies for Heating.
| Technology | Efficiency (thermal) | Efficiency (electrical) | Typical Operating Temperature | Cost Drivers | Technological Readiness | Use Case |
|---|
| Hydrogen Boilers | 85–95% | N/A | 40–80°C | Installation, retrofitting, burner technology | Short-term | Residential & industrial heating with hydrogen or methane blends |
| CHP Units (Hydrogen) | 80–85% | 30–40% | 70–100°C | Infrastructure, hydrogen storage, cost of integration | Short-term | Large-scale industrial and district heating |
| PEM Fuel Cells | N/A | 40–60% | 50–90°C | Fuel purity, electrolyzer cost, system complexity | Long-term | Niche applications, off-grid, low-emission zones |
| Heat Pumps | 300–400% | N/A | 30–60°C (air-to-water) | Initial cost of heat pump, electricity cost | Short-term | Residential heating, district systems with direct renewable electricity |
Short-Term vs. Long-Term Deployment
1. Hydrogen Boilers: These systems are relatively mature and offer the quickest pathway to hydrogen adoption for heating. They are well-suited for retrofitting existing natural gas boilers and offer efficiency rates between 85–95%. These systems can be deployed in residential and small industrial settings with a focus on blending hydrogen with natural gas as a transitional solution. Given the current infrastructure and technical readiness, hydrogen boilers are considered short-term deployable.
2. CHP Units (Hydrogen): CHP units that use hydrogen can achieve both electrical and thermal efficiencies. These systems are particularly well-suited for industrial applications and large district heating systems where both power and heat are required. However, the cost of upgrading existing infrastructure to support 100% hydrogen or hydrogen-natural gas blends remains a significant barrier, making CHP units a short-term technology for regions with existing natural gas networks. They offer high operational efficiency and lower emissions, making them ideal for large-scale industrial use.
3. PEM Fuel Cells: PEM fuel cells convert hydrogen to electricity with high efficiency (40–60%) and are considered a long-term solution for specific applications, particularly off-grid or urban environments. They are ideal for small-scale, high-efficiency applications, but their high capital cost, need for hydrogen purity, and complex integration make them less suitable for large-scale heating projects at this stage. PEM fuel cells are best suited for long-term deployment, particularly as the technology matures and hydrogen production becomes cheaper.
Heat Pumps: Heat pumps, particularly when powered by renewable electricity, provide extremely high efficiency (300–400%) by transferring heat rather than generating it. They are currently the most cost-effective and energy-efficient solution for many heating applications, particularly in residential and small industrial systems. Since they rely on electricity, their deployment is more closely tied to the availability of low-carbon grid power or on-site renewable generation. Heat pumps are short-term deployable for residential heating and as part of district heating solutions.
1. Numerical Cost Comparisons
• €/kg H2: Provide a clearer numerical comparison of the cost of hydrogen production, specifically focusing on green hydrogen produced through electrolysis. For instance, as of recent estimates, the cost of producing green hydrogen ranges from €3 to €7 per kg in regions with low-cost renewable electricity (e.g., wind-rich areas). This price may decrease over the next decade as electrolyzer efficiency improves and economies of scale are achieved.
• CAPEX of Electrolyzers: The capital expenditures (CAPEX) for large-scale electrolyzers are a critical factor in the economics of hydrogen production. Presently, the cost of electrolyzers is around €800-€1,500 per kW of capacity. However, it is projected that the cost will fall by 30–40% by 2030 as technology scales and innovation in materials and manufacturing techniques progress. This will significantly reduce the cost of hydrogen production and improve its competitiveness against other energy carriers.
• Cost of Retrofitting Gas Grids: Retrofitting existing gas networks to accommodate hydrogen is an expensive but necessary step for large-scale hydrogen adoption. For example, estimates indicate that the cost to upgrade natural gas pipelines to hydrogen-ready infrastructure ranges between €2 billion to €8 billion per 1000 km, depending on the region and pipeline materials. However, this cost can be reduced through the use of advanced coatings, selective retrofitting, and hybrid gas blending approaches.
2. Regional Cost Variability Tied to Renewable Electricity Prices
• Electricity Prices and Regional Variability: The cost of green hydrogen is closely linked to the price of renewable electricity. For example (International Energy Agency (IEA), 2023):
° In regions with abundant solar or wind resources, such as the Middle East, North Africa, and parts of Southern Europe, the cost of electricity can be as low as €20-€30 per MWh, enabling hydrogen production costs of €2-€4 per kg.
° In high-latitude regions, such as Scandinavia or Canada, renewable electricity costs may be higher, closer to €40-€60 per MWh, leading to hydrogen production costs of €5-€7 per kg. These regional differences impact the economic viability of hydrogen and should be factored into policy and investment decisions.
3. Centralized vs. Decentralized Hydrogen Production Economics
• Centralized Hydrogen Production: Centralized production involves large-scale electrolyzers located near renewable energy sources (e.g., wind farms, solar fields). The economies of scale associated with centralized production can drive down the cost of hydrogen significantly, making this approach ideal for large-scale industrial applications or export. However, the cost of building hydrogen transport infrastructure (pipelines, tankers) can be significant and add to the overall cost structure.
Decentralized Hydrogen Production: Decentralized production refers to smaller, more localized electrolyzers that produce hydrogen on-site, often powered by local renewable resources. While the CAPEX per unit of installed electrolyzer capacity is higher compared to centralized systems, this model reduces transportation costs and can be advantageous for local heating applications or off-grid areas. Decentralized production is well-suited for residential or smaller-scale industrial heating needs but may face higher per-unit hydrogen costs due to the lack of economies of scale.
